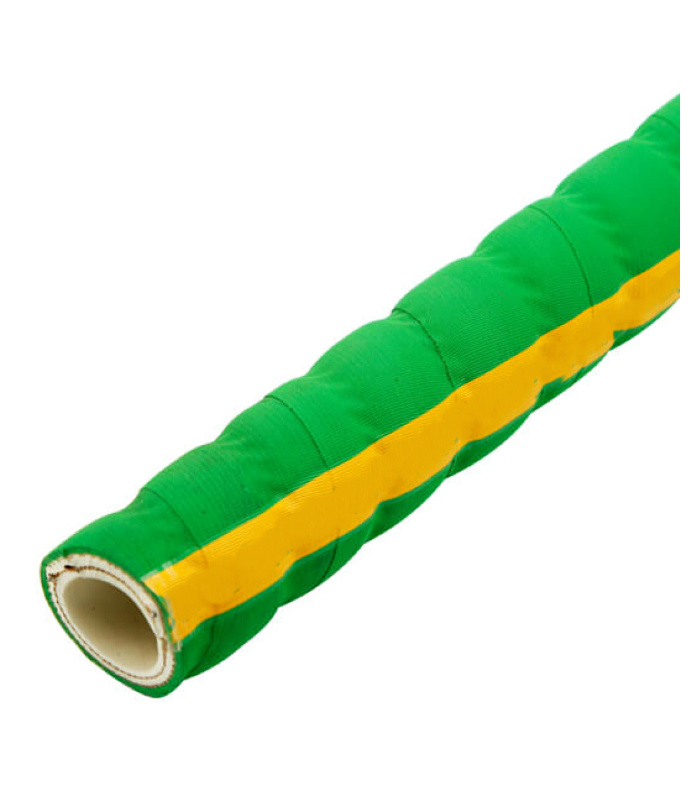

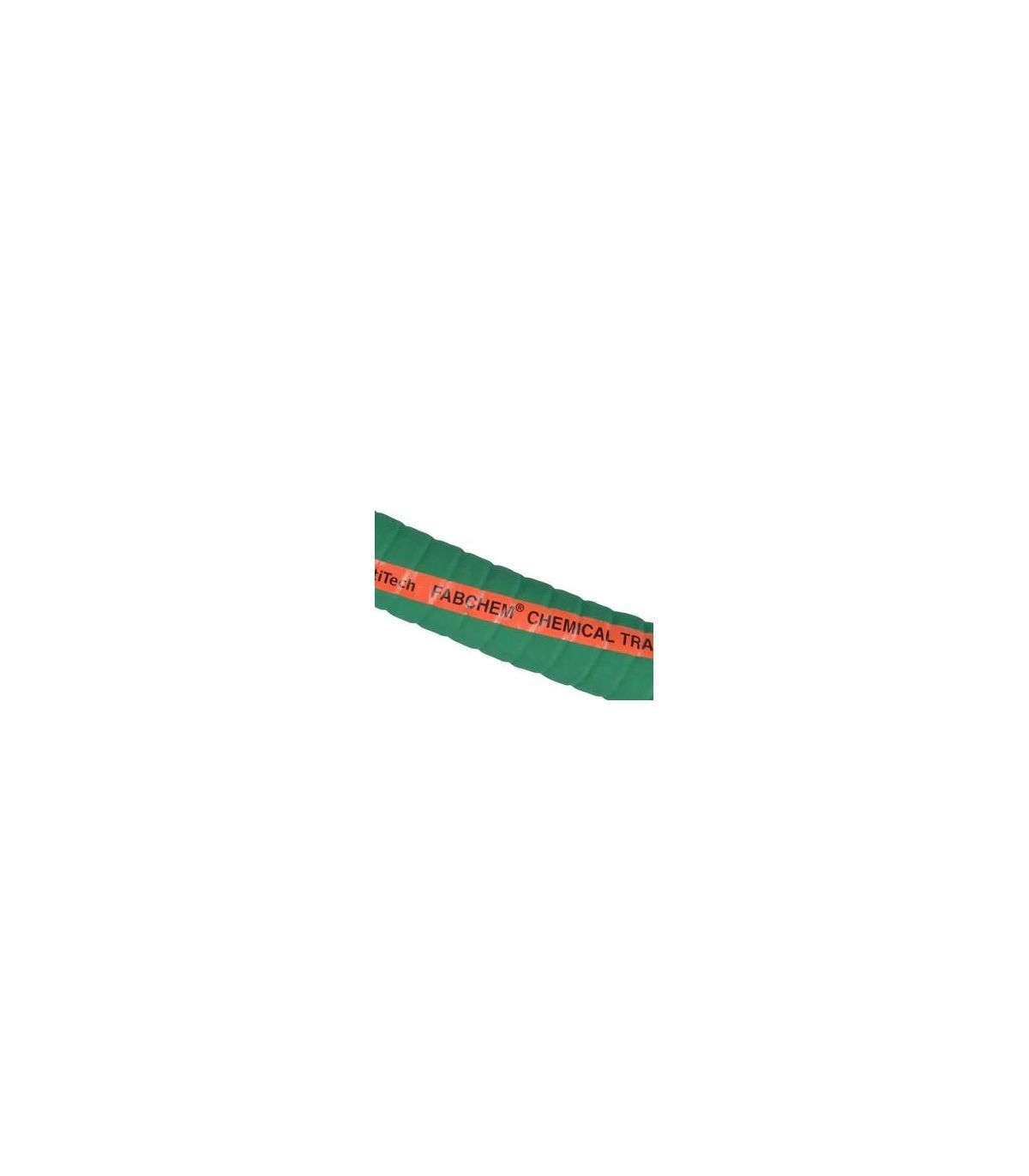

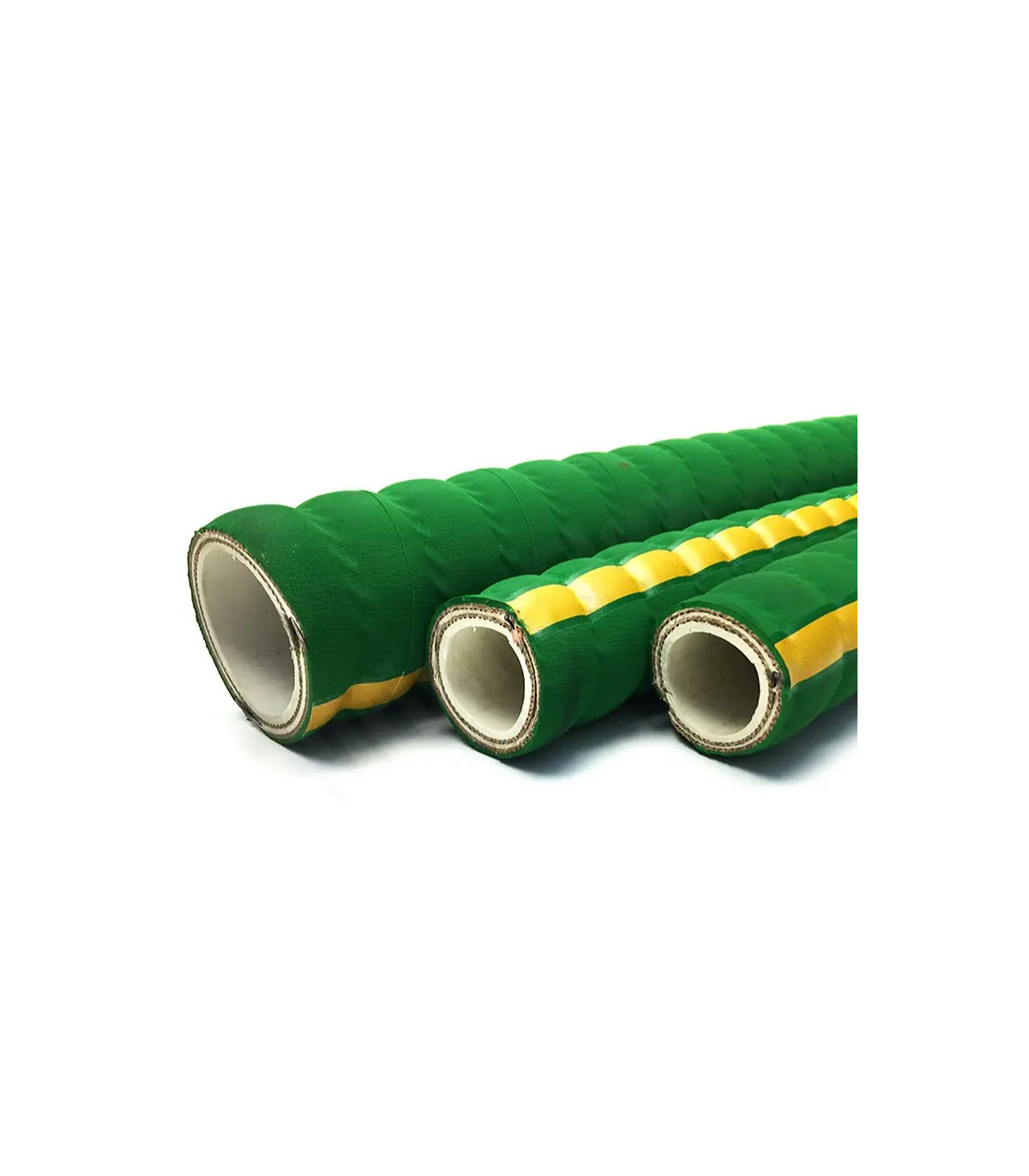

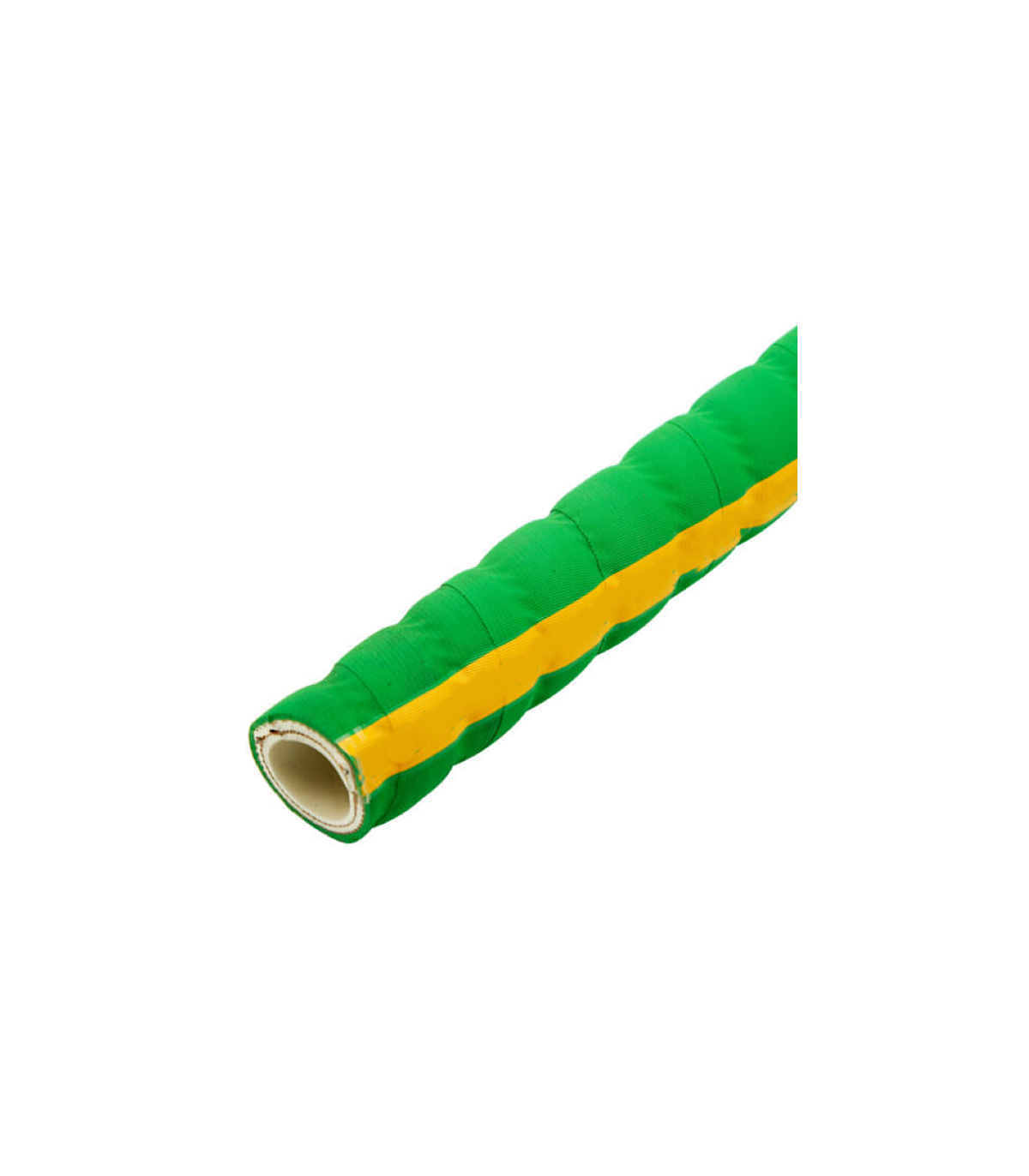

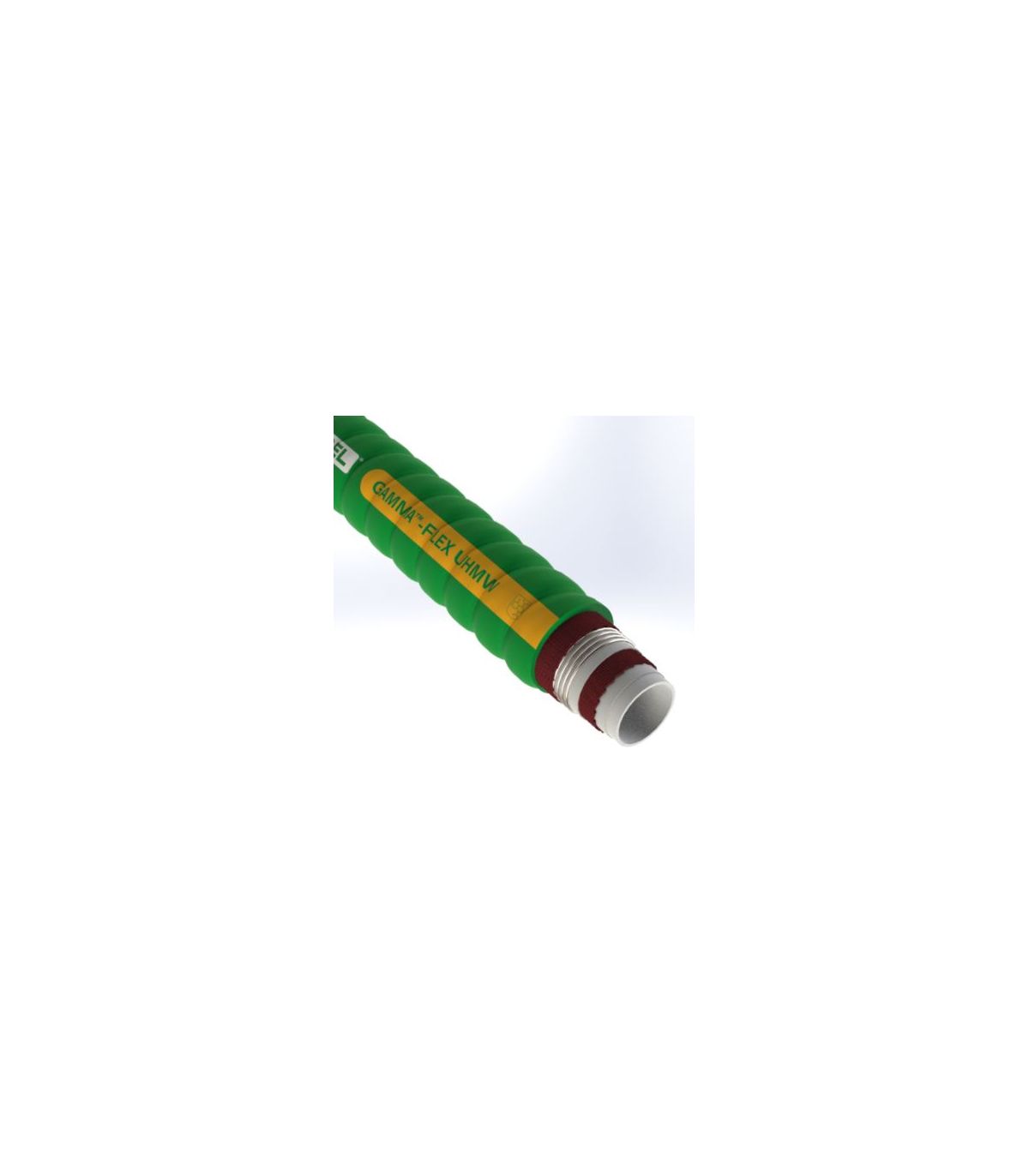

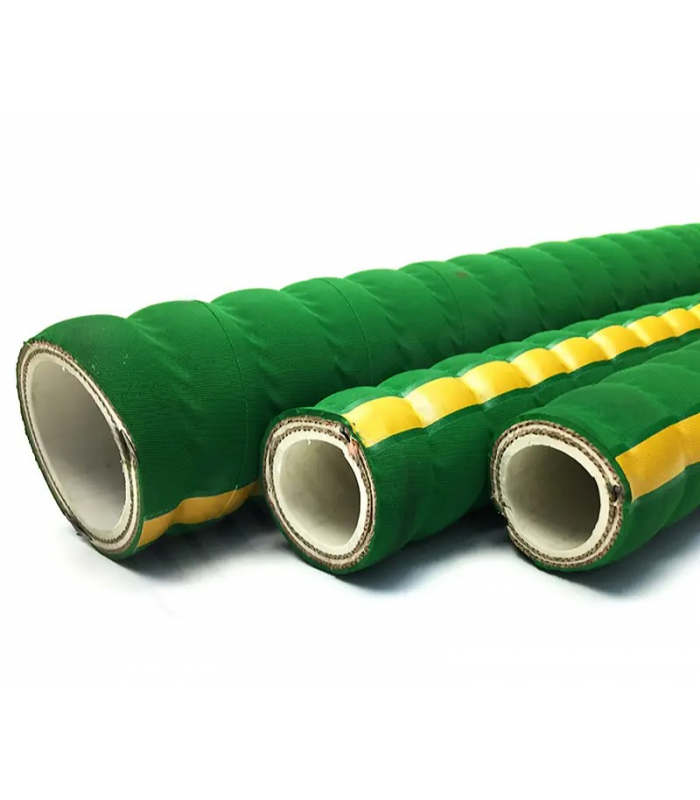

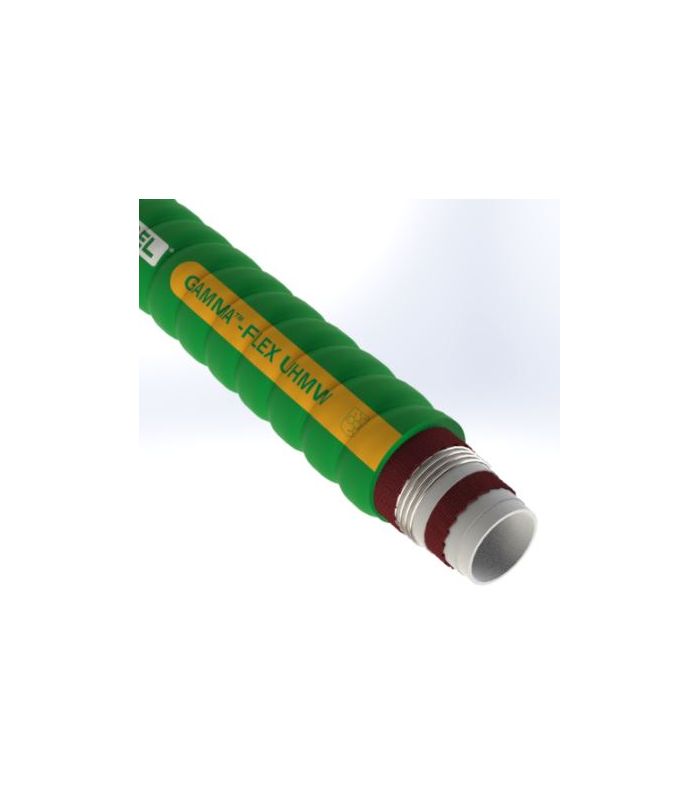

CHEMICAL SUCTION HOSE

The chemical suction and vacuum hose is specially designed to transport hazardous chemicals and prevent leaks.

They are used in chemical plants, refineries, wastewater treatment plants, environmental cleaning, laboratories, etc.

Technical specifications:

Mandrel-shaped tube for the suction and suction of a wide range of chemicals.
Great flexibility due to its corrugated cover.
Inner tube: Black antistatic UPE rubber resistant to most chemicals.
Reinforcement: High-tenacity synthetic braid. Double steel spiral.
Outer cover: Weather-resistant EPDM rubber. Green color. Wavy surface with a fine fabric print .
Pressure 16 bar
Temperature -25ºC / 70ºC

The selection is by inner diameter.

* Choose full rolls or linear meters, according to your needs *

€30.28 (tax included)

€25.02 (tax excl.)

DIAMETERS

DIAMETERS:

Width: metros

Height: metros

Quantity:

Add to Cart

Reference:

208300

Description
Comments

Description

Chemical suction and extraction hose

The chemical suction and vacuum hose is designed for the safe pumping and suction of chemical fluids, corrosive liquids and industrial products in applications where high chemical and mechanical resistance is required.

Main features

High chemical resistance to numerous industrial products
Suitable for suction and conveyance of liquids
Internal reinforcement to prevent vacuum deformation
Excellent flexibility and ease of handling
Resistant to abrasion, weathering and wear

Application sectors

Chemical industry
Pharmaceutical industry
Water treatment
Technical food industry
Manufacturing industry
Industrial maintenance

Technical data sheet for a chemical suction/suction hose:

Code	Inner diameter (mm)	Outer diameter (mm)	Weight kg/m	Thickness (mm)	Working pressure (bar)	Curve radius (mm)	Roll length (m)
208300	19	31	0.740	6.00	16	65	40
208301	25	37	0.910	6.00	16	80	40
208302	32	44	1,160	6.00	16	95	40
208303	38	51	1,440	6.50	16	110	40
208304	50	65	2,110	7.00	16	145	40
208305	63	78	2,700	7.50	16	170	40
208306	75	91	3,350	7.50	16	210	40
208307	90	105	4,050	7.50	16	270	30
208308	100	118	4,800	8.00	16	330	20

Product Details

Reference 208300

Specific References

upc: 1
