Q20 HOSE FOR CHEMICAL PRODUCTS
Q20 HOSE FOR CHEMICAL PRODUCTS
Q20 HOSE FOR CHEMICAL PRODUCTS
Q20 HOSE FOR CHEMICAL PRODUCTS
Q20 HOSE FOR CHEMICAL PRODUCTS
Q20 HOSE FOR CHEMICAL PRODUCTS
Q20 HOSE FOR CHEMICAL PRODUCTS
Q20 HOSE FOR CHEMICAL PRODUCTS

Q20 HOSE FOR CHEMICAL PRODUCTS

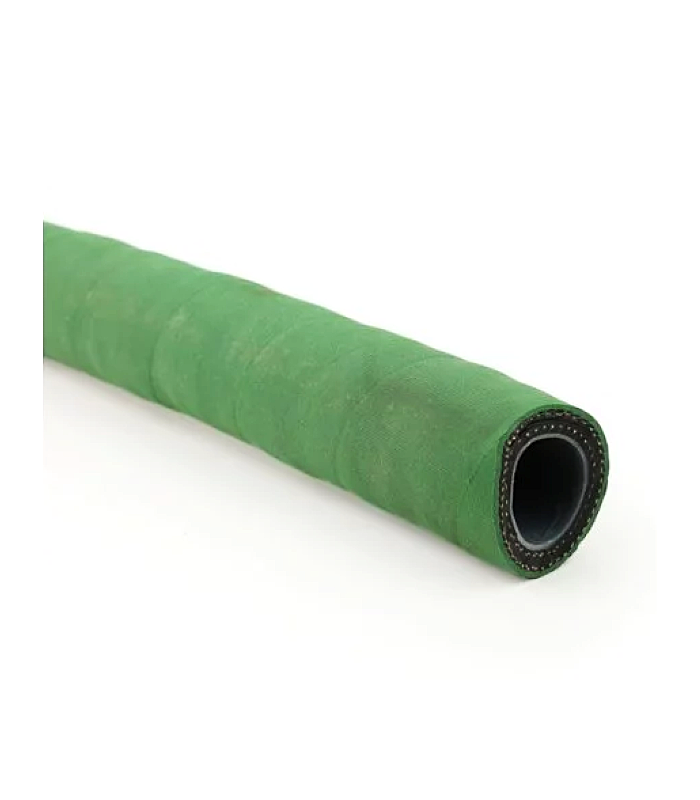

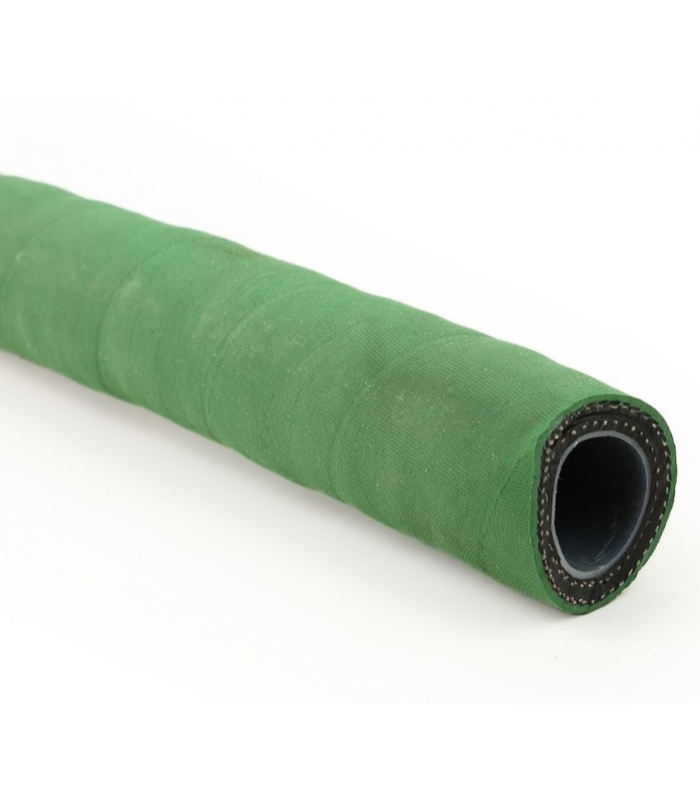

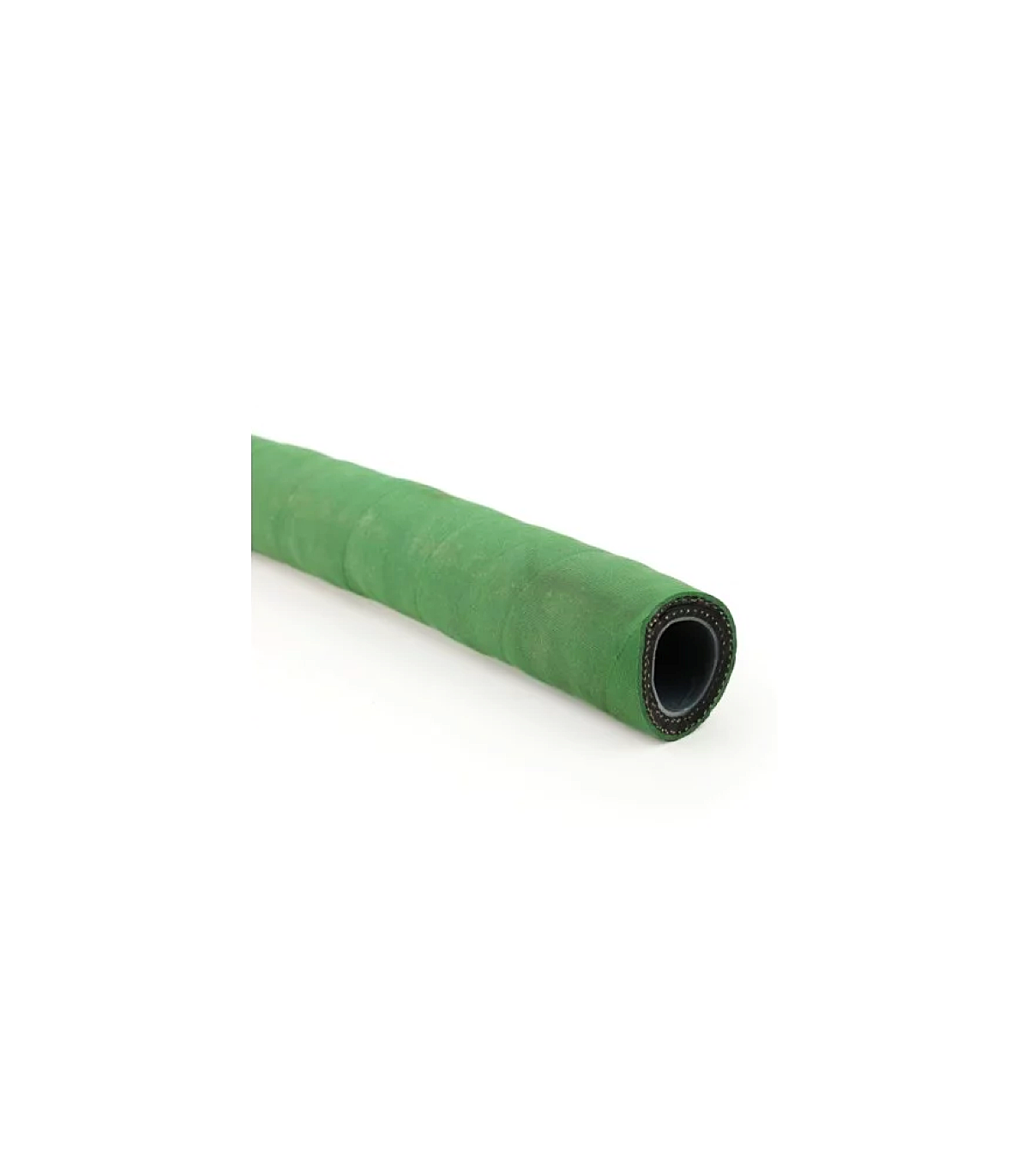

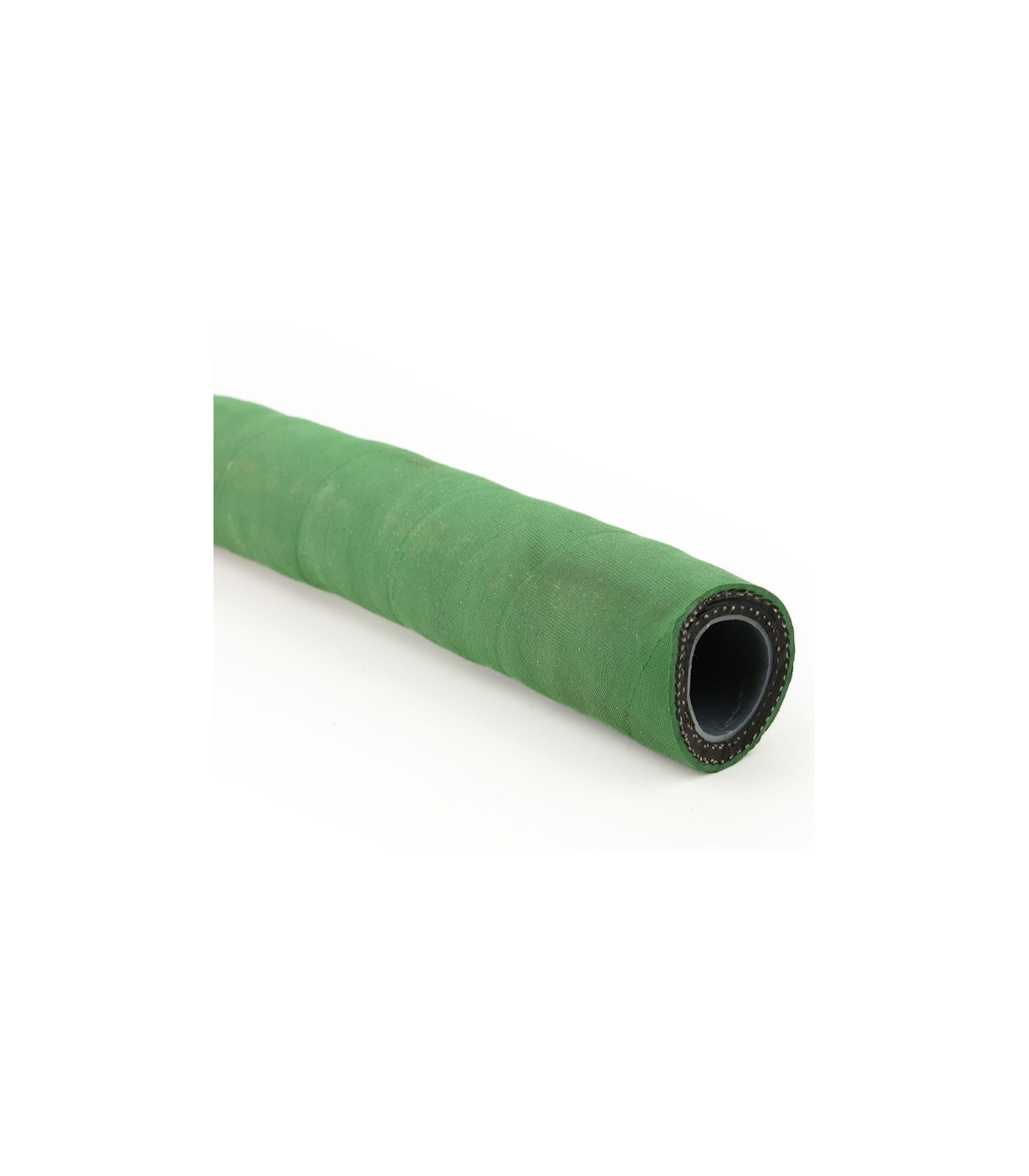

The Q20 chemical hose is a flexible and durable hose, designed to carry a wide range of aggressive chemicals.

It can be used for chemical transfer, container filling and emptying, equipment cleaning, and irrigation.

Main features:

  • Mandrel-shaped tubing for use with a wide range of chemicals.
  • Very flexible and manageable.
  • Inner tube: UPE rubber resistant to most chemicals.
  • High-tenacity synthetic braid.
  • Weather-resistant EPDM rubber outer cover. Green color.
  • Safety factor 3:1
  • Working pressure 20 bar.
  • Temperature -25ºC / 100ºC

The selection is by inner diameter.

Choose full rolls or linear meters, according to your needs

€10.02 (tax included)
€8.28 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 13
  • Ø 15
  • Ø 19
DIAMETERS:
metros
metros
Reference:
208200
Description

Q20 hose for chemicals

The Q20 chemical hose is a high-strength flexible pipe specifically designed for the safe pumping and transport of a wide range of corrosive and aggressive chemicals, offering an excellent combination of chemical resistance, flexibility, and safety.

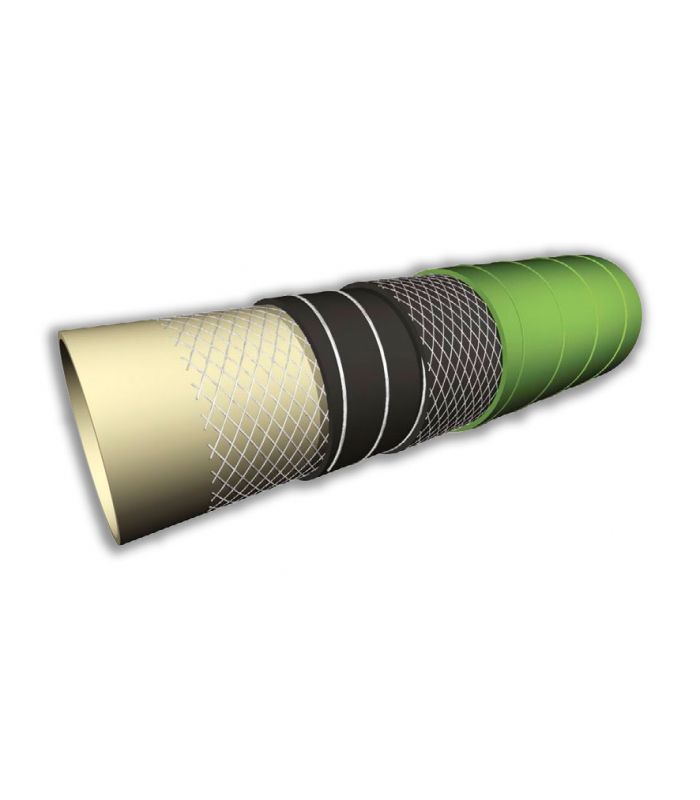

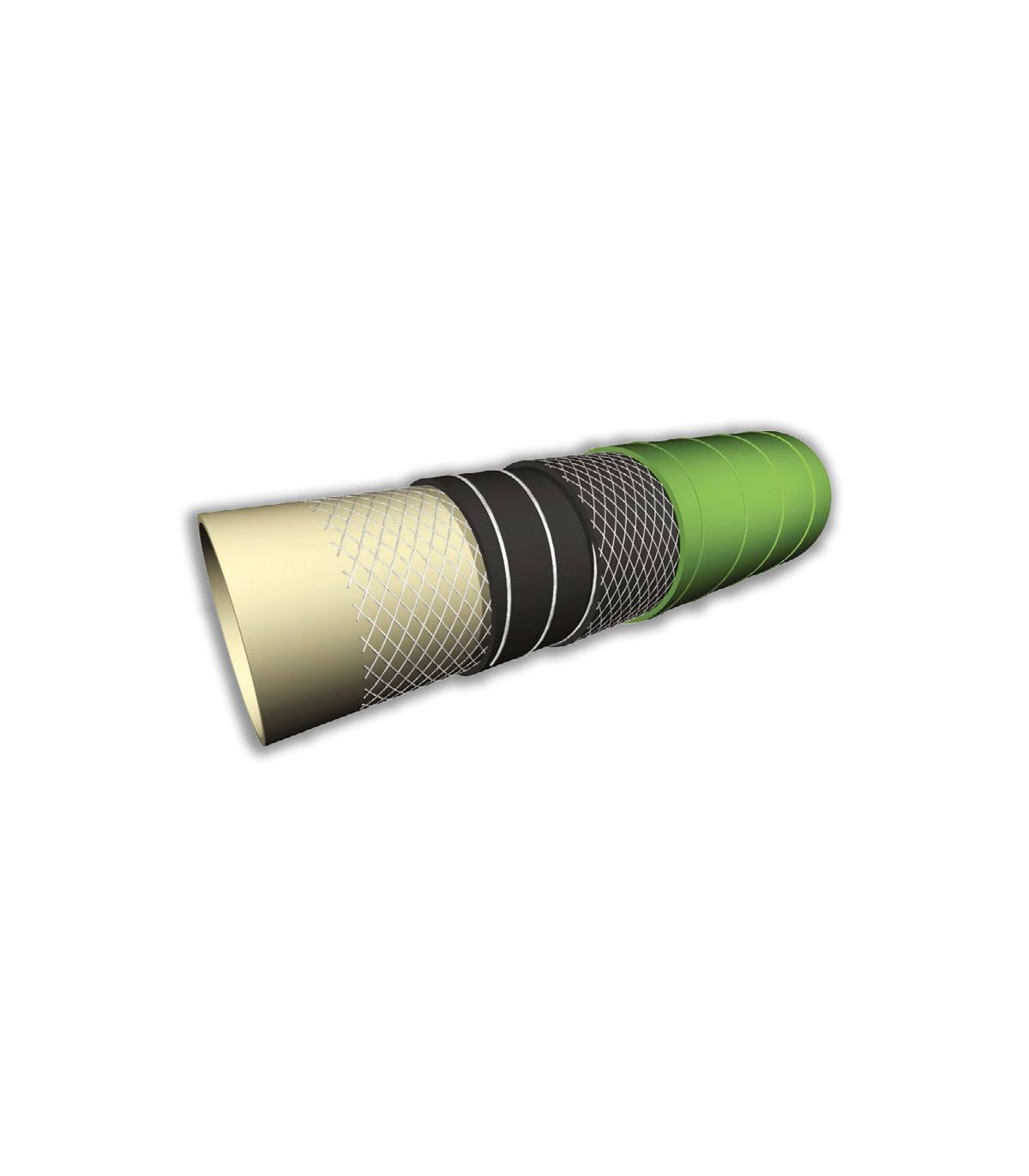

Its manufacture using an inner tube of UPE rubber provides high resistance to numerous chemical agents, while its high tenacity textile reinforcement guarantees good pressure resistance during service.

Main features

  • Resistant to a wide range of chemicals
  • Excellent flexibility and ease of handling
  • Good abrasion resistance
  • High mechanical resistance
  • Suitable for demanding industrial installations
  • Weather-resistant and age-resistant outer shell

Applications

The Q20 hose is suitable for:

  • Transfer of chemical products
  • Loading and unloading of tanks
  • Booster pumps
  • Industrial processes
  • Chemical plants
  • Water treatment
  • Agricultural industry
  • Industrial fluid handling

Technical data sheet for a Q20 chemical hose:

Reference Inner diameter (mm) Outer diameter (mm) Weight kg/m Working pressure (bar) Curve radius (mm) Roll length (m)
208200 6 13 0.160 20 50 50
208201 8 15 0.190 20 60 50
208202 10 18 0.250 20 75 50
208203 13 20 0.300 20 90 50
208204 15 24 0.360 20 110 50
208205 19 29 0.500 20 150 50

Product Details
208200

Specific References

upc
1
