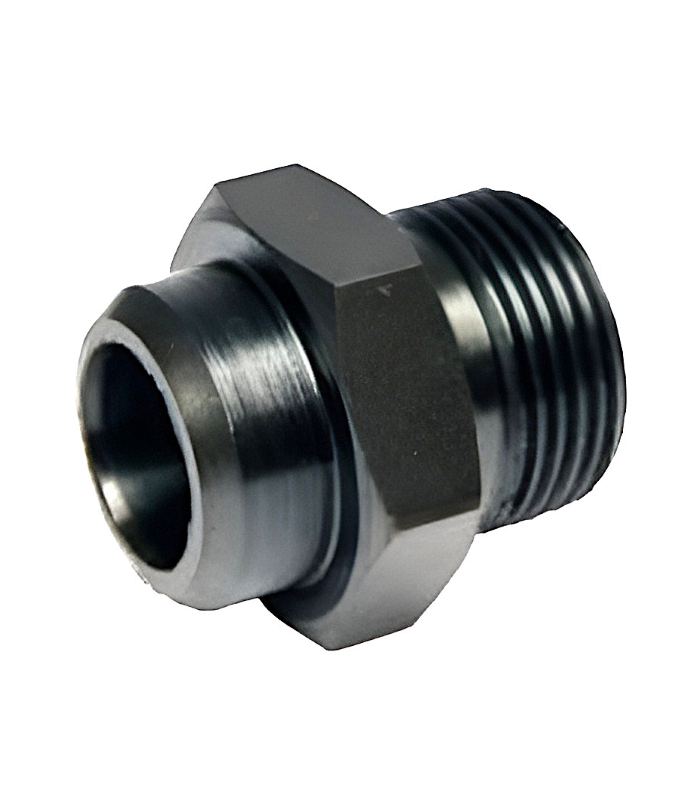

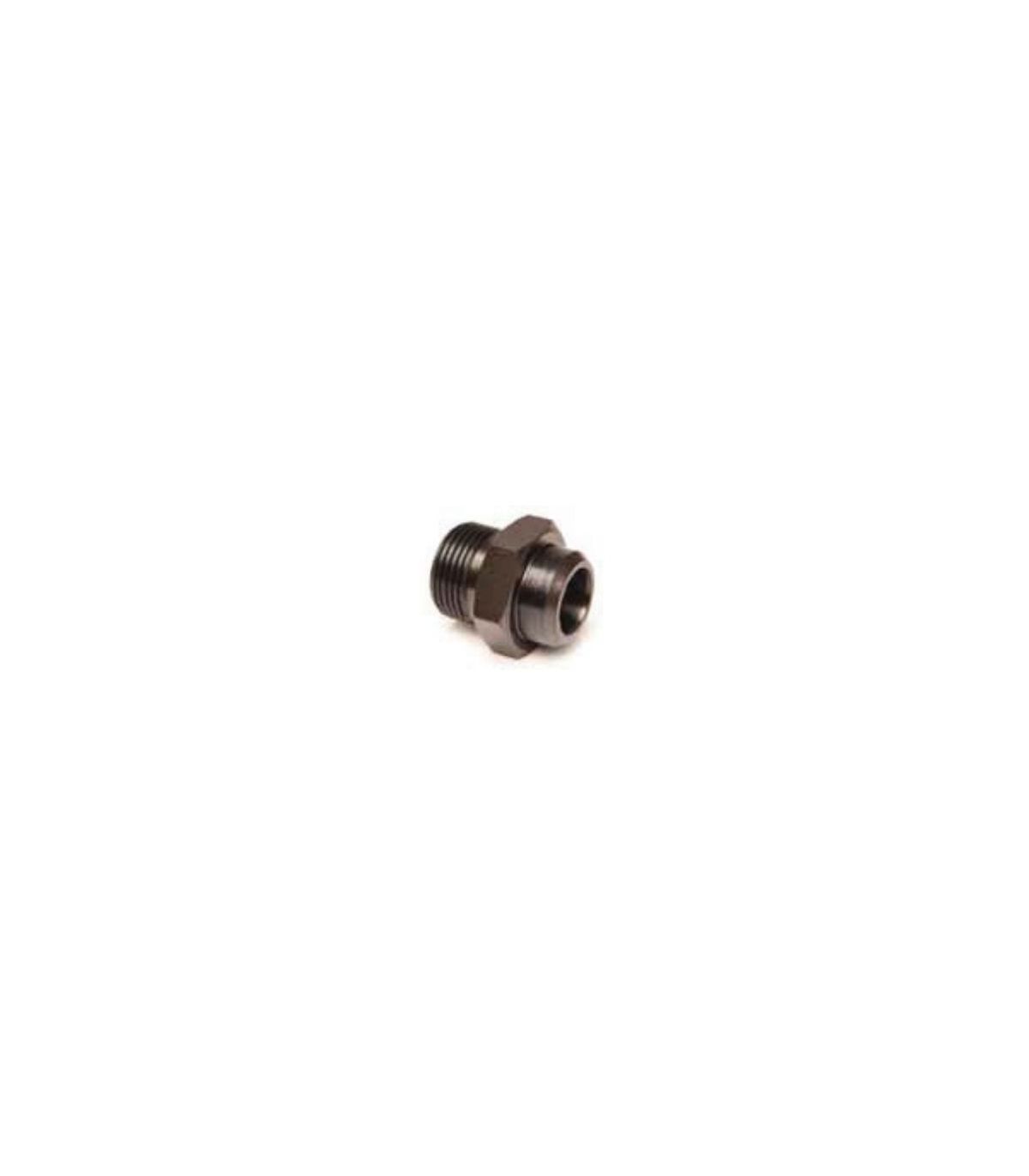

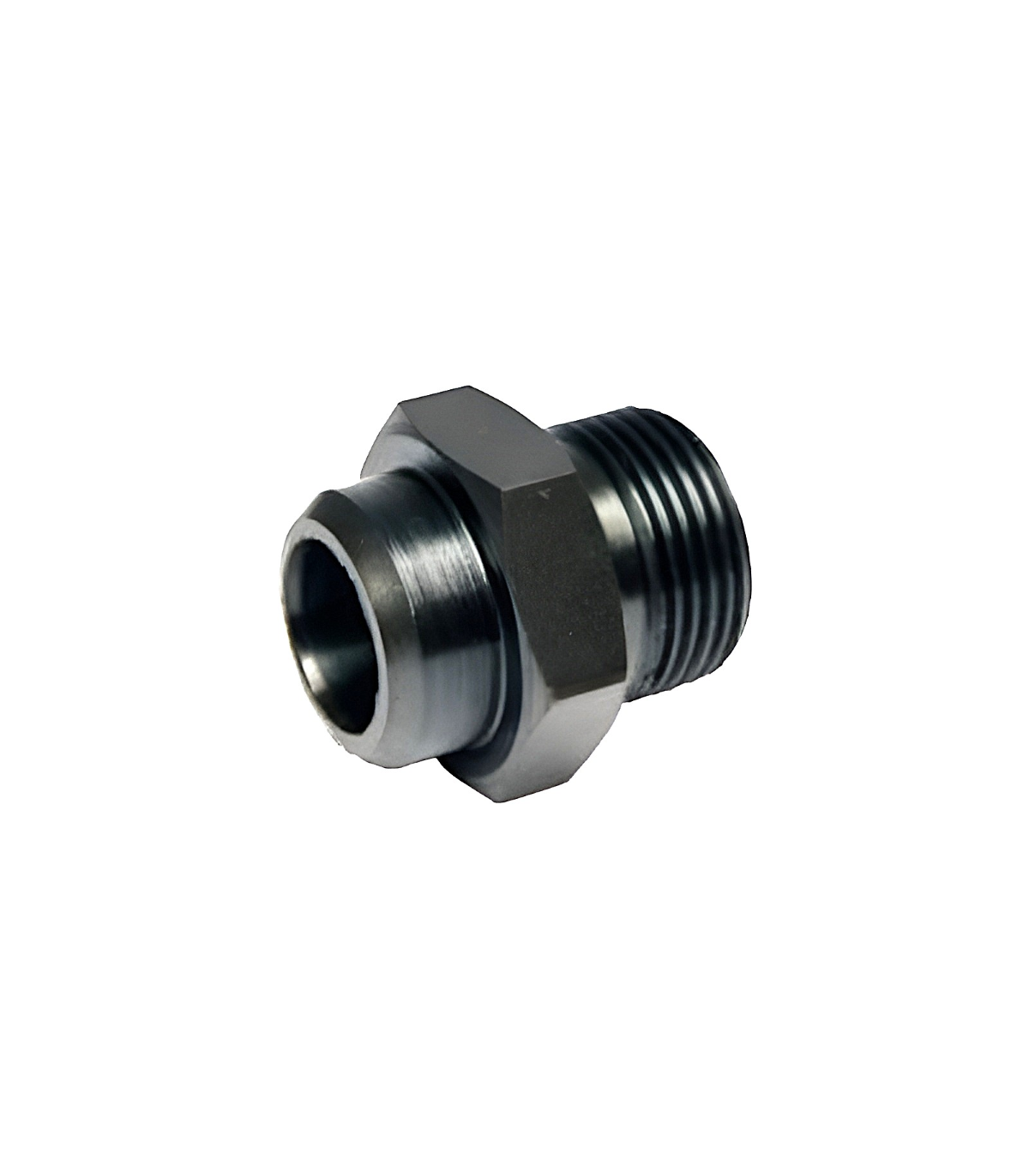

MALE SPLICE FOR WELDING HEXAGON
MALE SPLICE FOR WELDING HEXAGON
MALE SPLICE FOR WELDING HEXAGON
MALE SPLICE FOR WELDING HEXAGON
MALE SPLICE FOR WELDING HEXAGON
MALE SPLICE FOR WELDING HEXAGON

MALE SPLICE FOR WELDING HEXAGON

The hexagon male solder joint is used for connect a pipe by welding to a system with a female thread, providing a fixed, strong and watertight joint.

Applications: hydraulic machinery, chemical industry and refineries, process industry.

Main features:

  • 60° conical closure fitting with BSP thread.
  • Made of carbon steel.
  • Operating temperature -40 / 150ºC.
  • Working pressure 250 bar.
€1.34 (tax included)
€1.11 (tax excl.)
SELECT THE THREAD
  • 1/8"
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
Reference:
44140005
Description

Male splice to weld hexagon

A hexagon male weld fitting is a hydraulic transition component designed to permanently connect a pipe (by welding) to a threaded component (valve, pump, pressure gauge, or distributor block).

The key feature is its hexagonal body , which allows the use of a fixed or adjustable wrench to hold the piece while the coupled component is screwed on, avoiding transmitting torsional stresses to the weld.

This type of part is highly valued in hydraulic and fluid systems because it facilitates installation and maintenance.

Technical specifications

  • Threaded male connection
  • Smooth end for direct welding to pipe
  • 60° conical closure fitting with BSP thread.
  • Hexagonal area for tightening with a wrench
  • Manufactured in carbon steel

Application sectors

  • Chemical industry and refineries: Where welded joints are mandatory to prevent leaks of hazardous gases or liquids, but periodic valve maintenance is required.
  • Steam installations: Where thermal expansion causes simple threads to loosen, the pipe support is welded.
  • Hydraulic machinery: Used to adapt a rigid steel line to a threaded component.

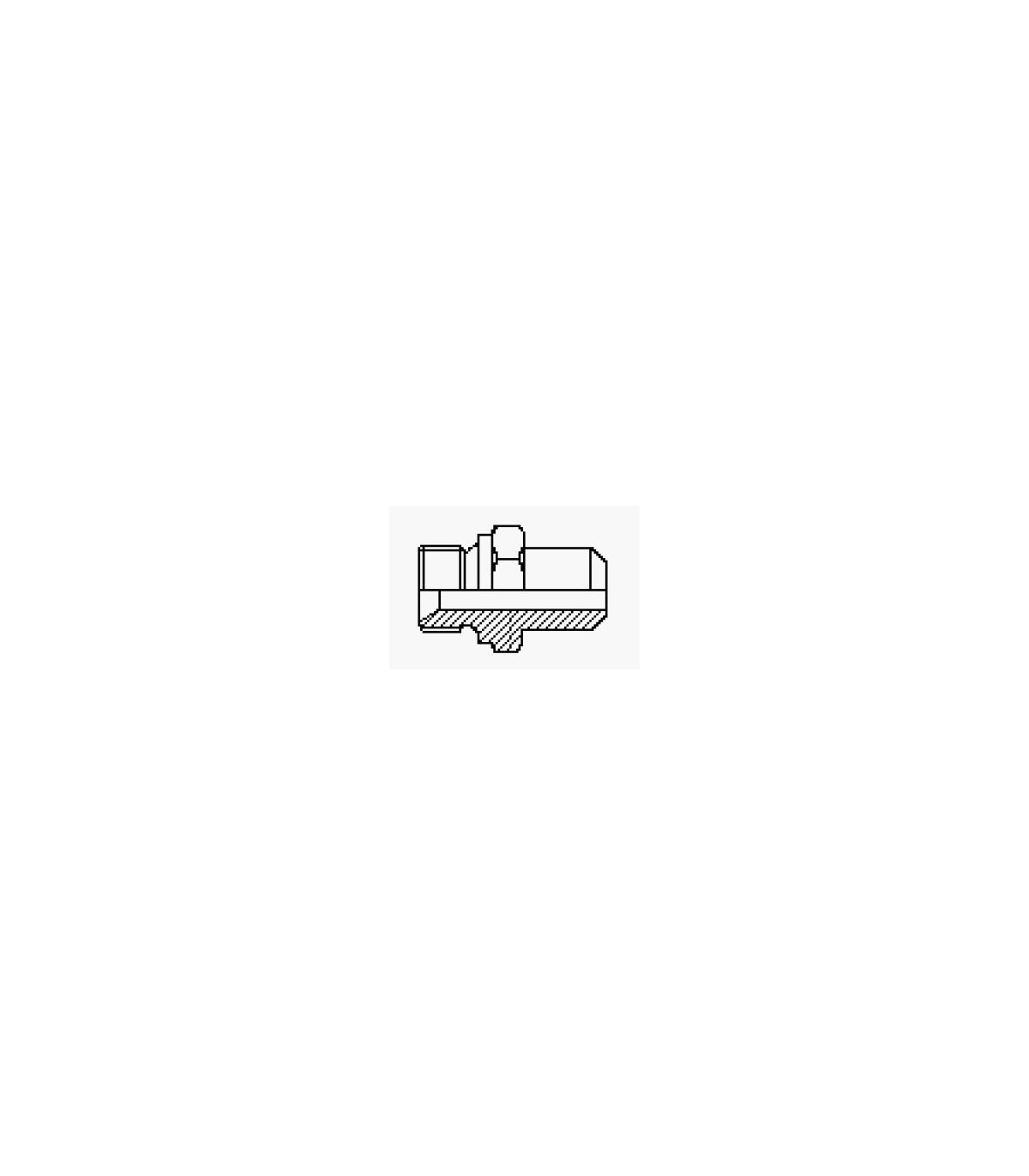

Technical data sheet for hexagon male welding splice:

EMPALME MACHO SOLDAR HEXAGONO

Product Details
44140005
