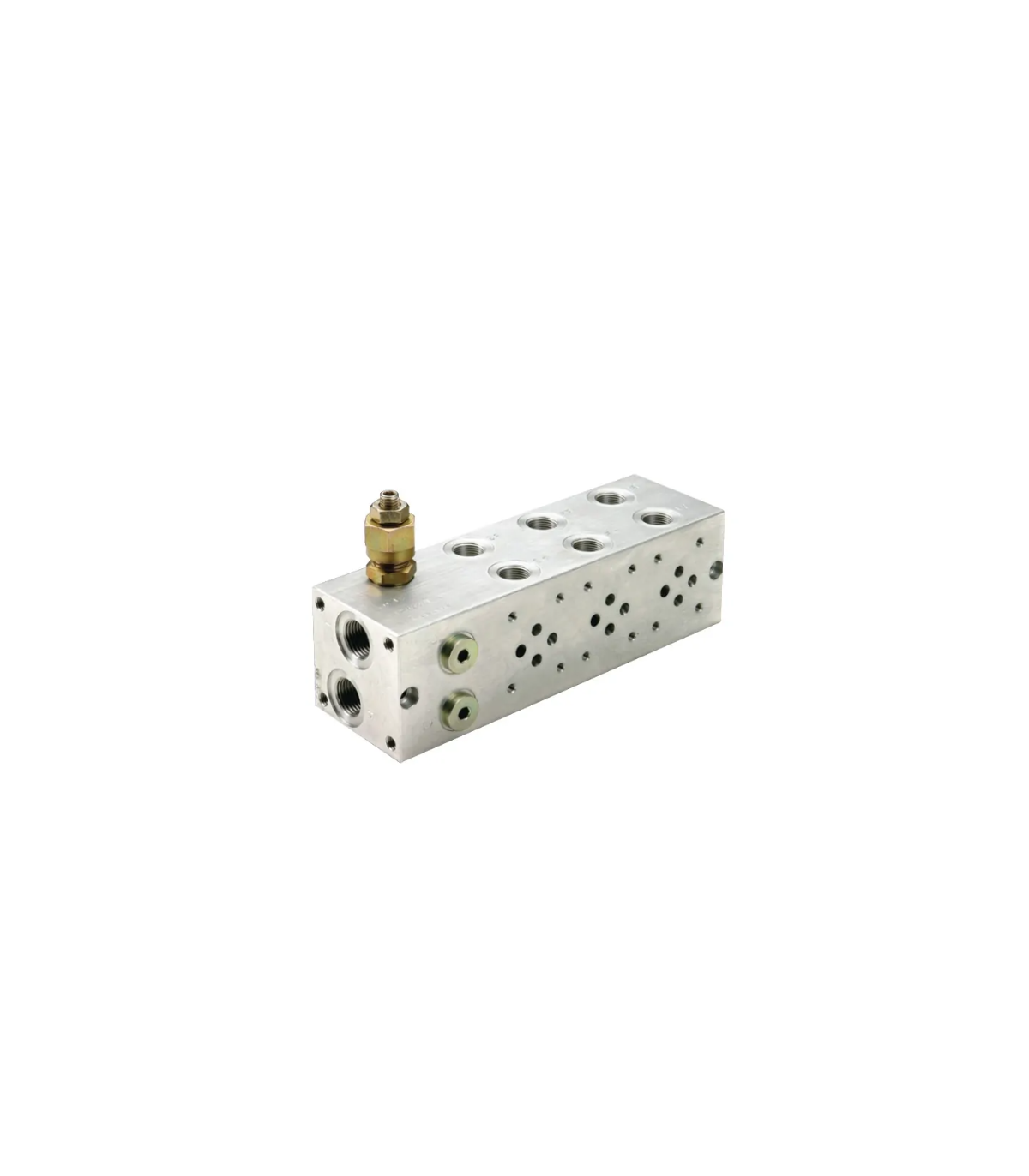

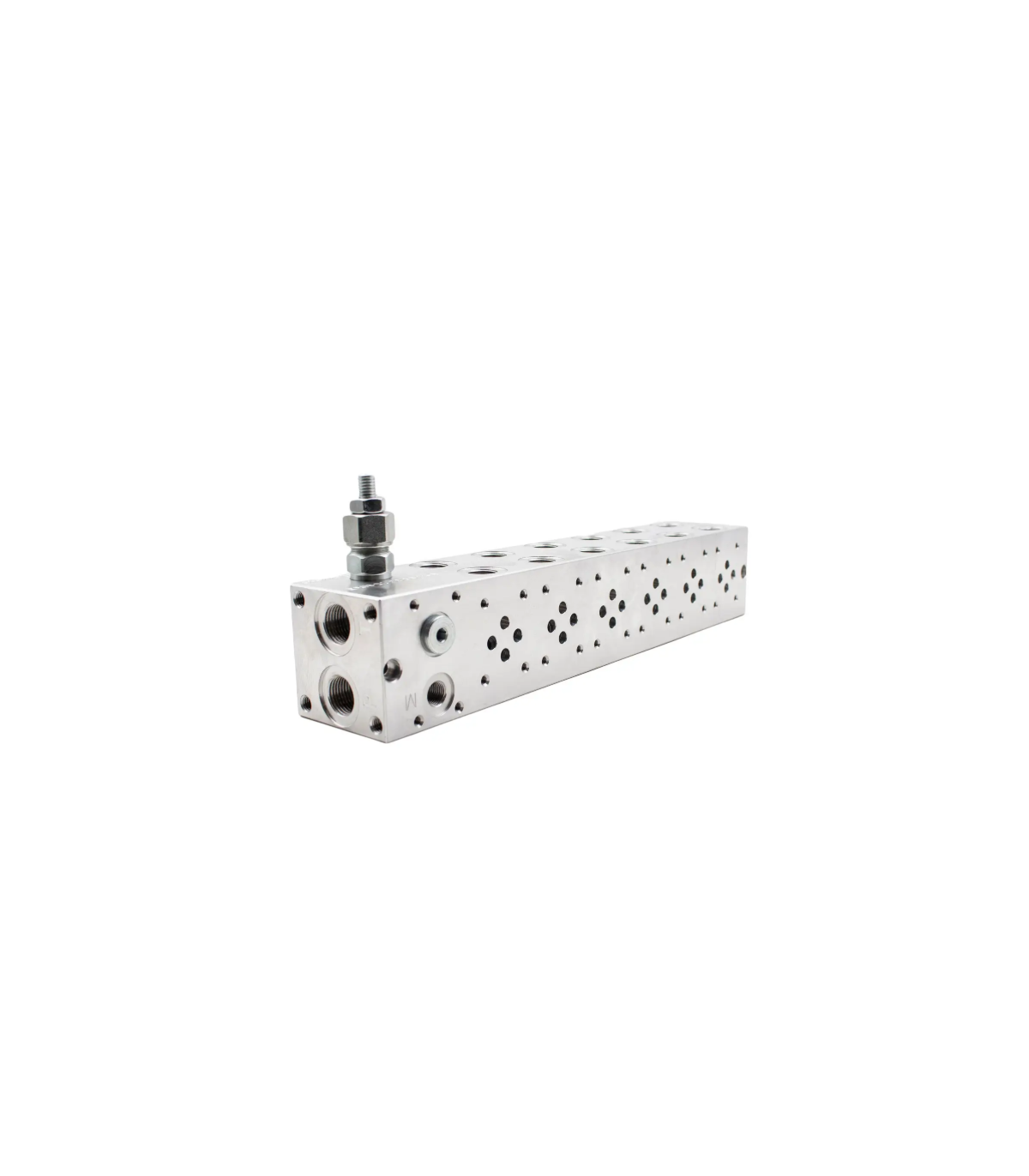

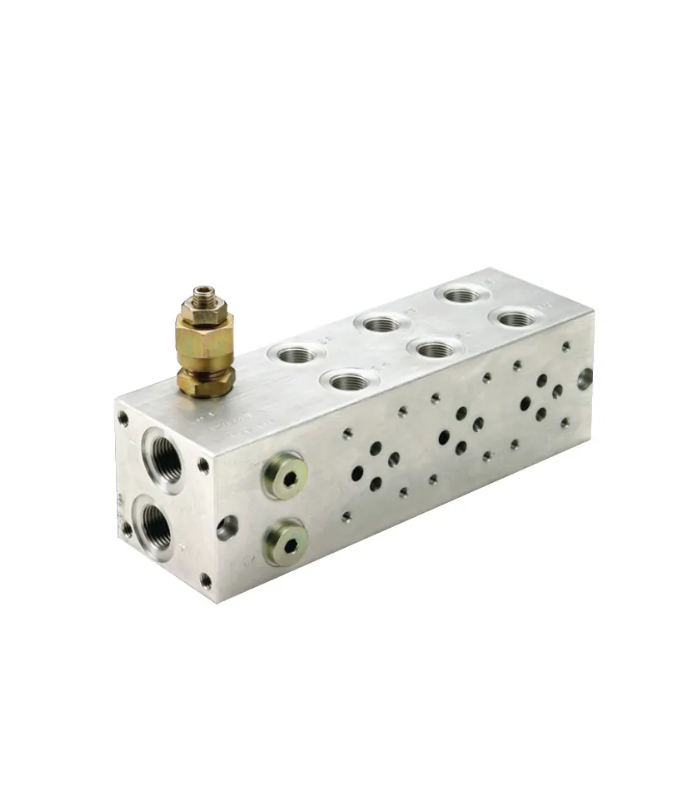

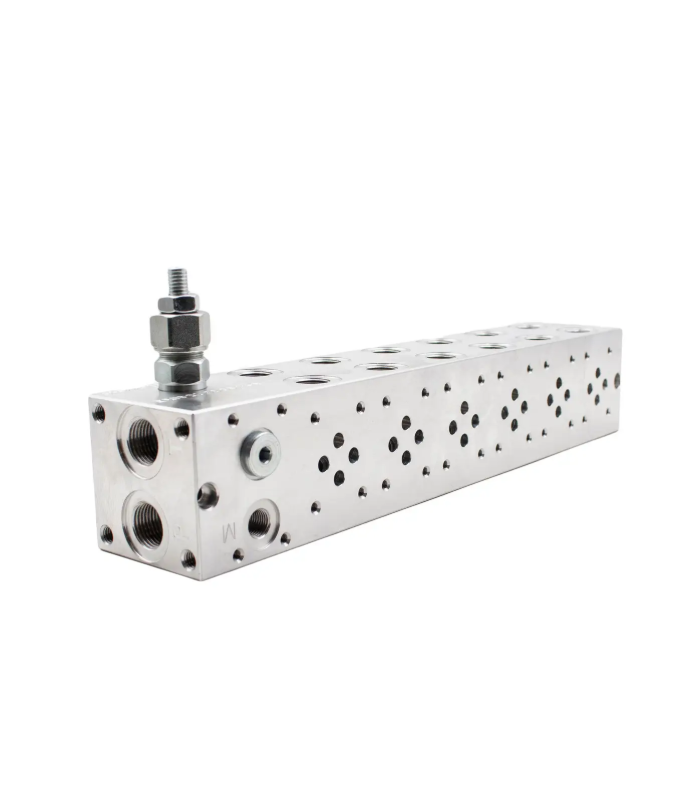

NG-6 BLOCK WITH LIMITER
NG-6 BLOCK WITH LIMITER
NG-6 BLOCK WITH LIMITER
NG-6 BLOCK WITH LIMITER

NG-6 BLOCK WITH LIMITER

An NG-6 manifold with a pressure relief valve is used to safely and efficiently mount and control multiple NG-6 solenoid valves. This type of manifold incorporates a pressure relief valve, making it an ideal solution for applications requiring precise system pressure control.

Applications: Machine tools, Pressing systems, Lifting systems, Mobile equipment, Industrial automation.

Technical sheet:

  • Size NG-6
  • Flow rate 40 l/min.
  • Possibility of taking a pressure gauge.
  • block of 1 to 8 seats.
  • Built-in pressure relief valve 50 to 215 bar.
  • AB 3/8" threaded outlets
  • 1/2" PT inlets
  • Maximum working pressure 350 bar.
€142.78 (tax included)
€118.00 (tax excl.)
OUTPUT TYPE
  • 1 POSITION
  • 2 POSITIONS
  • 3 POSITIONS
  • 4 POSITIONS
  • 5 POSITIONS
  • 6 POSITIONS
  • 7 POSITIONS
  • 8 POSITIONS
Reference:
4724502
Description

NG-6 block with limiter

BLOQUE NG-6 EV. VENTING Y LIMITADORA

Product Details
4724502
Comments
Related products
NG-6 SOLENOID VALVE OPEN CLOSED NG-6 SOLENOID VALVE OPEN CLOSED

€40.00 (tax excl.)
€48.40 (tax included)
An open-closed NG-6 solenoid valve is used to control the flow of pressurized oil. It is activated by an electrical signal, usually an electromagnetic coil. It has two positions: open and closed. Applications: Machine...
NG-6 BLINDING PLATE NG-6 BLINDING PLATE

€34.69 (tax excl.)
€41.97 (tax included)
An NG-6 blanking plate is used in hydraulic systems, specifically in NG-6 valve blocks. It is pressed into one of the cavities of an NG-6 block to seal a hydraulic port or passage. The O-rings are compressed, ensuring...
BUNA METAL GASKET BUNA METAL GASKET

€0.21 (tax excl.)
€0.25 (tax included)
metal gasket The Metal Buna gasket is a sealing element composed of an outer metal ring and an inner elastomer (NBR) ring. It is used to achieve a watertight seal in threaded and flanged joints. The main function of...
MALE-TO-MALE JOINT FITTING MALE-TO-MALE JOINT FITTING

€0.55 (tax excl.)
€0.67 (tax included)
Male-to-male splice fitting A male-to-male coupling is used in hydraulic systems to directly join two male pipes or hoses, allowing the flow of hydraulic fluid between them. The male threads are screwed into the...
SOLENOID VALVE NG-6 4/2 PARALLEL CROSS SOLENOID VALVE NG-6 4/2 PARALLEL CROSS

€40.00 (tax excl.)
€48.40 (tax included)
A 4/2 parallel crossover NG-6 solenoid valve precisely controls the flow of pressurized oil. It has four ports and two positions (open and closed). Applications: Hydraulic circuits, Machine tools, Pressing systems,...
8 other products in the same category:

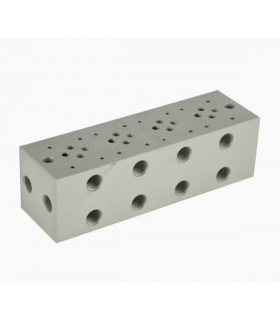

NG-6 ALUMINUM BLOCK
