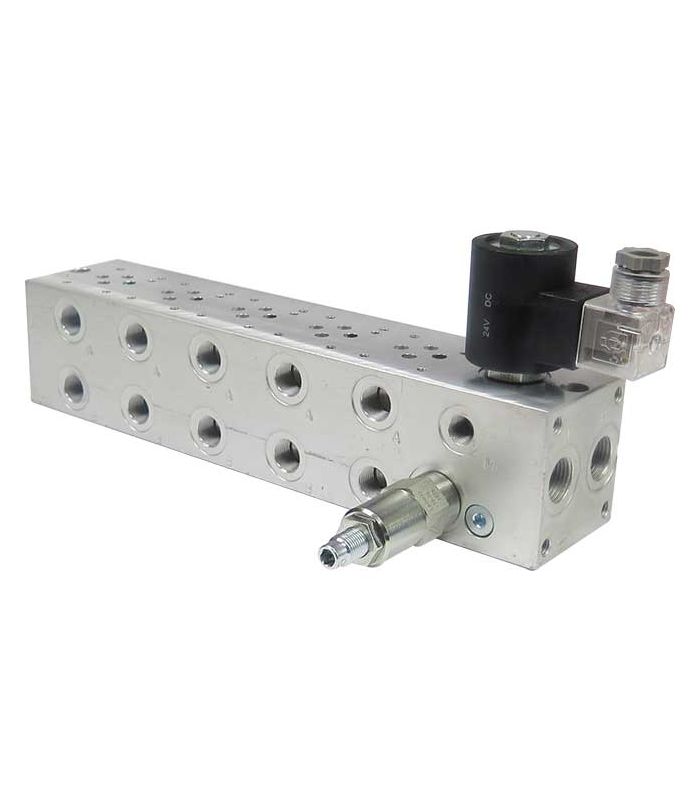

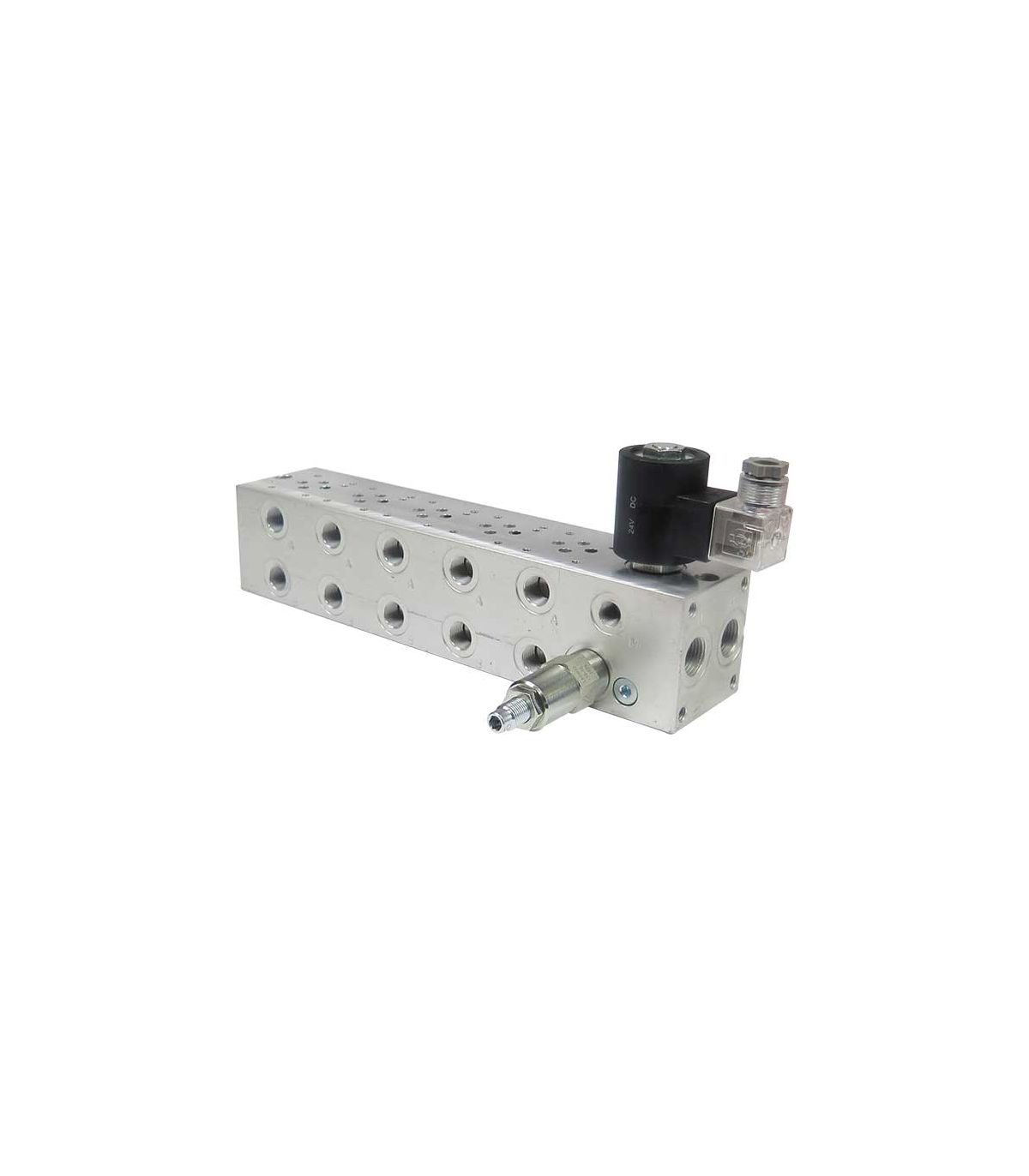

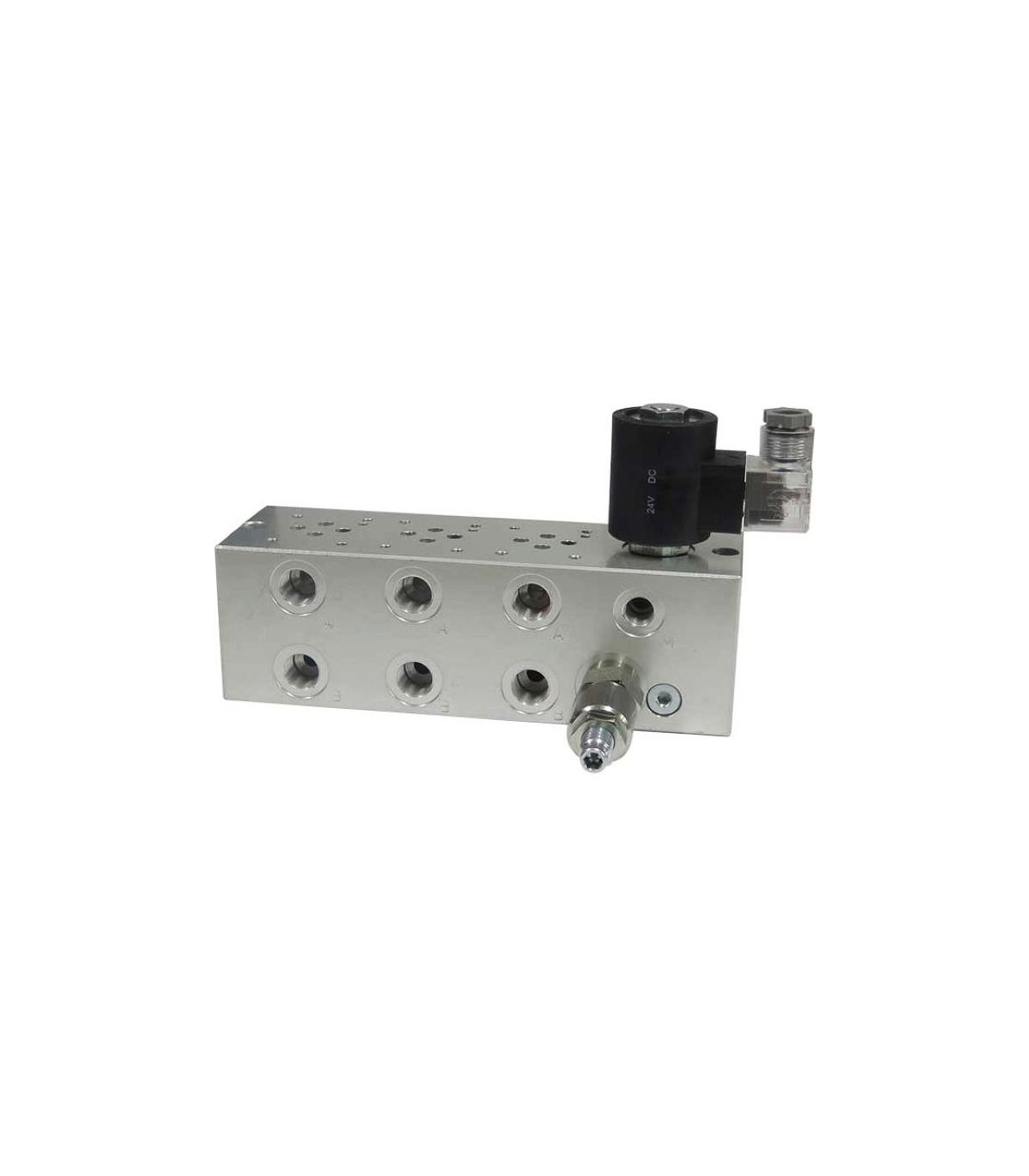

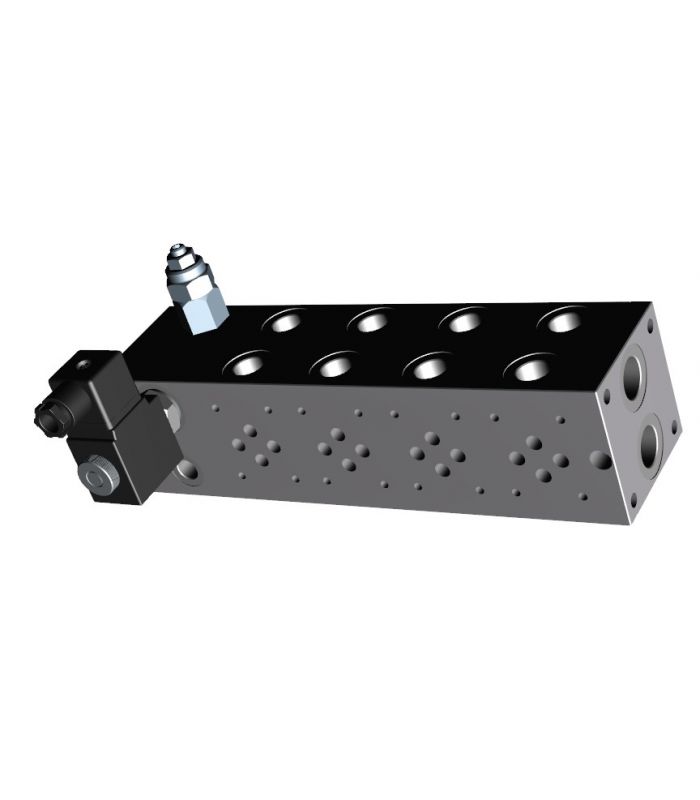

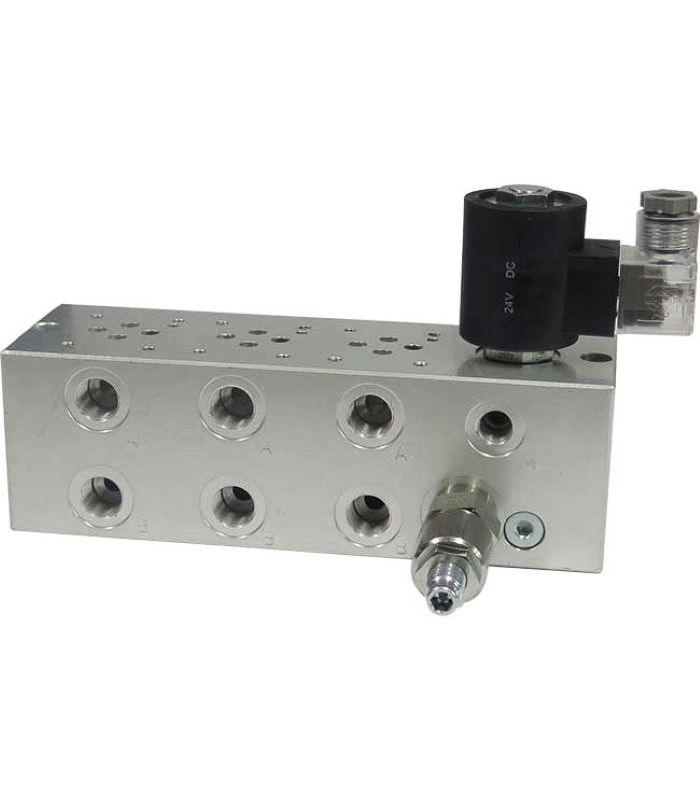

NG-6 BLOCK WITH VENTING AND LIMITING GEAR

An NG-6 block with a vent and pressure relief valve is a modular component designed to efficiently and safely integrate multiple NG-6 solenoid valves into a hydraulic system. The vent valve allows for controlled pressure release in the system, preventing overpressure and damage. The pressure relief valve limits the maximum system pressure.

Applications: Machine tools, Pressing systems, Lifting systems, Mobile equipment, Industrial automation.

Technical sheet:

  • Size NG-6
  • Flow rate 40 l/min.
  • Made of aluminum.
  • EV venting voltages 12V DC - 24V DC 220V AC
  • Possibility of taking a pressure gauge.
  • block of 2 to 10 seats.
  • Built-in pressure relief valve 50 to 250 bar.
  • AB 3/8" threaded outlets
  • 1/2" PT inlets
  • Maximum working pressure 350 bar.
Read moreShow less
€340.49 (tax incl.)
€281.40 (tax excl.)
OUTPUT TYPE
  • 2 POSITIONS
  • 3 POSITIONS
  • 4 POSITIONS
  • 5 POSITIONS
  • 6 POSITIONS
  • 7 POSITIONS
  • 8 POSITIONS
  • 9 POSITIONS
  • 10 POSITIONS
VOLTAGE/VOLUME
  • 12V DC
  • 24V DC
  • 220VAC
Reference:
47240026
Description

NG-6 block with venting and limiter.

BLOQUE NG-6 EV. VENTING Y LIMITADORA

Read moreShow less
Product Details
47240026
