SOLENOID VALVE NG-6 4/2 PARALLEL CROSS
SOLENOID VALVE NG-6 4/2 PARALLEL CROSS
SOLENOID VALVE NG-6 4/2 PARALLEL CROSS
SOLENOID VALVE NG-6 4/2 PARALLEL CROSS

SOLENOID VALVE NG-6 4/2 PARALLEL CROSS

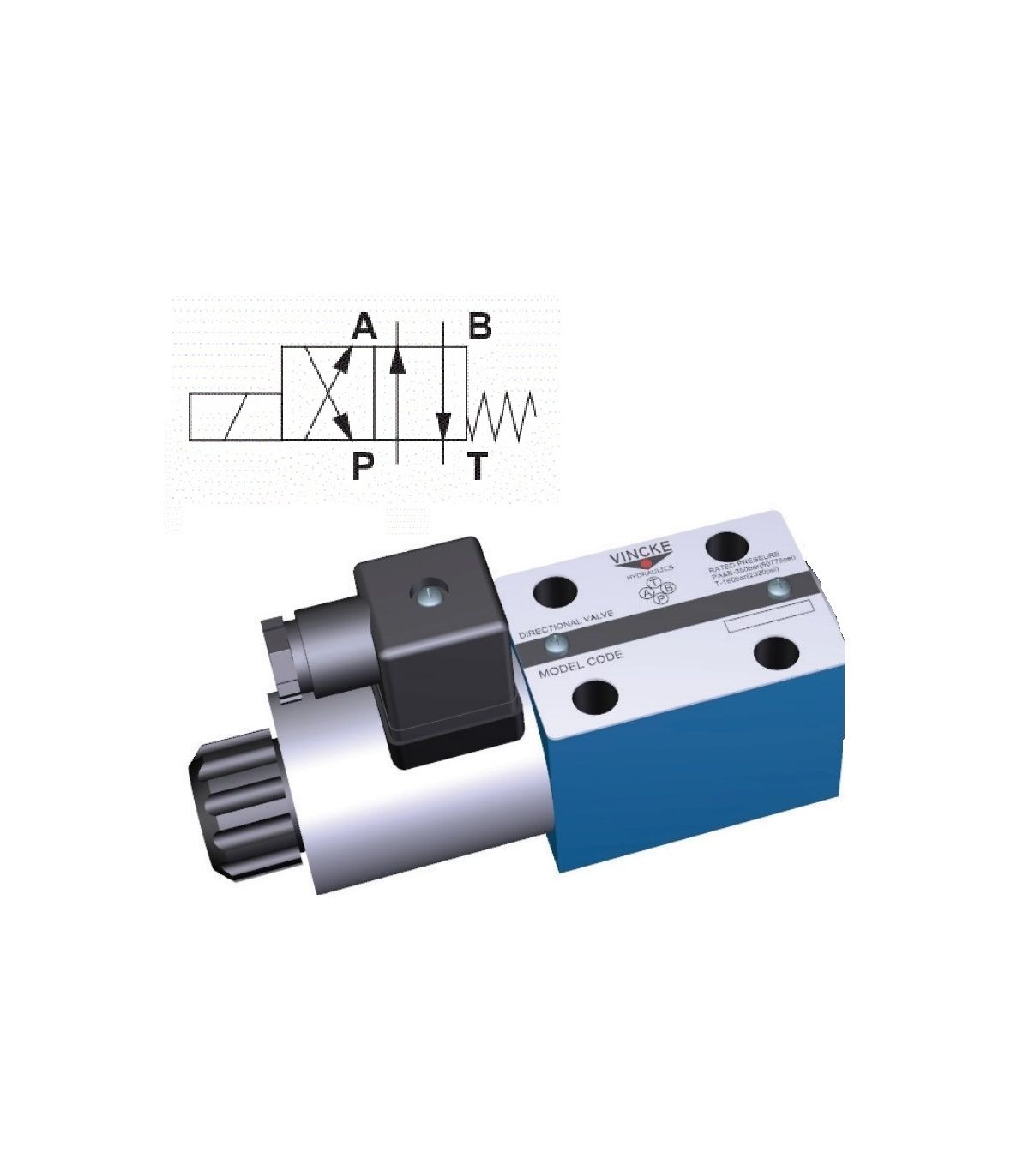

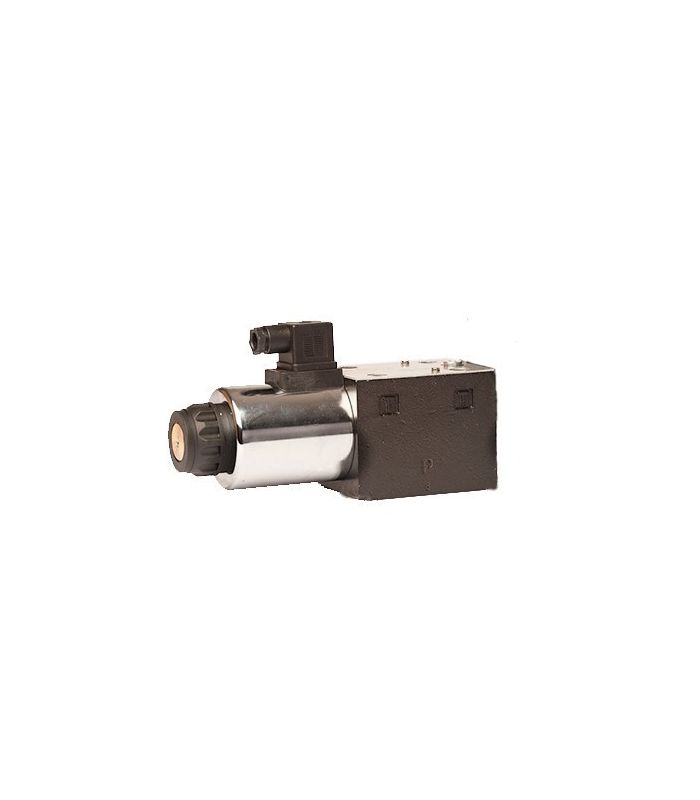

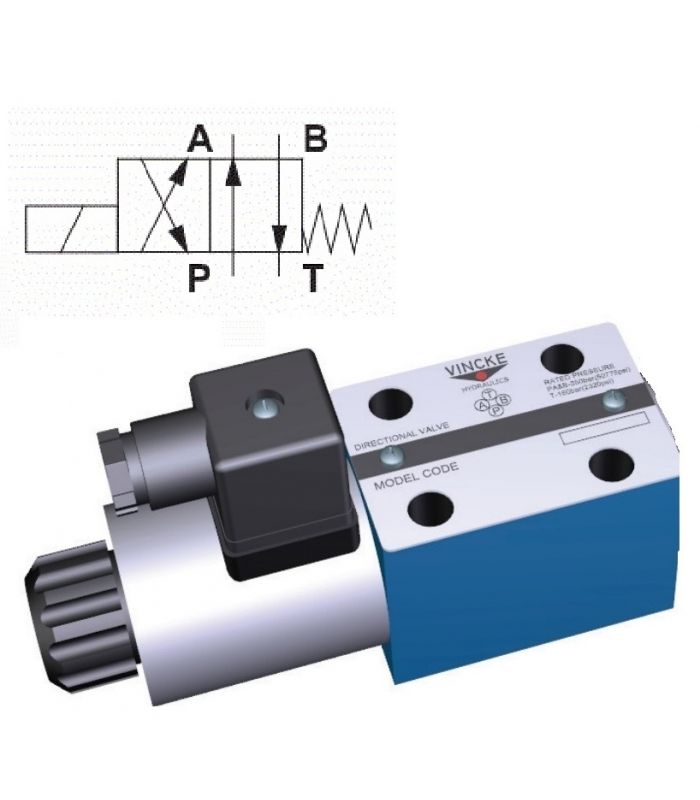

A 4/2 parallel crossover NG-6 solenoid valve precisely controls the flow of pressurized oil. It has four ports and two positions (open and closed).

Applications: Hydraulic circuits, Machine tools, Pressing systems, Lifting systems.

Technical sheet:

  • CETOP-3 NG-6
  • Maximum pressure 315 bar.
  • Flow rate 80 l/min.
  • Available voltages 12Vdc - 24Vdc - 24Vac - 220V ac - 110Vac
  • Supplied with 4 screws.

Supplied without coil

€48.40 (tax included)
€40.00 (tax excl.)
Reference:
4700
Description

NG-6 4/2 parallel crossed solenoid valve

Product Details
4700
