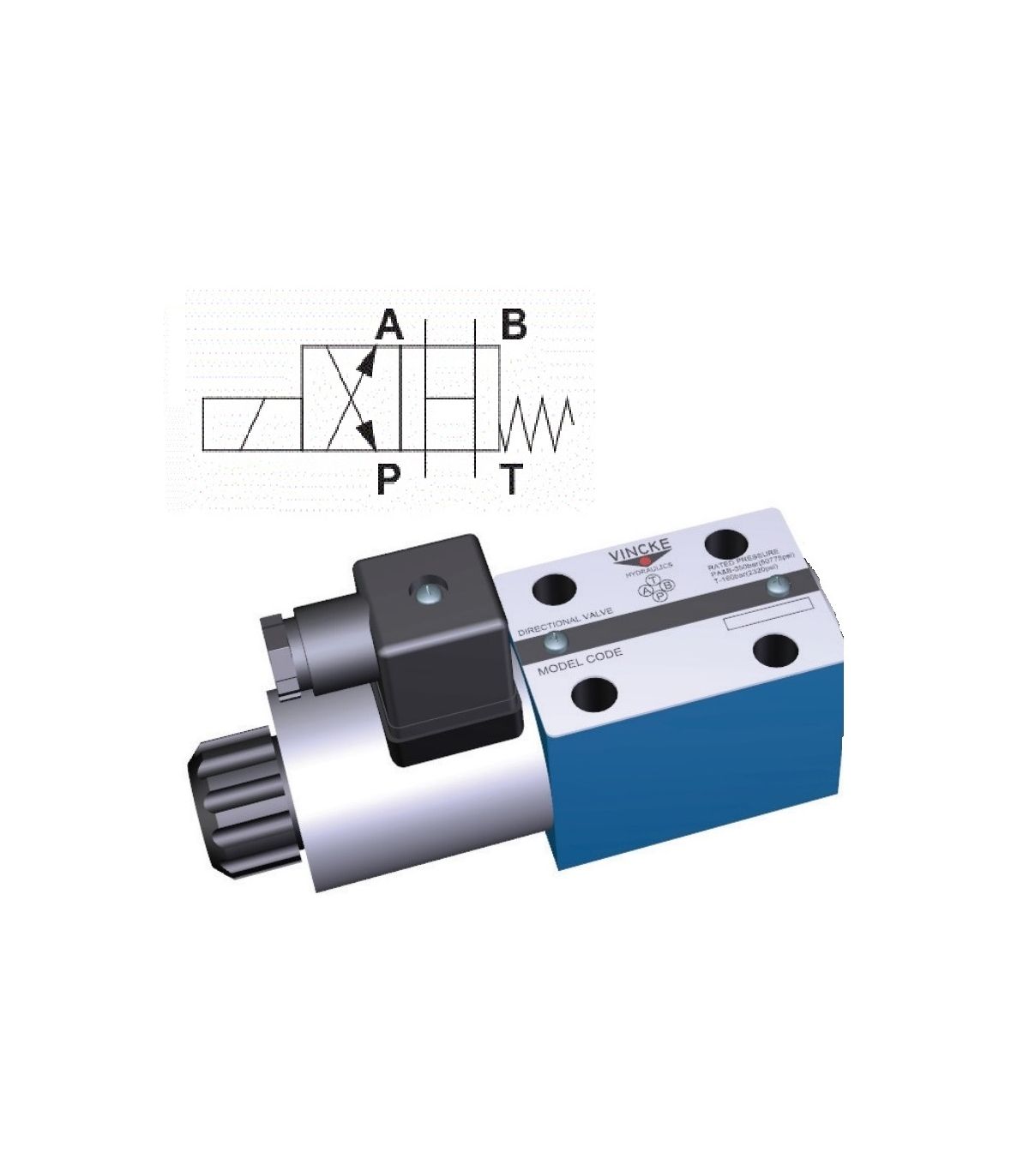

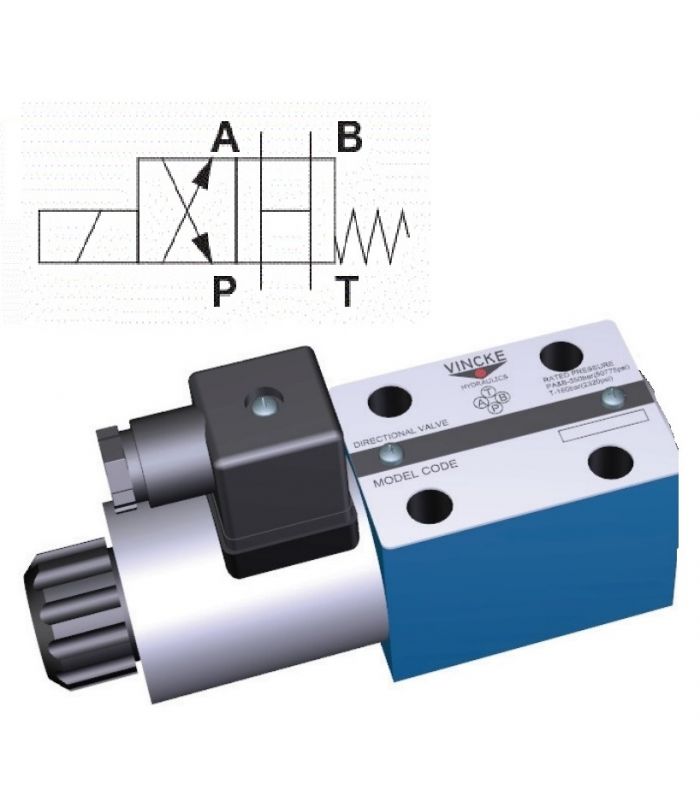

SOLENOID VALVE NG-6 4/2 CROSS H

SOLENOID VALVE NG-6 4/2 CROSS H

An NG-6 4/2 H-type crossover solenoid valve is used to precisely control the flow of pressurized oil. It has four ports and two positions: open and closed. The H-type crossover configuration, along with the valve's other features, provides precise and versatile fluid flow control.

Applications: Hydraulic circuits, Machine tools, Pressing systems, Lifting systems.

Technical sheet:

  • CETOP-3 NG-6
  • Maximum pressure 315 bar.
  • Flow rate 80 l/min.
  • Available voltages 12Vdc - 24Vdc - 24Vac - 220V ac - 110Vac
  • Includes the 4 screws for fixing to the motherboard.

Supplied without coil

€48.40 (tax included)
€40.00 (tax excl.)
Reference:
4701
Description

NG-6 4/2 crossed solenoid valve H

Product Details
4701
