90º CURVE M-H PRESS INOX
90º CURVE M-H PRESS INOX
90º CURVE M-H PRESS INOX
90º CURVE M-H PRESS INOX

90º CURVE M-H PRESS INOX

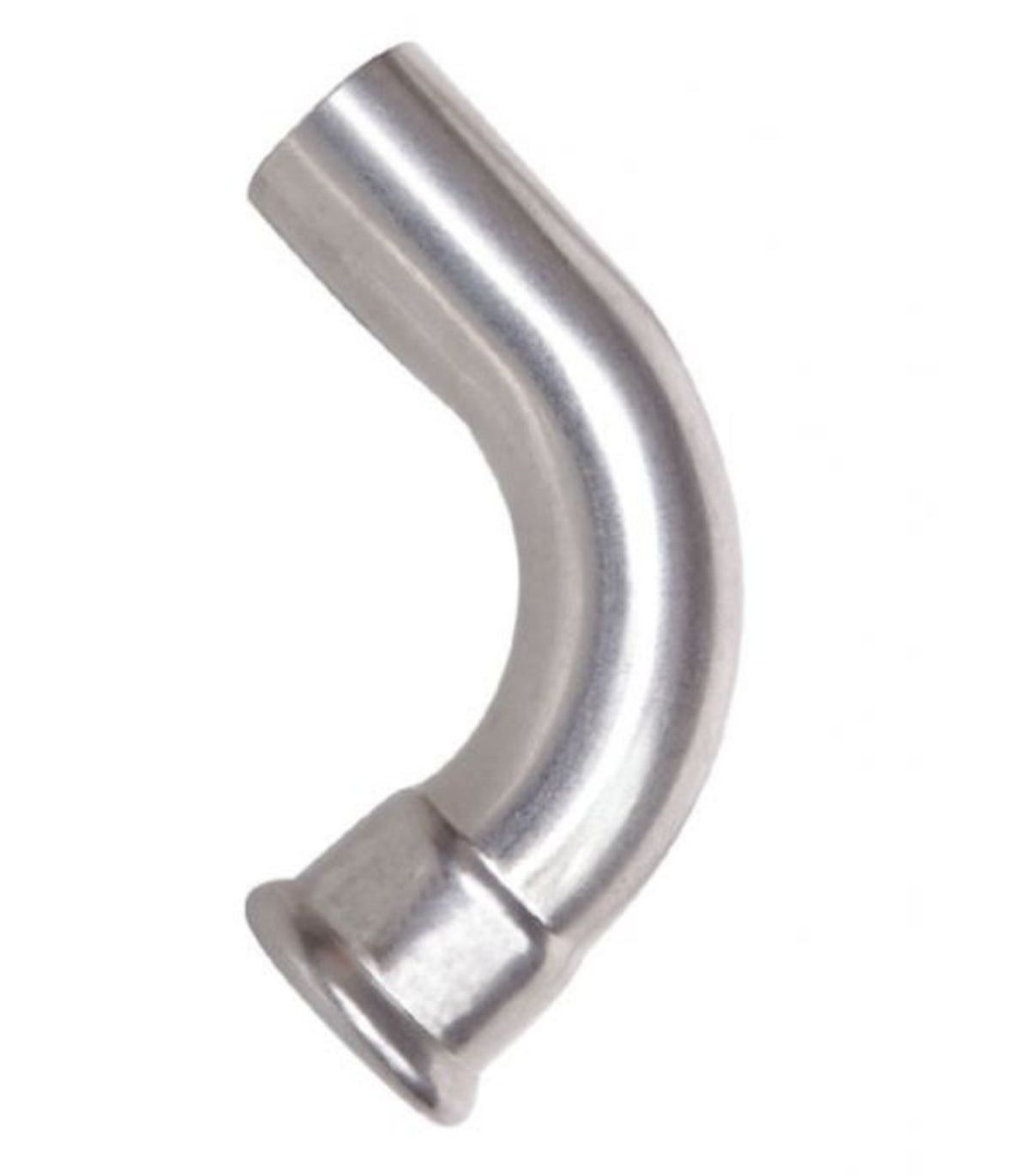

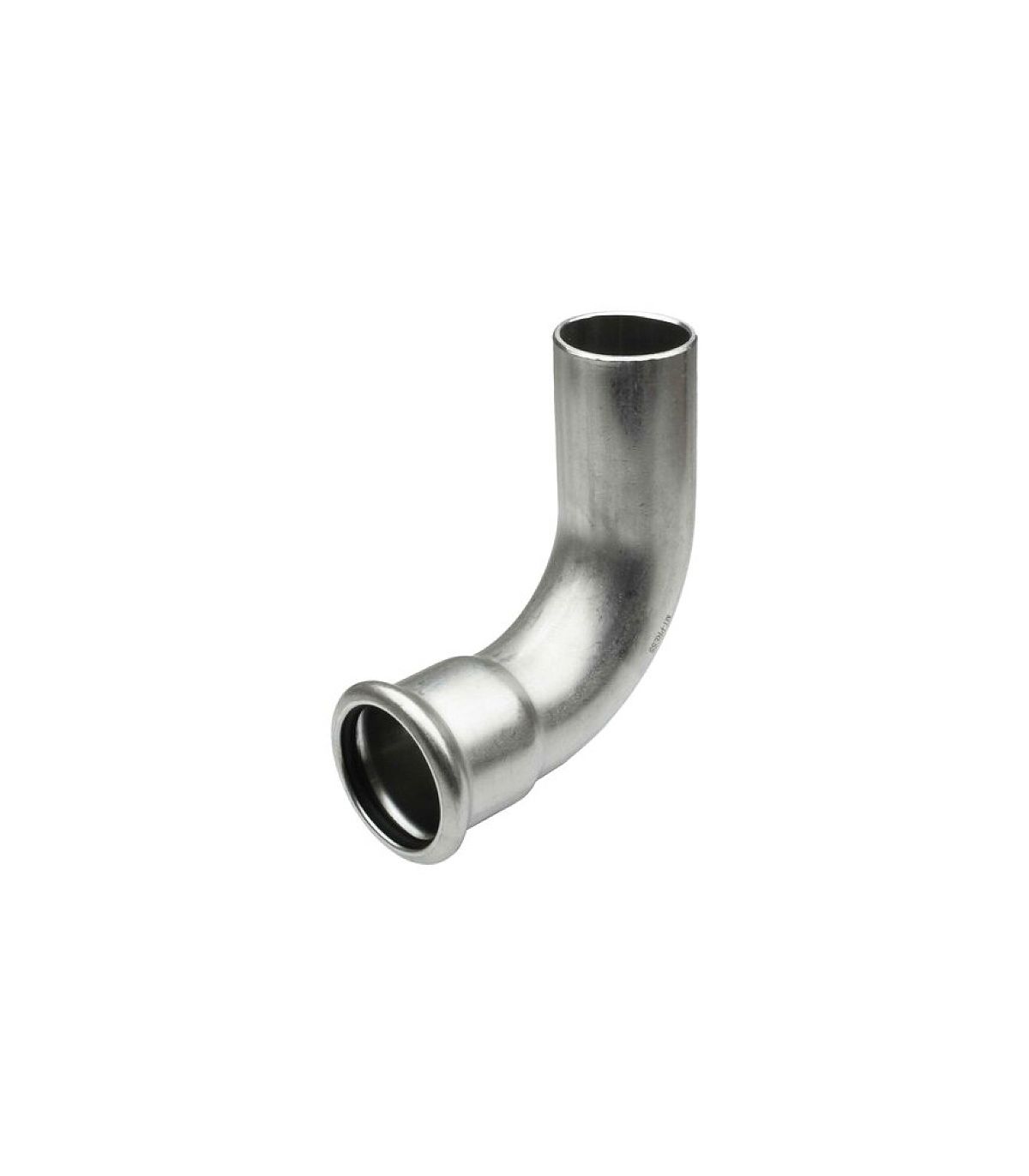

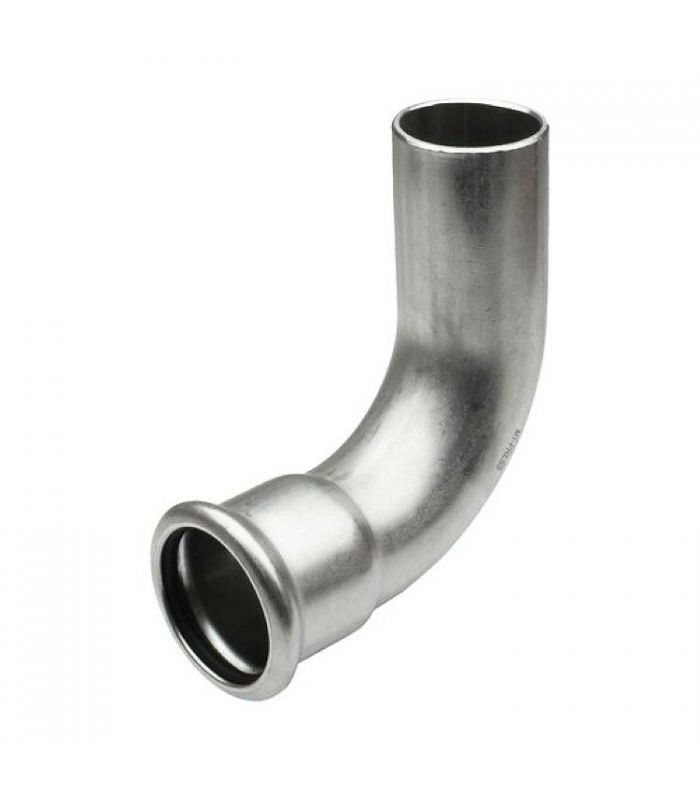

A 90º MH press inox bend is a pipe fitting, especially for installations where high corrosion resistance and a tight seal are required. Its function is to change the direction of fluid flow at a 90º angle.

Applications: Sanitary installations, Heating systems, Food industry, Chemical industry and Naval sector.

Technical data sheet:

  • INOX-316 fitting for pressing.
  • Available tube diameters 15-18-22-28-35-42-54
  • EPDM gasket available (samitary water, heating, fire, compressed air (oil-free))
  • VITON gasket available (oils, hydrocarbons (except diesel), solar inst., compressed air.
  • For DVGW GW 541 UNE-EN-10088 tube
  • Pressure 16 bar at 90ºC
  • Temperature 120ºC
  • Various certifications and approvals, depending on the sector.
€4.83 (tax included)
€3.99 (tax excl.)
DIAMETERS
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
  • Ø 54
Reference:
58010016
Description

90º bend MH press stainless steel

Product Details
58010016
