90º H-H CURVE PRESS INOX
90º H-H CURVE PRESS INOX
90º H-H CURVE PRESS INOX
90º H-H CURVE PRESS INOX
90º H-H CURVE PRESS INOX
90º H-H CURVE PRESS INOX

90º H-H CURVE PRESS INOX

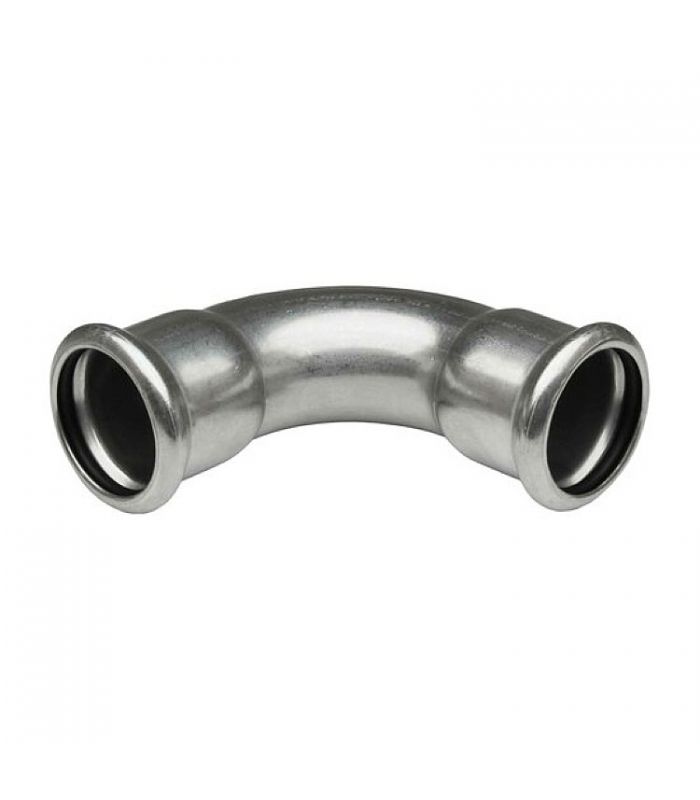

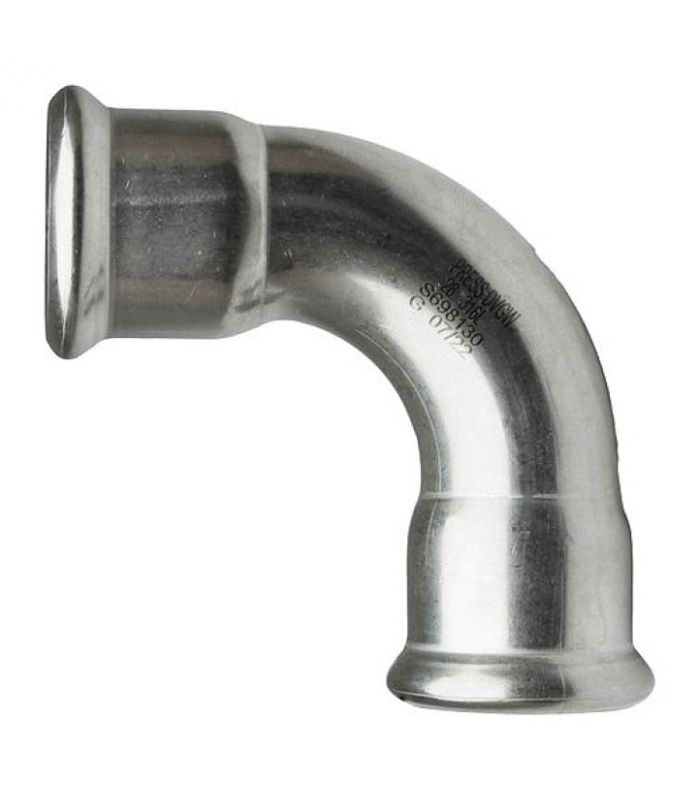

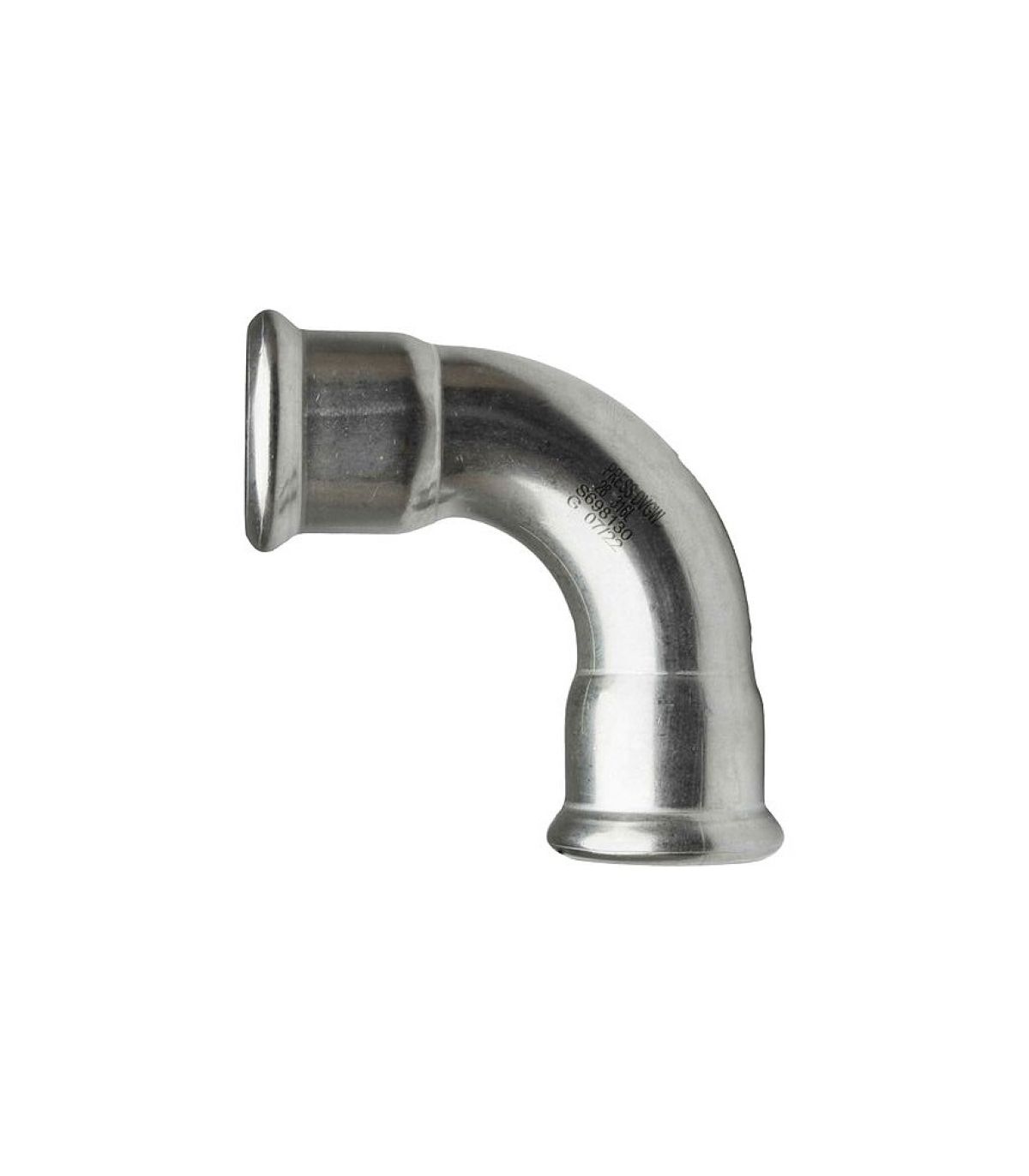

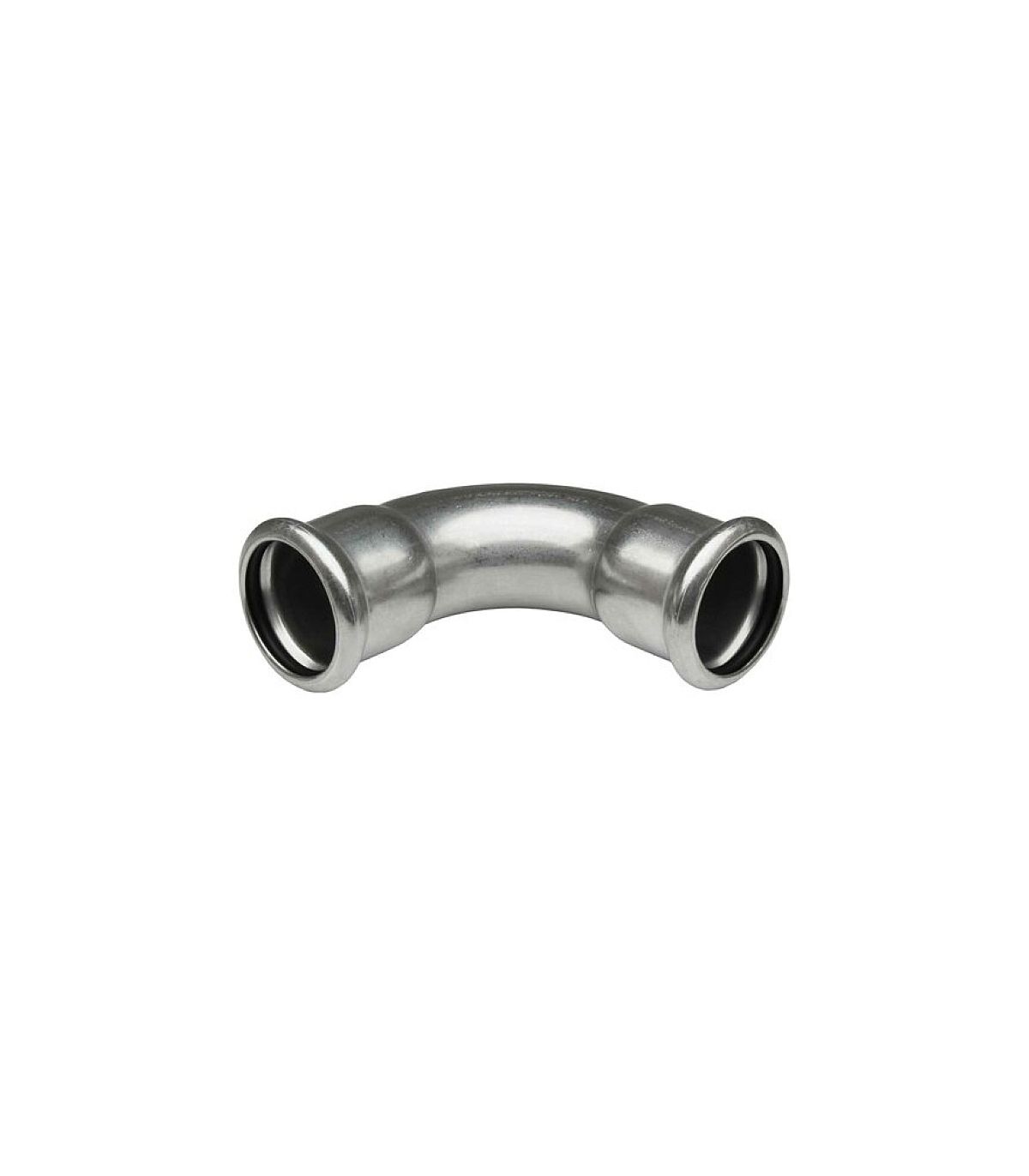

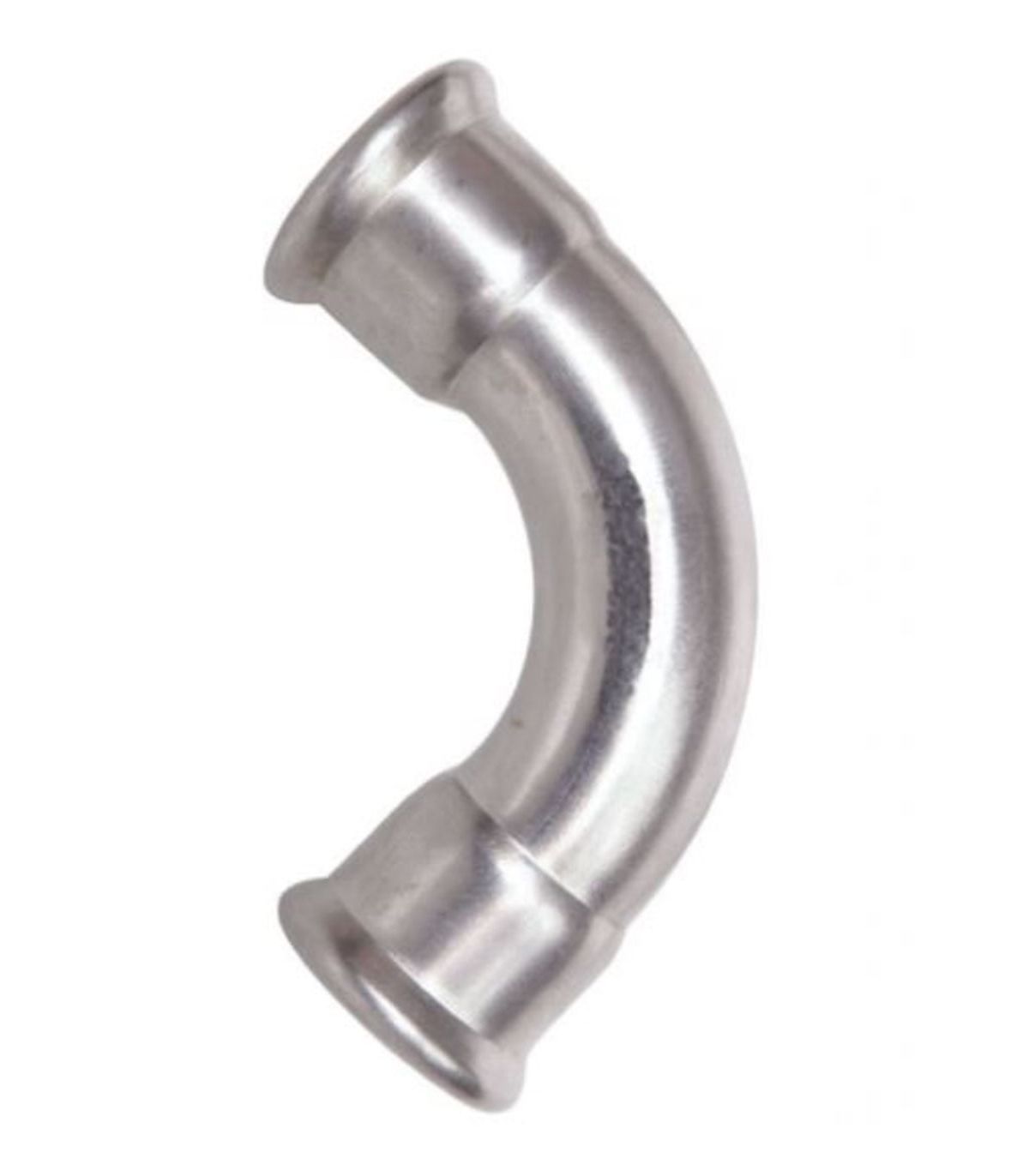

A 90º HH press inox bend is a pipe fitting designed to make a 90º turn in a pipe line.

Typical applications: Sanitary installations, Heating systems, Food industry, Chemical industry and Naval sector.

Technical sheet:

  • INOX-316 fitting for pressing.
  • Available tube diameters 15-18-22-28-35-42-54
  • Gasket available in EPDM (domestic water, heating, fire protection, compressed air (oil-free)
  • Gasket available in VITON (oils, hydrocarbons (except diesel), solar installations, compressed air.
  • For DVGW GW 541 UNE-EN-10088 tube
  • Pressure 16 bar at 90ºC
  • Temperature 120ºC
  • Various certifications and approvals, depending on the sector.
€5.31 (tax included)
€4.39 (tax excl.)
DIAMETERS
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
  • Ø 54
Reference:
58020016
Description

90º bend HH press stainless steel

Product Details
58020016
