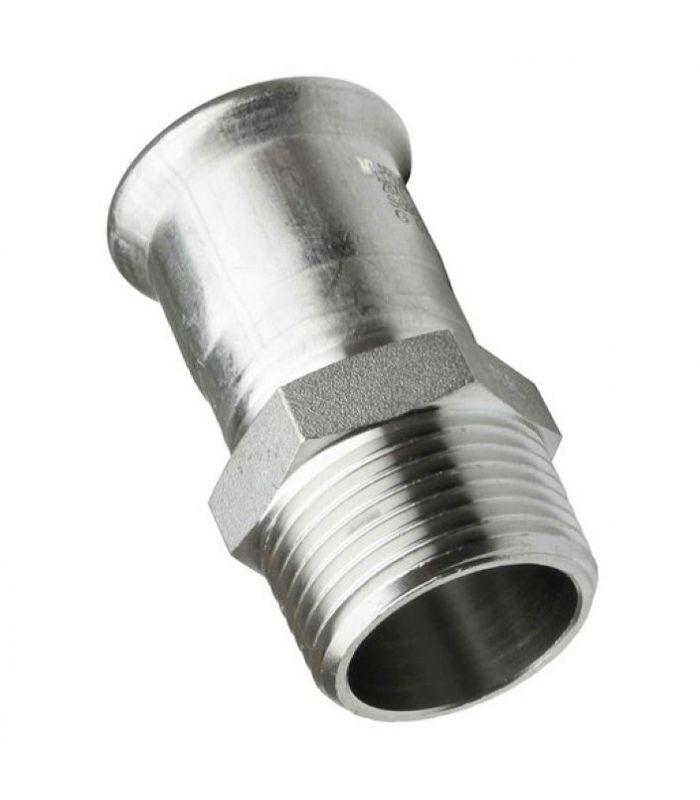

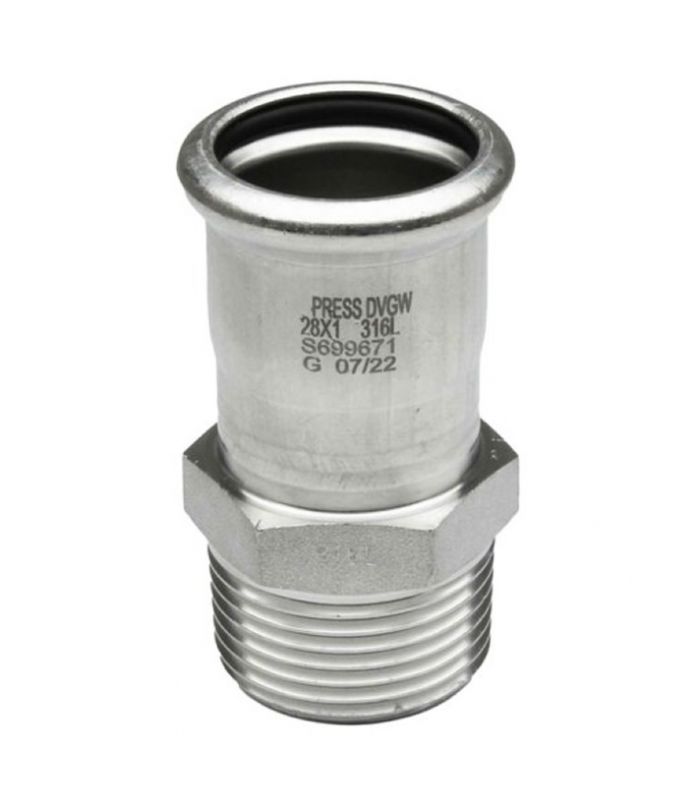

STAINLESS STEEL PRESS MALE THREAD TUBE UNION
STAINLESS STEEL PRESS MALE THREAD TUBE UNION
STAINLESS STEEL PRESS MALE THREAD TUBE UNION
STAINLESS STEEL PRESS MALE THREAD TUBE UNION

STAINLESS STEEL PRESS MALE THREAD TUBE UNION

A male threaded stainless steel press pipe union allows two or more pipe elements to be connected. The connection to the smooth pipe is made using a radial press system.

Applications: Plumbing and heating installations, Compressed air systems, Food and pharmaceutical industries, Industrial installations.

Technical sheet:

  • INOX-316 fitting for pressing.
  • Available tube diameters 15-18-22-28-35-42-54
  • EPDM gasket available (domestic water, heating, fire protection, compressed air (oil-free)
  • VITON seal available (oils, hydrocarbons (except diesel), solar installations, compressed air.
  • For DVGW GW 541 UNE-EN-10088 tube
  • Pressure 16 bar at 90ºC
  • Temperature 120ºC
  • Various certifications and approvals, depending on the sector
€8.53 (tax included)
€7.05 (tax excl.)
Tube diameter - Thread
  • Ø 15-3/8
  • Ø 15-1/2
  • Ø 15-3/4
  • Ø 18-1/2
  • Ø 18-3/4
  • Ø 22-1/2
  • Ø 22-3/4
  • Ø 22-1
  • Ø 28-3/4
  • Ø 28-1
  • Ø 28-1-1/4
  • Ø 35-1
  • Ø 35-1-1/4
  • Ø 35-1-1/2
  • Ø 42-1-1/4
  • Ø 42-1-1/2
  • Ø 54-1-1/2
  • Ø 54-2
Reference:
58090038
Description

male threaded tube union press stainless steel

Product Details
58090038
