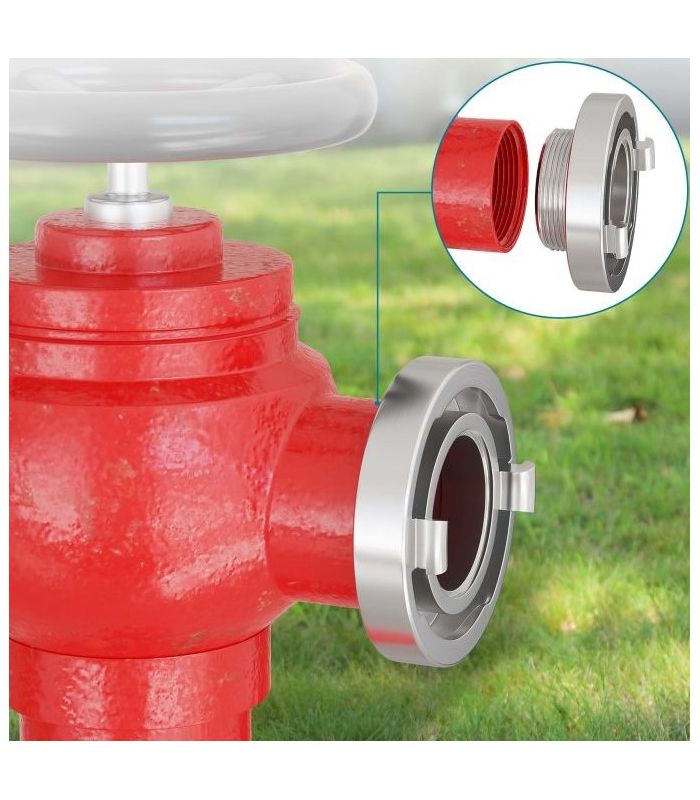

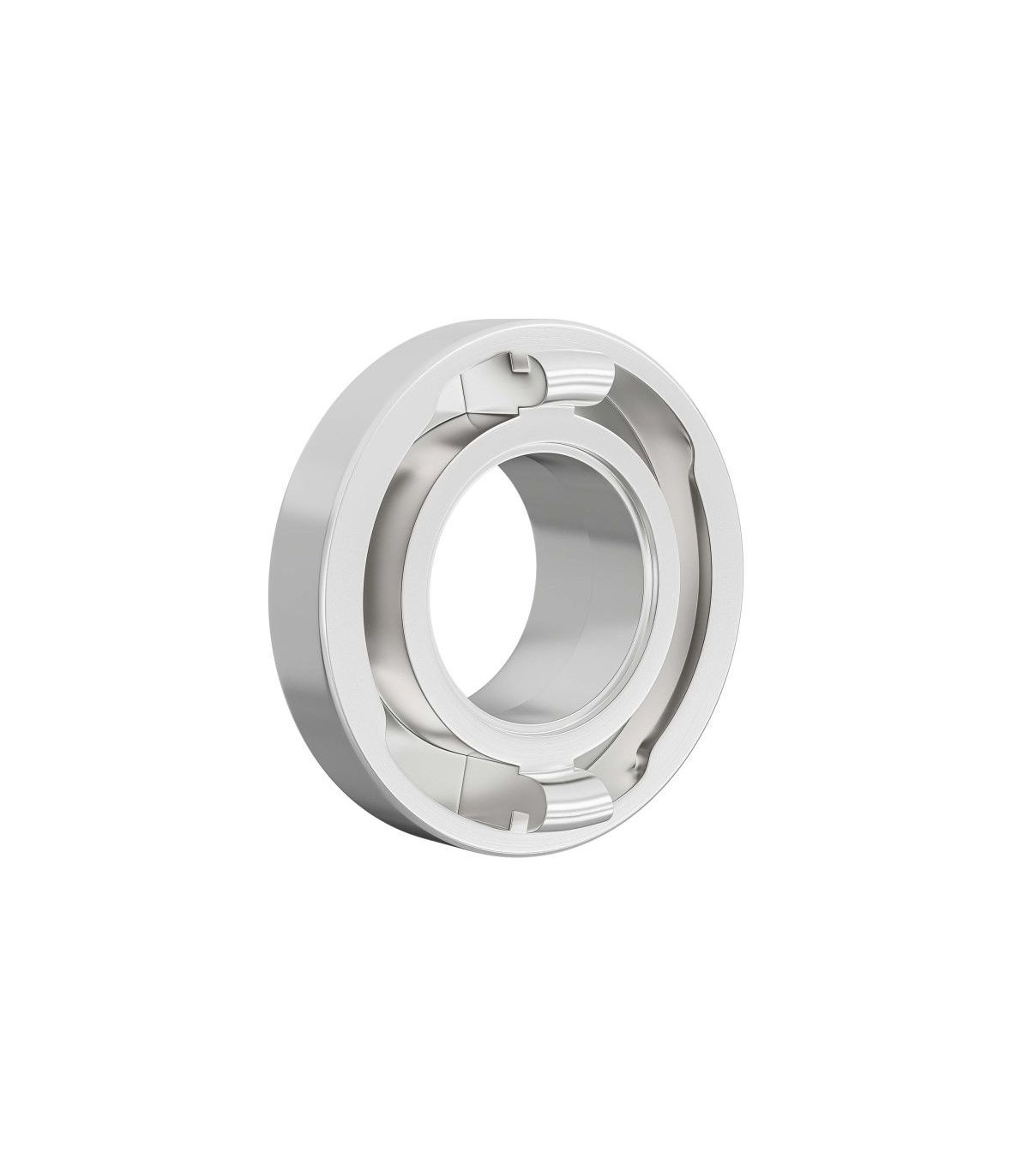

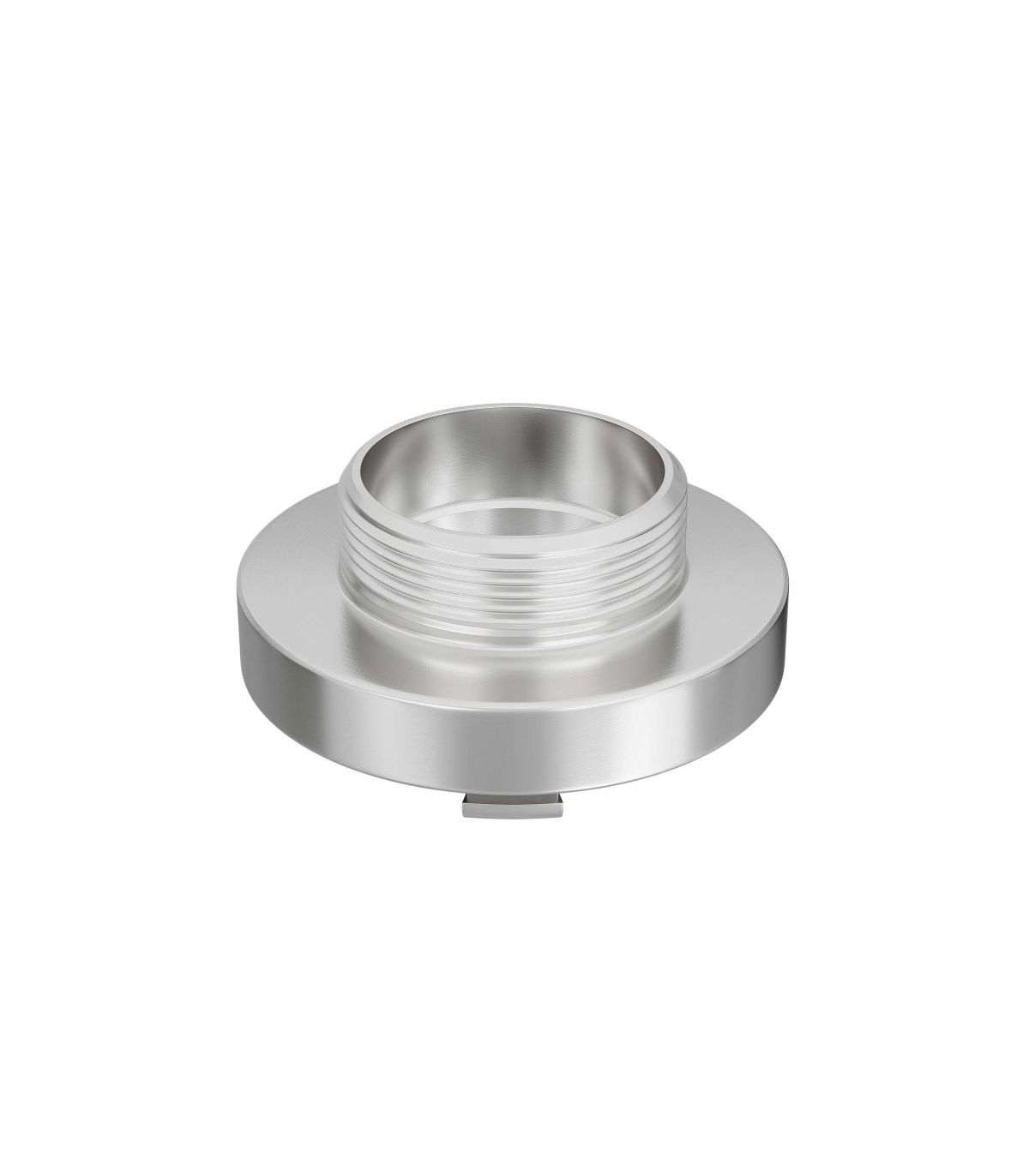

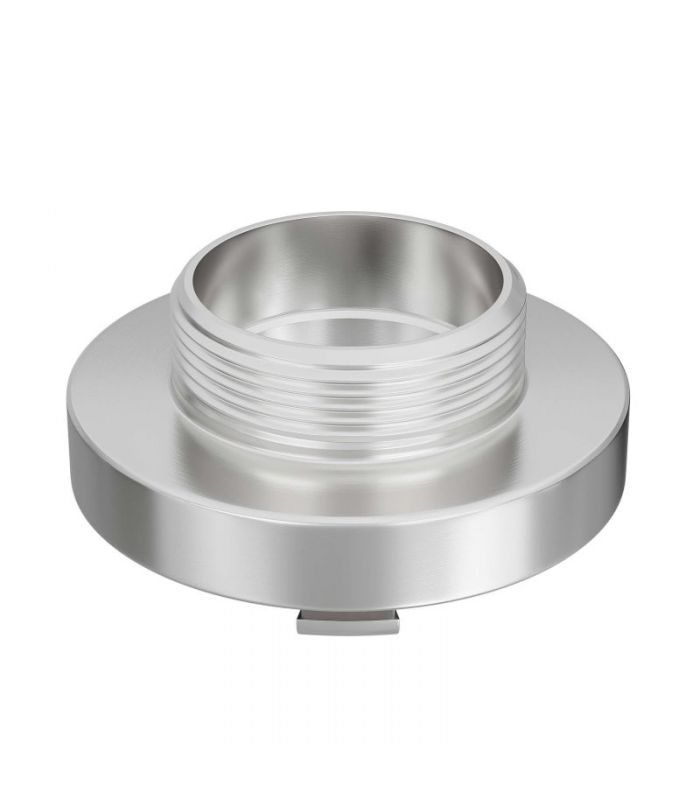

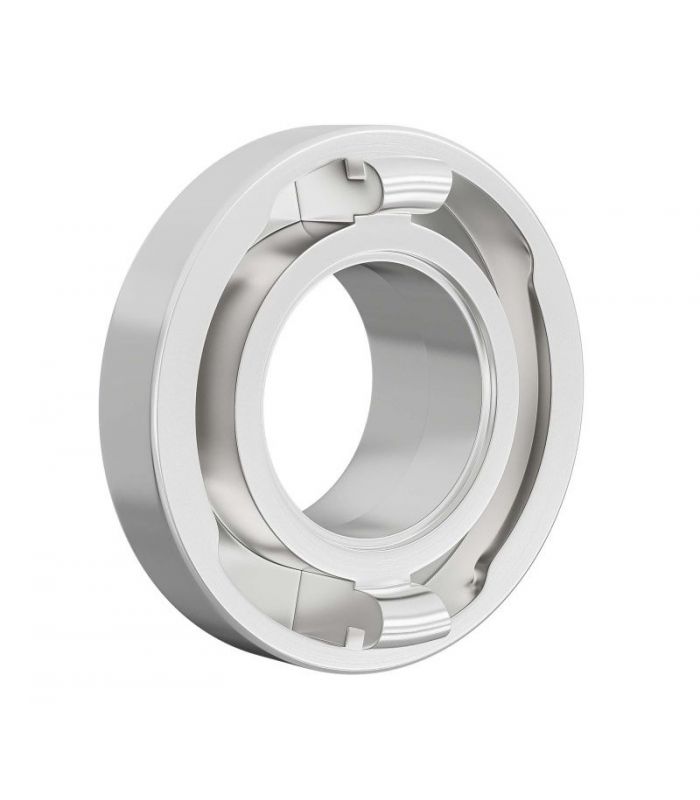

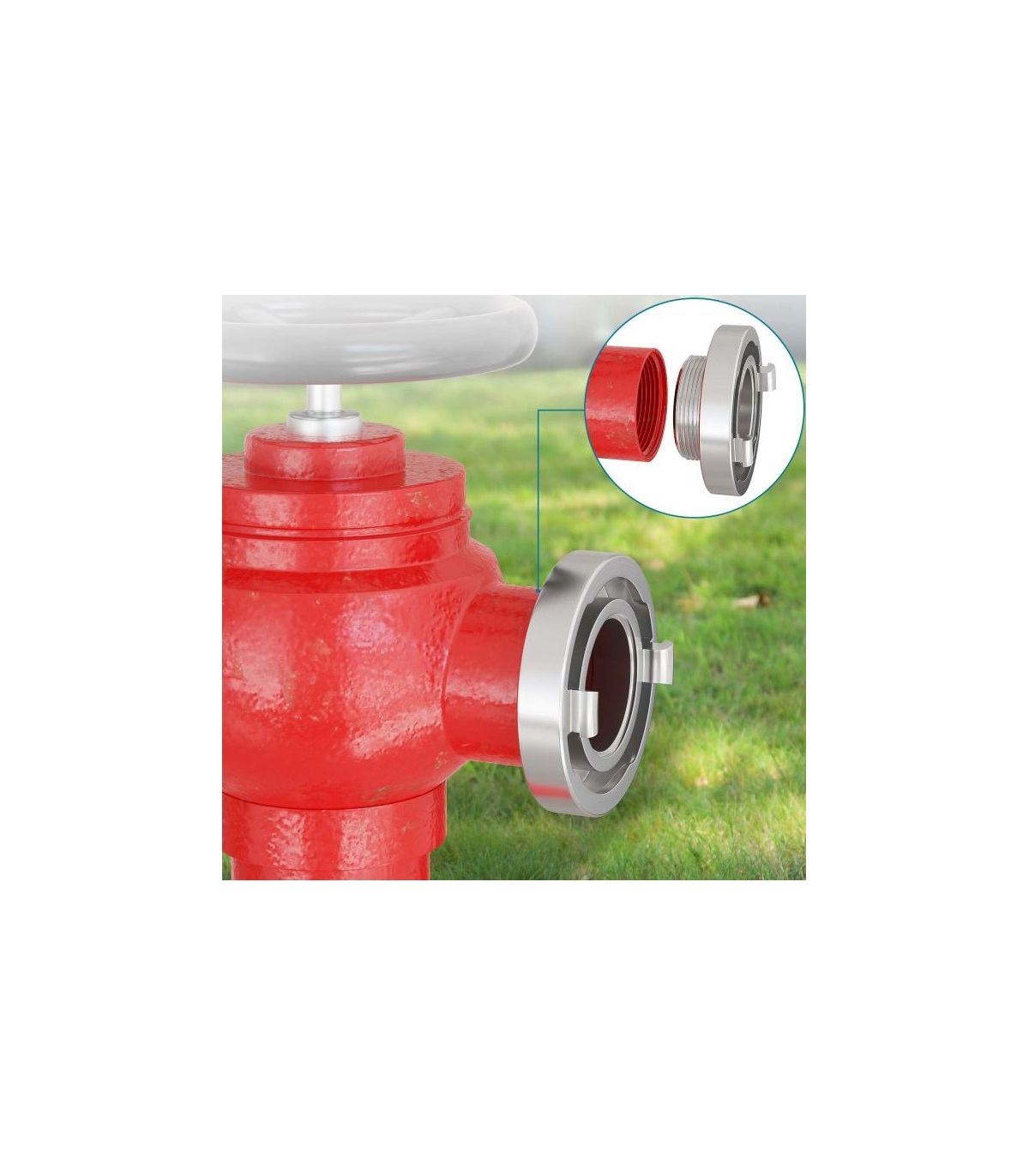

The Storz male threaded fitting is a quick-connect fitting used in fluid conveyance systems. It combines a Storz coupling (symmetrical claw fitting) with a male threaded outlet, allowing direct connection to pipes, valves, or equipment with female threads.
Applications: Fire protection systems, Agriculture, Industry, Construction.
Main features:
A Storz male threaded coupling is a type of symmetrical quick coupling used in fluid conveyance systems (mainly water), which incorporates an external (male) thread for connection to equipment, pipes or valves with female threads.
It allows you to quickly connect hoses or lines with the Storz system to threaded installations, guaranteeing a secure, watertight and quick-to-handle connection.
Technical data sheet for a Storz male threaded connector:
| Code | Thread | Distance between claws (G) |
| 718601 | 1" | 31 |
| 718603 | 1-1/2" | 51 |
| 718604 | 1-1/2" | 66 |
| 718605 | 2" | 66 |
| 718608 | 2-1/2" | 81 |
| 718609 | 3" | 89 |
| 718610 | 4" | 133 |
