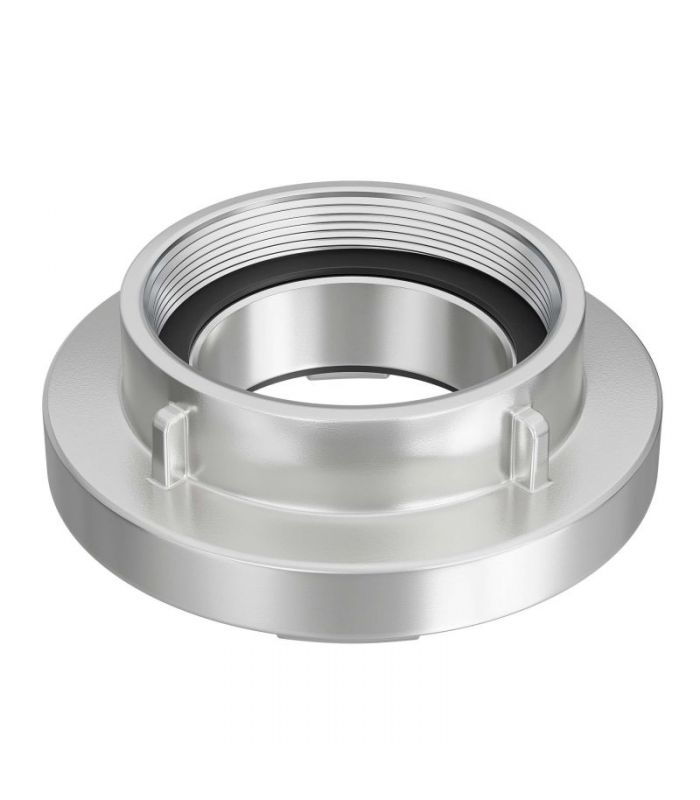

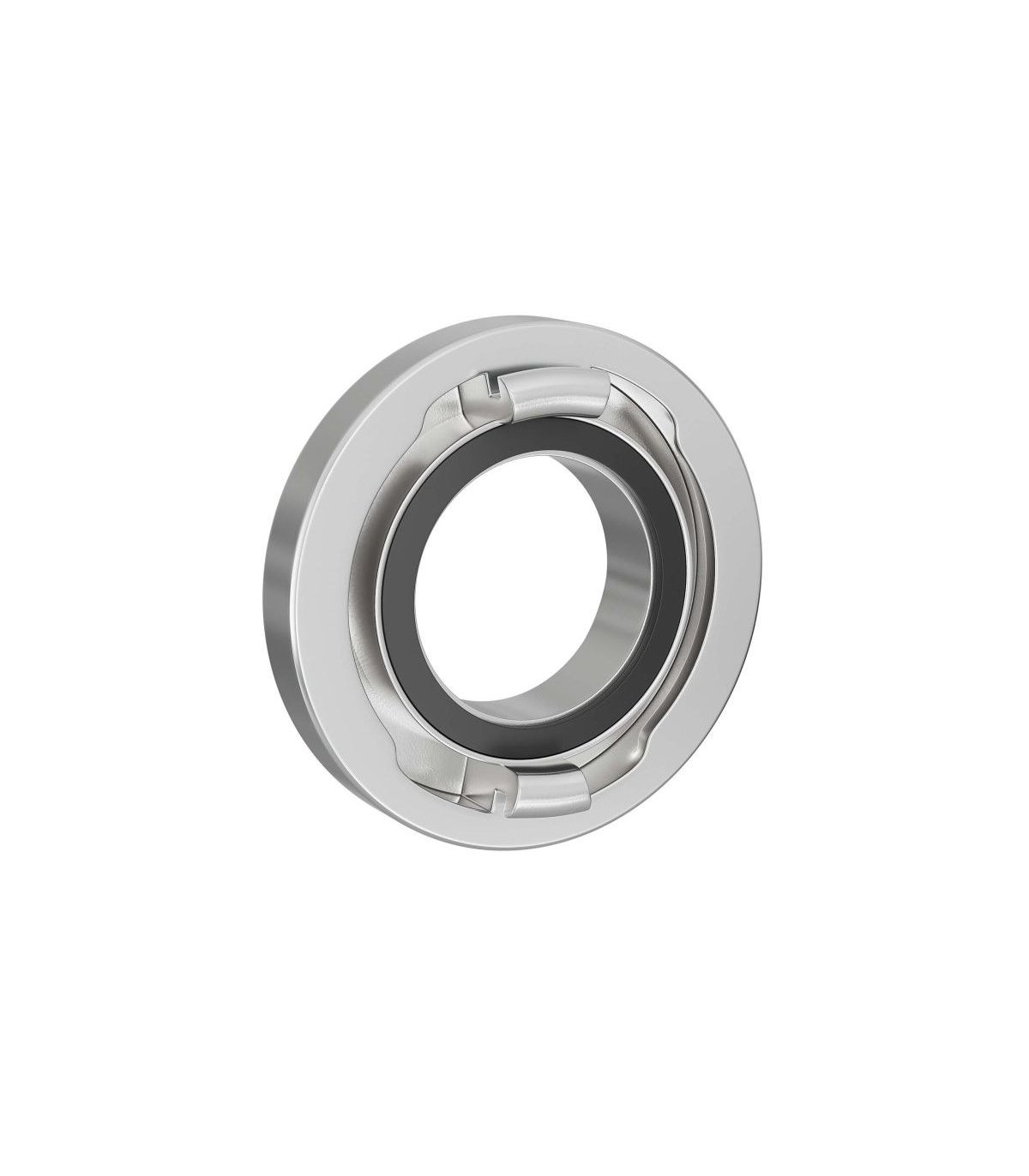

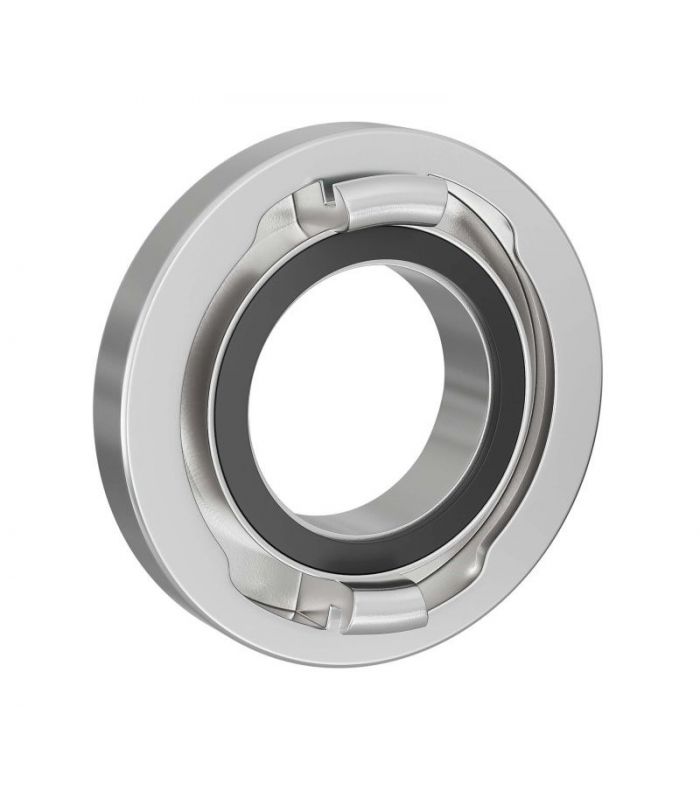

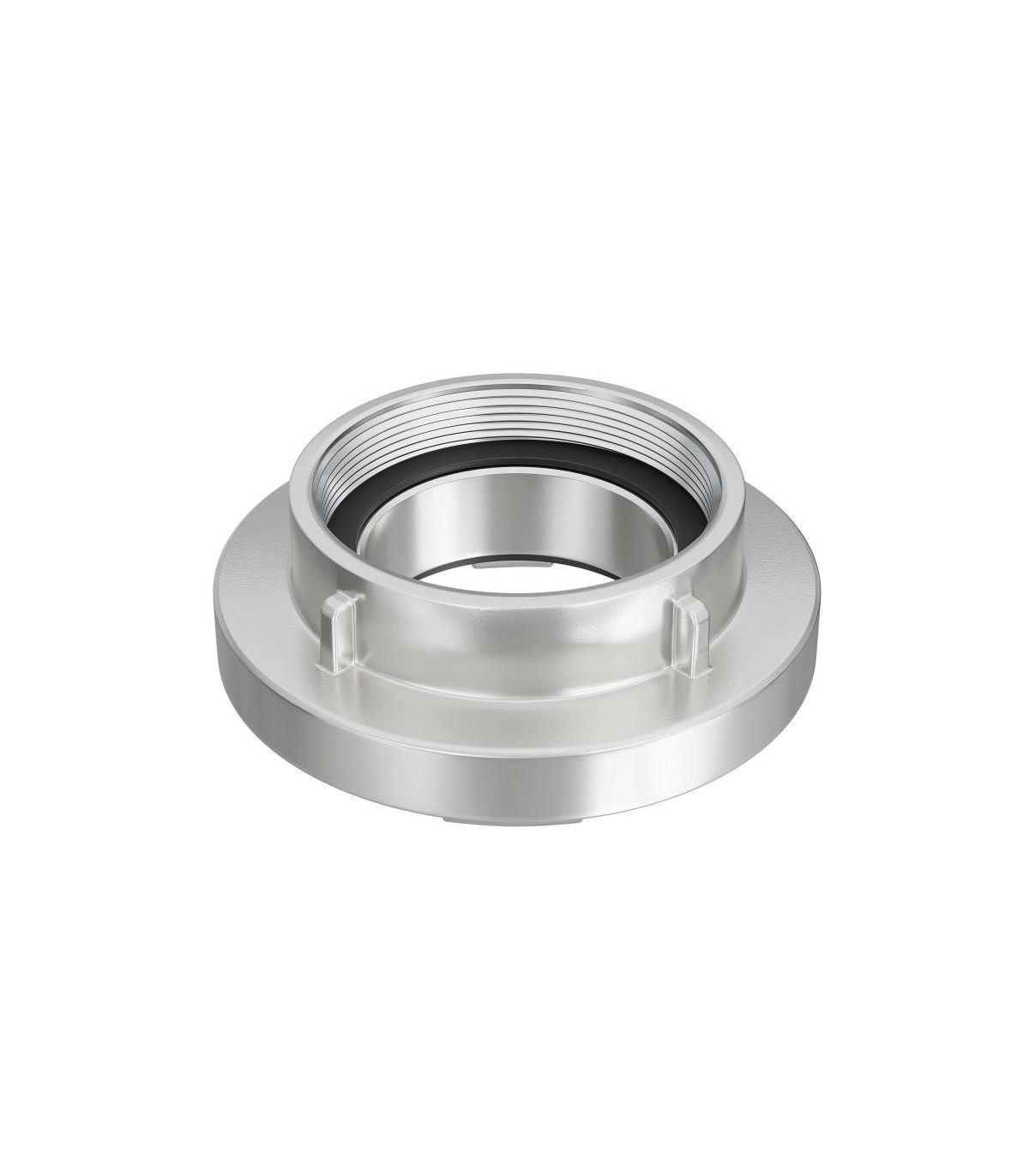

STORZ LINK FEMALE THREAD

The Storz female threaded coupling, in addition to its bayonet mechanism for quick coupling, has a female thread on one end. This type of coupling allows flexible hoses to be connected to fixed piping systems, such as fire protection, industrial, or agricultural installations.

Applications: fire protection, irrigation and industrial installations.

Main features :

Made of aluminum. NBR gasket.
Standard DIN-14317 DIN-14318 NEN-6674
Pressure 12 bar.
Interchangeable gasket.

€7.50 (tax included)

€6.20 (tax excl.)

SELECT THE THREAD

SIZE

Reference:

718704

Description
Comments

Description

Storz female threaded link

The Storz female threaded fitting is a quick-connect fitting used in fluid conveyance systems, especially in fire protection, irrigation, and industrial applications. It features a Storz-type coupling system (symmetrical, without threads between halves) and a female thread on the opposite end for connection to pipes, valves, or equipment.

It allows for the quick connection and disconnection of hoses or fluid lines, facilitating operations where speed and safety are required, while maintaining a watertight seal.

Applications

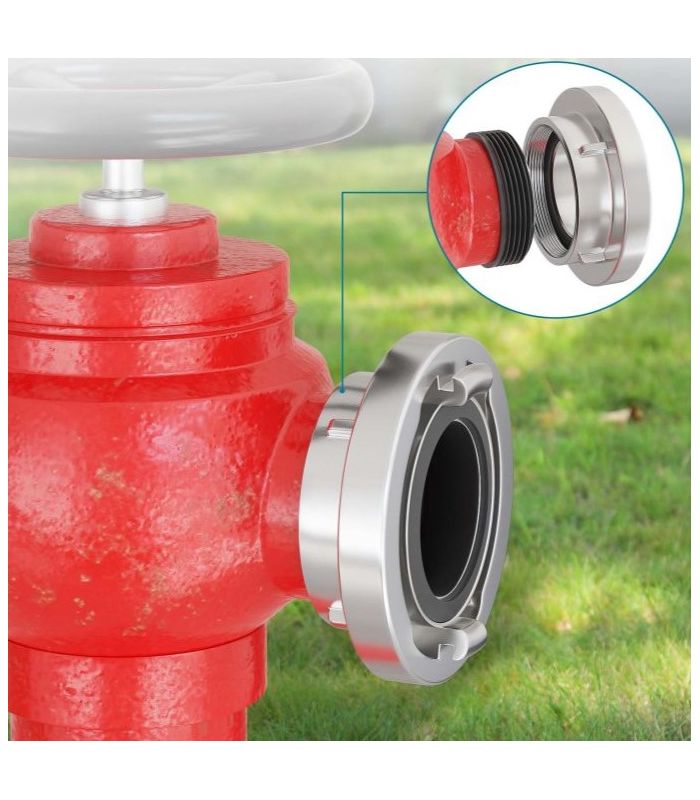

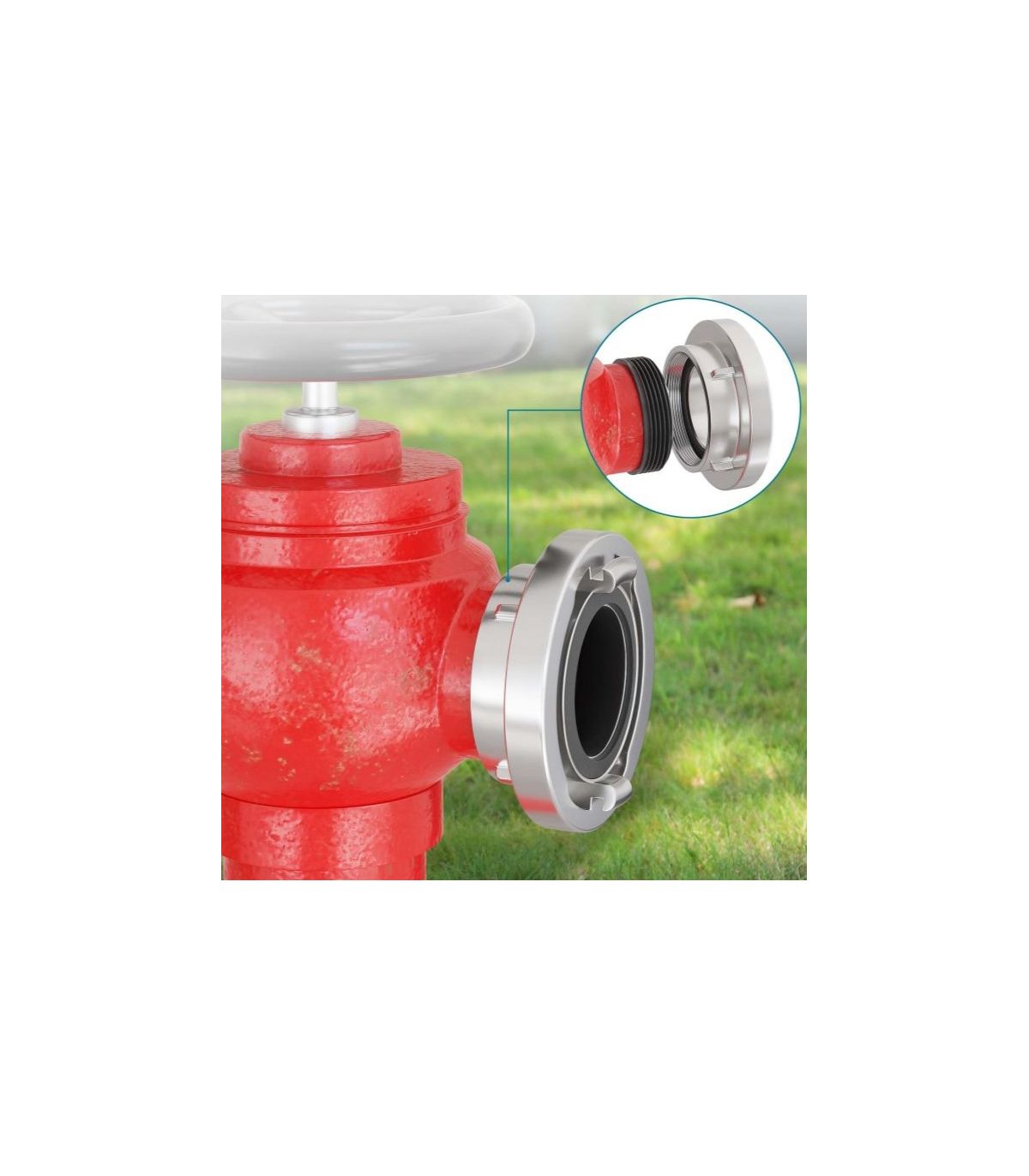

Fire protection systems (hydrants, hoses)
Agriculture and irrigation
Chemical and hydraulic industry
Transport of water and other fluids

Technical specifications of a Storz female threaded connector:

Code	Thread	Distance between claws (G)
718701	1"	31
718704	1-1/2"	51
718706	2"	66
718709	2-1/2"	81
718710	3"	89
718711	4"	133

Product Details

Reference 718704
