STORZ LINK PLUG
STORZ LINK PLUG
STORZ LINK PLUG
STORZ LINK PLUG
STORZ LINK PLUG
STORZ LINK PLUG

STORZ LINK PLUG

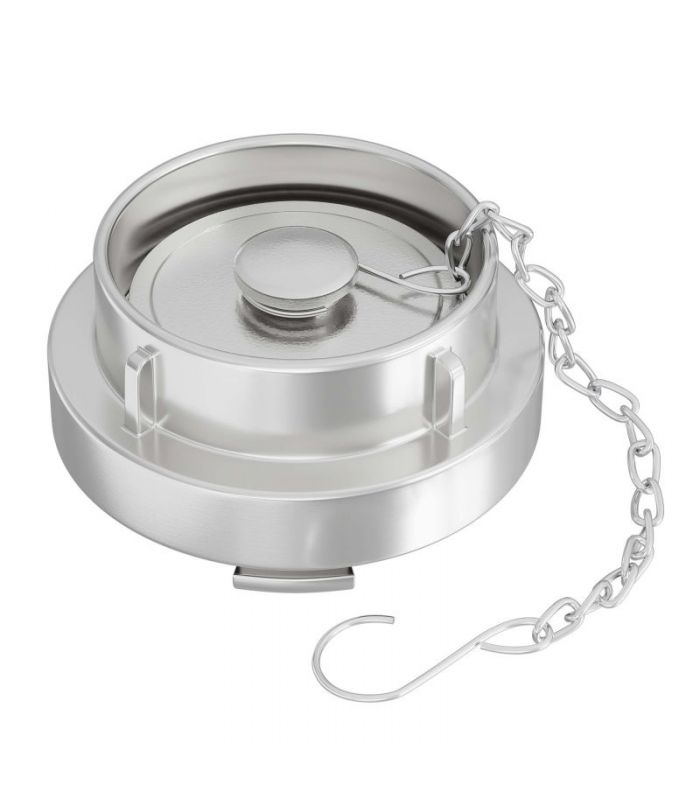

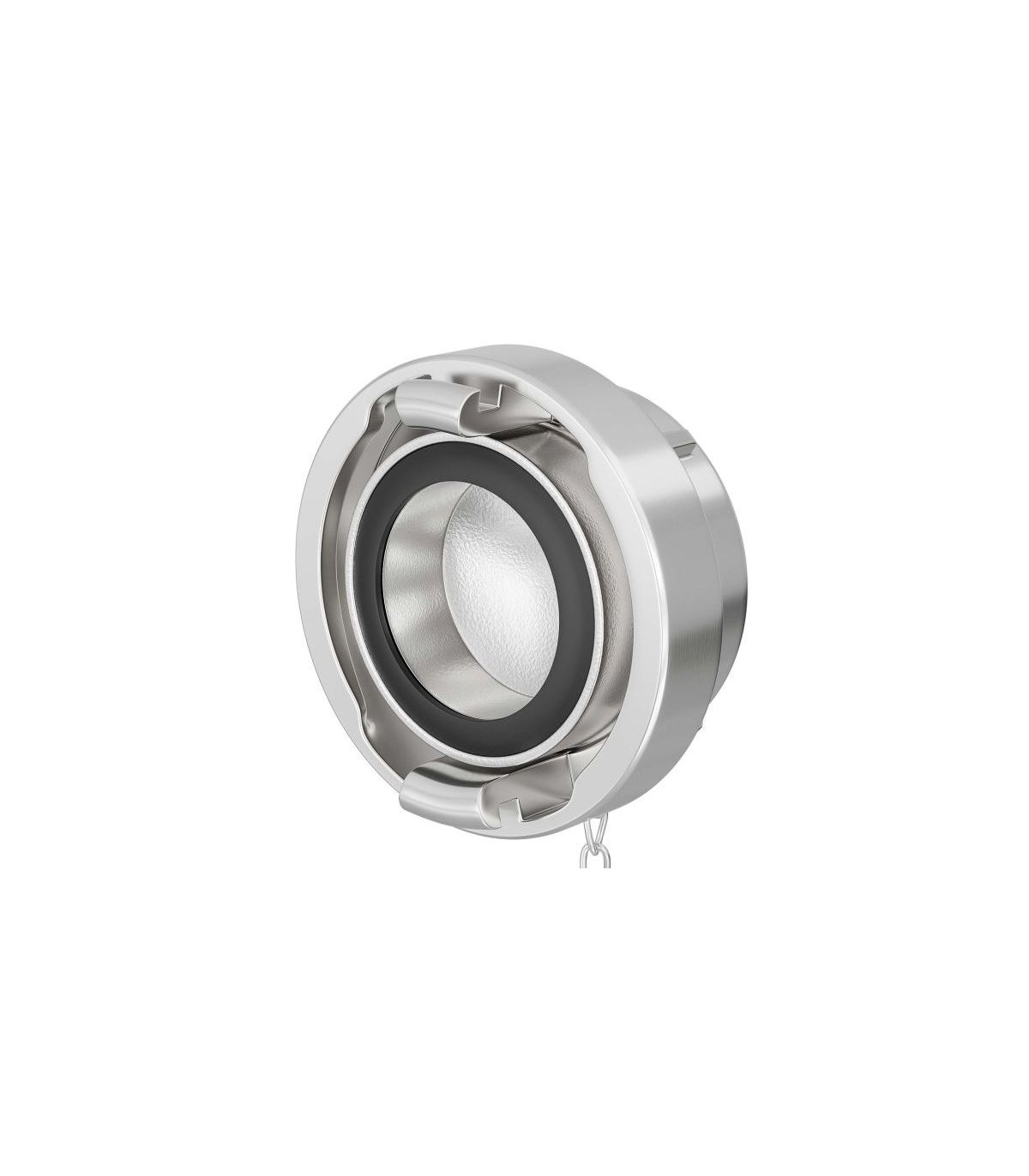

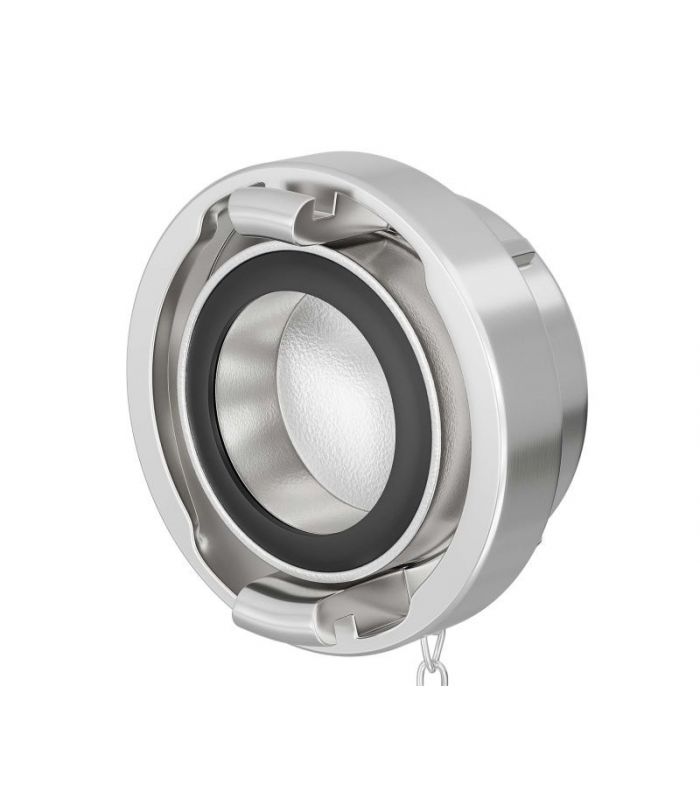

The Storz coupling plug is an accessory designed to hermetically seal the ends of Storz fittings. It is characterized by its quick and easy assembly, thanks to its bayonet design. It protects the internal threads from damage, dirt, or corrosion when the fitting is not in use.

Applications: firefighters, industry, construction.

Main features:

  • Made of aluminum.
  • NBR Board
  • Standard DIN-14317 DIN-14318 NEN-6674
  • Pressure 12 bar.
  • Interchangeable gasket.
€9.98 (tax included)
€8.25 (tax excl.)
DIAMETERS
  • 38
  • 45
  • 50
  • 65
  • 75
  • 100
Reference:
718801
Description

Storz Link Plug

The Storz coupling plug is an accessory used in water and other fluid piping systems, designed to create a watertight seal on a Storz-type connection when not in use. It attaches using the Storz symmetrical quick-connect system, without the need for threading, ensuring a fast, secure, and leak-proof connection.

Functions

  • Prevent fluid leaks
  • Protect the connection from dirt, dust, or damage.
  • Maintain system security when it is not operational

Applications

  • Fire protection systems
  • Industrial water networks
  • Agriculture and irrigation
  • Civil protection and emergencies

Technical specifications of a Storz connector plug:

Code Diameter Distance between claws (G)
718801 38 51
718802 45 66
718803 50 66
718804 65 81
718805 75 89
718806 100 133

Product Details
718801
