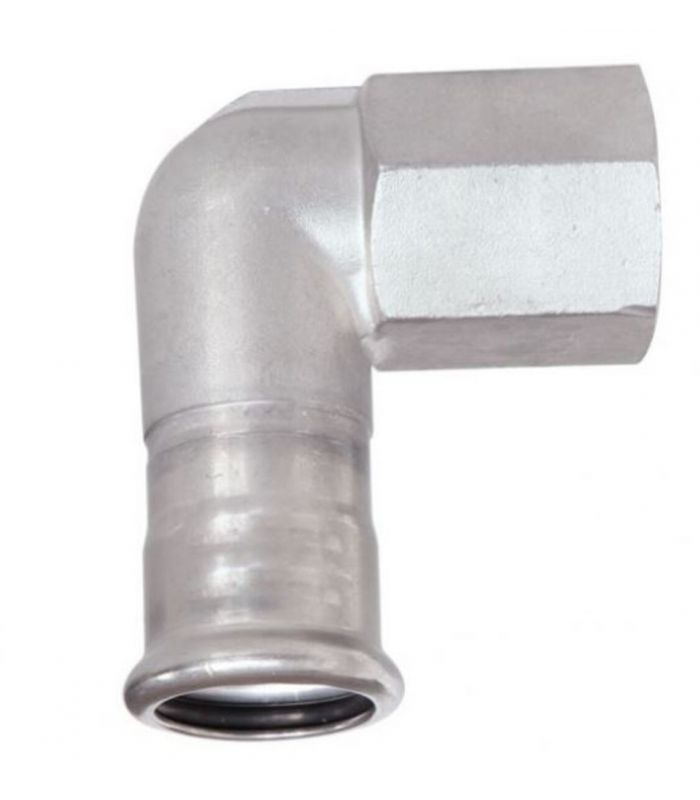

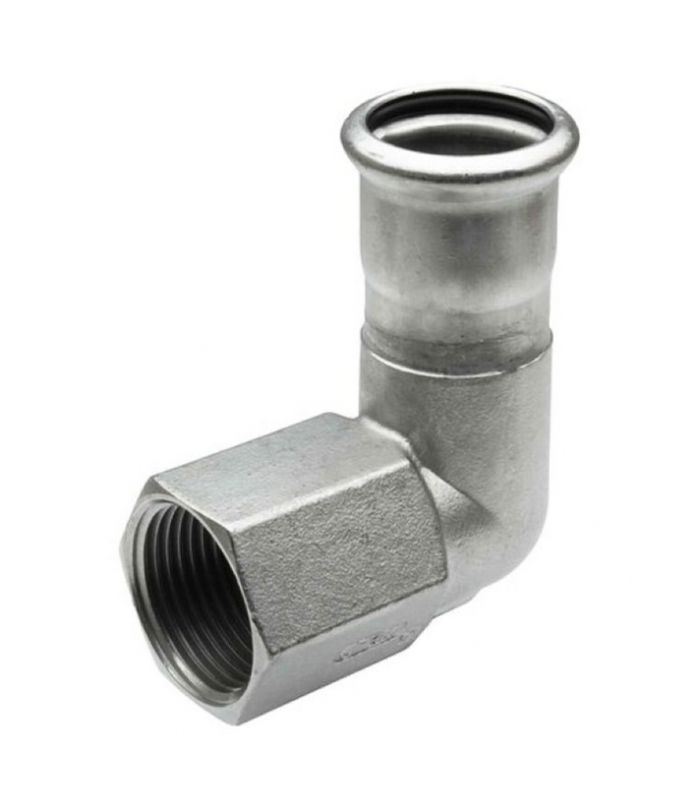

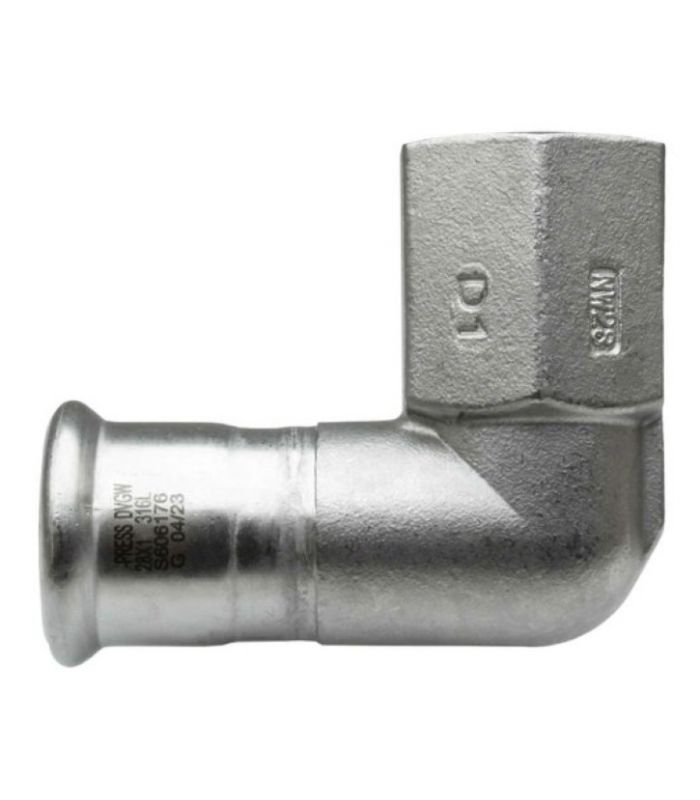

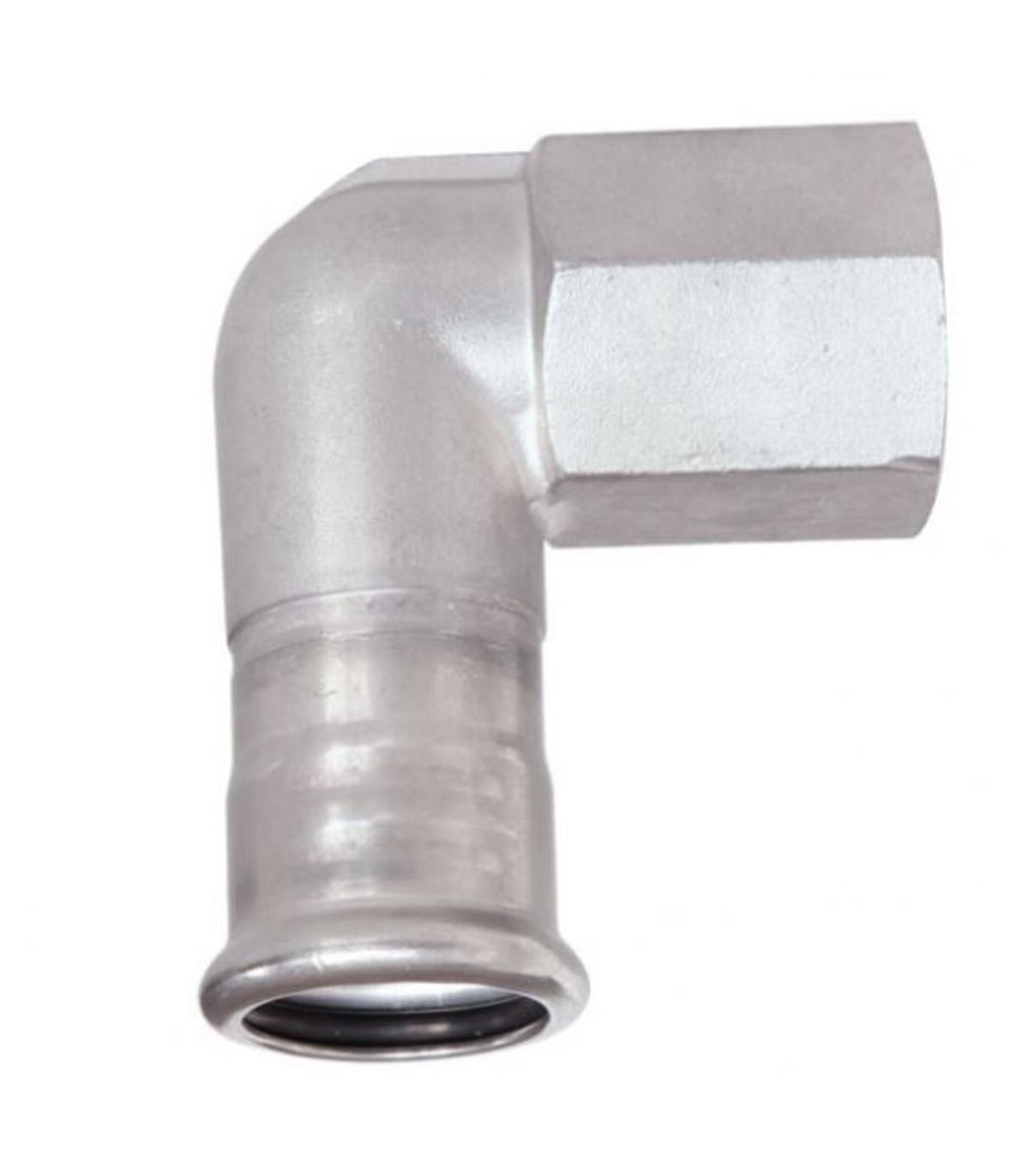

90º FEMALE TUBE ELBOW PRESS INOX
90º FEMALE TUBE ELBOW PRESS INOX
90º FEMALE TUBE ELBOW PRESS INOX
90º FEMALE TUBE ELBOW PRESS INOX
90º FEMALE TUBE ELBOW PRESS INOX
90º FEMALE TUBE ELBOW PRESS INOX

90º FEMALE TUBE ELBOW PRESS INOX

A 90° female stainless steel press elbow is a fundamental accessory in pipe installations, especially when high corrosion resistance and a tight seal are required. Its function is to change the direction of fluid flow at a 90° angle.

Key uses: Sanitary installations, Heating systems, Food industry, Chemical industry and Naval sector.

Technical sheet:

  • INOX-316 fitting for pressing.
  • Available tube diameters 15-18-22-28-35-42-54
  • EPDM gasket available (domestic water, heating, fire protection, compressed air (oil-free)
  • VITON seal available (oils, hydrocarbons (except diesel), solar installations, compressed air.
  • For DVGW GW 541 UNE-EN-10088 tube
  • Pressure 16 bar at 90ºC
  • Temperature 120ºC
  • Various certifications and approvals, depending on the sector.
€9.50 (tax included)
€7.85 (tax excl.)
Tube diameter - Thread
  • Ø 15-1/2
  • Ø 15-3/4
  • Ø 18-1/2
  • Ø 18-3/4
  • Ø 22-3/4
  • Ø 28-1
  • Ø 35-1-1/4
Reference:
58130039
Description

90º female press stainless steel tube elbow

Product Details
58130039
