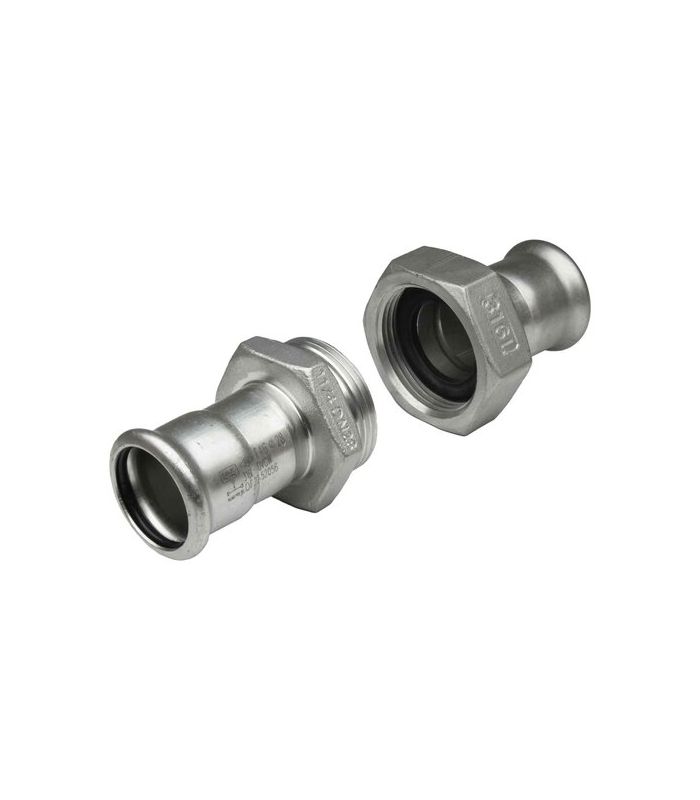

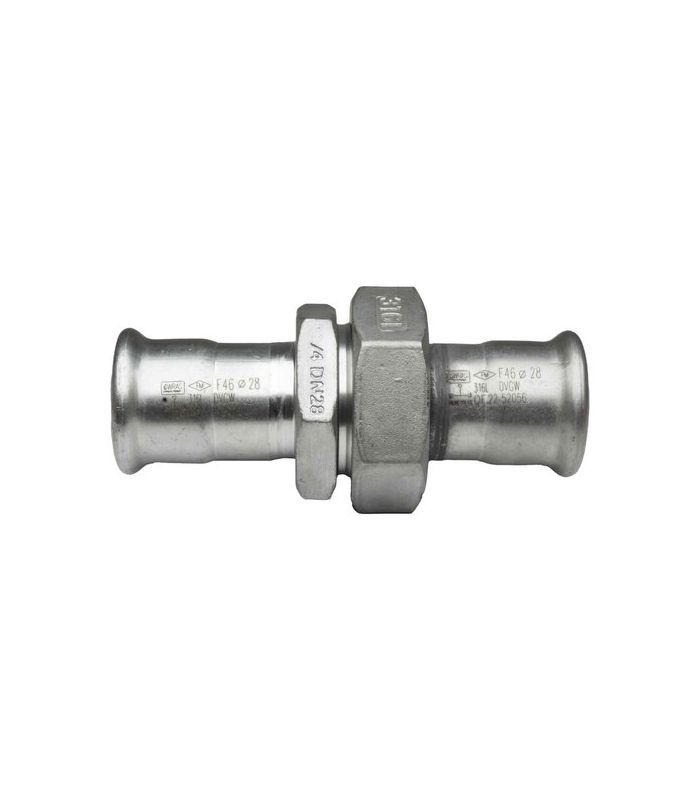

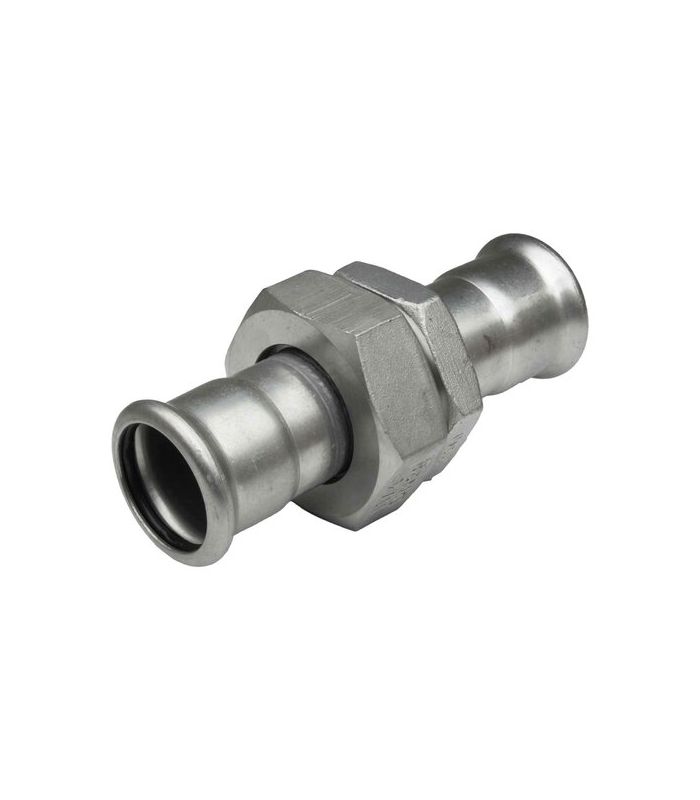

3-PIECE PRESS STAINLESS STEEL FITTING
3-PIECE PRESS STAINLESS STEEL FITTING
3-PIECE PRESS STAINLESS STEEL FITTING
3-PIECE PRESS STAINLESS STEEL FITTING
3-PIECE PRESS STAINLESS STEEL FITTING
3-PIECE PRESS STAINLESS STEEL FITTING

3-PIECE PRESS STAINLESS STEEL FITTING

A 3-piece stainless steel press fitting is used in piping systems that require high corrosion resistance and secure connections, especially in sanitary and industrial applications. It facilitates pipe assembly and disassembly.

Applications: Food and beverage industry, Pharmaceutical and cosmetics industry, Pharmaceutical and cosmetics industry, Drinking water and water treatment systems, Heating and cooling systems.

Technical sheet:

  • INOX-316 fitting for pressing.
  • Available tube diameters 15-18-22-28-35-42-54
  • EPDM gasket available (domestic water, heating, fire protection, compressed air (oil-free)
  • VITON gasket available (oils, hydrocarbons (except diesel), solar installations, compressed air.
  • For DVGW GW 541 UNE-EN-10088 tube
  • Pressure 16 bar at 90ºC
  • Temperature 120ºC
  • Various certifications and approvals, depending on the sector.
€17.71 (tax included)
€14.64 (tax excl.)
DIAMETERS
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
  • Ø 54
Reference:
58080016
Description

3-piece stainless steel press fitting

Product Details
58080016
