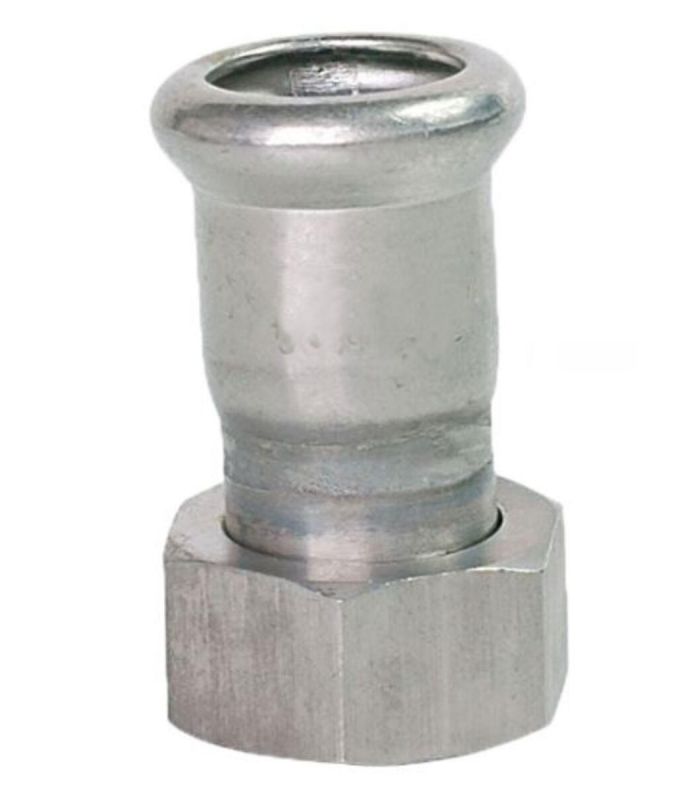

UNION TUBE FEMALE THREAD SWIVEL PRESS INOX

UNION TUBE FEMALE THREAD SWIVEL PRESS INOX

A press stainless steel swivel female thread pipe union is designed to flexibly and securely connect a pipe with a female thread to another component. It allows for a certain amount of rotation, facilitating the alignment of components and installation in tight spaces.

Typical applications: sanitary installations, heating, food industry and chemical industry.

Technical data sheet:

  • INOX-316 fitting for pressing.
  • Available tube diameters 15-18-22-28-35-42-54
  • EPDM gasket available (sanitary water, heating, fire protection, compressed air (oil-free))
  • VITON gasket available (oils, hydrocarbons (except diesel), solar installations, compressed air.
  • For DVGW GW 541 UNE-EN-10088 tube
  • Pressure 16 bar at 90ºC
  • Temperature 120ºC
  • Various certifications and approvals, depending on the sector.
€11.92 (tax included)
€9.85 (tax excl.)
Tube diameter - Thread
  • Ø 15-1/2
  • Ø 15-3/4
  • Ø 18-1/2
  • Ø 18-3/4
  • Ø 22-3/4
  • Ø 22-1
  • Ø 28-1
  • Ø 28-1-1/4
  • Ø 35-1-1/4
  • Ø 35-1-1/2
  • Ø 42-1-1/2
  • Ø 54-2
Reference:
58110039
Description

union tube female thread rotating press stainless steel

Product Details
58110039
