STRAIGHT H-H JOINT
STRAIGHT H-H JOINT
STRAIGHT H-H JOINT
STRAIGHT H-H JOINT

STRAIGHT H-H JOINT

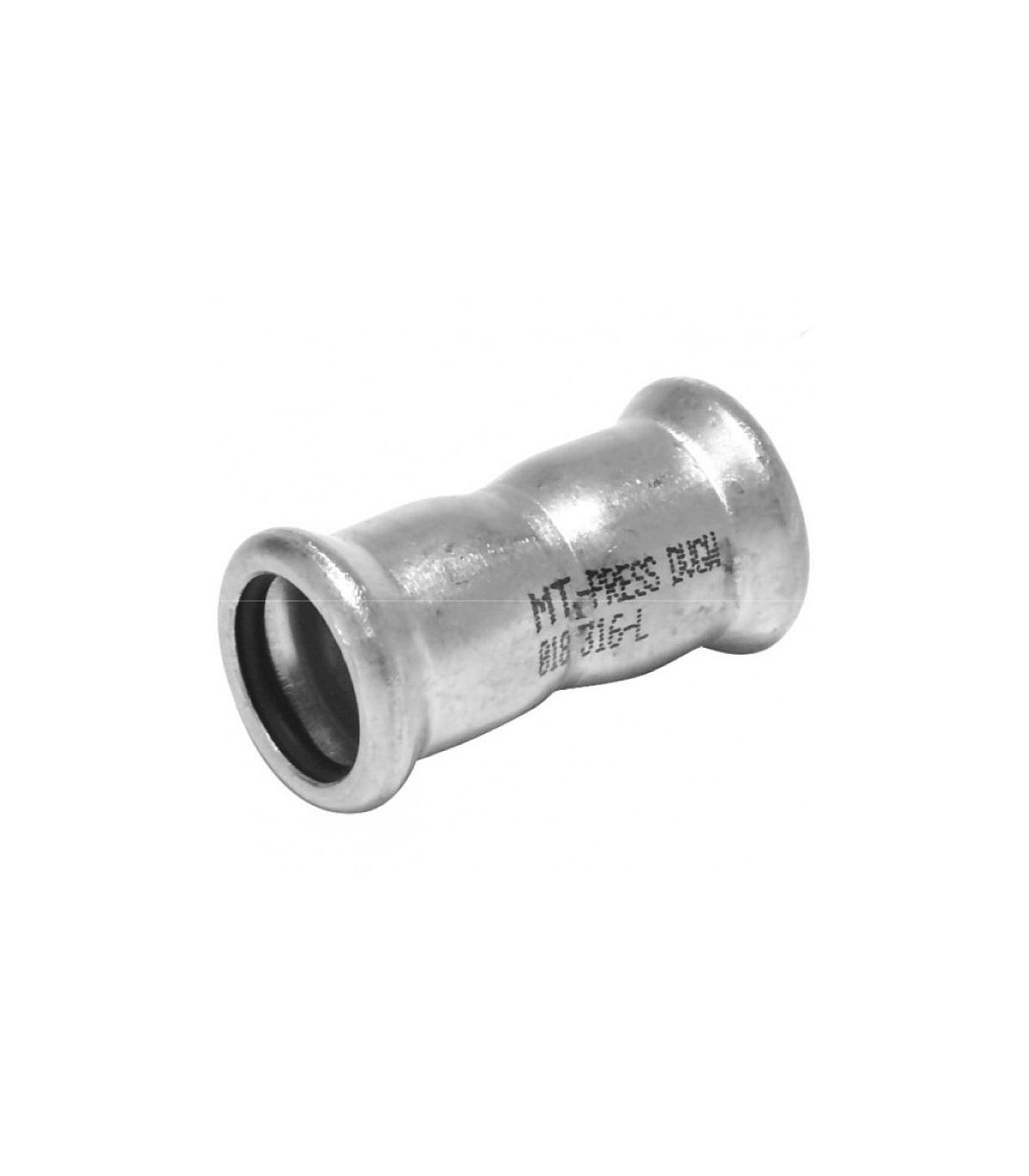

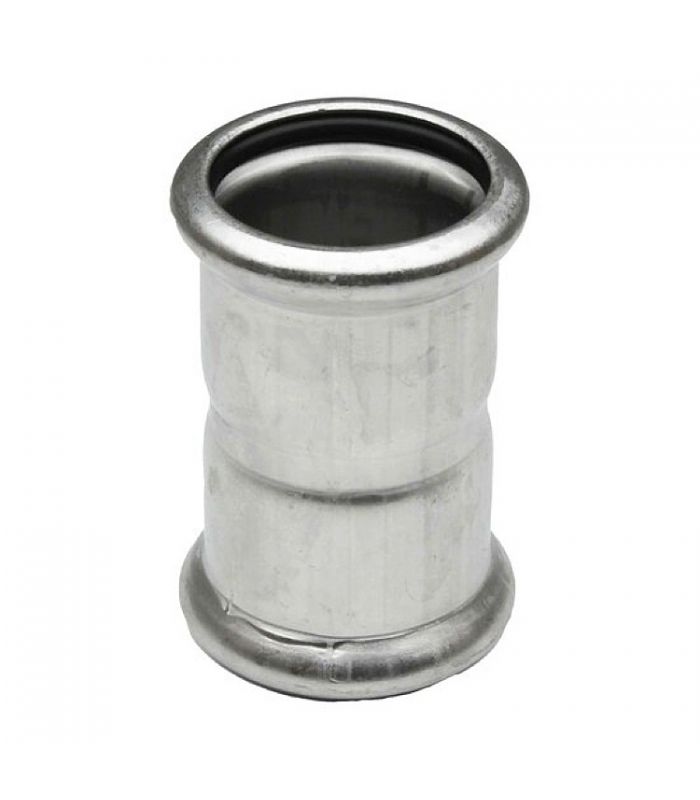

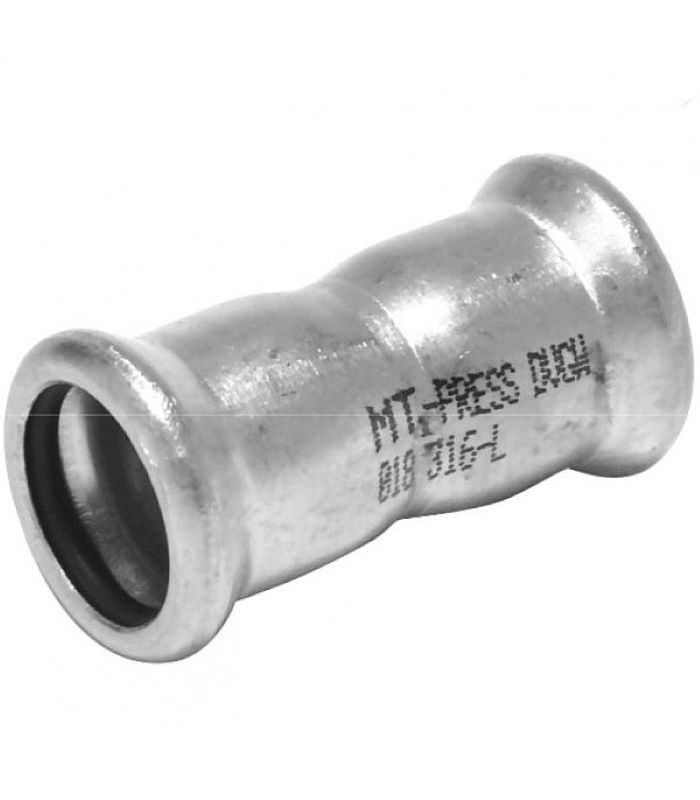

A straight HH union is a connector used in piping systems, designed to join two pipes in a straight line using a press connection system.

Technical sheet:

  • INOX-316 fitting for pressing.
  • Available tube diameters 15-18-22-28-35-42-54
  • EPDM gasket available (domestic water, heating, fire protection, compressed air (oil-free)
  • VITON seal available (oils, hydrocarbons (except diesel), solar installations, compressed air).
  • For DVGW GW 541 UNE-EN-10088 tube
  • Pressure 16 bar at 90ºC
  • Temperature 120ºC
  • Various certifications and approvals, depending on the sector.

Consult other diameters

€3.61 (tax included)
€2.98 (tax excl.)
DIAMETERS
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
  • Ø 54
Reference:
58000016
Description

straight HH union

Product Details
58000016
