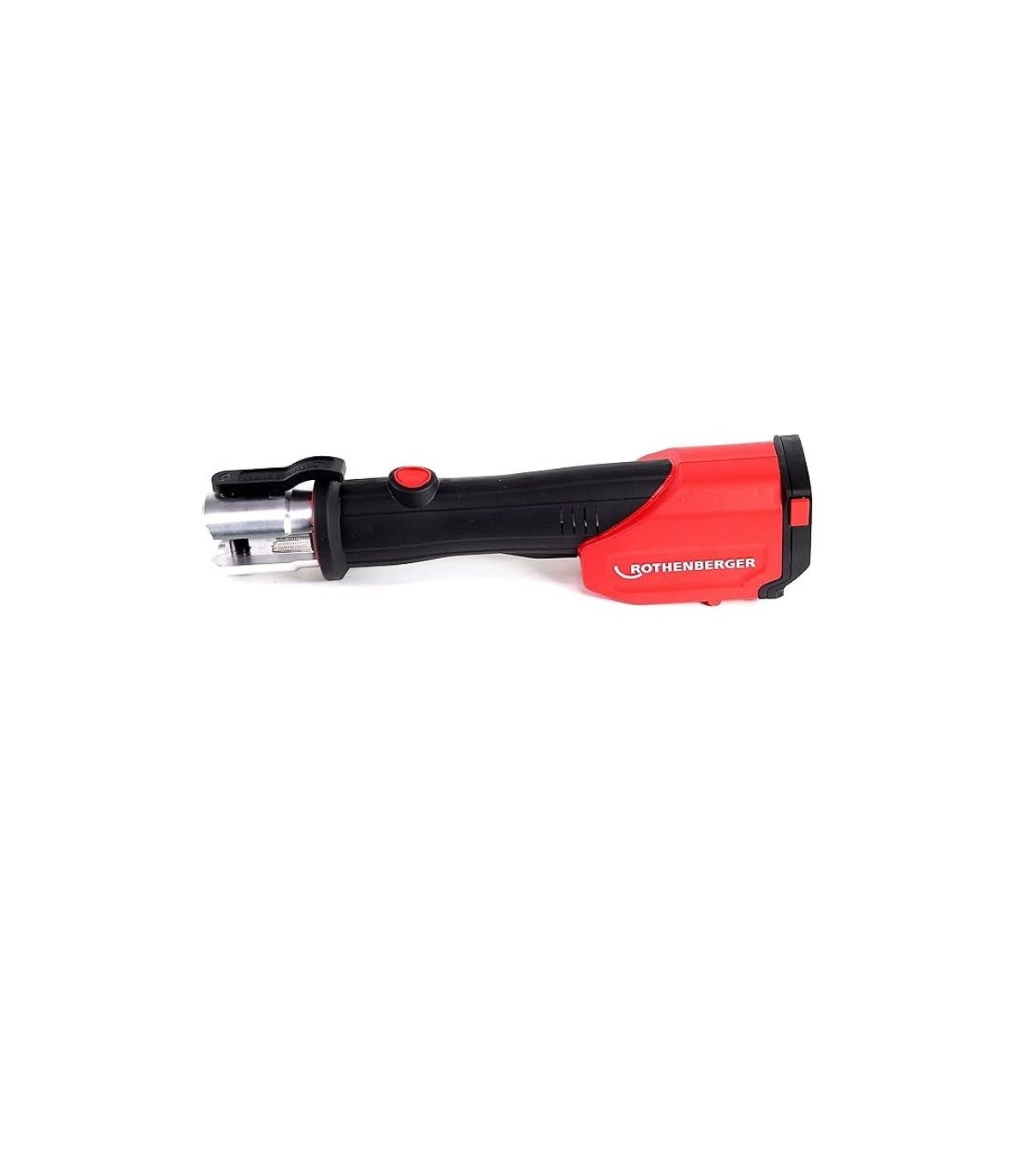

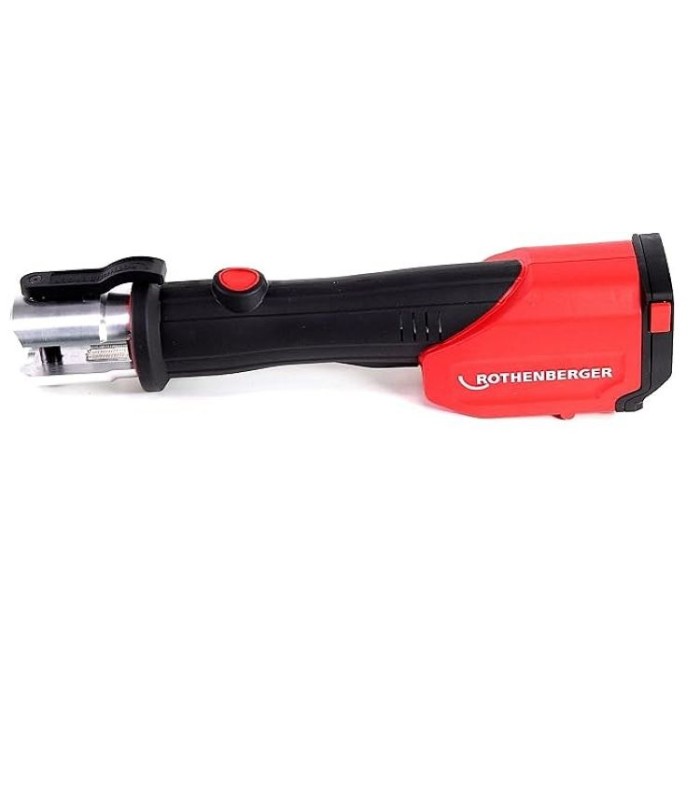

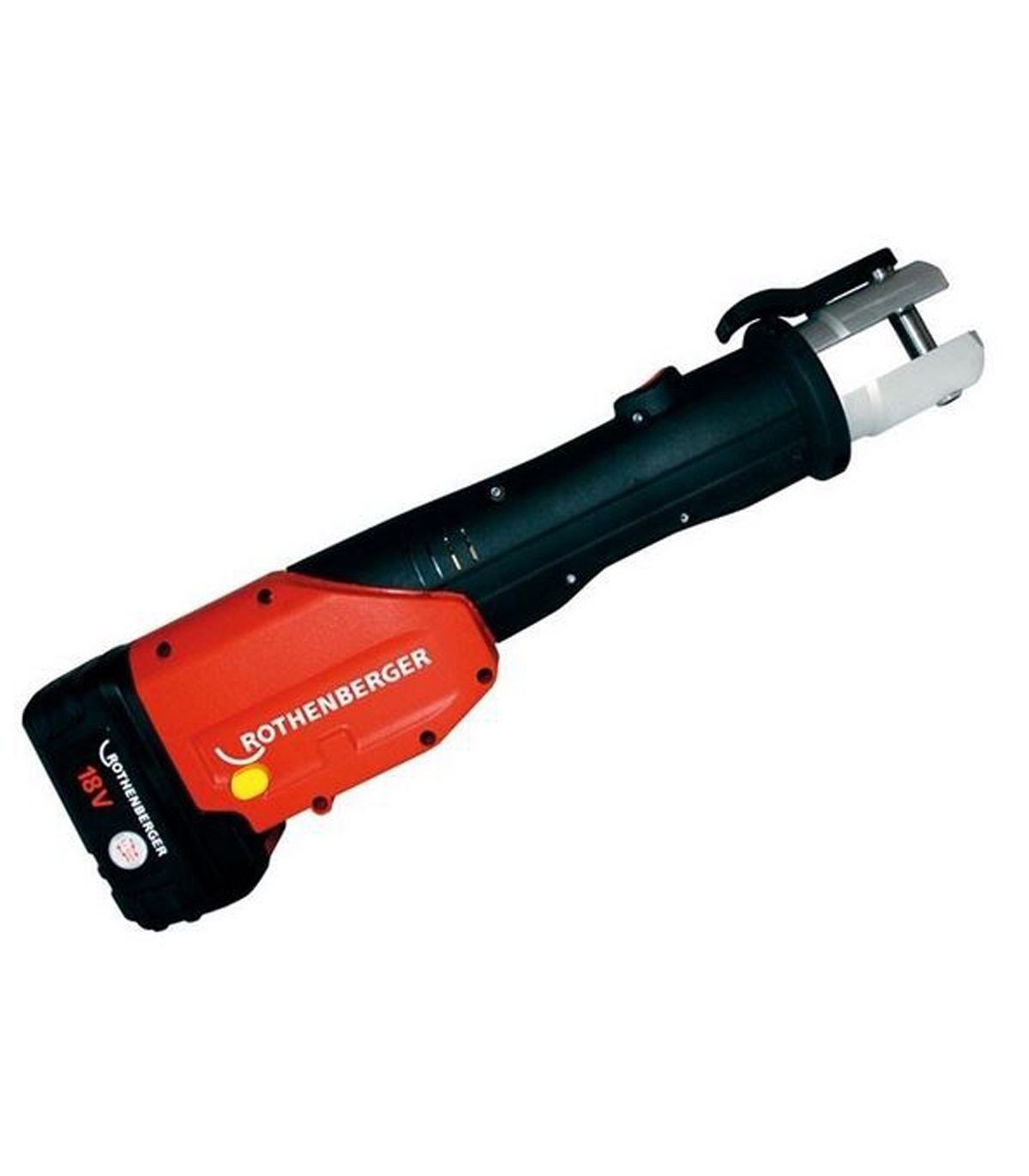

BATTERY-POWERED ELECTROHYDRAULIC PRESS

A battery-powered electro-hydraulic press uses a hydraulic system driven by an electric motor powered by a rechargeable battery to make joints, usually radial or axial, in pipes and fittings.

Applications: Plumbing, heating, gas and air conditioning installations, Maintenance and repair work, Installations in hard-to-reach places, Work at height.

Technical specifications:

  • Dimensions: 445 x 125 x 75 mm
  • Weight: approx. 3.6 kg (without jaws)
  • Piston/core force: 32 kN / 40 mm
  • Nominal size: Ø 12 - 110 mm (depending on the system)
  • Jaw clamping: 270° rotation
  • Power supply: 18V / 3Ah Li-ion battery
  • Power adapter 230 V, 50 - 60 Hz,
  • 110V power adapter available upon request
  • Operating temperature: -10°C to +60°C
  • Presses: Up to 160 with 28 mm stainless steel
  • Up to 90 with 54 mm stainless steel
  • SUPPLIED WITHOUT JAWS
Read moreShow less
€2,057.00 (tax incl.)
€1,700.00 (tax excl.)
Reference:
5825
Description

battery-powered electro-hydraulic press

CHARACTERISTICS

  • Reliable and economical
  • Maximum quality service interval of 20,000 pressing cycles. Ensures continuous and economical use.
  • Wider operating temperature range
  • ROMAX® 3000 functions perfectly even in adverse environmental conditions. Pressing can be carried out between -10°C and +60°C.
  • Wide range
  • Standard Li-ion technology allows up to 160 presses (with 28 mm stainless steel), and/or 90 presses (with 54 mm stainless steel) per charge
  • Practical design
  • The compact design allows pressing to be performed even in confined spaces
  • CFT® technology guarantees the necessary force for pressing. Automatically controlled press cycles.
  • The extremely low weight, along with a balanced weight distribution, prevents fatigue, even during continuous use.
Read moreShow less
Product Details
5825
