PRESSURE LIMITING VALVE
PRESSURE LIMITING VALVE
PRESSURE LIMITING VALVE
PRESSURE LIMITING VALVE

PRESSURE LIMITING VALVE

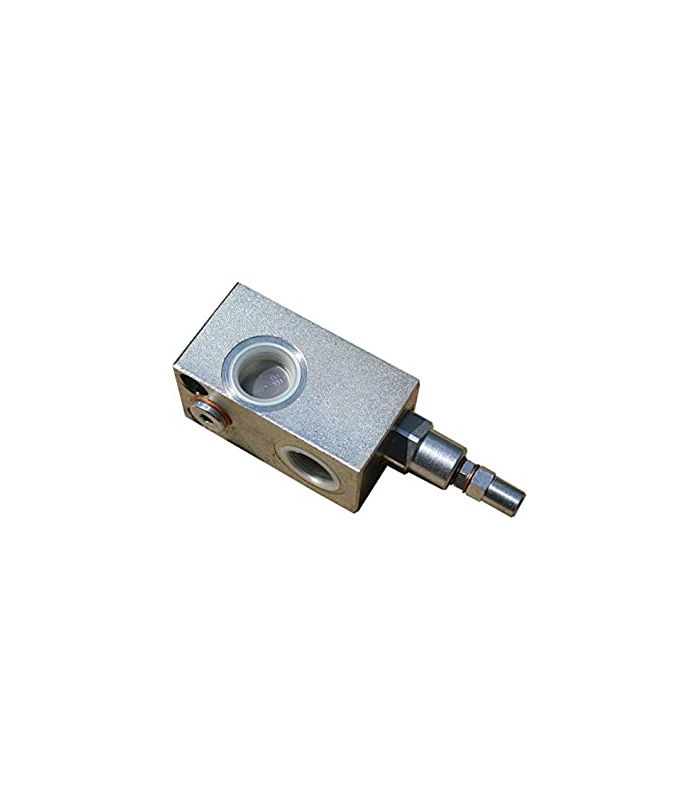

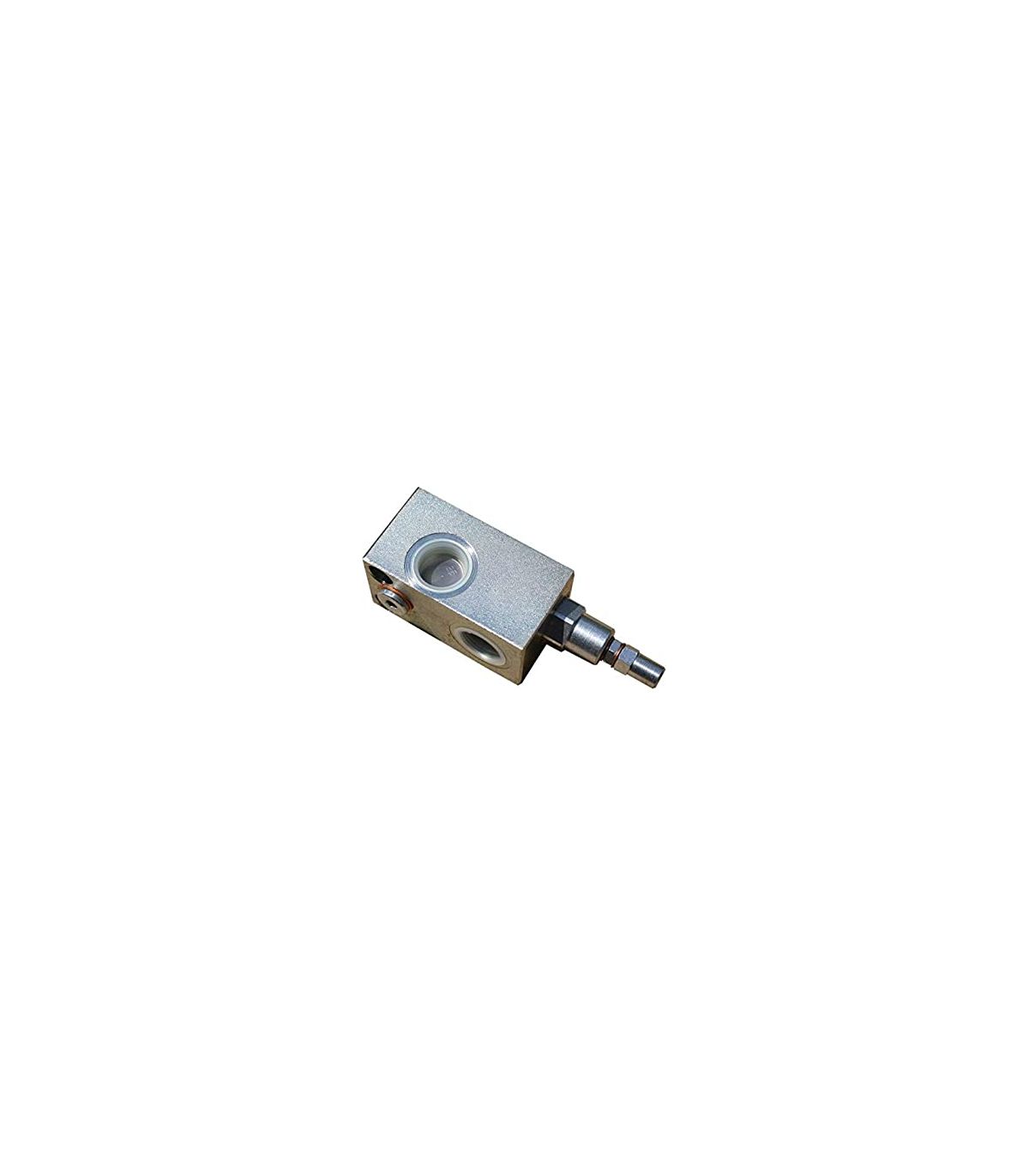

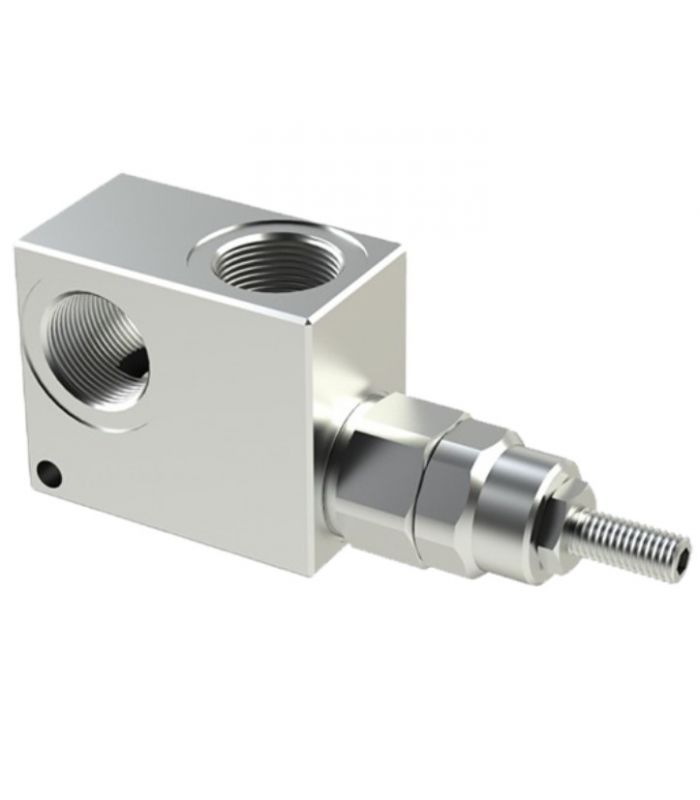

Pressure limiting valve

An in-line pressure limiting valve is a safety component that is installed directly on the piping of a hydraulic system to limit the maximum allowable pressure in the circuit.

When the fluid pressure exceeds the preset value, the valve opens automatically and diverts part of the flow to a return or discharge, preventing damage to pumps, hoses, actuators and other system components.

Applications: construction, agriculture, industrial machinery, hydraulic systems of vehicles and mobile machinery.

Technical specifications:

  • The body is made of aluminum.
  • Lock nut for fixing.
  • Flow rates from 20 to 130 l/7 min.
  • Several taring pressures to choose from.
  • Temperature -20ºC / 90ºC
€45.92 (tax included)
€37.95 (tax excl.)
SELECT THE THREAD
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
PRESSURE
  • 3 - 40 Bar
  • 20 - 100 Bar
  • 40 - 250 Bar
  • 60 - 350 Bar
Reference:
49320296
Description

Pressure limiting valve

A pressure relief valve is an in-line hydraulic device that limits system pressure by diverting excess fluid when a preset value is exceeded, thus protecting circuit components. When the pressure exceeds the preset value, the valve opens automatically and diverts the excess flow to the return line, stabilizing the pressure and preventing overloads.

Advantages

  • Reliable protection against pressure spikes.
  • Precise adjustment of the maximum system pressure.
  • Quick installation without the need for hydraulic blocks.
  • Long lifespan and minimal maintenance.
  • Suitable for a wide variety of industrial and mobile equipment.

Common applications

  • Industrial and mobile hydraulic systems.
  • Presses, hydraulic cylinders and heavy machinery.
  • Positive displacement pumps.
  • Agricultural and construction equipment.
  • Machinery that requires protection against pressure spikes.

Product Details
49320296
