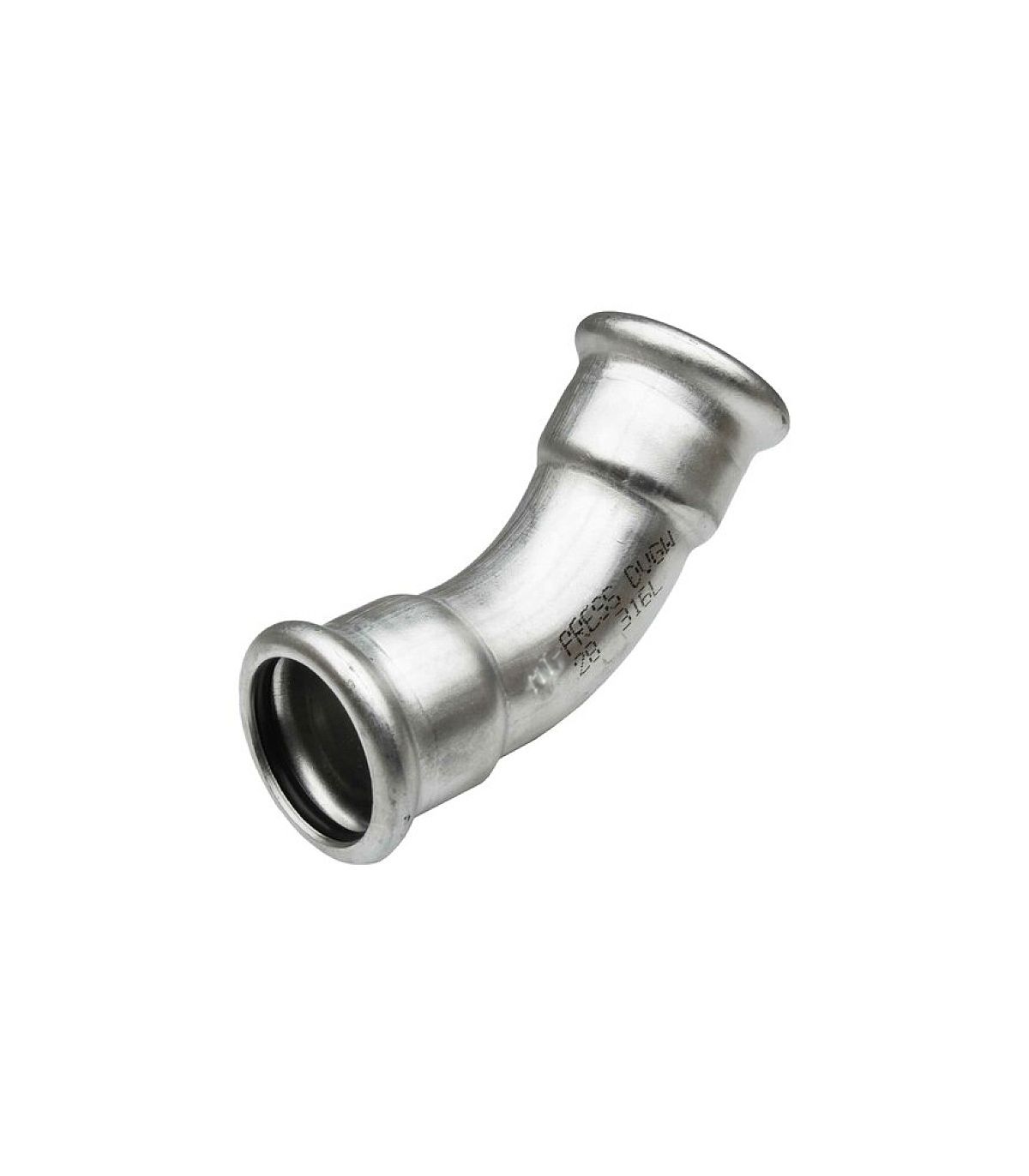

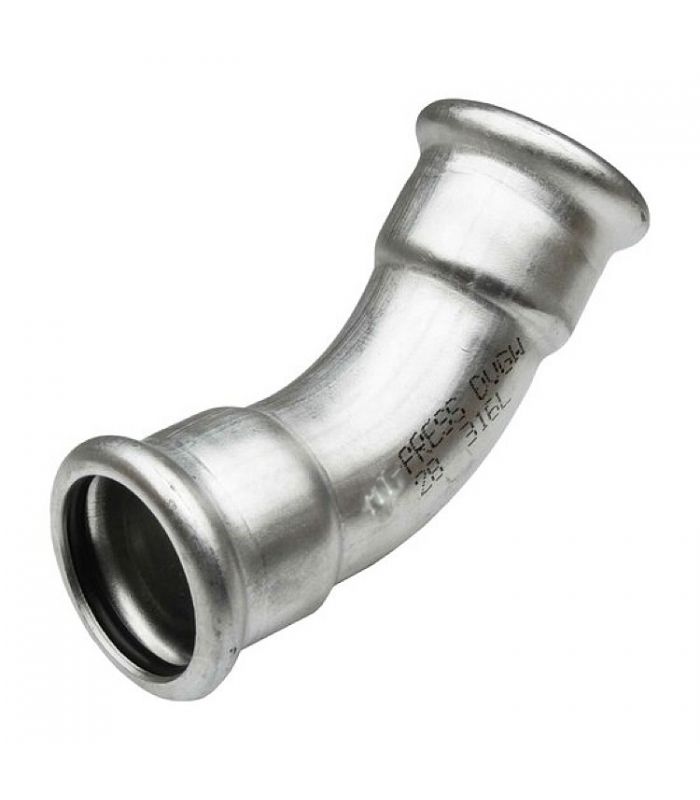

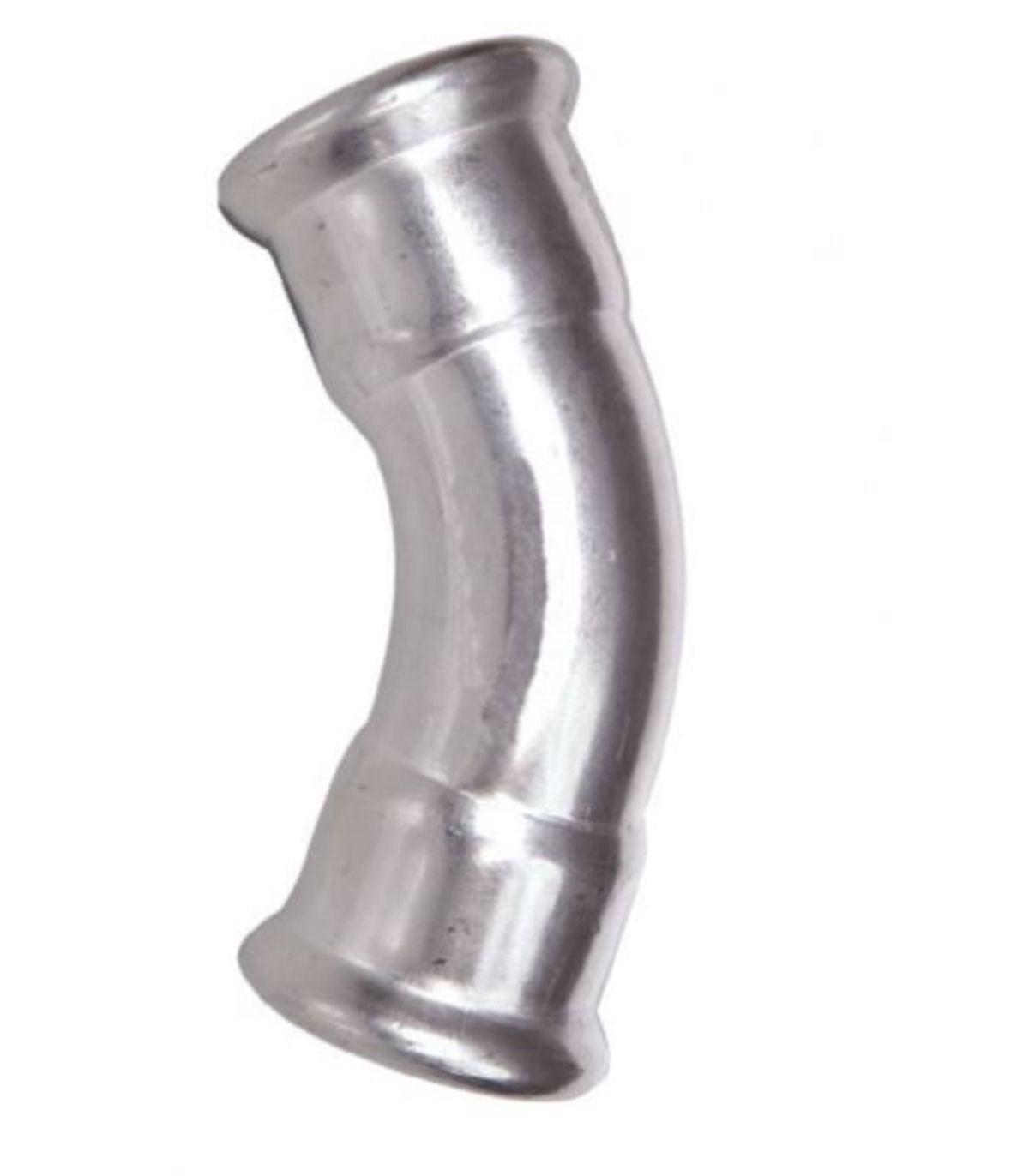

45º CURVE H-H PRESS INOX
45º CURVE H-H PRESS INOX
45º CURVE H-H PRESS INOX
45º CURVE H-H PRESS INOX

45º CURVE H-H PRESS INOX

A 45° HH press stainless steel bend is used to change the direction of the pipe at a 45° angle. Both fitting connections are female threads.

Applications: food industry, pharmaceutical industry, chemical industry, drinking water systems and water treatment.

Technical sheet:

  • INOX-316 fitting for pressing.
  • Available tube diameters 15-18-22-28-35-42-54
  • EPDM gasket available (domestic water, heating, fire protection, compressed air (oil-free)
  • VITON gasket available (oils, hydrocarbons (except diesel), solar installations, compressed air.
  • For DVGW GW 541 UNE-EN-10088 tube
  • Pressure 16 bar at 90ºC
  • Temperature 120ºC
  • Various certifications and approvals, depending on the sector.
€5.81 (tax included)
€4.80 (tax excl.)

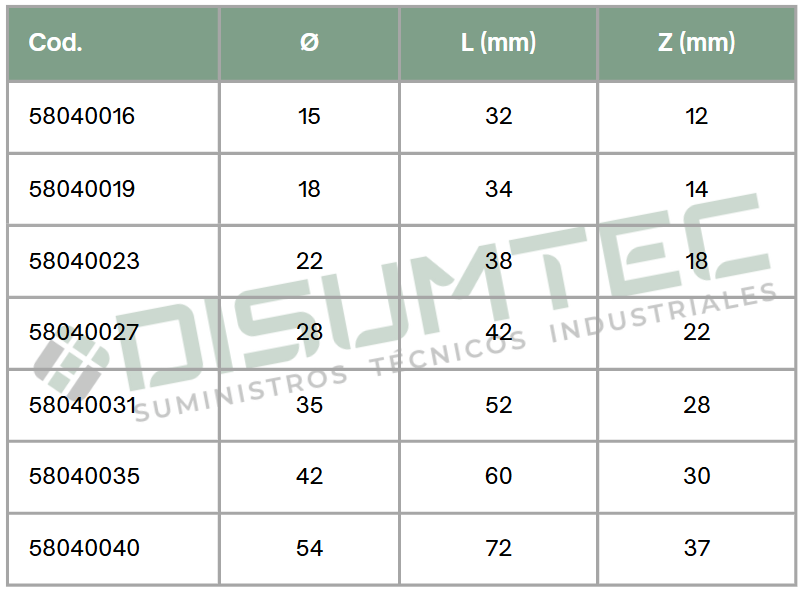

DIAMETERS
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
  • Ø 54
Reference:
58040016
Description

45º bend HH press stainless steel

Product Details
58040016
