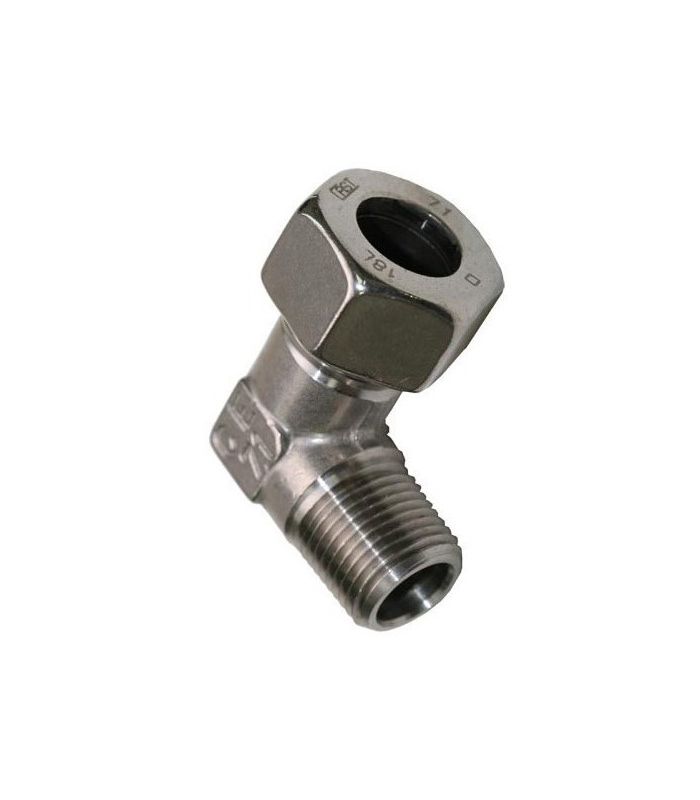

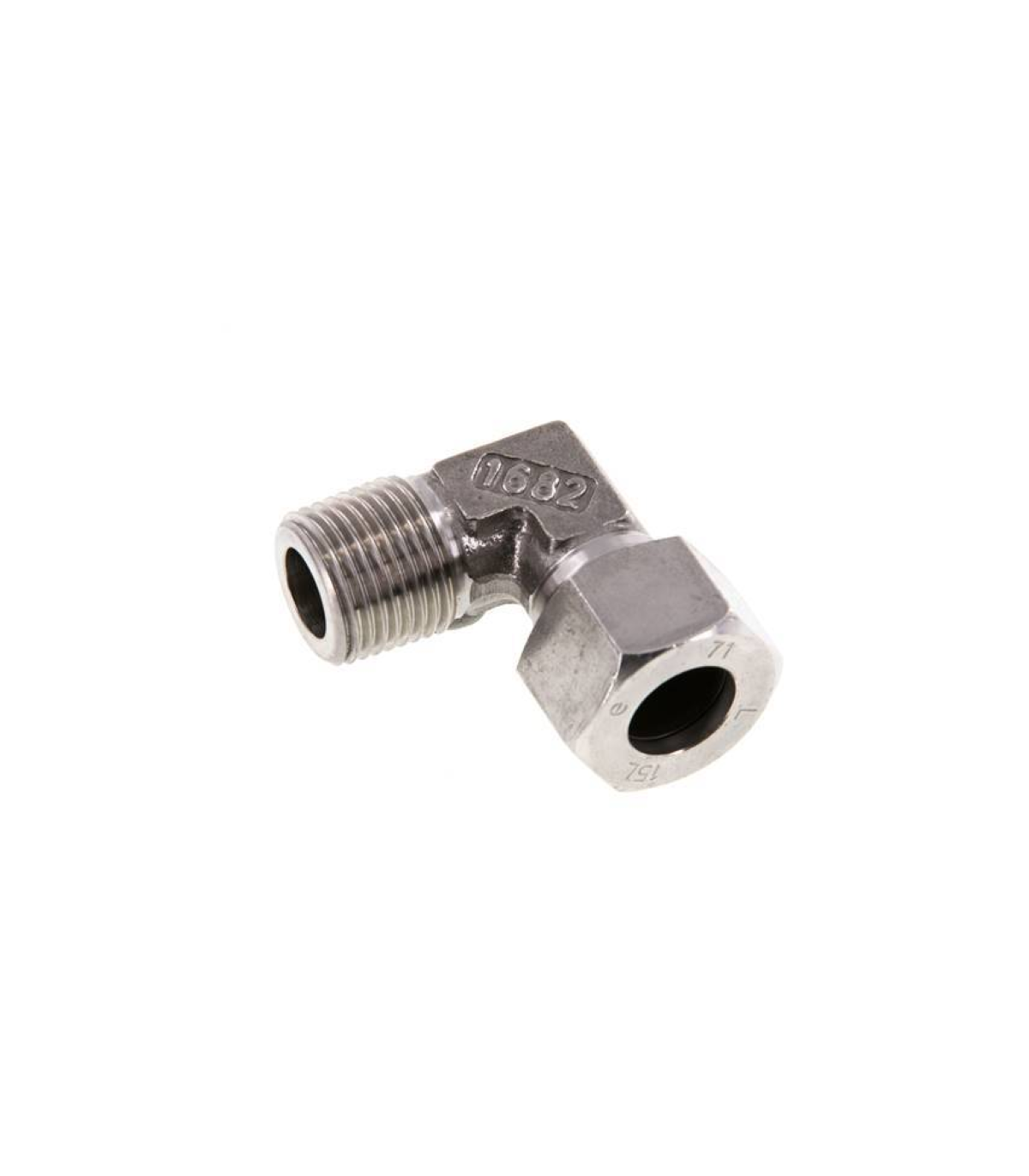

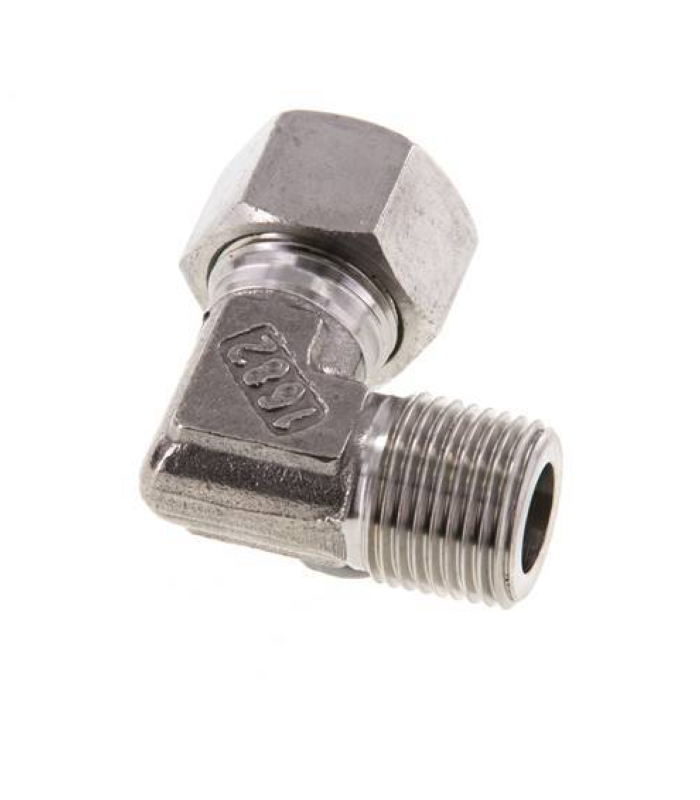

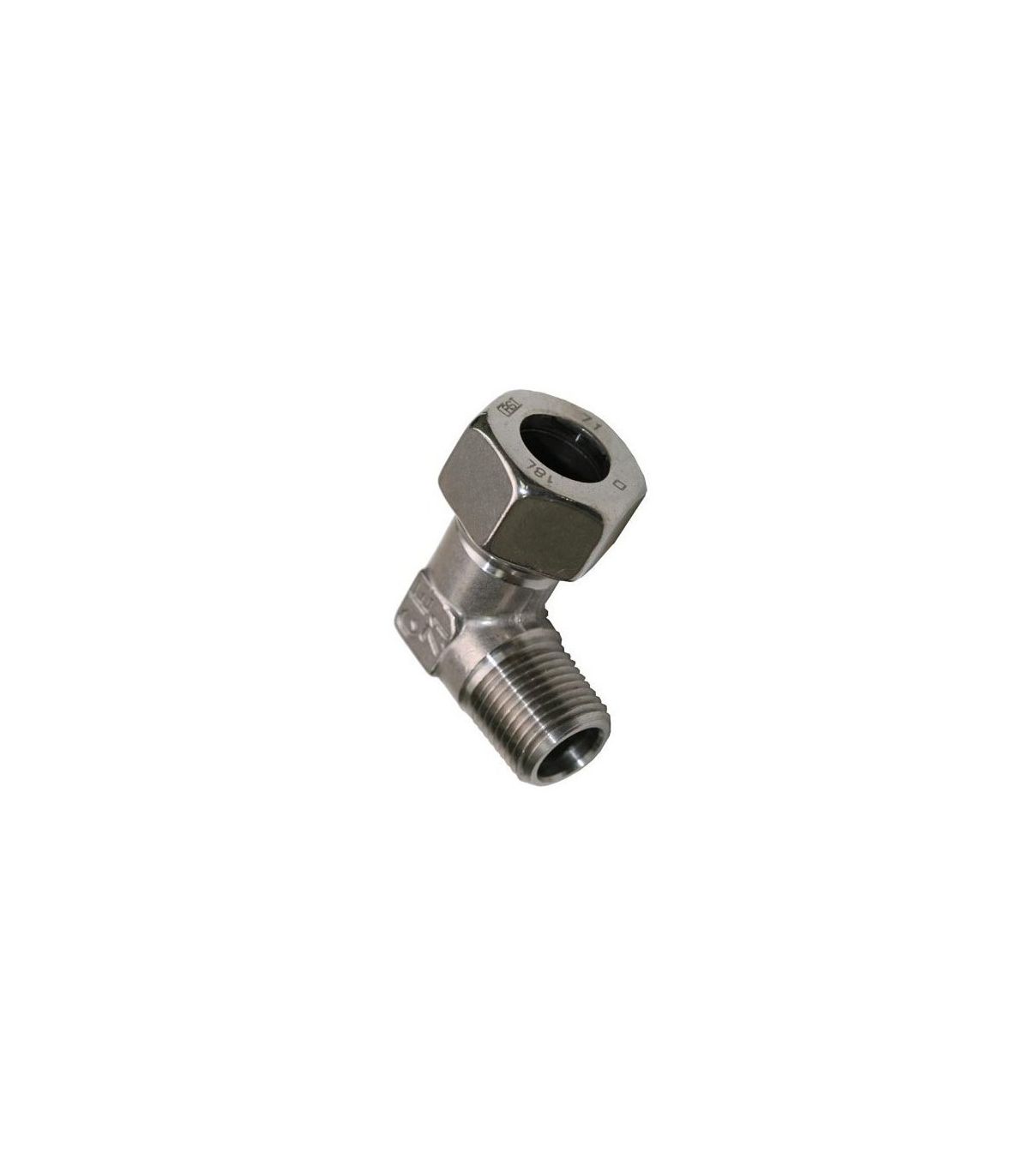

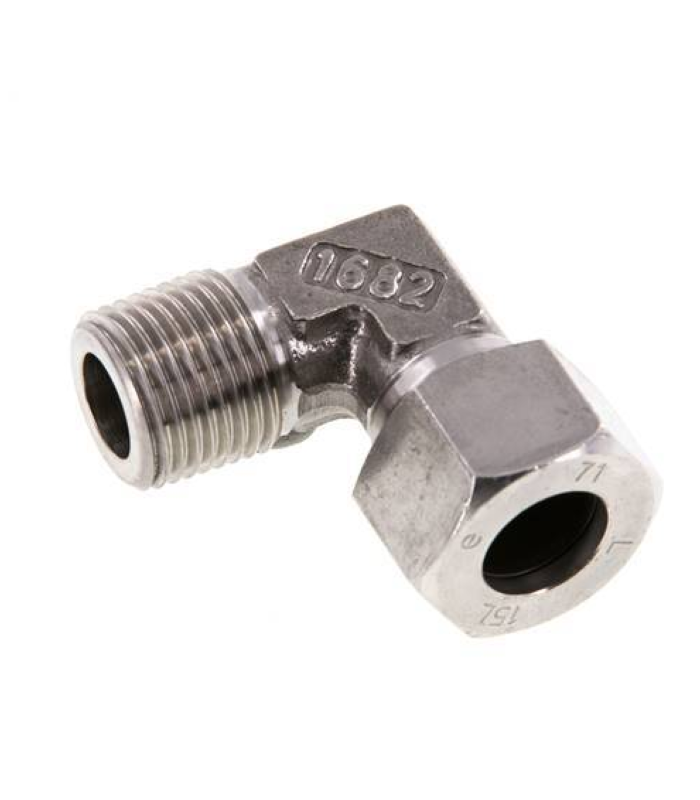

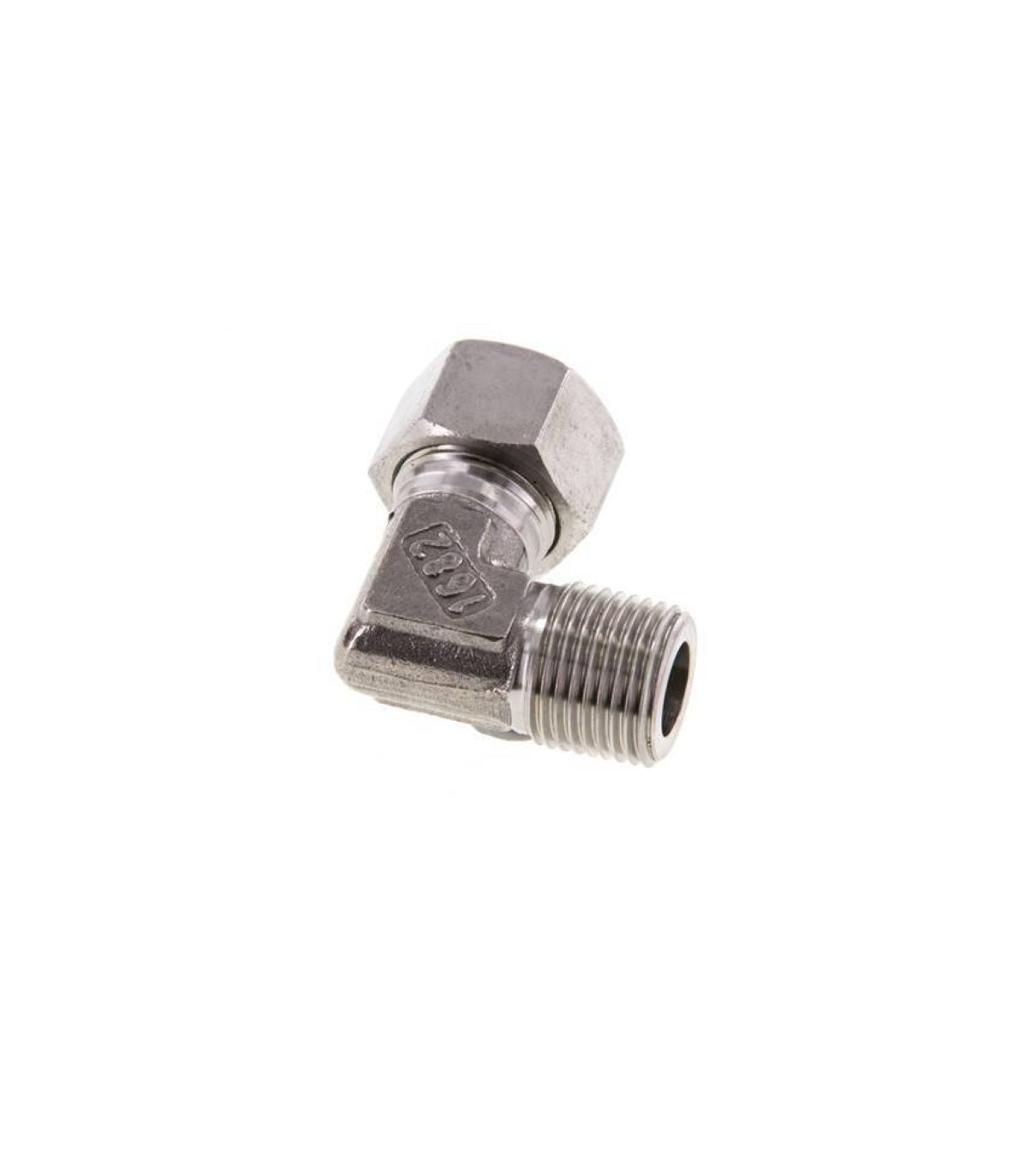

A DIN-2353 stainless steel L-threaded elbow tube fitting allows you to connect a rigid stainless steel tube with a threaded (female) port in a 90° direction.
Applications: cylinder connection, control panels and lubrication systems.
Main features:
A DIN-2353 stainless steel L-threaded elbow tube fitting is used to connect a tube using a cutting ring with a threaded outlet, allowing changes of direction in hydraulic and pneumatic systems with complete sealing.
It allows changing the flow direction by 90°, connecting a tube with a threaded component, ensuring a secure, leak-proof and vibration-resistant joint.
Technical data sheet for a stainless steel L-threaded elbow pipe fitting DIN-2353:
| Reference | D1 | T | D2 | D3 | L1 | L2 | L3 | Yo | S1 | S2 | Weight | PN |
| 391000 | 6 | 1/4" | 4 | 6 | 29 | 14 | 26 | 12 | 12 | 14 | 59 | 315 |
| 391002 | 8 | 1/4" | 6 | 6 | 29 | 14 | 26 | 12 | 12 | 17 | 63 | 315 |
| 391003 | 8 | 3/8" | 6 | 9 | 32 | 17 | 28 | 12 | 17 | 17 | 111 | 315 |
| 391005 | 10 | 1/4" | 8 | 7 | 30 | 15 | 27 | 12 | 14 | 19 | 82 | 315 |
| 391006 | 10 | 3/8" | 8 | 9 | 32 | 17 | 28 | 12 | 17 | 19 | 108 | 315 |
| 391008 | 12 | 1/4" | 10 | 7 | 32 | 17 | 27 | 12 | 17 | 22 | 109 | 315 |
| 391009 | 12 | 3/8" | 10 | 9 | 32 | 17 | 28 | 12 | 17 | 22 | 117 | 315 |
| 391010 | 12 | 1/2" | 10 | 11 | 36 | 21 | 34 | 14 | 19 | 22 | 118 | 315 |
| 391015 | 18 | 1/2" | 15 | 14 | 40 | 23.5 | 36 | 14 | 24 | 32 | 209 | 315 |
