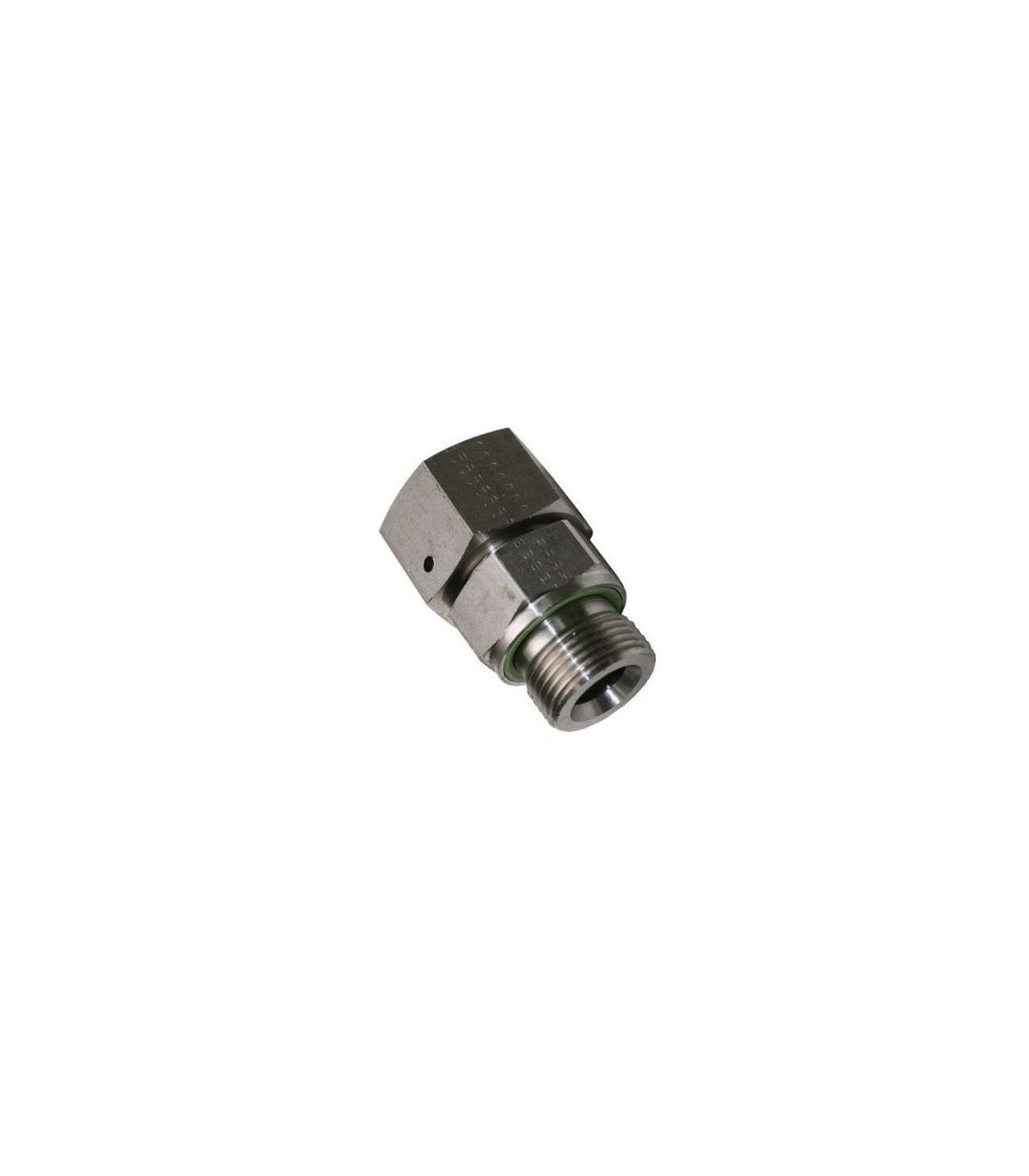

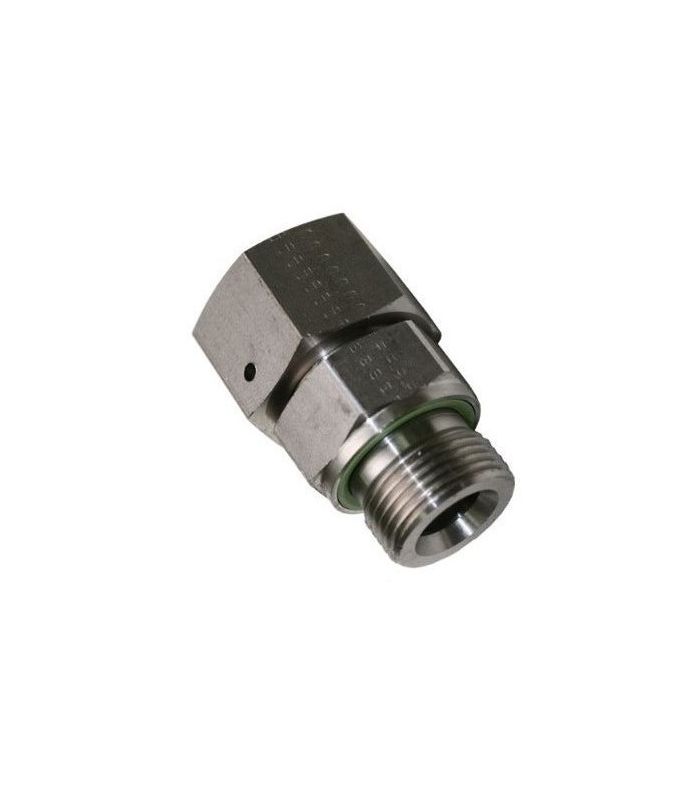

A straight, adjustable L-shaped stainless steel fitting DIN-2353 allows you to adjust the position of the fitting during assembly, facilitating installation in confined spaces and ensuring a watertight and secure connection.
Applications: Hydraulic and pneumatic systems, Chemical and petrochemical industry, Food and pharmaceutical sector.
Main features:
A DIN-2353 stainless steel L-shaped swivel fitting is designed for connecting tubing in pneumatic and hydraulic systems. It allows the connection of a tube to a threaded port, with the advantage of being able to orient the fitting in the desired position before final tightening, ensuring a correct installation without stressing the tube.
Technical data sheet for an adjustable L stainless steel DIN-2353 straight fitting:
| Code | D1 | T | D2 | L1 | Yo | S1 | S2 | Weight | PN |
| 392200 | 06 | 1/8" | 3.3 | 24.5 | 8 | 14 | 14 | 24 | 215 |
| 392201 | 08 | 1/4" | 5 | 29.5 | 12 | 19 | 17 | 52 | 315 |
| 392202 | 10 | 1/4" | 6.5 | 27.5 | 12 | 19 | 19 | 47 | 315 |
| 392204 | 12 | 3/8" | 8 | 34 | 12 | 22 | 22 | 87 | 315 |
| 392203 | 12 | 1/4" | 8 | 28.5 | 12 | 19 | 22 | 61 | 315 |
| 392205 | 12 | 1/2" | 8 | 34.5 | 14 | 27 | 22 | 121 | 315 |
| 392206 | 15 | 1/2" | 10 | 31 | 14 | 27 | 27 | 125 | 315 |
| 392207 | 18 | 1/2" | 13 | 31.5 | 14 | 27 | 32 | 132 | 315 |
| 392208 | 22 | 3/4" | 16.5 | 32.5 | 16 | 32 | 36 | 183 | 160 |
| 392209 | 28 | 1" | 22 | 35 | 18 | 41 | 41 | 262 | 160 |
| 392210 | 35 | 1-1/4" | 28 | 42.5 | 20 | 50 | 50 | 436 | 160 |
| 392211 | 42 | 1-1/2" | 34 | 46.5 | 22 | 55 | 60 | 615 | 160 |
