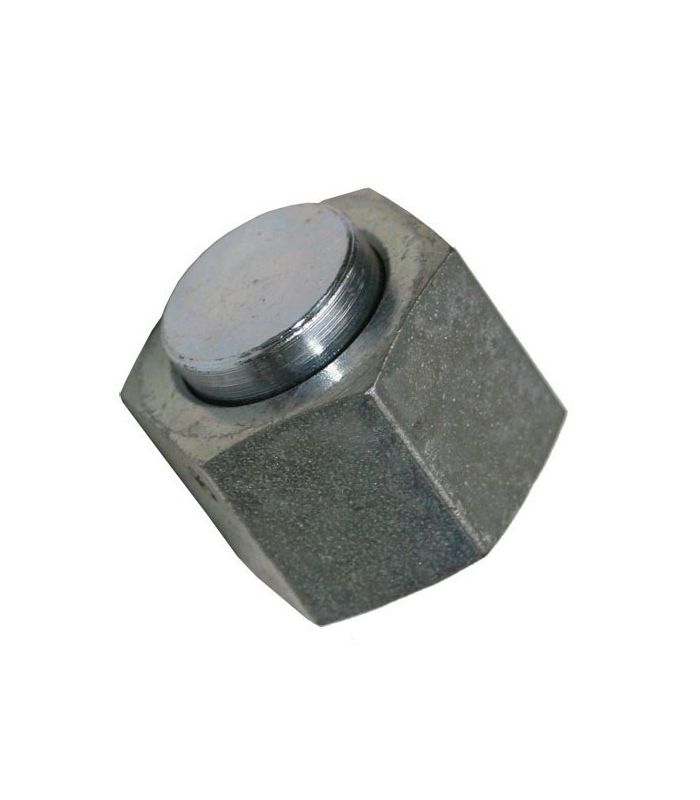

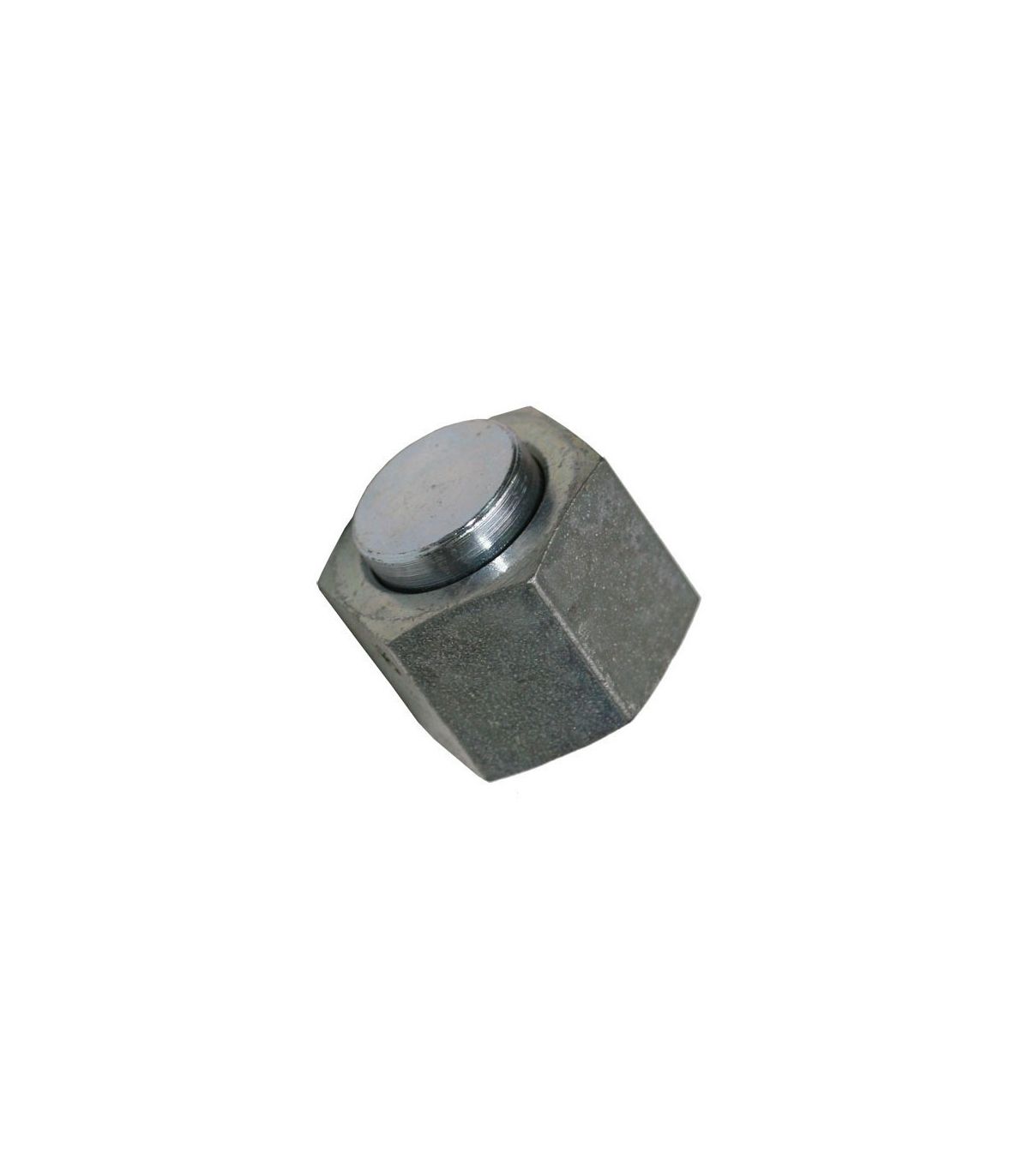

A DIN-2353 stainless steel L-shaped fitting plug is a sealing component used in high-pressure hydraulic systems. Its main function is to hermetically seal the end of a pipe or the outlet of a fitting body that is not going to be used.
Main features:
A DIN-2353 stainless steel L-shaped fitting plug is a high-pressure sealing element designed to seal connection ports in fitting bodies according to ISO 8434-1 / DIN 235. Its design ensures a watertight seal through mechanical pressure.
It is a male sealing element. It is inserted into the cone of a fitting to block the flow of fluid. It is essential for maintenance tasks or for permanently or temporarily shutting off flow lines.
Technical data sheet for a stainless steel L-shaped fitting plug DIN-2353:
| Reference | D1 | L1 | S1 | Weight | PN |
| 392100 | 06 | 17.5 | 14 | 15 | 315 |
| 392101 | 08 | 18.5 | 17 | 24 | 315 |
| 392102 | 10 | 19.0 | 19 | 33 | 315 |
| 392103 | 12 | 19.0 | 22 | 46 | 315 |
| 392104 | 15 | 19.5 | 27 | 76 | 315 |
| 392105 | 18 | 20.0 | 32 | 111 | 315 |
| 392106 | 22 | 20.5 | 36 | 162 | 160 |
| 392107 | 28 | 21.5 | 41 | 220 | 160 |
| 392108 | 35 | 23.5 | 50 | 376 | 160 |
| 392109 | 42 | 23.5 | 60 | 558 | 160 |
