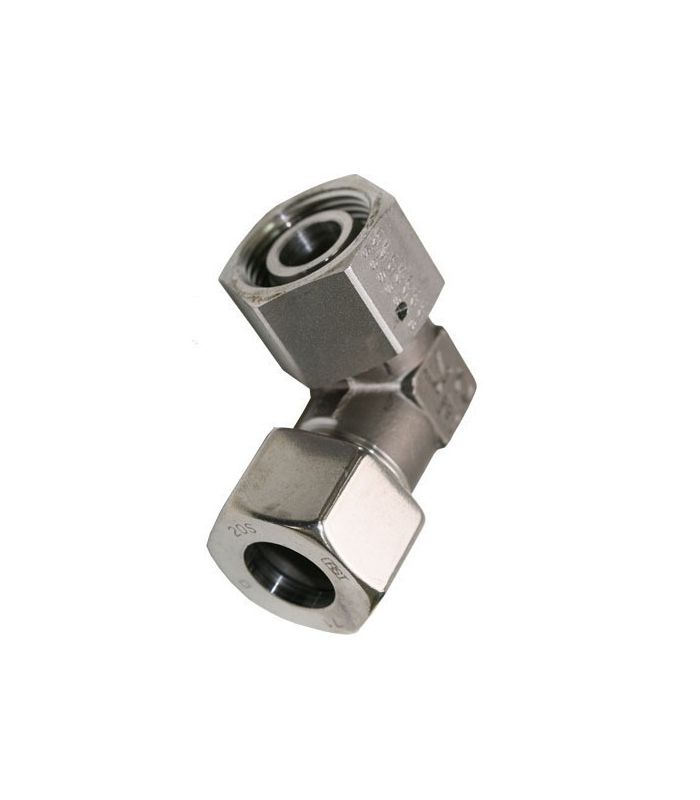

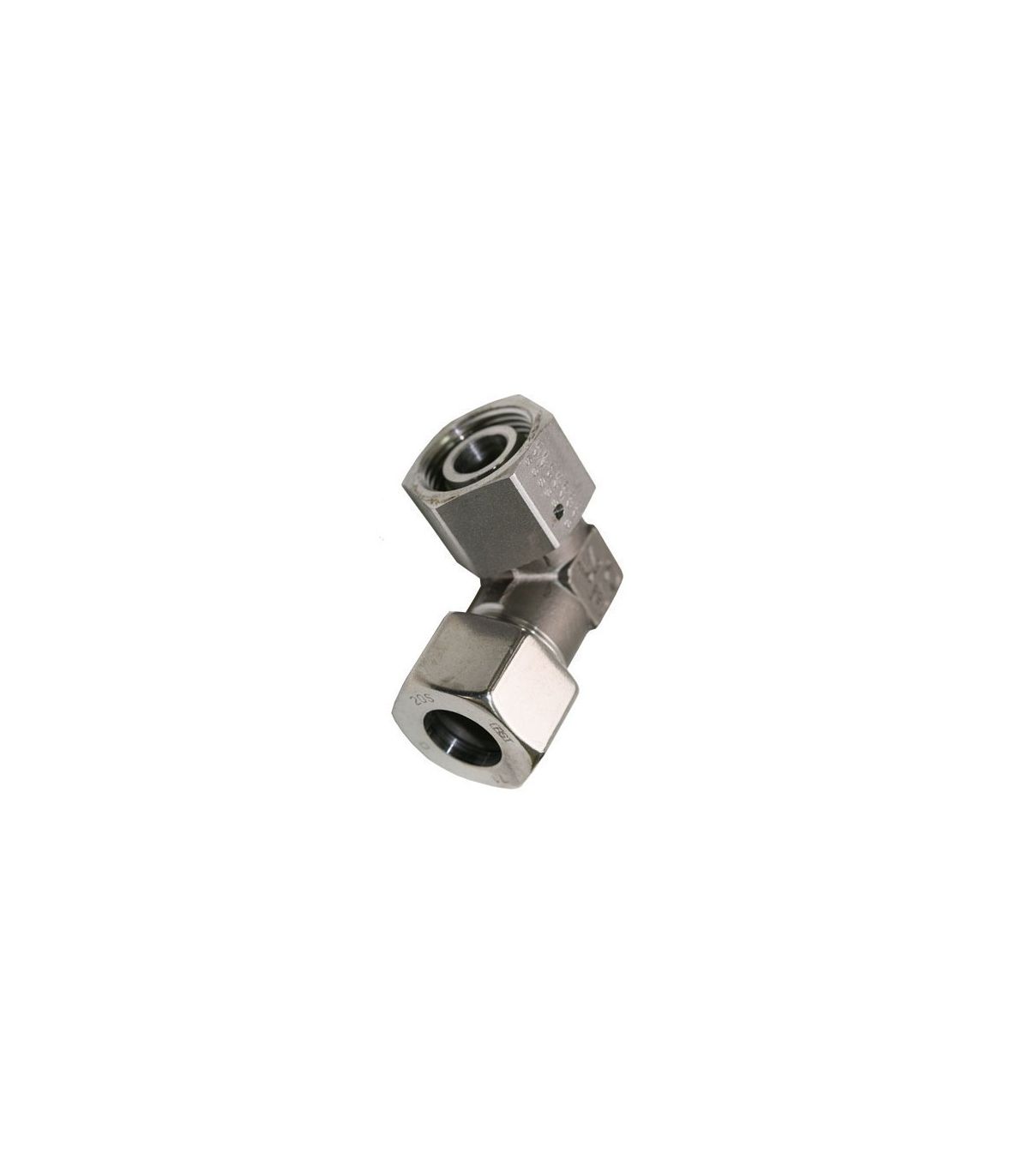

ADJUSTABLE ELBOW L INOX DIN-2353

ADJUSTABLE ELBOW L INOX DIN-2353

The DIN-2353 stainless steel L-shaped swivel elbow allows changing the flow direction and adjusting the fitting's orientation during assembly, facilitating installation in confined spaces or complex configurations.

Applications: Hydraulic and pneumatic systems, chemical and food industries.

Main features:

  • 90° elbow, light series
  • DIN-2353 ISO-8434 Fitting
  • Manufactured in 1.4571 and 1.4404
  • Pressures, see attached table.
  • Temperature -60ºC / 200ºC.

Assembly instructions

€22.49 (tax included)
€18.59 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
Reference:
391400
Description

L stainless steel adjustable elbow DIN-2353

A DIN-2353 stainless steel L-shaped swivel elbow allows you to redirect the flow at a 90° angle while maintaining a secure and leak-proof connection, with the advantage of being able to orient the fitting in the desired position before permanently fixing it.

Technical properties

  • Facilitates assembly in complex installations
  • Reduces stress on the pipe
  • Excellent corrosion resistance
  • Compatible with standard DIN 2353 components

Applications

  • Hydraulic and pneumatic systems
  • Chemical and food industry
  • Marine equipment and corrosive environments
  • Industrial machinery

Technical sheet of a L stainless steel adjustable elbow DIN-2353:

Code D1 D2 L1 L2 L3 S1 S2 Weight PN
391400 06 4 27 12 26 12 14 44 315
391401 08 6 29 14 27.5 12 17 57 315
391402 10 8 30 15 29 14 19 75 315
391403 12 10 32 17 29.5 17 22 105 315
391404 15 12 36 21 32.5 19 27 166 315
391405 18 15 40 23.5 35.5 24 32 260 315
391406 22 19 44 27.5 38.5 27 36 444 160
391407 28 24 47 30.5 42 36 41 612 160
391408 35 30 56 34.5 51 41 50 693 160
391409 42 36 63 40 60 50 60 1216 160
