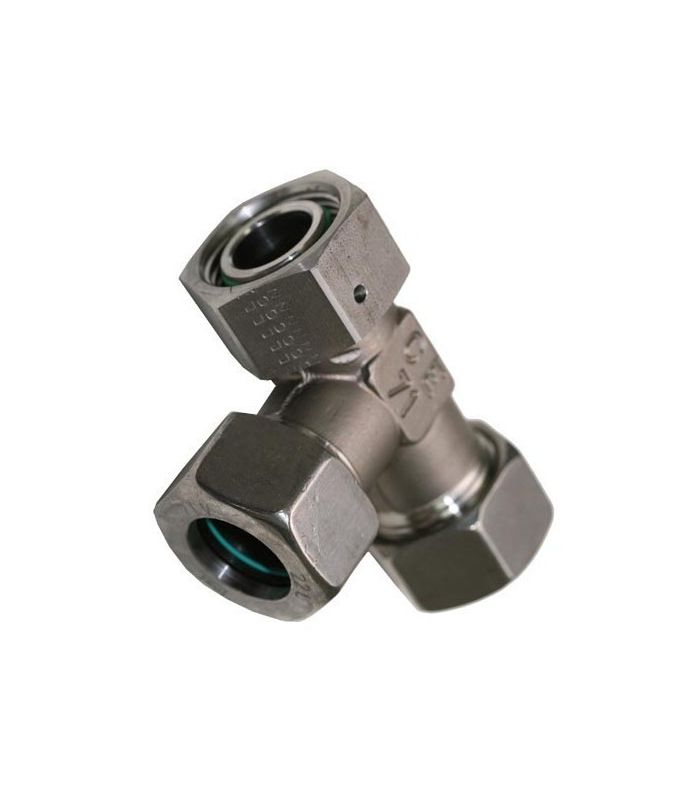

ADJUSTABLE TEE SIDE THREAD L STAINLESS STEEL DIN-2353

ADJUSTABLE TEE SIDE THREAD L STAINLESS STEEL DIN-2353

A DIN-2353 stainless steel side-threaded swivel tee is a fitting designed to create a branch in a piping system, combining pipe connections with a side-threaded outlet. Its swivel design allows for adjusting the outlet position during assembly.

Applications: Hydraulic systems and industrial fluid installations.

Main features:

  • DIN-2353 ISO-8434 Fitting
  • Manufactured in 1.4571 and 1.4404
  • Pressures, see attached table.
  • Temperature -60ºC / 200ºC.

Assembly instructions

€27.68 (tax included)
€22.88 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
Reference:
391300
Description

Adjustable lateral thread L stainless steel DIN-2353

A DIN-2353 stainless steel side thread adjustable tee is a hydraulic power and instrumentation fitting designed to branch a fluid line into a "T" shape, where the threaded connection is not at the base, but at one of the side ends.

Technical advantages

  • Flexible mounting thanks to its adjustable design
  • High sealing
  • Excellent corrosion resistance
  • Adaptability to different configurations

Applications

  • Centralized Lubrication Systems: To divert grease lines to hard-to-reach points.
  • Hydraulic Control Panels: Where space is critical and the outlet must point exactly in one direction to avoid bends in the pipe.
  • Process Industry: Connection of pressure gauges or sensors on main lines.

Technical sheet of an adjustable L stainless steel lateral thread tee DIN-2353:

Product Details
391300
