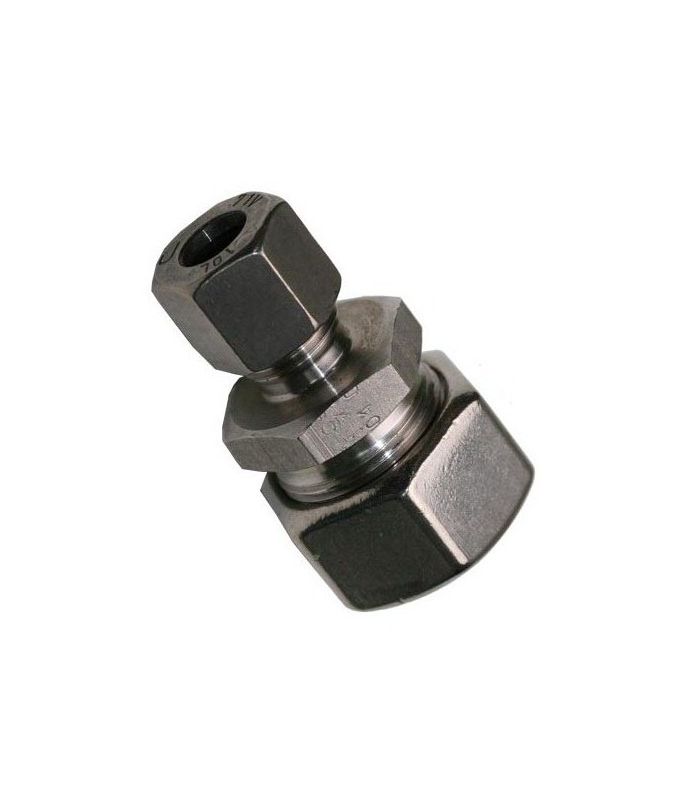

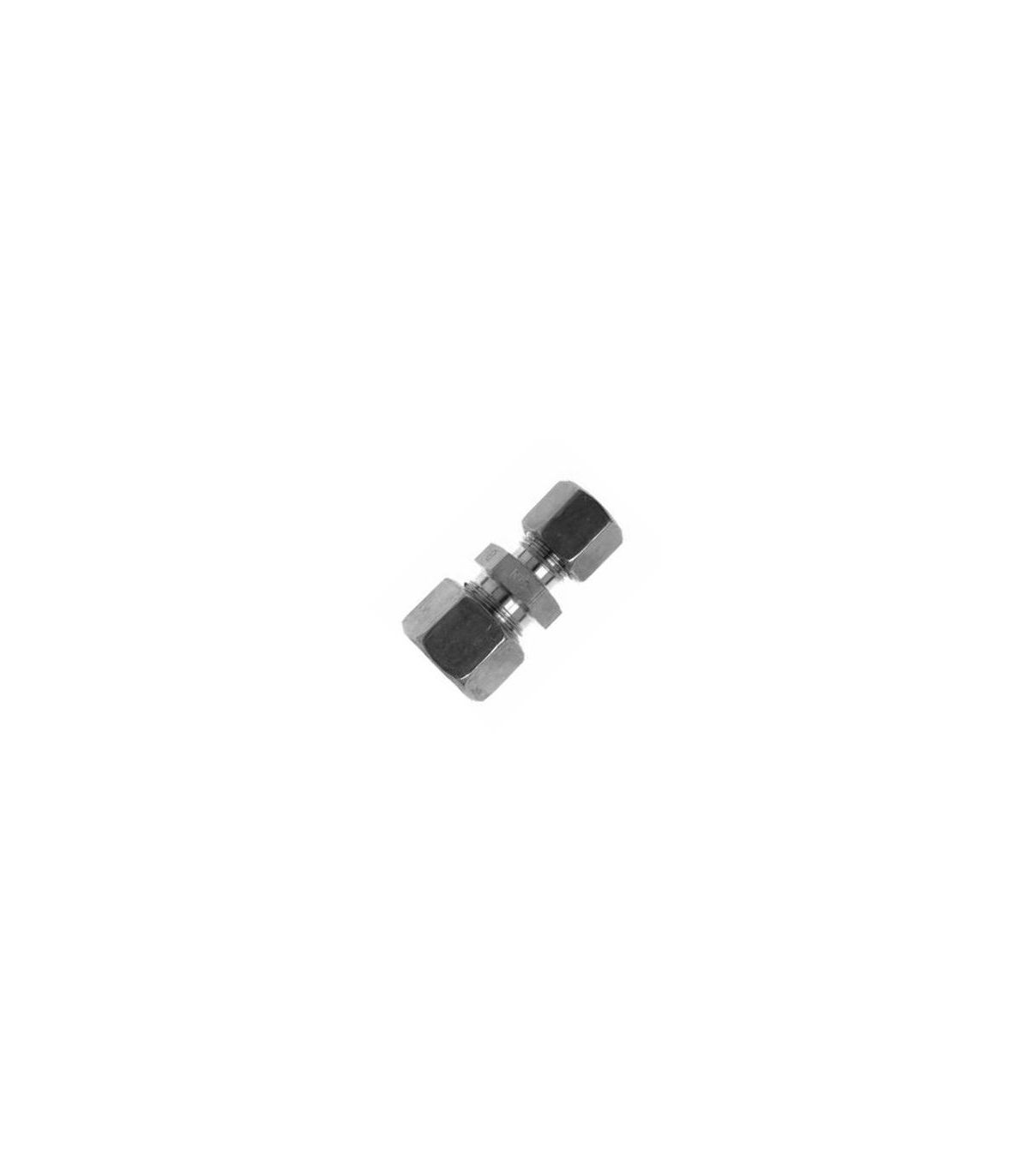

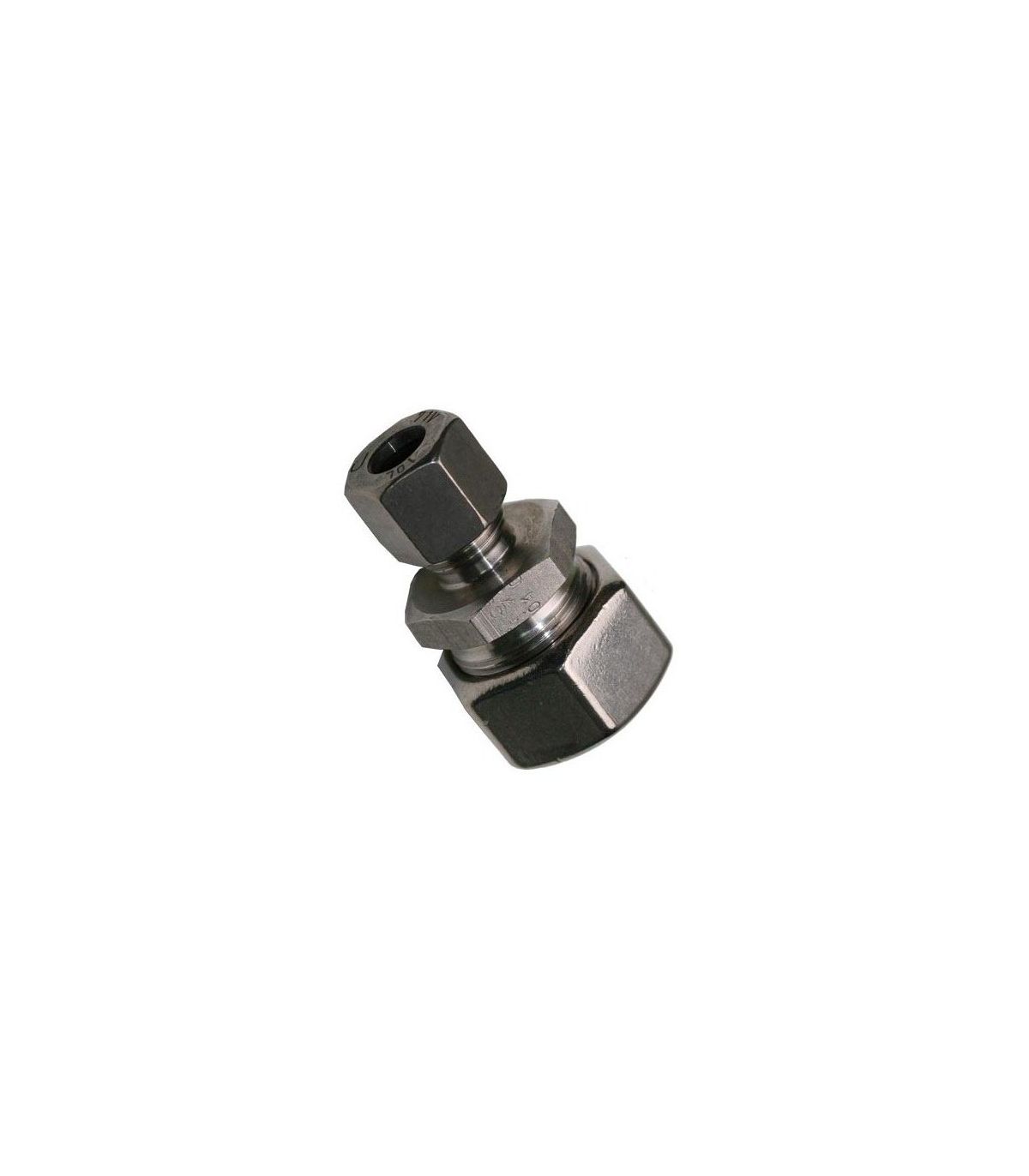

STAINLESS STEEL REDUCING PIPE UNION DIN 2353 S

Stainless steel reducing tube union DIN 2353 S

  • Material: Stainless Steel 1.4571, Alloy X 6 CrNiMoTi 17 12 2
  • Double-edged ring, heat-treated.

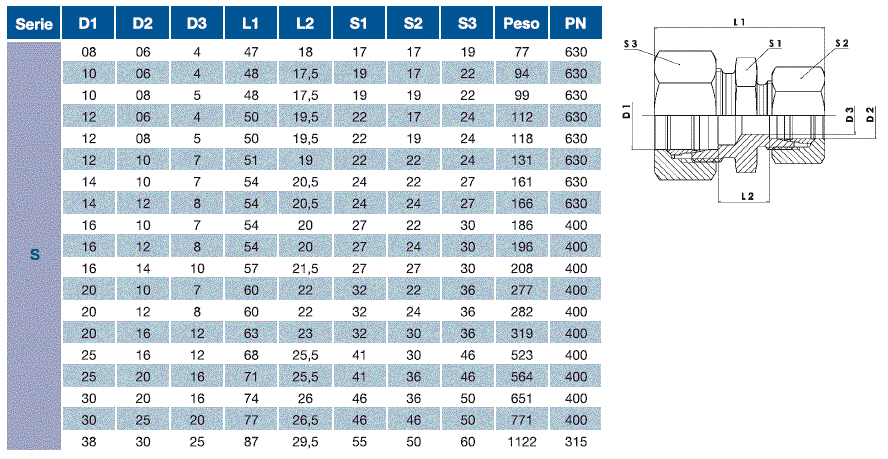

  • Pressures, see attached table.
  • Temperature -200ºC / 400ºC.
  • According to DIN-2353 S standard, very high pressure.

Assembly instructions

Read moreShow less
€25.39 (tax incl.)
€20.98 (tax excl.)
DIAMETERS
  • Ø6-Ø8
  • Ø6-Ø10
  • Ø8-Ø10
  • Ø8-Ø12
  • Ø10-Ø12
  • Ø12-Ø16
  • Ø14-Ø10
  • Ø14-Ø12
  • Ø25-Ø20
Reference:
394405
Description

Stainless steel reducing tube union DIN 2353 S

Read moreShow less
Product Details
394405
