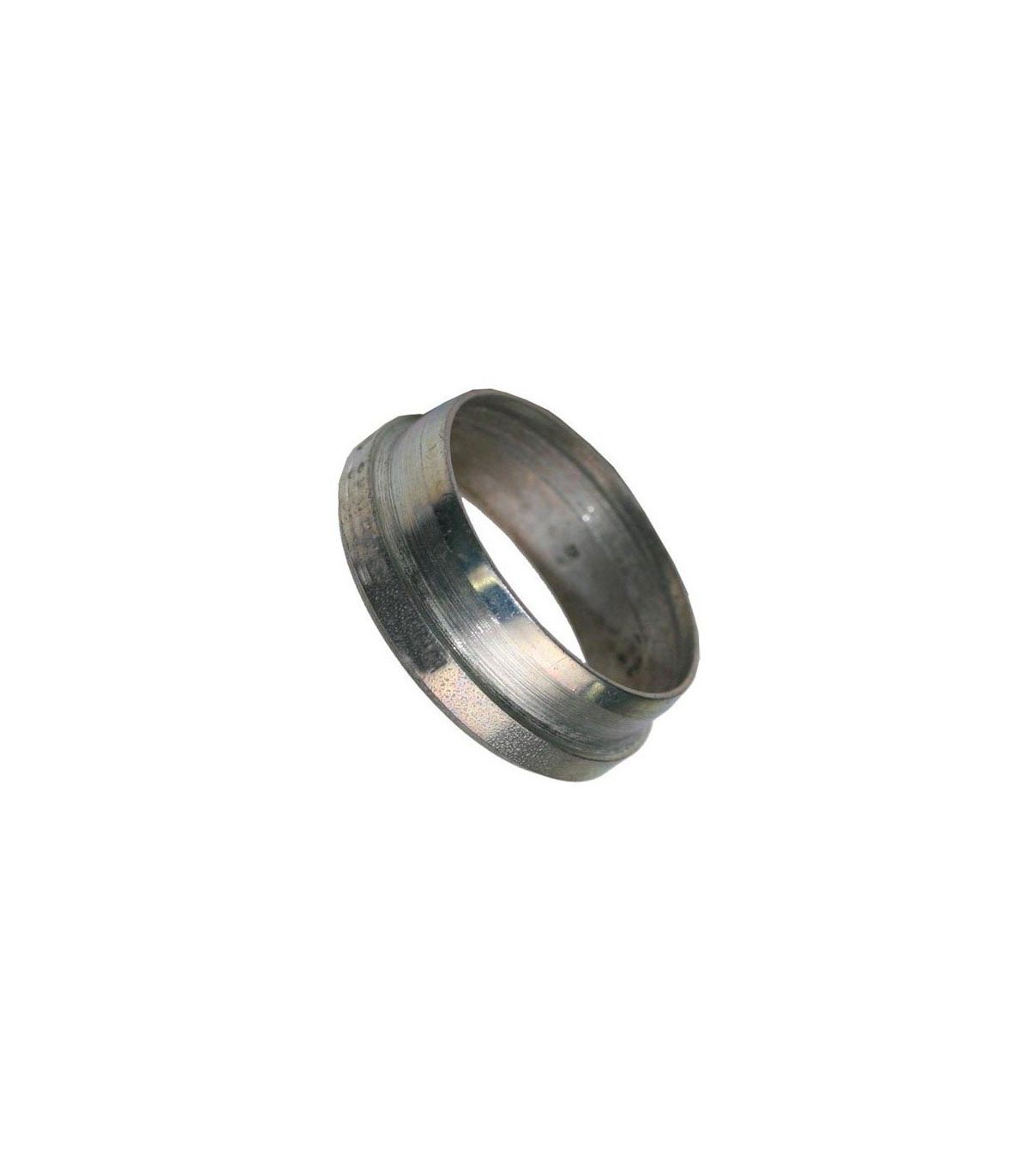

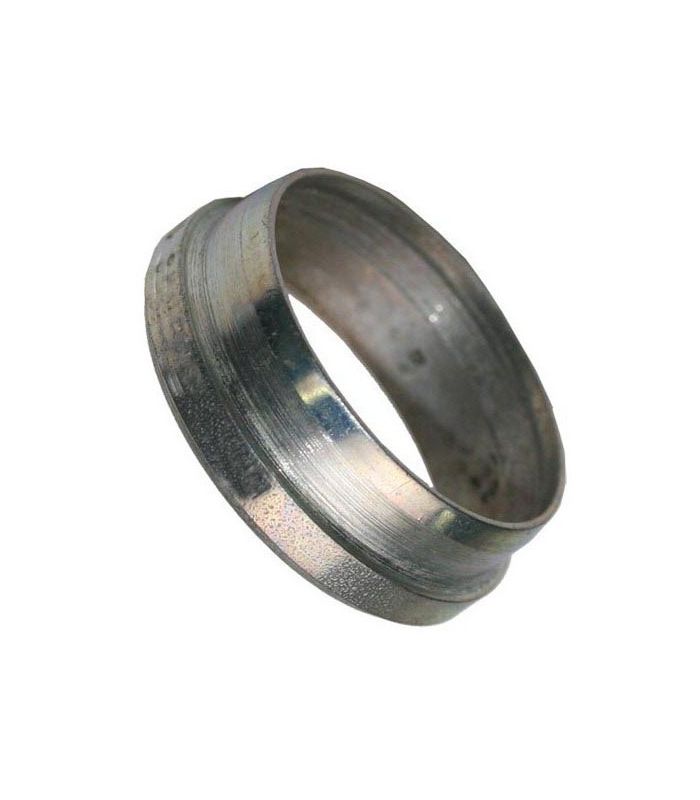

Stainless Steel Cutting Ring L DIN-2353

Stainless Steel Cutting Ring L DIN-2353

The DIN-2353 stainless steel L-shaped cutting ring is a connection system designed for hydraulic pipes, guaranteeing a secure, watertight and high-pressure resistant joint.

Applications: Hydraulic systems, Chemical industry, Food industry and Industrial machinery

Main features:

  • DIN-2353 ISO-8434 Fitting
  • Manufactured in 1.4571 and 1.4404
  • Pressures, see attached table.
  • Temperature -60ºC / 200ºC.
€1.56 (tax included)
€1.29 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
Reference:
390000
Description

Stainless steel L-shaped cutting ring DIN-2353

A DIN-2353 stainless steel L-shaped cutting ring is a connection system designed for hydraulic pipes, guaranteeing a secure, watertight and high-pressure resistant joint.

Thanks to its shear ring system , the fitting provides a mechanical fixation on the tube, ensuring excellent sealing without the need for welding.

Technical specifications

  • Standard: DIN 2353 / ISO 8434-1
  • Series: L (light)
  • Material: Stainless steel
  • Connection type: cutting ring
  • Compatibility: metric tubes
  • Pressure range: depending on diameter and application

Applications

  • Hydraulic systems
  • Chemical industry
  • Food industry
  • Aggressive fluid installations
  • Industrial machinery
  • Naval and offshore sector

Assembly instructions

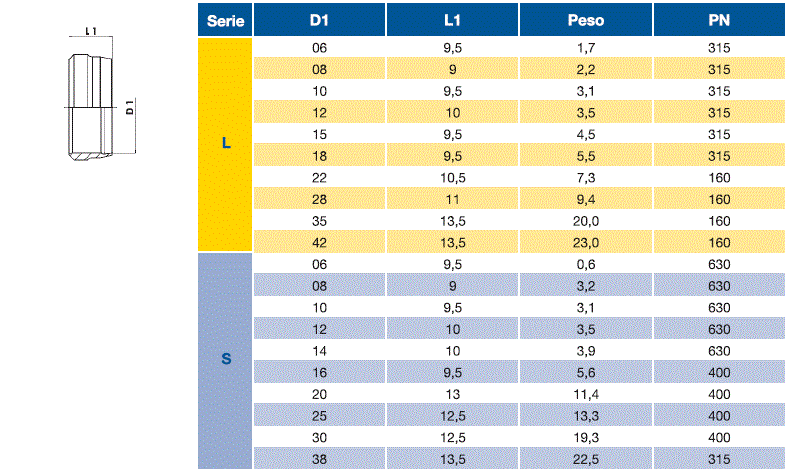

Technical data sheet for a stainless steel L-shaped cutting ring DIN-2353:

Product Details
390000
Comments
12 other products in the same category:
L-SHAPED FITTING INOX DIN-2353

€5.72 (tax excl.)
€6.92 (tax included)
A DIN-2353 stainless steel L-shaped fitting plug is a sealing component used in high-pressure hydraulic systems. Its main function is to hermetically seal the end of a pipe or the outlet of a fitting body that is not...
ADJUSTABLE ELBOW L INOX DIN-2353

€18.59 (tax excl.)
€22.49 (tax included)
The DIN-2353 stainless steel L-shaped swivel elbow allows changing the flow direction and adjusting the fitting's orientation during assembly, facilitating installation in confined spaces or complex configurations....
ADJUSTABLE TE CENTRAL THREAD L STAINLESS STEEL DIN-2353

€23.60 (tax excl.)
€28.56 (tax included)
A DIN-2353 stainless steel L-shaped adjustable tee fitting is a fitting designed to make branches in hydraulic systems, combining two pipe connections with a threaded outlet in the center. Main features: DIN-2353...
STRAIGHT TUBE UNION L STAINLESS STEEL DIN-2353

€9.37 (tax excl.)
€11.34 (tax included)
Straight tube union L stainless steel DIN-2353 It is essential in systems where corrosion resistance and durability are required. It is an "L" shaped elbow made of stainless steel and designed to connect two sections...

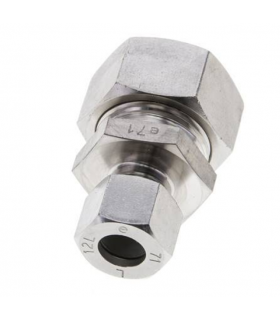

REDUCING TUBE UNION L STAINLESS STEEL DIN-2353
