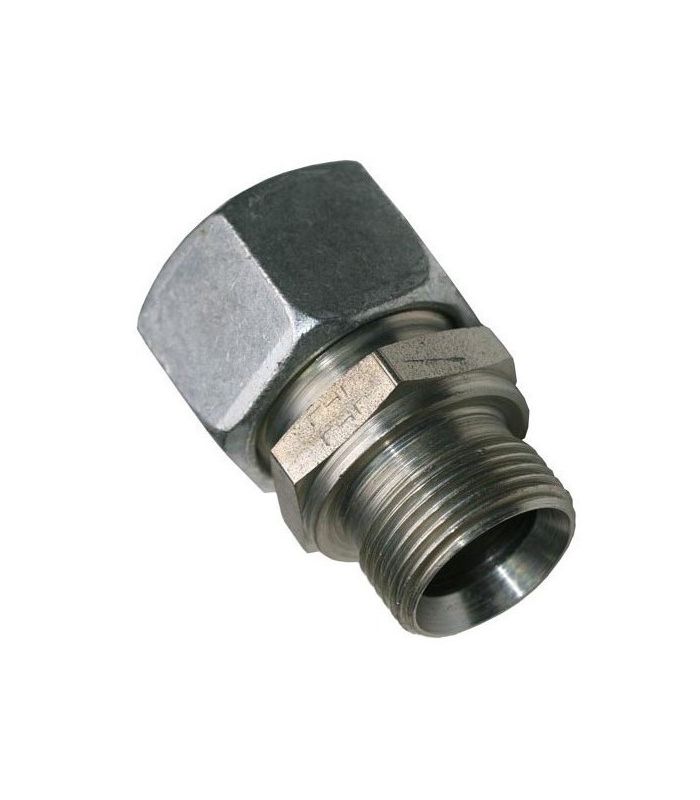

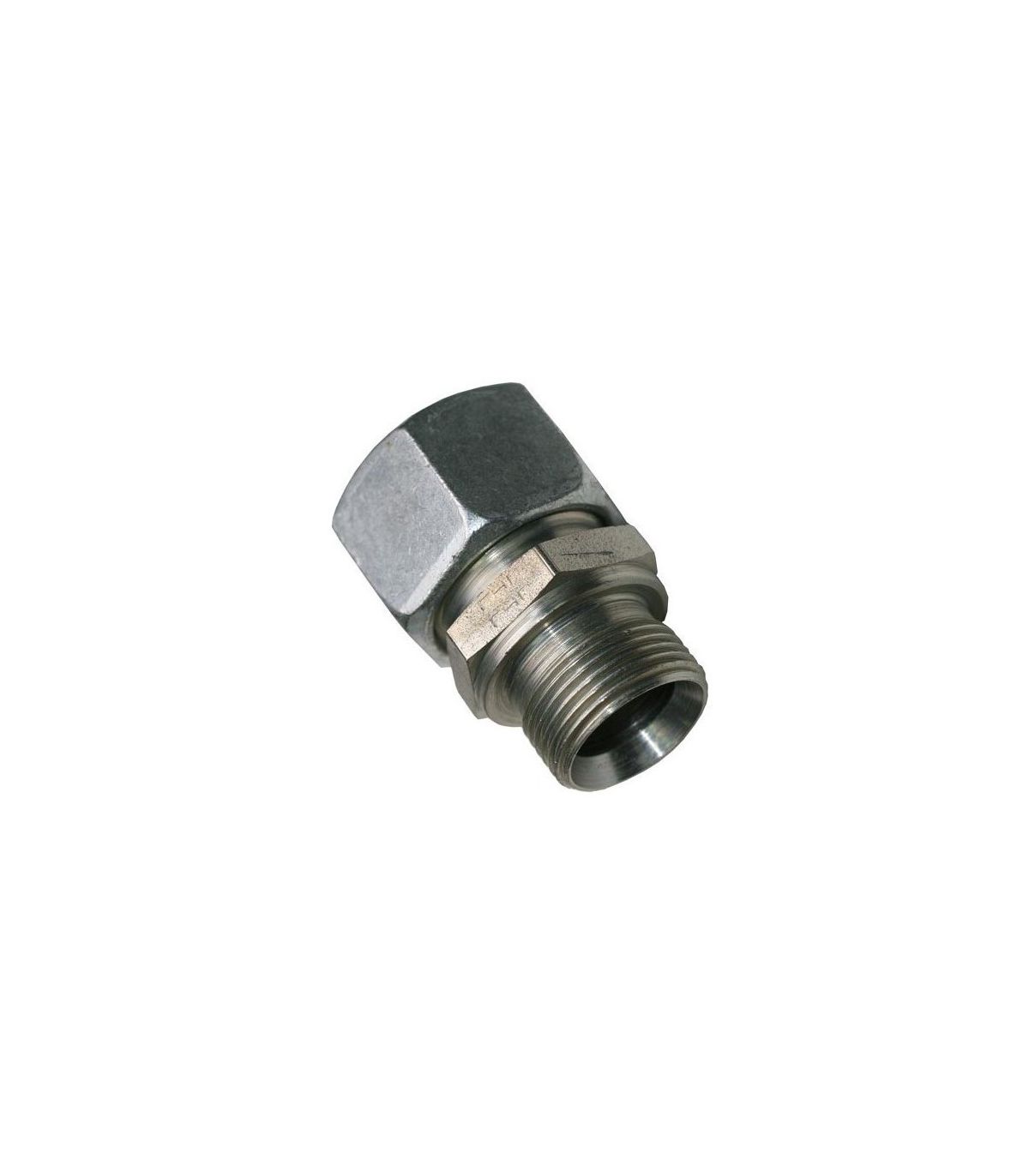

STRAIGHT UNION PIPE BSP THREAD L STAINLESS STEEL DIN-2353

STRAIGHT UNION PIPE BSP THREAD L STAINLESS STEEL DIN-2353

A straight BSP L stainless steel DIN-2353 threaded pipe union is used for securely and watertightly connecting pipes in hydraulic and industrial systems.

Applications: Hydraulic systems, chemical and food industries.

Main features:

  • DIN-2353 ISO-8434 Fitting
  • Manufactured in 1.4571 and 1.4404
  • Pressures, see attached table.
  • Temperature -60ºC / 200ºC.

Assembly instructions

€10.38 (tax included)
€8.58 (tax excl.)
Tube diameter - Thread
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
  • Ø 15-3/8
  • Ø 15-1/2
  • Ø 15-3/4
  • Ø 18-3/8
  • Ø 18-1/2
  • Ø 18-3/4
  • Ø 22-1/2
  • Ø 22-3/4
  • Ø 22-1
  • Ø 28-3/4
  • Ø 28-1
  • Ø 35-1
  • Ø 35-1-1/4
  • Ø 42-1-1/4
  • Ø 42-1-1/2
Reference:
392400
Description

Straight union of BSP threaded tube L stainless steel DIN-2353

The BSP light series (L) straight pipe fitting, compliant with DIN 2353, is designed for the secure and leak-proof connection of pipes in hydraulic and industrial systems. Made of stainless steel, it offers high corrosion resistance and excellent performance in demanding environments.

Applications

  • Hydraulic systems
  • Chemical and food industry
  • Fluid and gas installations
  • Industrial equipment in corrosive environments

Technical data sheet for a straight BSP L stainless steel threaded pipe fitting DIN-2353:

Reference D1 T D2 L1 L2 Yo S1 S2 Weight PN
392400 6 1/4" 4 37 10 12 19 14 59 315
392401 6 3/8" 4 38 11.5 12 22 14 65 315
392402 8 1/4" 4 37 10 12 19 17 46 315
392403 8 3/8" 6 38 10 12 22 17 64 315
392404 8 1/2" 6 41 12 14 27 17 94 315
392405 10 1/4" 4 38 11 12 19 19 55 315
392406 10 3/8" 6 39 12.5 12 22 19 68 315
392407 10 1/2" 8 42 13 14 27 19 96 315
392408 12 1/4" 6 39 12 12 19 22 63 315
392409 12 3/8" 9 39 12.5 12 22 22 74 315
392410 12 1/2" 10 42 13 14 27 22 99 315
392411 15 3/8" 9 43 13.5 12 24 27 105 250
392412 15 1/2" 11 43 14 14 27 27 121 250
392413 15 3/4" 12 48.5 16 16 32 27 167 250
392414 18 3/8" 9 41.5 14.5 12 27 32 140 250
392415 18 1/2" 14 45 14.5 14 27 32 143 250
392416 18 3/4" 15 46 14.5 16 32 32 184 250
392417 22 1/2" 14 47 16.5 14 32 36 184 160
392418 22 3/4" 18 49 16.5 16 32 36 197 160
392419 22 1" 19 51.5 17.5 18 41 36 276 160
392420 28 3/4" 18 50 17.5 16 41 41 258 160
392421 28 1" 23 53 17.5 18 41 41 270 160
392422 35 1" 23 57 17.5 18 46 50 395 160
