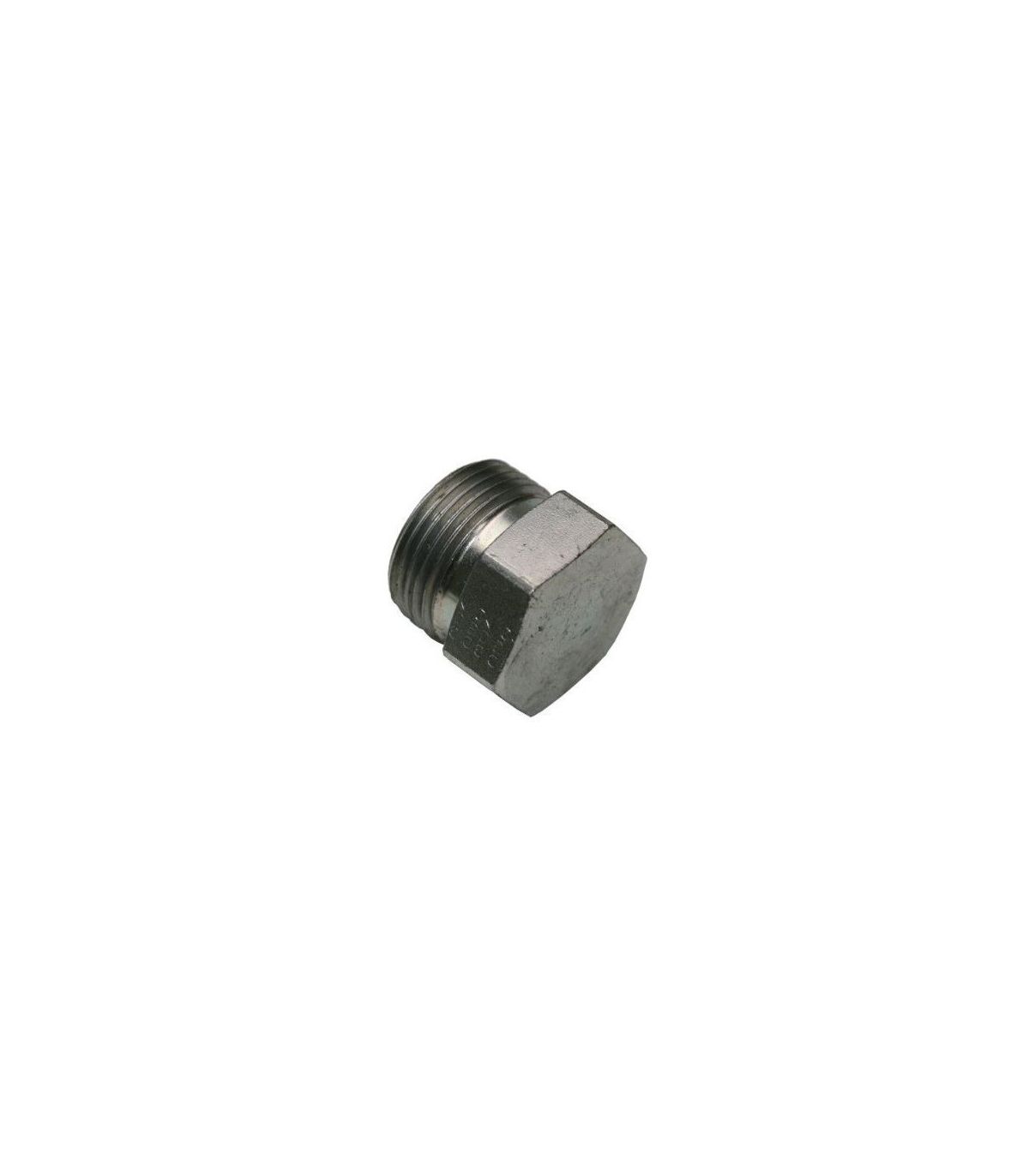

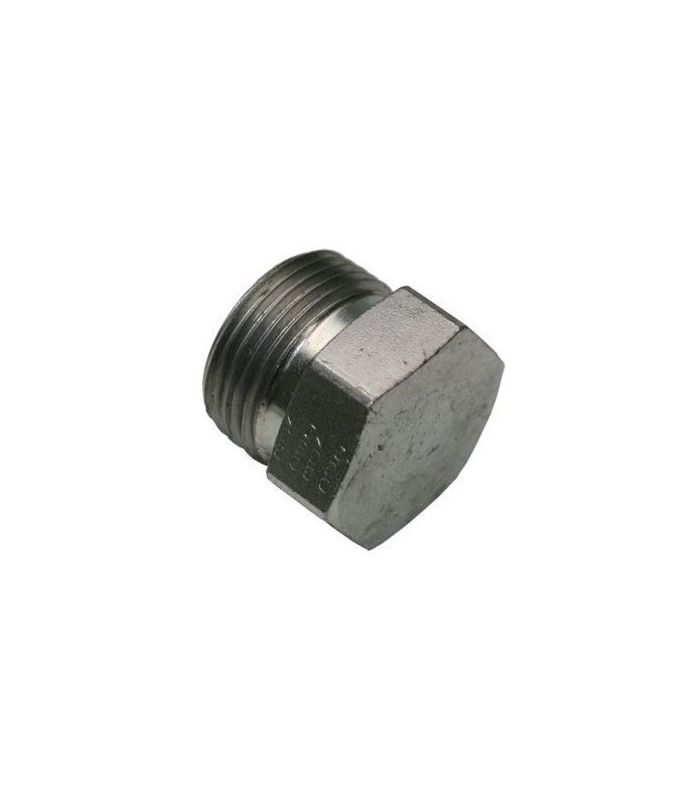

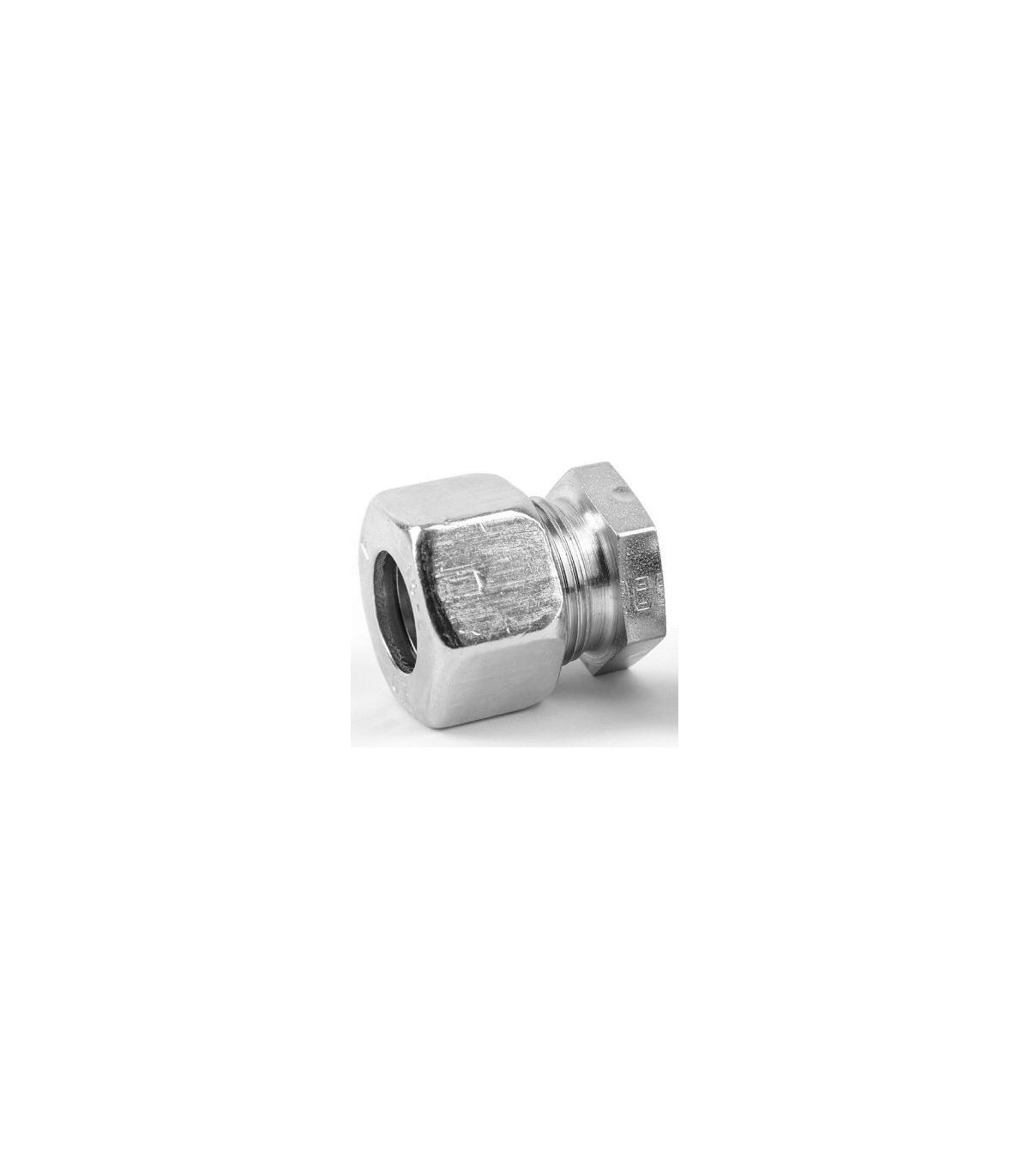

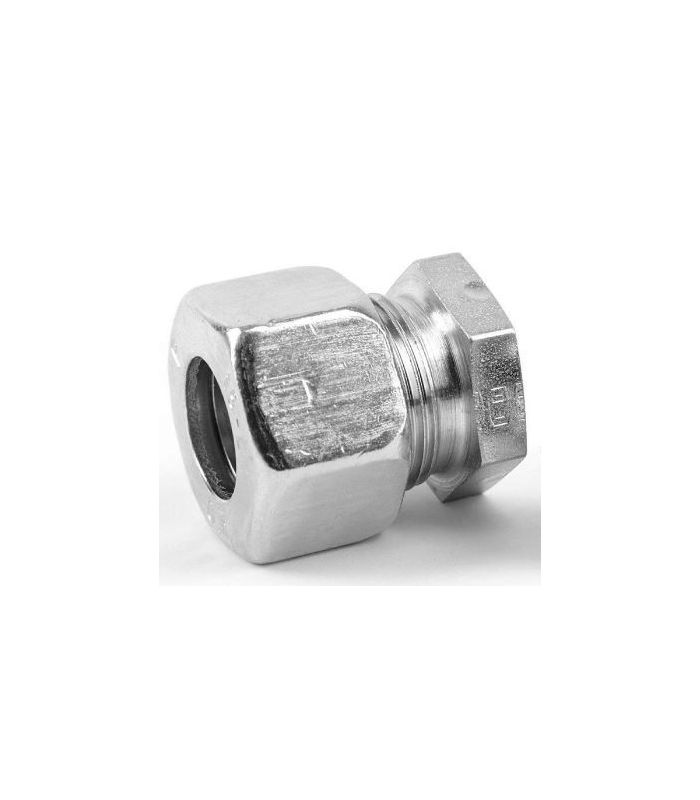

L-SHEET STAINLESS STEEL TUBE PLUG DIN-2353
L-SHEET STAINLESS STEEL TUBE PLUG DIN-2353
L-SHEET STAINLESS STEEL TUBE PLUG DIN-2353
L-SHEET STAINLESS STEEL TUBE PLUG DIN-2353

L-SHEET STAINLESS STEEL TUBE PLUG DIN-2353

The DIN-2353 stainless steel L-shaped tube plug allows the sealing of the end of a tube or fitting, ensuring the watertightness of the system and facilitating maintenance operations, testing or future expansions of the installation.

Main features:

  • DIN-2353 ISO-8434 Fitting
  • Manufactured in 1.4571 and 1.4404
  • Pressures, see attached table.
  • Temperature -60ºC / 200ºC.

Assembly instructions

€5.19 (tax included)
€4.29 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
Reference:
392300
Description

Stainless steel L-shaped tube plug DIN-2353

The DIN-2353 stainless steel L-shaped tube plug allows the sealing of the end of a tube or fitting , ensuring the watertightness of the system and facilitating maintenance operations, testing or future expansions of the installation.

Technical advantages

  • Secure and reliable circuit closure
  • High corrosion resistance
  • Easy assembly without welding
  • Compatible with DIN 2353 standard systems
  • Reusable in maintenance operations

Applications

  • Hydraulic and pneumatic systems
  • Industrial facilities
  • Chemical and food industry
  • Marine equipment and corrosive environments
  • Process lines and fluid distribution

Technical data sheet for a stainless steel L-shaped tube plug DIN-2353:

Code D1 L1 L2 S1 S2 Weight PN
392300 06 22 7.0 12 14 20 315
392301 08 23 8.0 14 17 30 315
392302 10 24 9.0 17 19 38 315
392303 12 25 10.0 19 22 53 315
392304 15 26 11.0 24 27 88 315
392305 18 28 11.5 27 32 124 315
392306 22 30 13.5 32 36 173 160
392307 28 31 14.5 41 41 236 160
392308 35 36 14.5 46 50 360 160
392309 42 39 16.0 55 60 557 160

Product Details
392300
