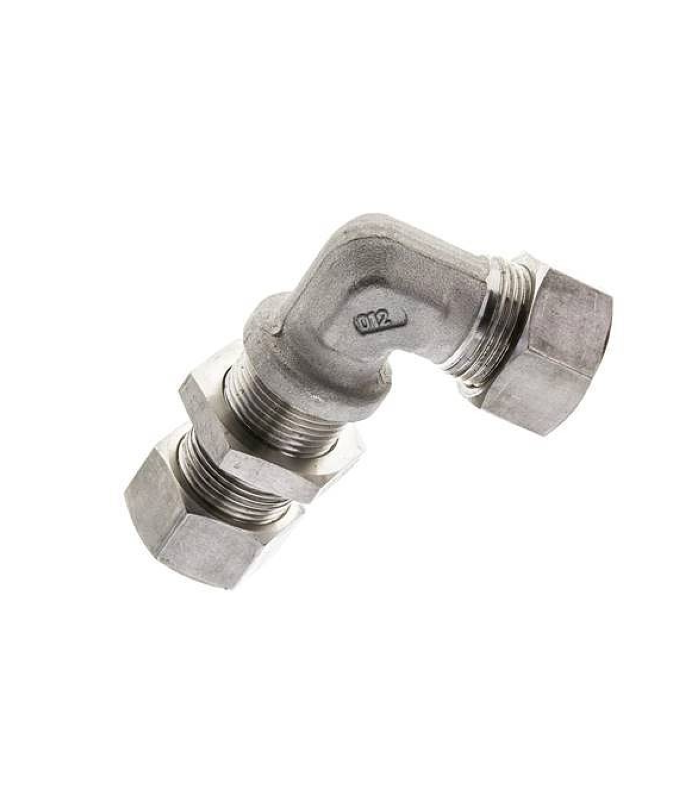

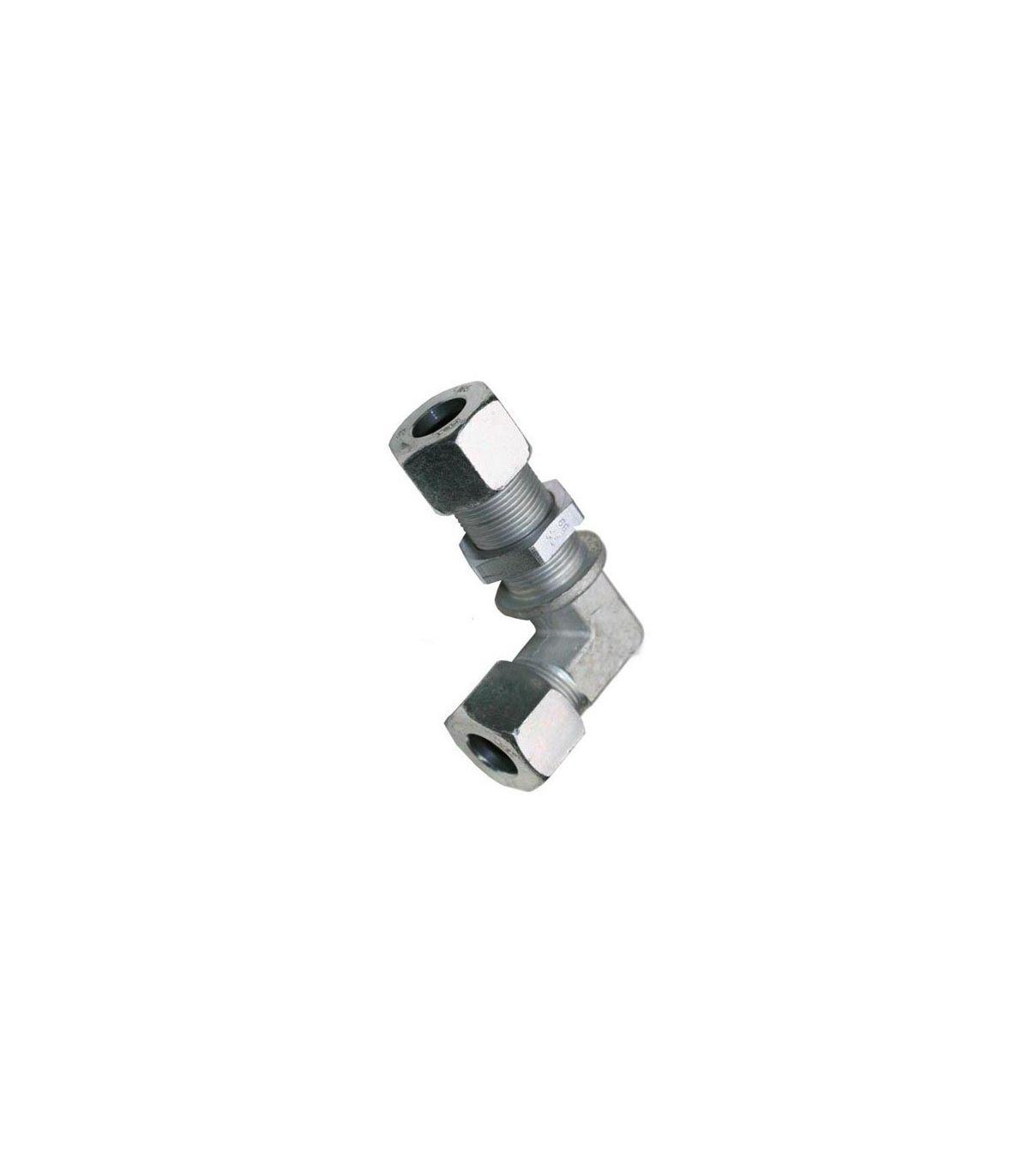

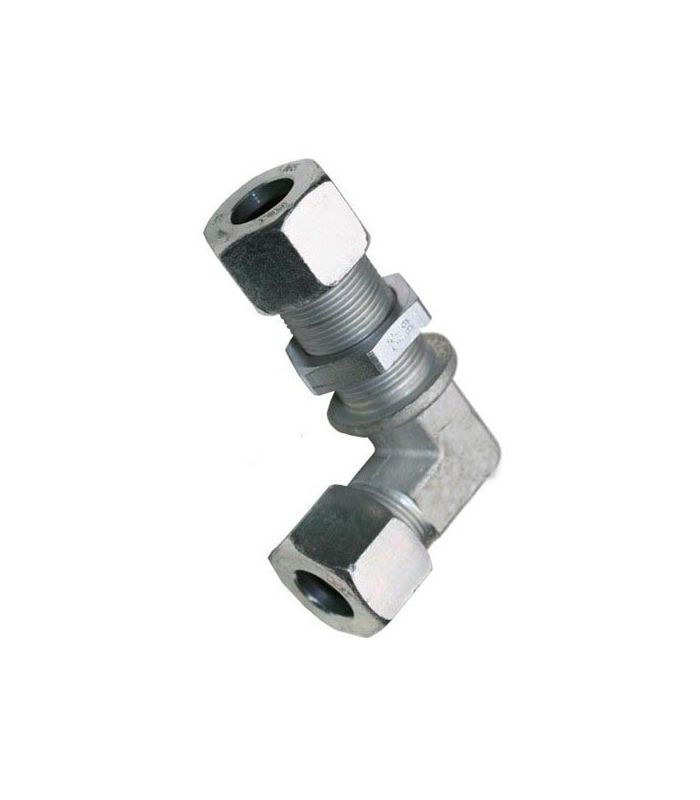

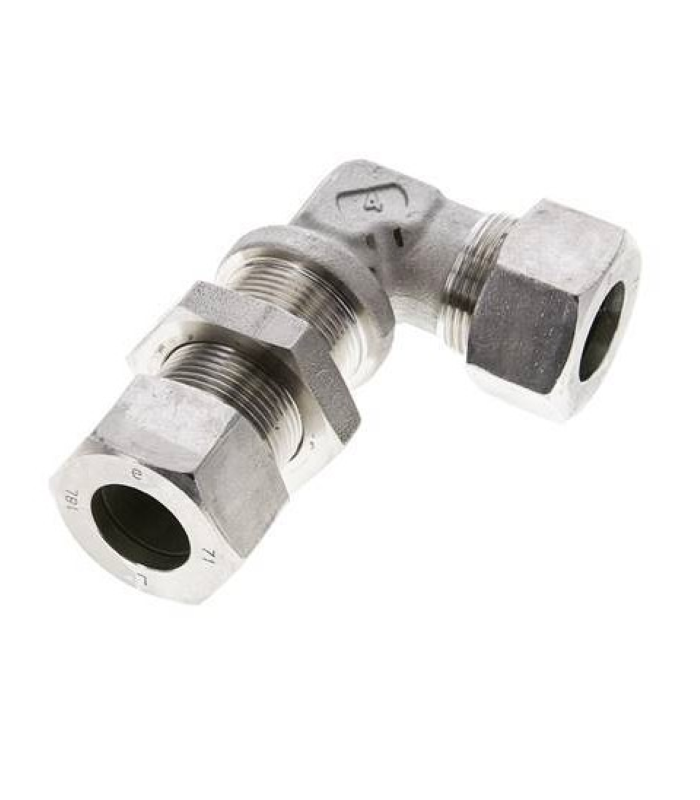

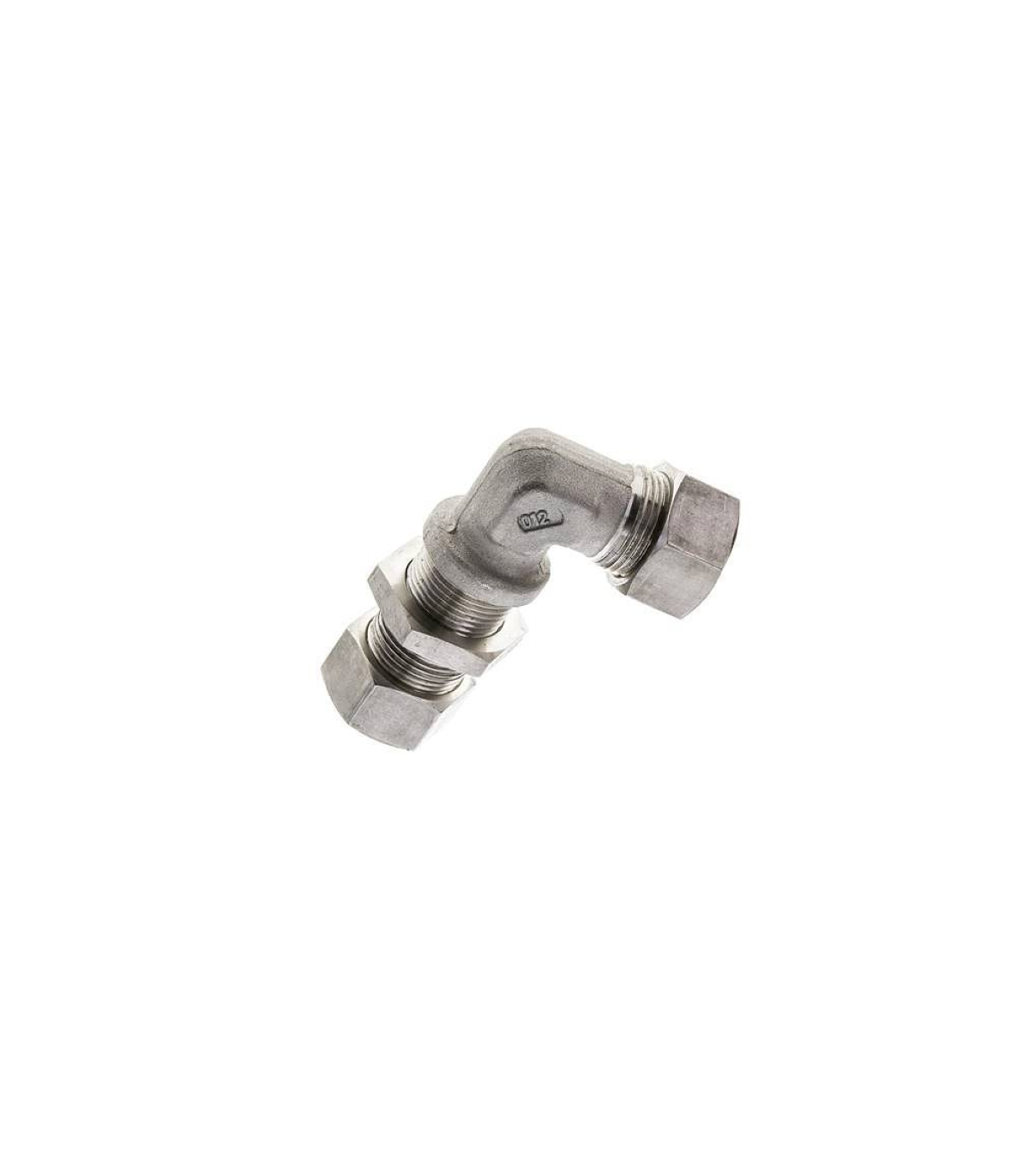

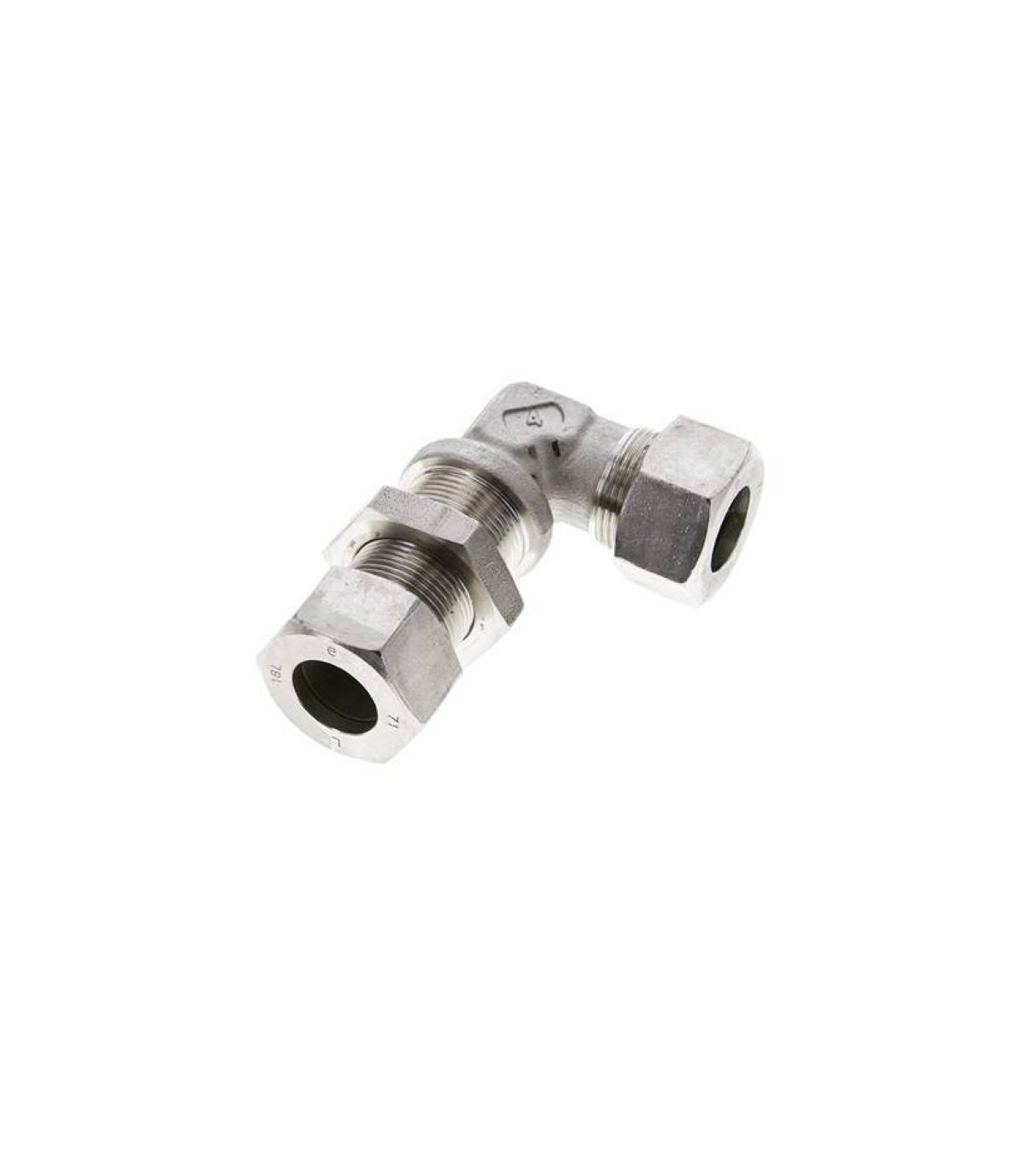

A DIN-2353 stainless steel L-shaped pipe fitting allows the passage of a pipe through panels, tanks or walls, incorporating a 90° change of direction.
Applications: hydraulics, chemical, food and pharmaceutical industries.
Main features:
The DIN-2353 L-shaped pipe fitting is designed to allow the passage of a pipe through panels, tanks, or walls, incorporating a 90° change of direction. Made of stainless steel, it guarantees a secure, watertight, and durable connection in demanding industrial environments.
Technical data sheet for a stainless steel L-shaped pipe and wall fitting DIN-2353:
| Reference | D1 | D2 | D3 | L1 | L2 | L3 | L4 | L5 | S1 | S2 | S3 | Weight | PN |
| 390700 | 06 | 4 | 17 | 27 | 12 | 42 | 14 | 27 | 12 | 17 | 14 | 74 | 315 |
| 390701 | 08 | 6 | 19 | 29 | 14 | 42 | 17 | 27 | 12 | 19 | 17 | 95 | 315 |
| 390702 | 10 | 8 | 22 | 30 | 15 | 43 | 18 | 28 | 14 | 22 | 19 | 120 | 315 |
| 390703 | 12 | 10 | 24 | 32 | 17 | 44 | 20 | 29 | 17 | 24 | 22 | 142 | 315 |
| 390704 | 15 | 12 | 27 | 36 | 21 | 46 | 23 | 31 | 19 | 30 | 27 | 243 | 315 |
| 390705 | 18 | 15 | 32 | 40 | 23.5 | 49 | 24 | 32.5 | 24 | 36 | 32 | 373 | 315 |
| 390706 | 22 | 19 | 36 | 44 | 27.5 | 51 | 30 | 34.5 | 27 | 41 | 36 | 506 | 160 |
| 390707 | 28 | 24 | 42 | 47 | 30.5 | 52 | 34 | 35.5 | 36 | 46 | 41 | 679 | 160 |
| 390708 | 35 | 30 | 50 | 56 | 34.5 | 58 | 39 | 36.5 | 41 | 55 | 50 | 1043 | 160 |
| 390709 | 42 | 36 | 60 | 63 | 40 | 59 | 43 | 36 | 50 | 65 | 60 | 1569 | 160 |
