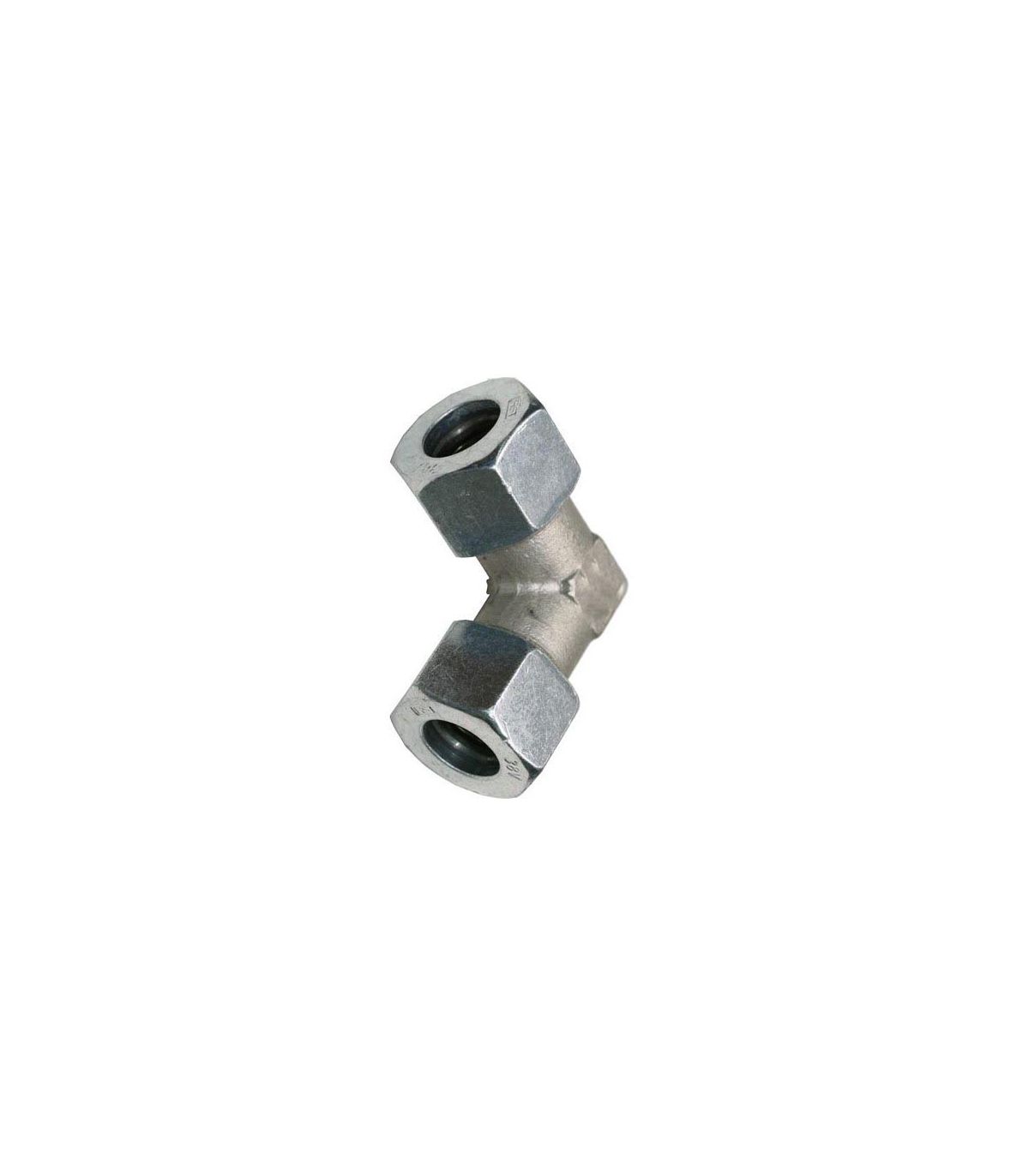

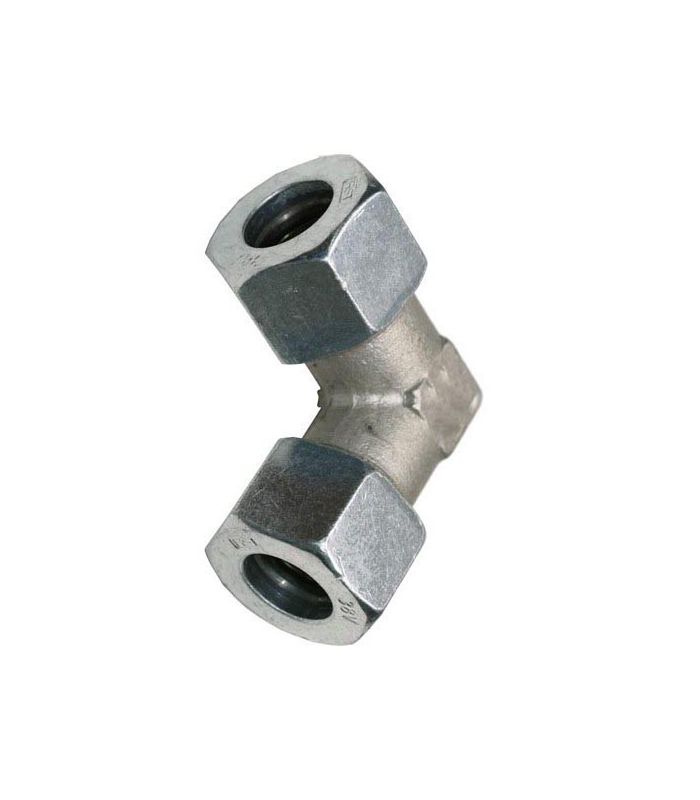

A DIN-2353 stainless steel L-shaped elbow tube fitting is designed for hydraulic and pneumatic systems, allowing changes of direction in the installation while maintaining a watertight, safe and corrosion-resistant connection.
Applications: Hydraulic and pneumatic systems, chemical, food and pharmaceutical industries.
Main features:
90° elbow fitting for joining pipes, manufactured in stainless steel according to DIN 2353. Designed for hydraulic and pneumatic systems, it allows changes of direction in the installation while maintaining a leak-proof, safe and corrosion-resistant connection.
Technical data sheet for a stainless steel L-shaped elbow tube joint DIN-2353:
| Code | D1 | D2 | L1 | L2 | S1 | S2 | Weight | PN |
| 390300 | 6 | 4 | 27 | 12 | 12 | 14 | 55 | 315 |
| 390301 | 8 | 6 | 29 | 14 | 12 | 17 | 77 | 315 |
| 390302 | 10 | 8 | 30 | 15 | 14 | 19 | 96 | 315 |
| 390303 | 12 | 10 | 32 | 17 | 17 | 22 | 137 | 315 |
| 390304 | 15 | 12 | 36 | 21 | 19 | 27 | 174 | 315 |
| 390305 | 18 | 15 | 40 | 23.5 | 24 | 32 | 275 | 315 |
| 390306 | 22 | 19 | 44 | 27.5 | 27 | 36 | 357 | 160 |
| 390307 | 28 | 24 | 47 | 30.5 | 36 | 41 | 537 | 160 |
| 390308 | 35 | 30 | 56 | 34.5 | 41 | 50 | 772 | 160 |
| 390309 | 42 | 36 | 63 | 40 | 50 | 60 | 1254 | 160 |
