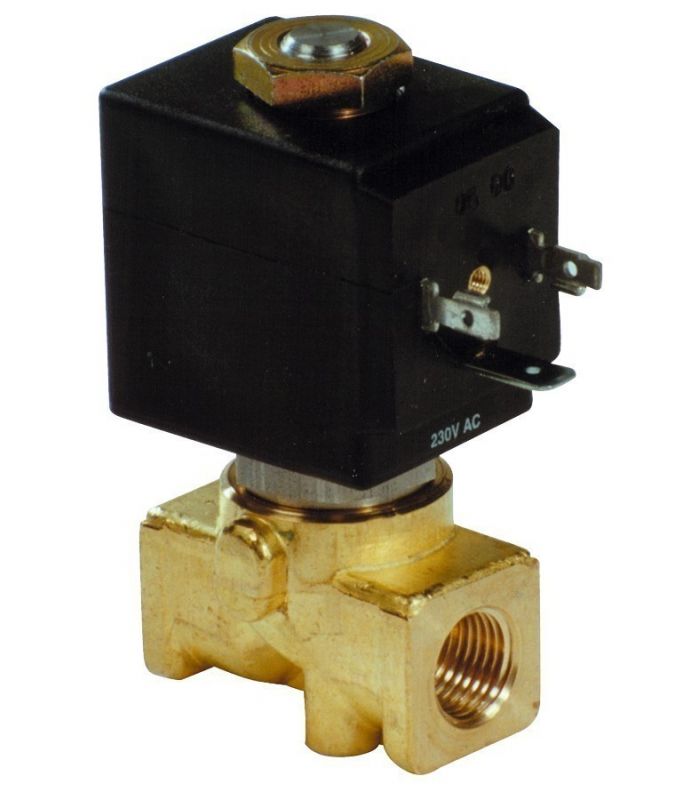

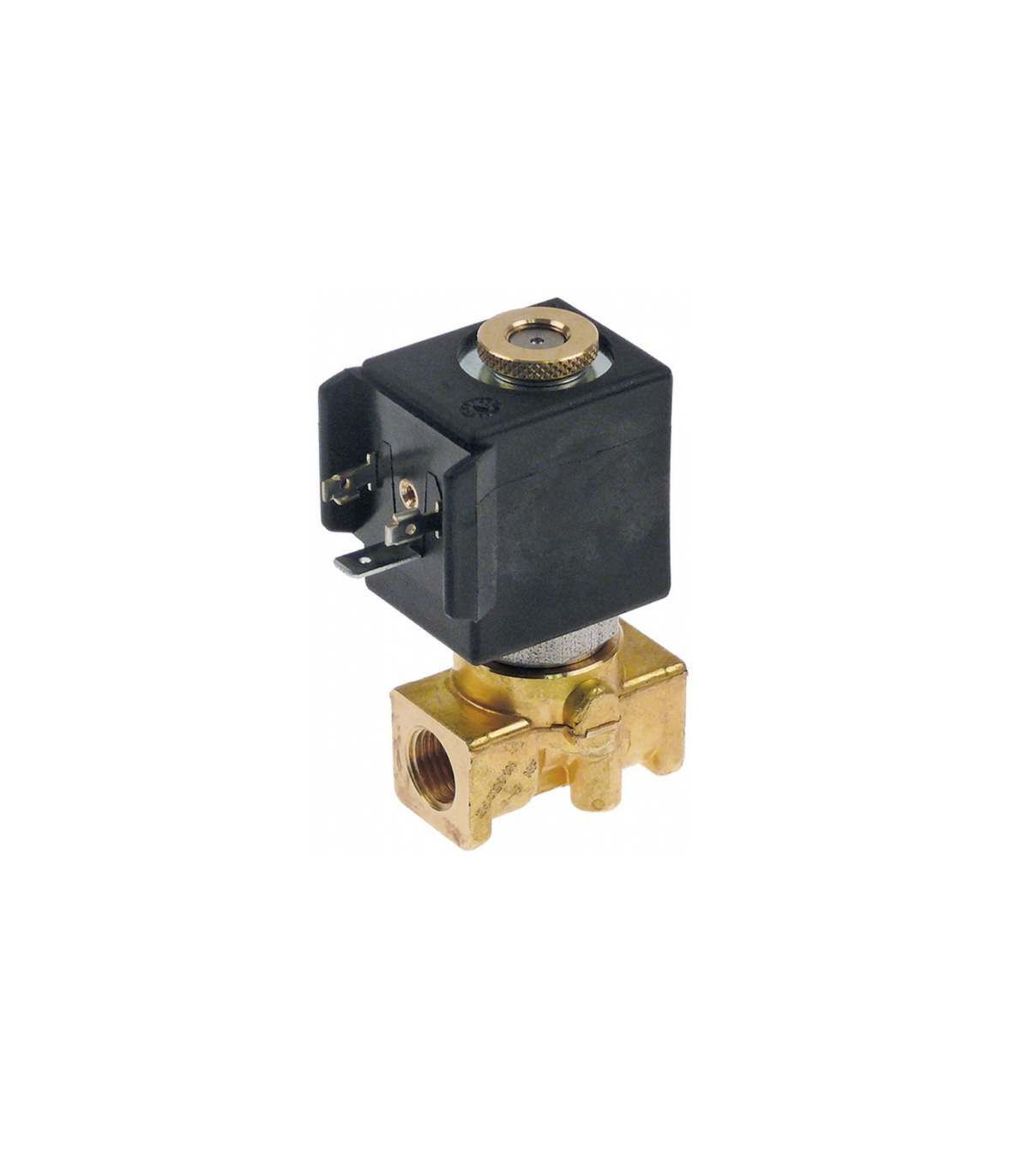

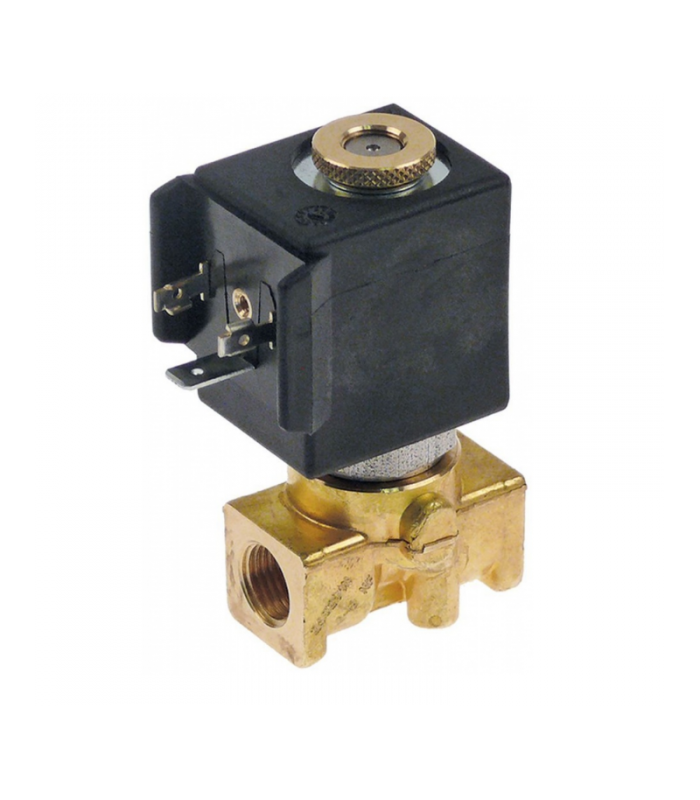

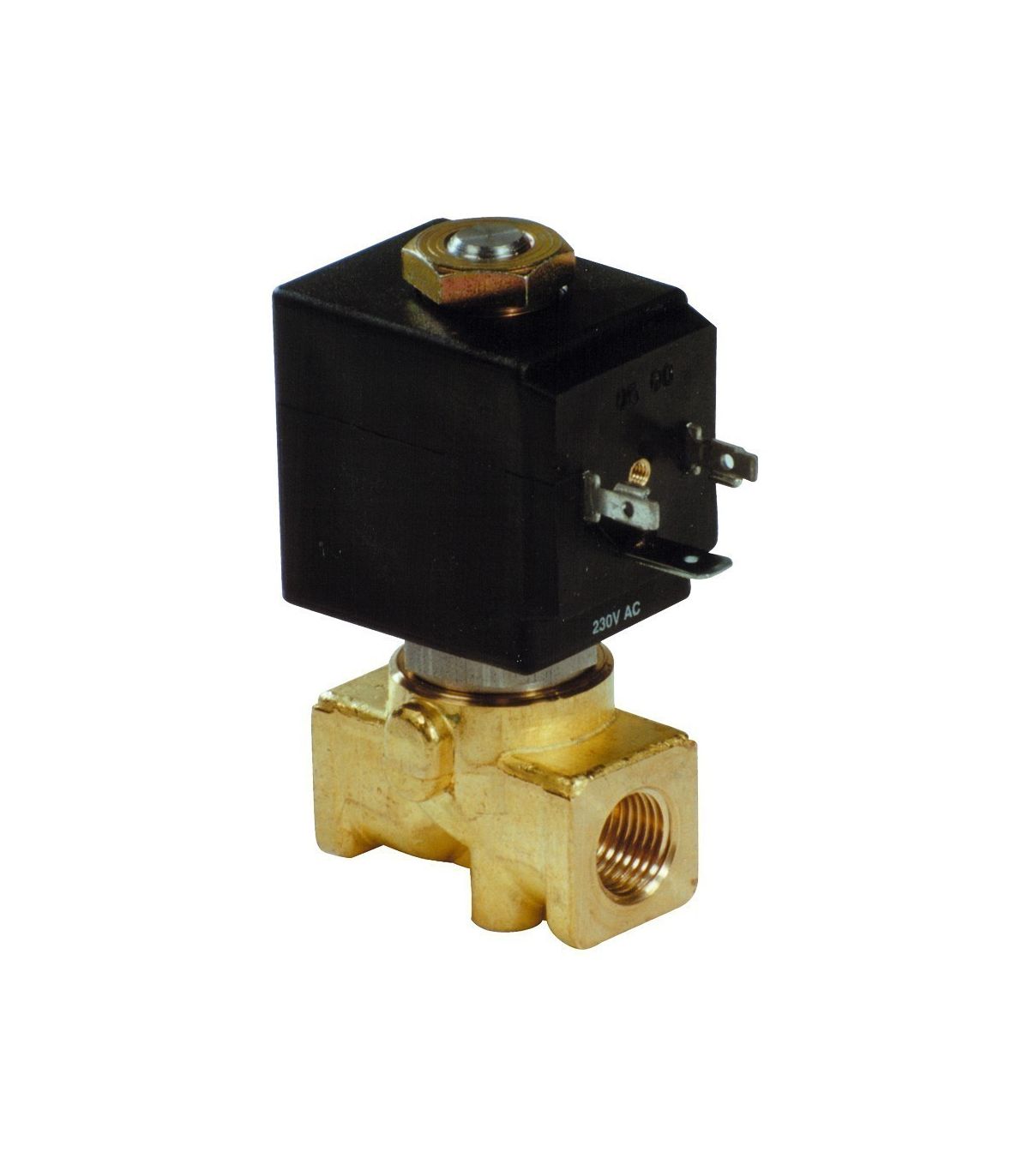

2/2 N.CLOSED SOLENOID VALVE 1/4" AL02
2/2 N.CLOSED SOLENOID VALVE 1/4" AL02
2/2 N.CLOSED SOLENOID VALVE 1/4" AL02
2/2 N.CLOSED SOLENOID VALVE 1/4" AL02

2/2 N.CLOSED SOLENOID VALVE 1/4" AL02

The 2/2 N.closed 1/4" AL02 solenoid valve is used to control the flow of compressed air, allowing or blocking its passage through a 1/4" diameter duct. The valve has 2 ways (inlet and outlet) and 2 positions (open and closed). The valve is closed, i.e. the air flow is blocked until it receives an electrical signal to open.

Applications: machinery, industrial automation, robotics, packaging systems.

Technical sheet:

  • 1/4" direct control solenoid valve.
  • No differential pressure is required for proper operation.
  • Mounting position indifferent.
  • It is possible to change the coil without having to disassemble the valve.
  • Various sealing joints depending on the fluid used.
  • Applications: Compressed air, inert gases, diesel, steam, vacuum and in general all fluids compatible with the available sealing gaskets.
  • Maximum viscosity allowed: 5º Engler.
  • C3 type mounting coil Not included.
€27.96 (tax included)
€23.11 (tax excl.)
Reference:
6025
Description

2/2 N.closed solenoid valve 1/4" AL02

ELEC.VALVULA 22 N.CERRADA 14 AL02

Product Details
6025
