SOLENOID VALVE 2/2 NO. OPEN 1/4" AN02
SOLENOID VALVE 2/2 NO. OPEN 1/4" AN02
SOLENOID VALVE 2/2 NO. OPEN 1/4" AN02
SOLENOID VALVE 2/2 NO. OPEN 1/4" AN02

SOLENOID VALVE 2/2 NO. OPEN 1/4" AN02

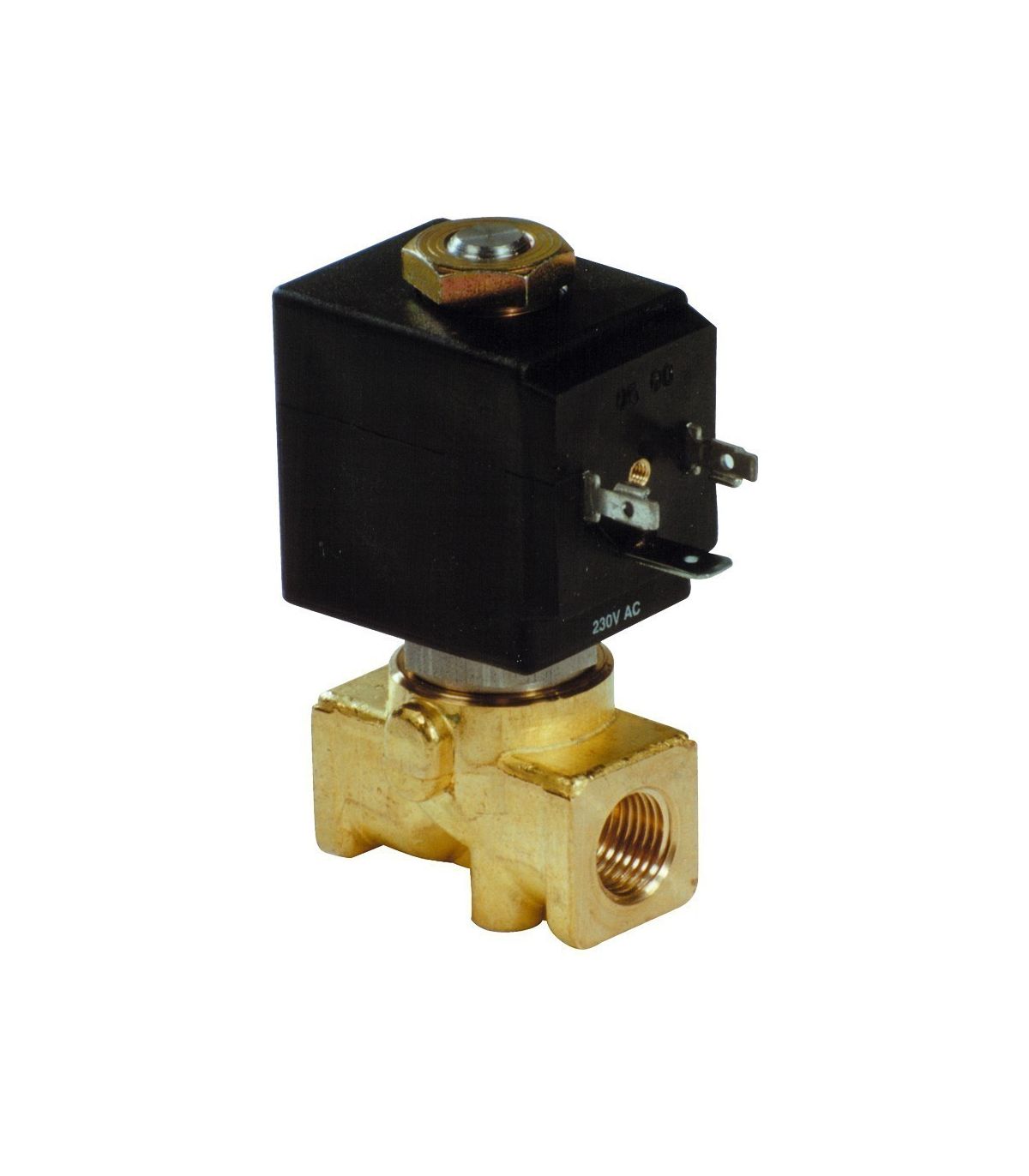

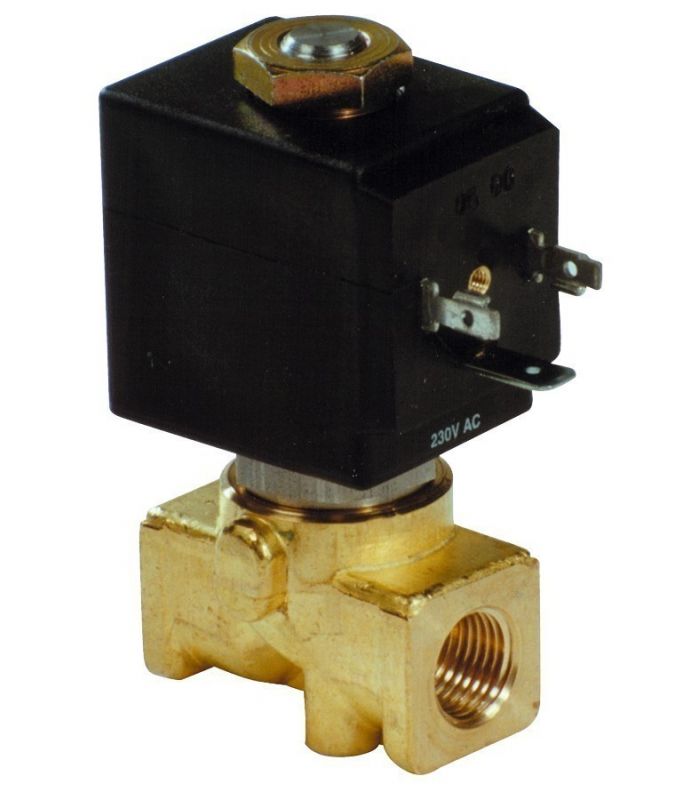

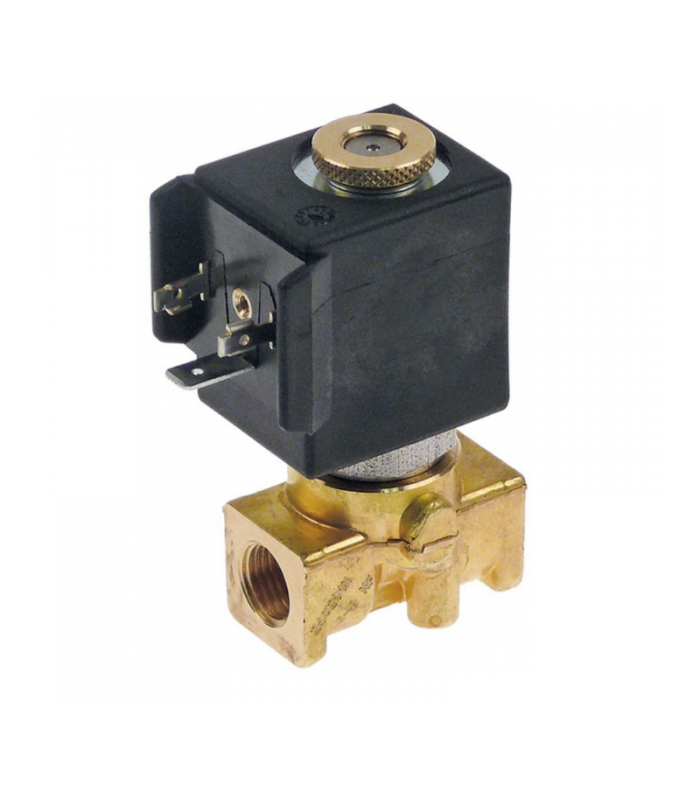

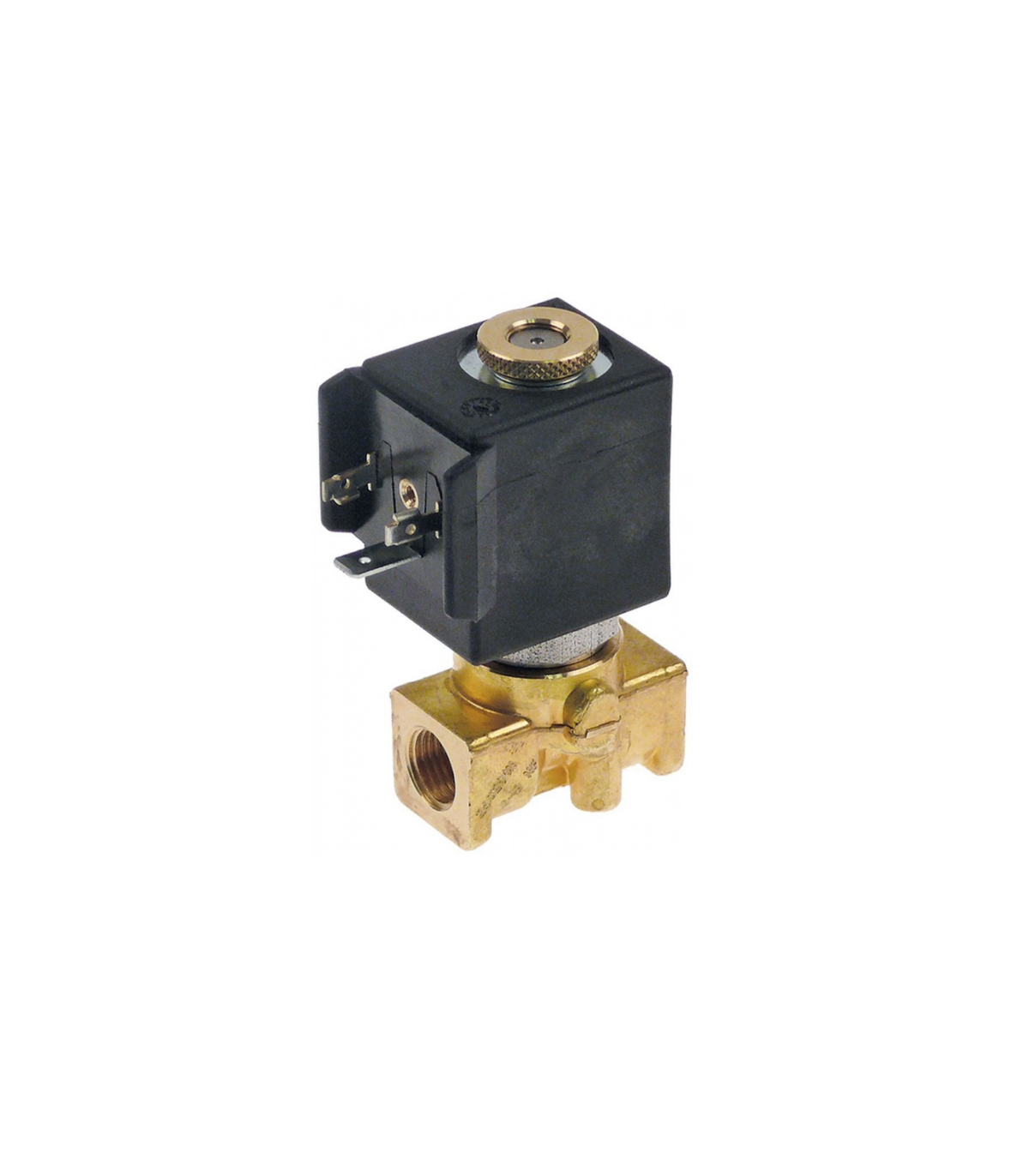

A 2/2 N. open solenoid valve, 1/4" AN20, is used to control the flow of compressed air, allowing or blocking its passage through a 1/4" diameter conduit. The valve has two ports (inlet and outlet) and two positions (open and closed). It is normally open, meaning air flows until an electrical signal is received to close it.

Applications: robotics, packaging systems, machinery, industrial automation.

Technical specifications:

  • Direct control solenoid valve.
  • Differential pressure is not required for its proper functioning.
  • Mounting position is irrelevant.
  • It is possible to change the coil without removing the valve.
  • Various sealing gaskets depending on the fluid used.
  • Applications: Compressed air, inert gases, diesel, steam, vacuum and in general all fluids compatible with the available sealing gaskets.
  • Maximum permissible viscosity: 5º Engler.
  • C3 type connection coil
€42.53 (tax included)
€35.15 (tax excl.)
Reference:
6026
Description

2/2 N.open solenoid valve 1/4" AN20

ELEC.VALVULA 22 N.ABIERTA 14 AN02

Product Details
6026
