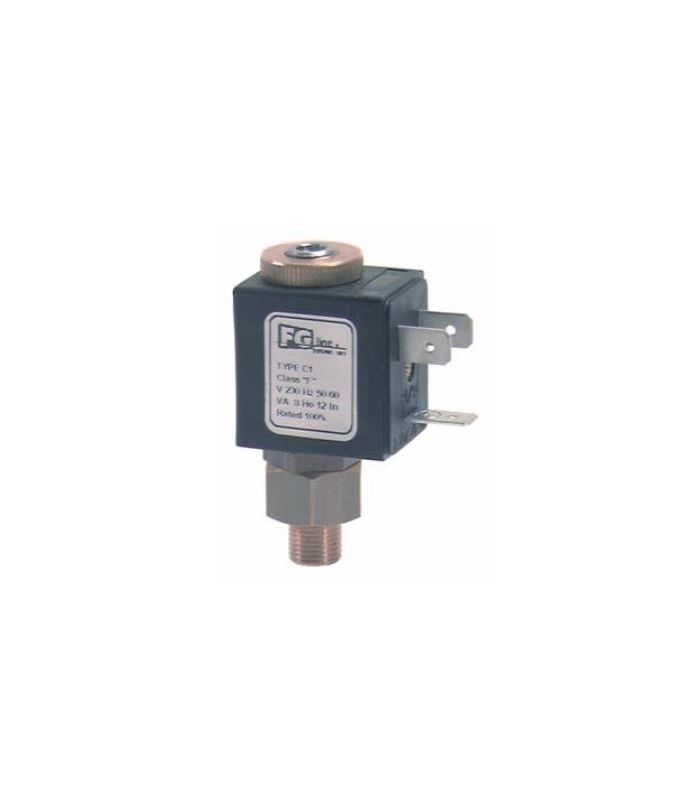

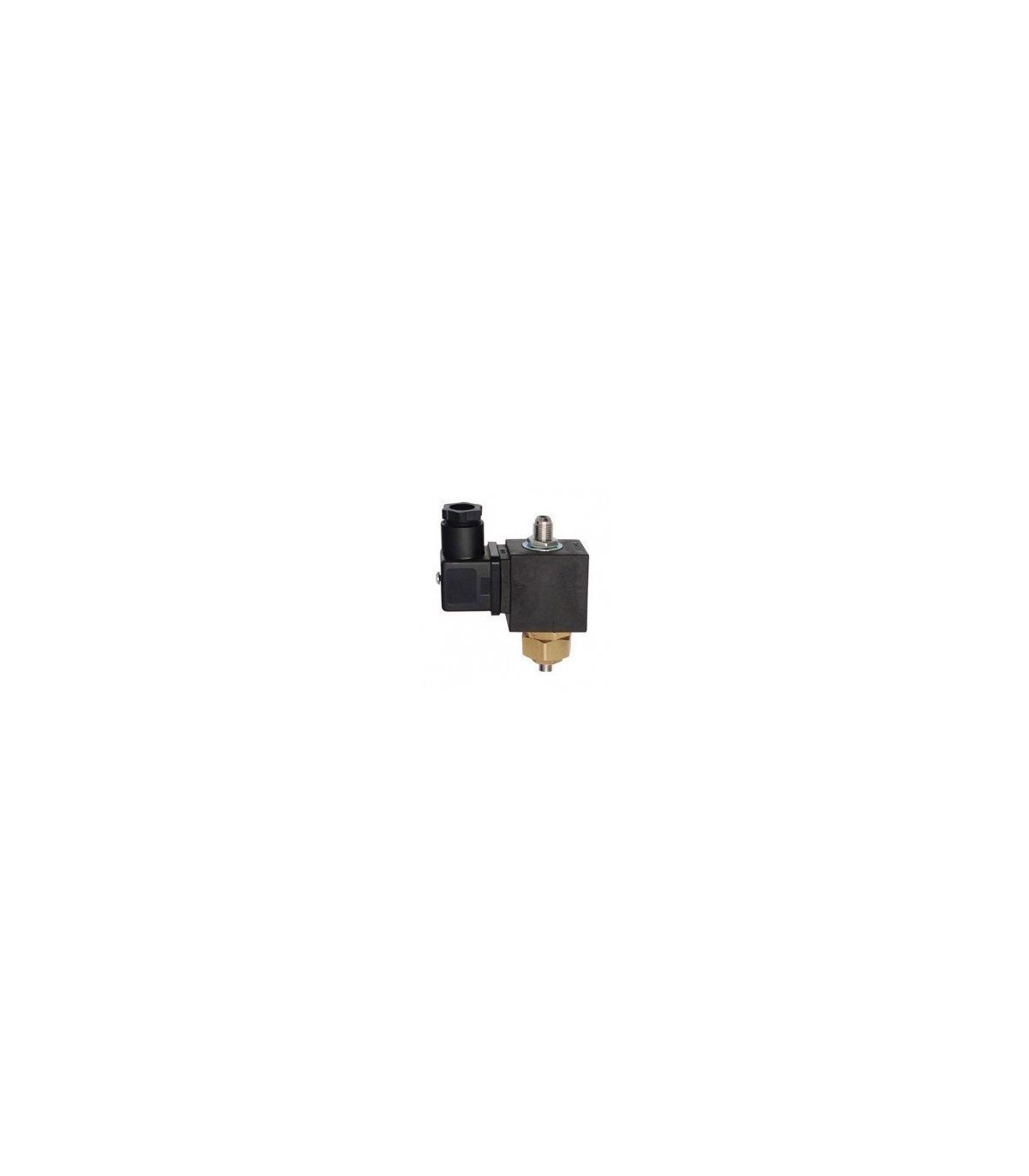

2/2 N.OPEN SOLENOID VALVE LINEAR BORE AN11

A 2/2 N. open linear flow AN11 solenoid valve is a pneumatic component used in industrial automation systems to control compressed air flow. The valve has two ports (inlet and outlet) and two positions (open and closed). It is normally open, meaning air flow is permitted until an electrical signal is applied to close it. Linear flow means the shutter moves in a straight line to open or close the flow of fluid.

Technical sheet:

Direct-operated solenoid valve. 1/8" male thread.
No differential pressure is required for proper operation.
Vertical mounting position.
Applicable by design for compressor head discharge.
Applications: Compressed air, inert gases, diesel, steam, and in general all fluids compatible with the available sealing gaskets.
Applicable to the compressor head to discharge it.
Maximum viscosity allowed: 5º Engler.
Mounting coil type C3, supplied separately.

€26.62 (tax included)

€22.00 (tax excl.)

Reference:

6024

Description
Comments

Description

2/2 N.open solenoid valve linear passage AN11

ELEC.VALVULA 22 N.ABIERTA PASO LINEAL AN11

Product Details

Reference 6024
