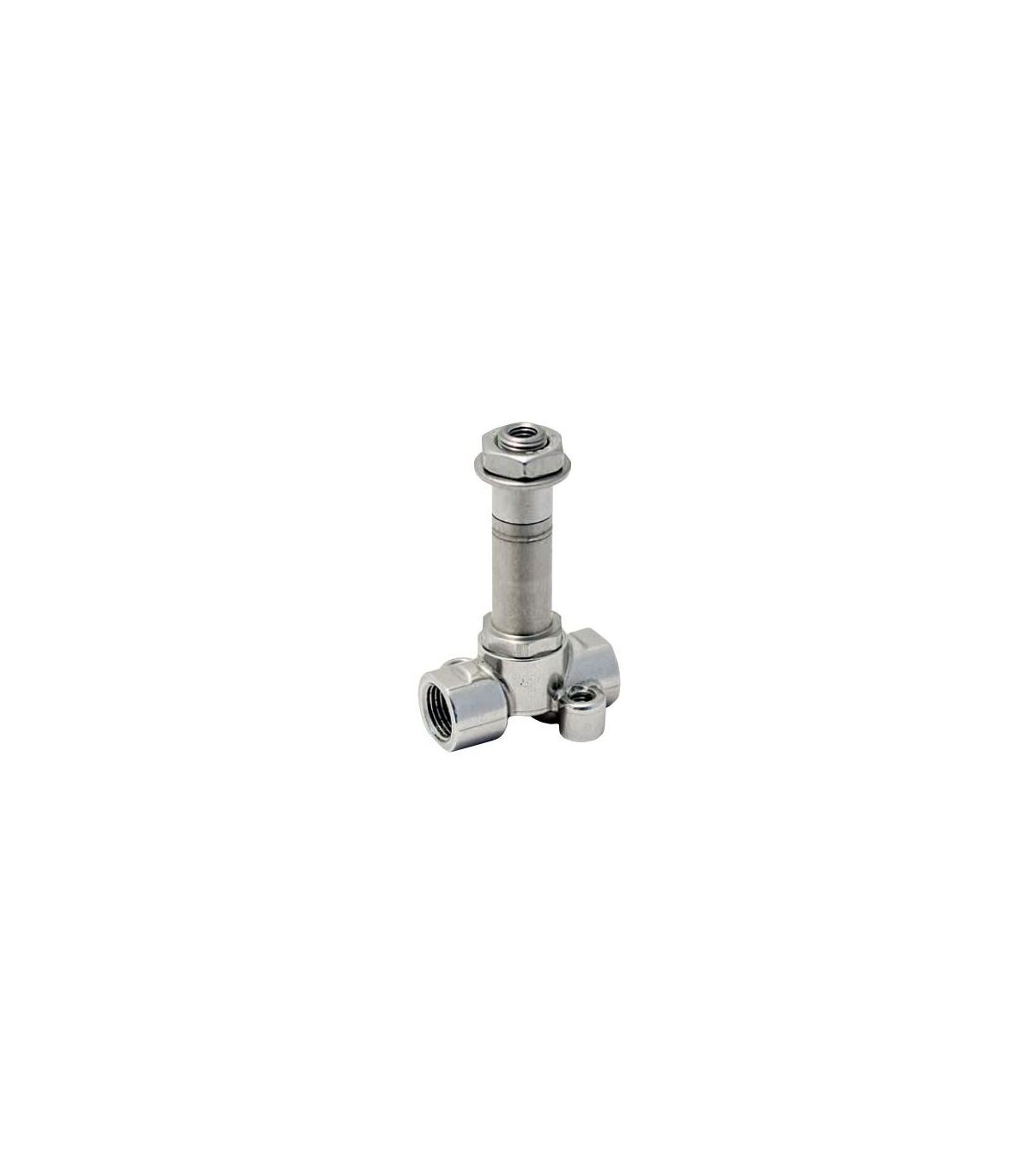

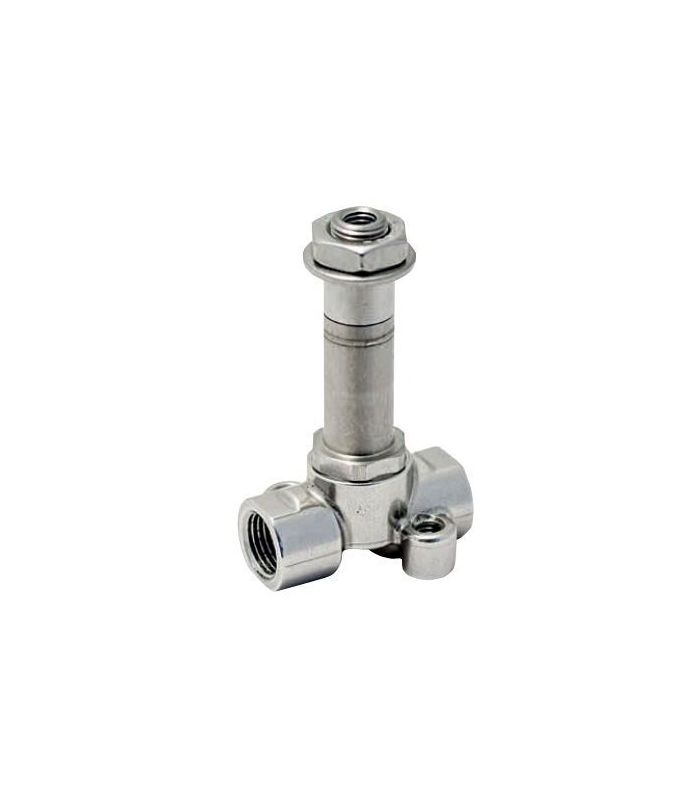

3/2" SOLENOID VALVE CLOSED 1/4" STAINLESS STEEL DIRECT CONTROL
3/2" SOLENOID VALVE CLOSED 1/4" STAINLESS STEEL DIRECT CONTROL
3/2" SOLENOID VALVE CLOSED 1/4" STAINLESS STEEL DIRECT CONTROL
3/2" SOLENOID VALVE CLOSED 1/4" STAINLESS STEEL DIRECT CONTROL

3/2" SOLENOID VALVE CLOSED 1/4" STAINLESS STEEL DIRECT CONTROL

A 3/2 N. closed 1/4" stainless steel direct control solenoid valve is an electromagnetic valve designed to control the flow of a fluid (typically compressed air) in low flow pneumatic or hydraulic systems.

Applications: Industrial pneumatic systems, Food and beverage industry, Pharmaceutical and biotechnology industry, Marine or humid environments, Dosing or filling systems

Technical sheet:

  • Viton gasket.
  • Hole Ø 2 mm.
  • It does not require a minimum pressure for correct operation.
  • Mounting position indifferent.
  • Option to order multiple gaskets depending on the fluid used.
  • Maximum viscosity allowed 5º Engler.
  • KV factor (l/min water) 0.7
  • Max pressure 13 bar.
  • Temperature -10ºC / 130 ºC
  • Coil type C3 (not included)
€77.44 (tax included)
€64.00 (tax excl.)
Reference:
6047
Description

3/2 N. closed solenoid valve 1/4" stainless steel direct control

ELEC.VALVULA 32 N.CERRADA 14 INOX

Product Details
6047
Comments
