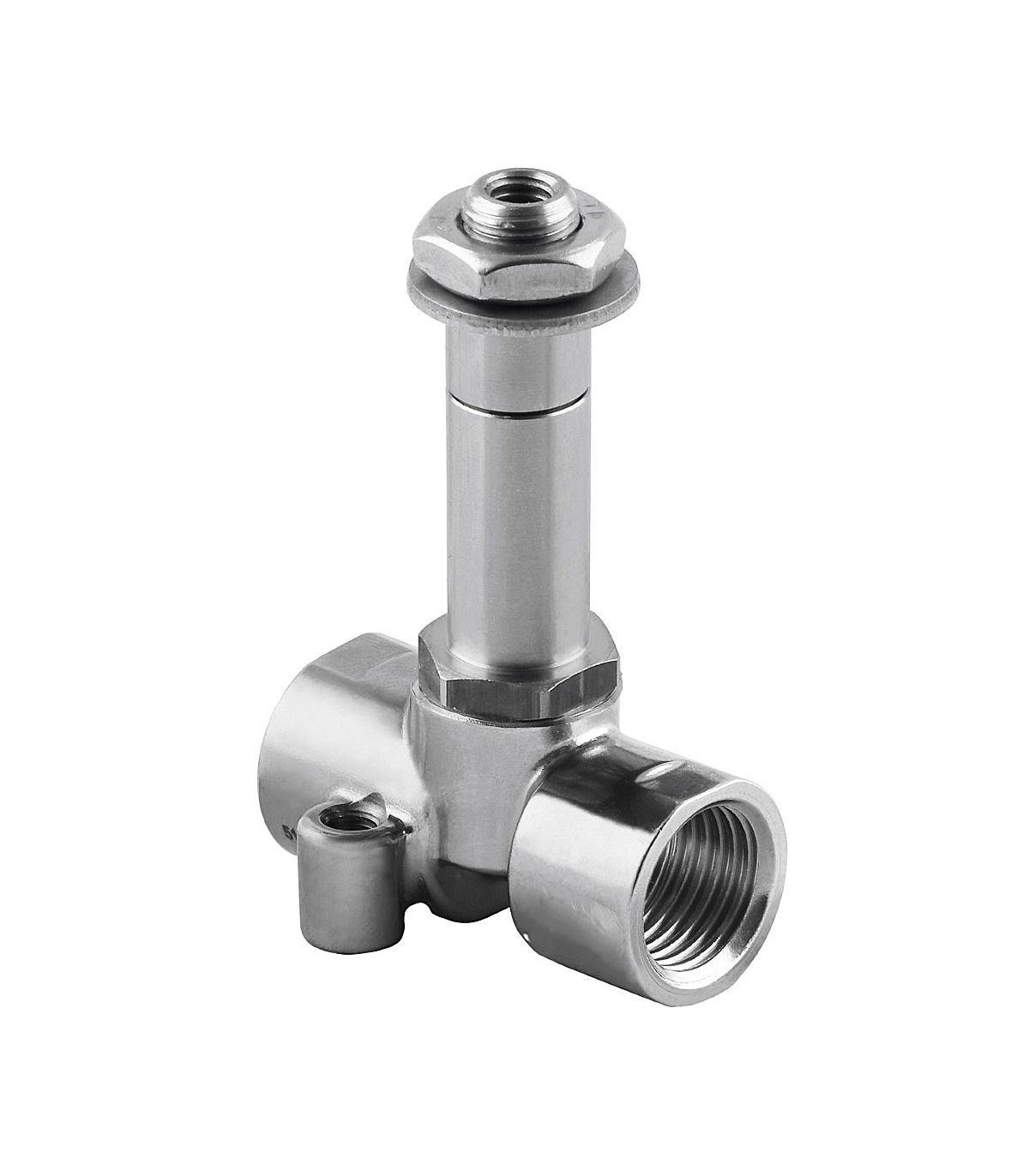

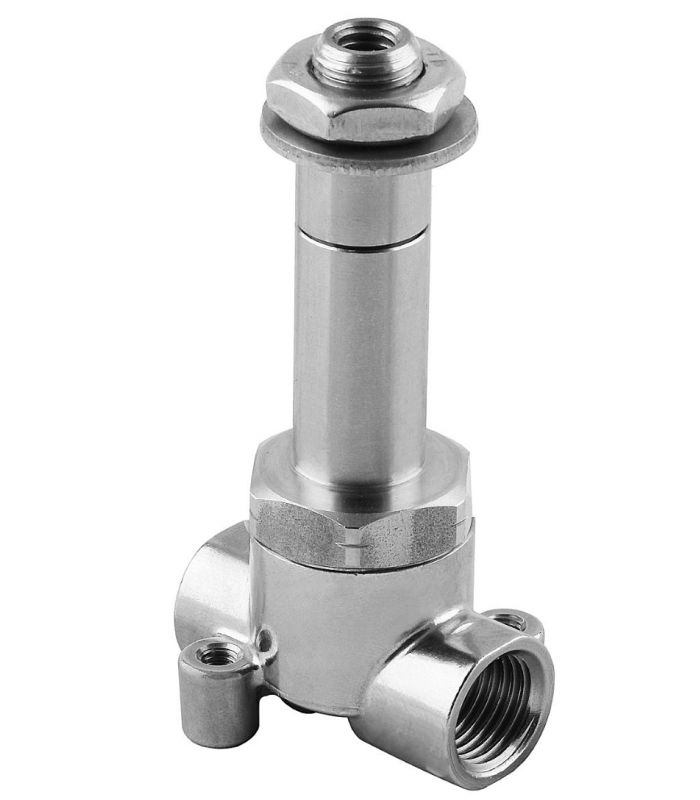

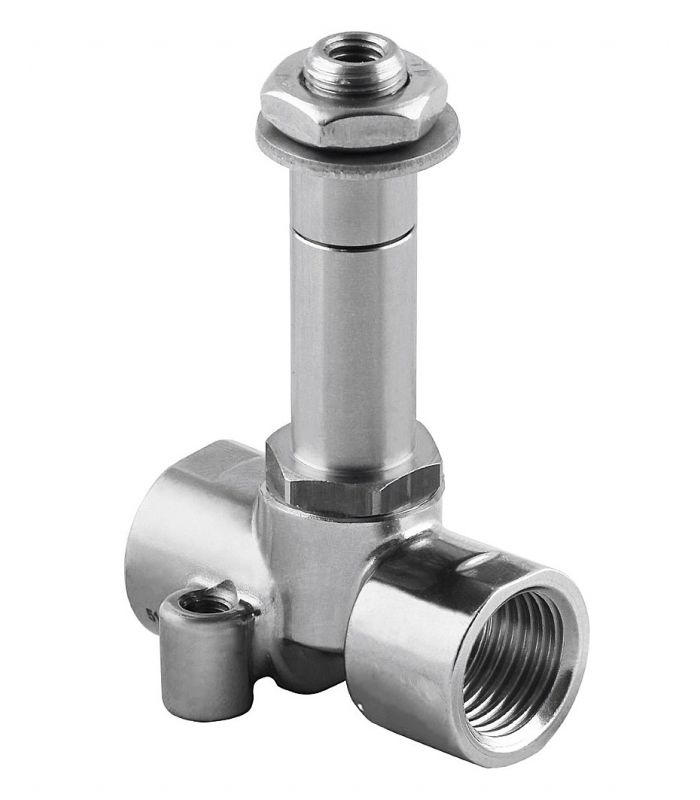

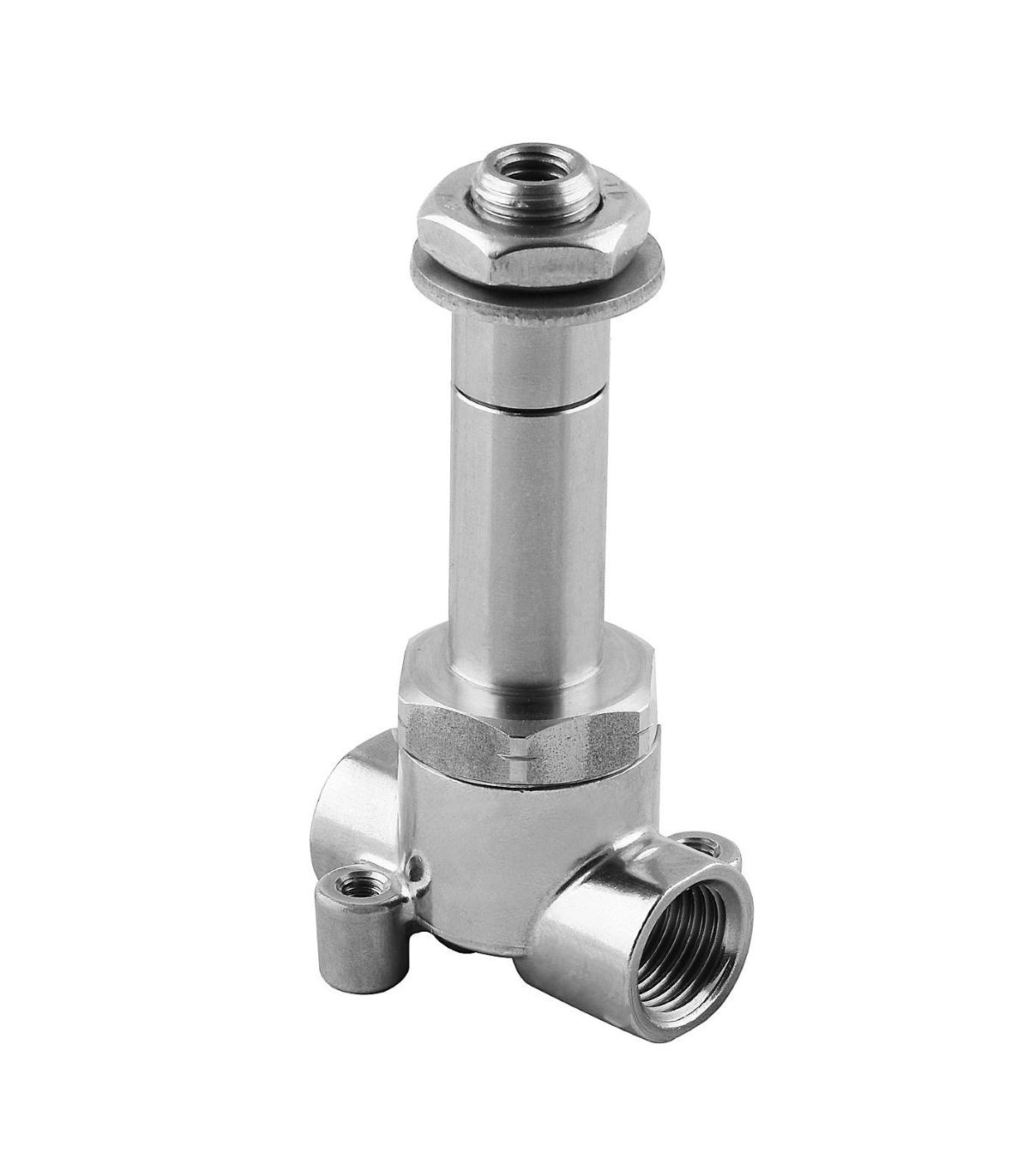

3/2" SOLENOID VALVE CLOSED 1/8" STAINLESS STEEL DIRECT CONTROL

A 3/2 N. closed 1/8" Inox direct control solenoid valve is used to control the flow of a fluid (usually compressed air) in pneumatic systems. It has 3 ways and 2 positions. The movement of the plunger that controls the fluid flow is directly actuated by the force of the electromagnet.

Technical sheet:

Function: Normally closed.
Pressure 0-10 bar (max. 40 bar)
VITON gasket Possibility of ordering in NBR - EPDM
Hole Ø 1.5mm
Temperature -10 / 130ºC.
No differential pressure is required for proper operation.
Mounting position indifferent.
It is possible to change the coil without having to disassemble the valve.
Mounting coil type C1

€38.96 (tax included)

€32.20 (tax excl.)

Reference:

6040

Description
Comments

Description

3/2 N.closed solenoid valve 1/8" Stainless steel direct control

ELEC.VALVULA 32 N.CERRADA 18 INOX

Product Details

Reference 6040
