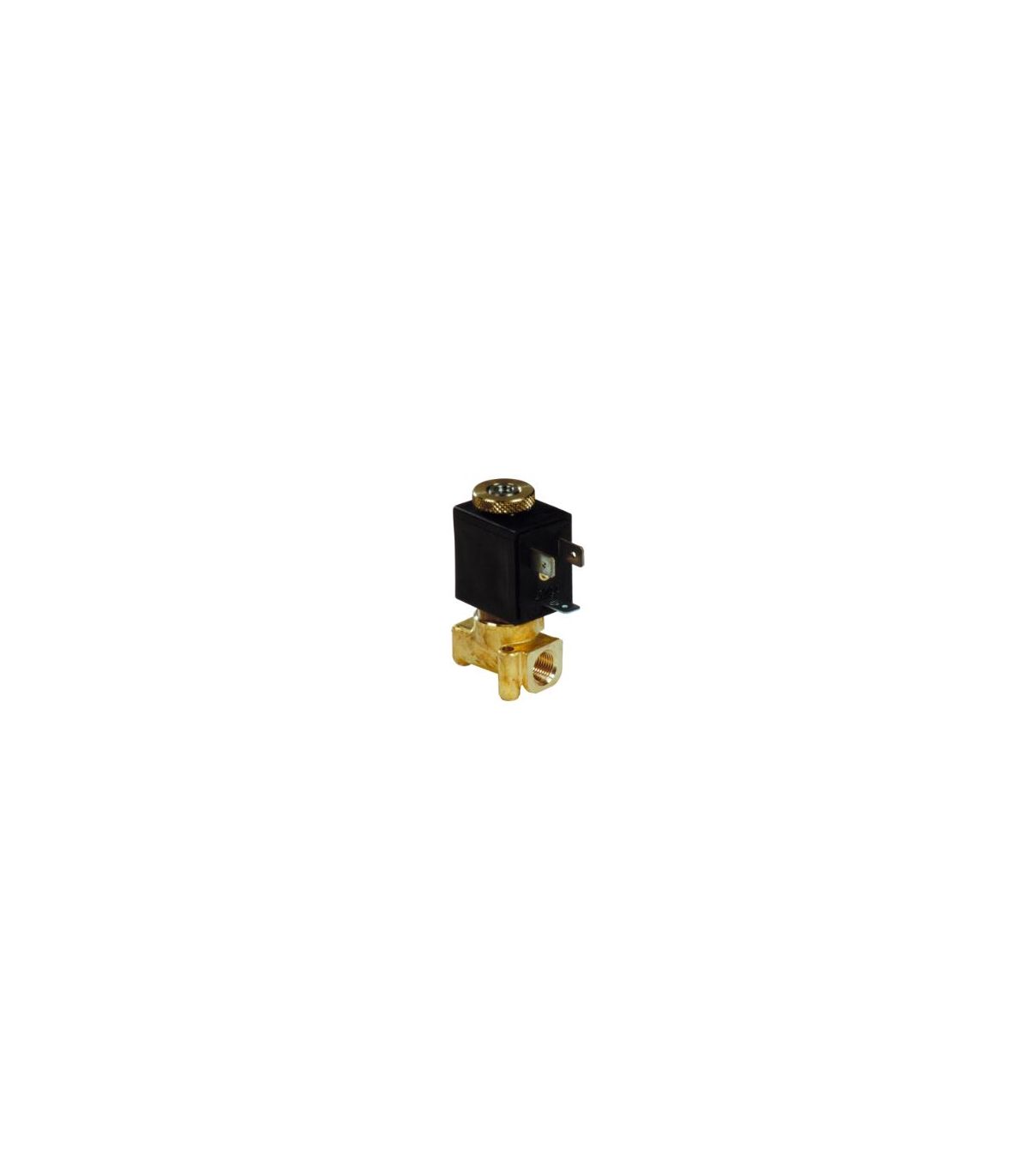

3/2 N. CLOSED SOLENOID VALVE 1/8" AC01

The AC01 3/2 N. normally closed 1/8" solenoid valve is used to control the flow of compressed air in industrial automation systems. It offers a third position that allows a specific port to be connected or disconnected. It has three ports and two positions. In the normal position, one port is connected to the inlet, another to the outlet, and the third is blocked until an electrical signal is applied to open it.

Applications: Industrial automation, Packaging machinery, Robotics, Pneumatic control systems, Machine tools.

Technical specifications:

• Direct acting solenoid valve 1/8".
• Differential pressure is not required for its proper functioning.
• Mounting position is irrelevant.
• It is possible to change the coil without removing the valve.
• Various sealing gaskets depending on the fluid used.
• Applications: Compressed air, inert gases, diesel, steam, vacuum and in general all fluids compatible with the available sealing gaskets.
• Maximum permissible viscosity: 5º Engler.
• Supplied WITHOUT COIL
• C1 type mounting coil
