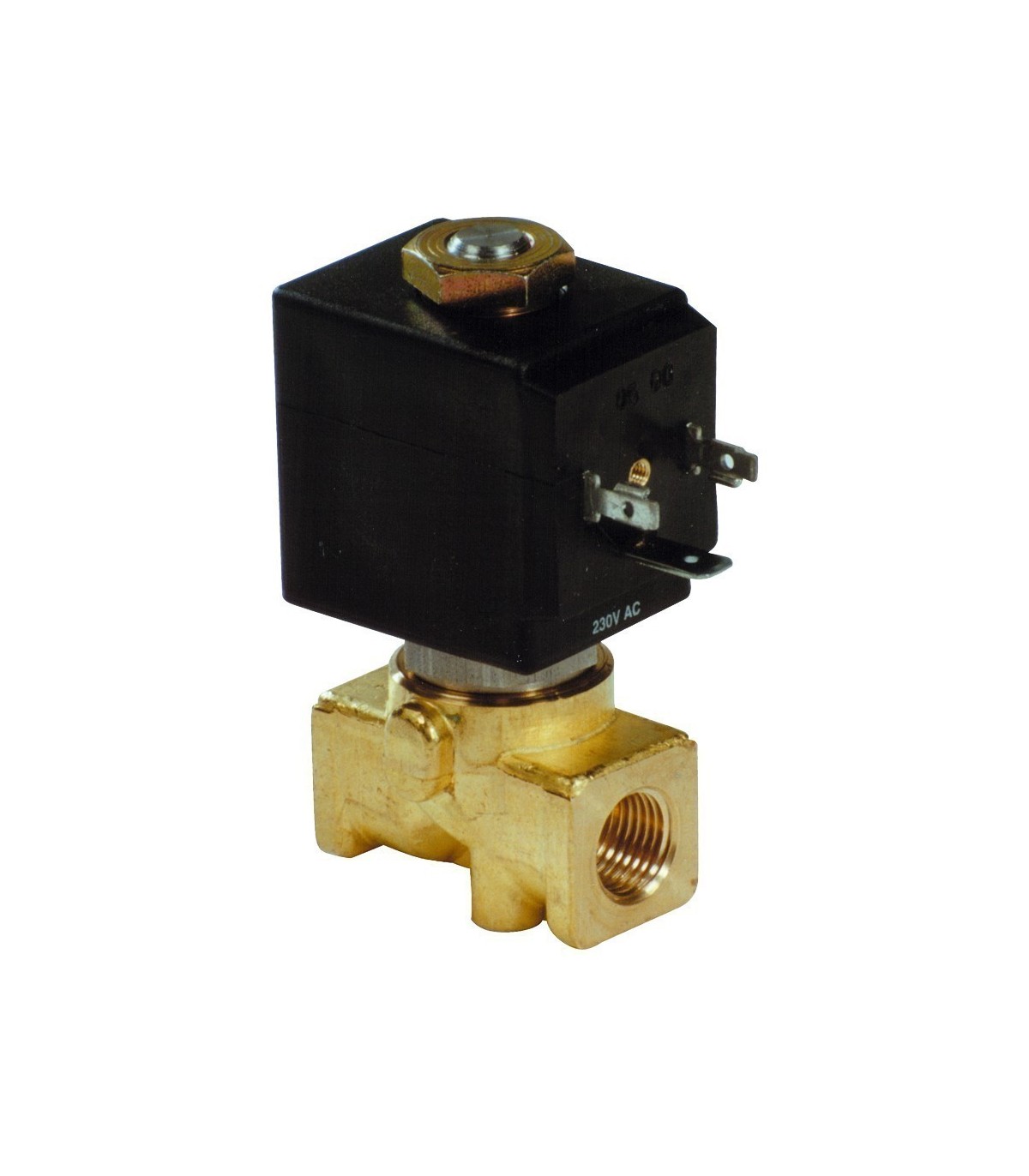

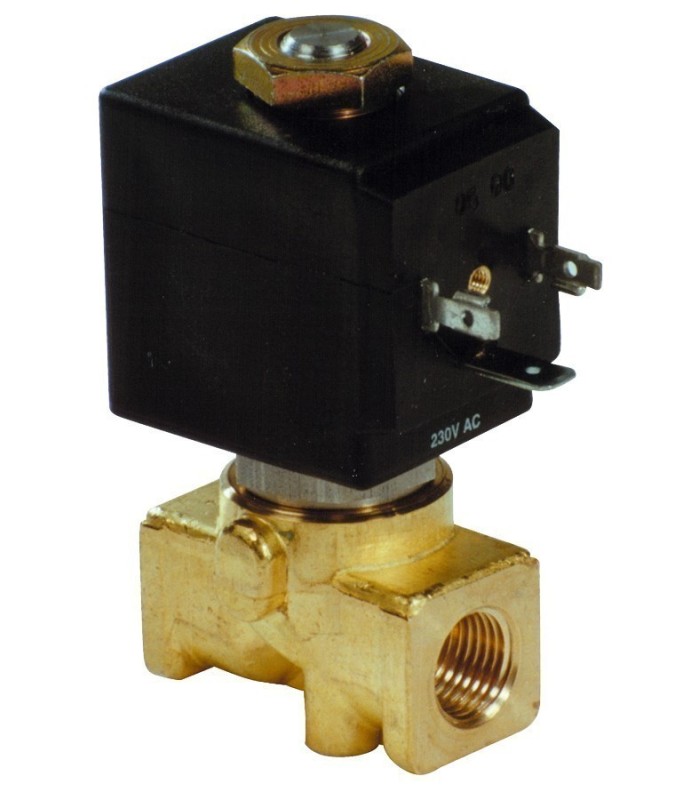

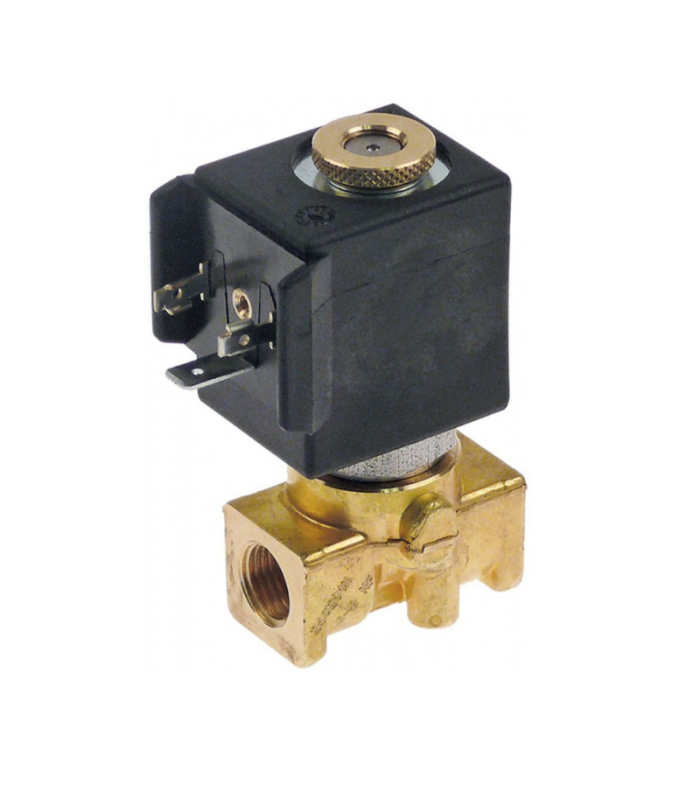

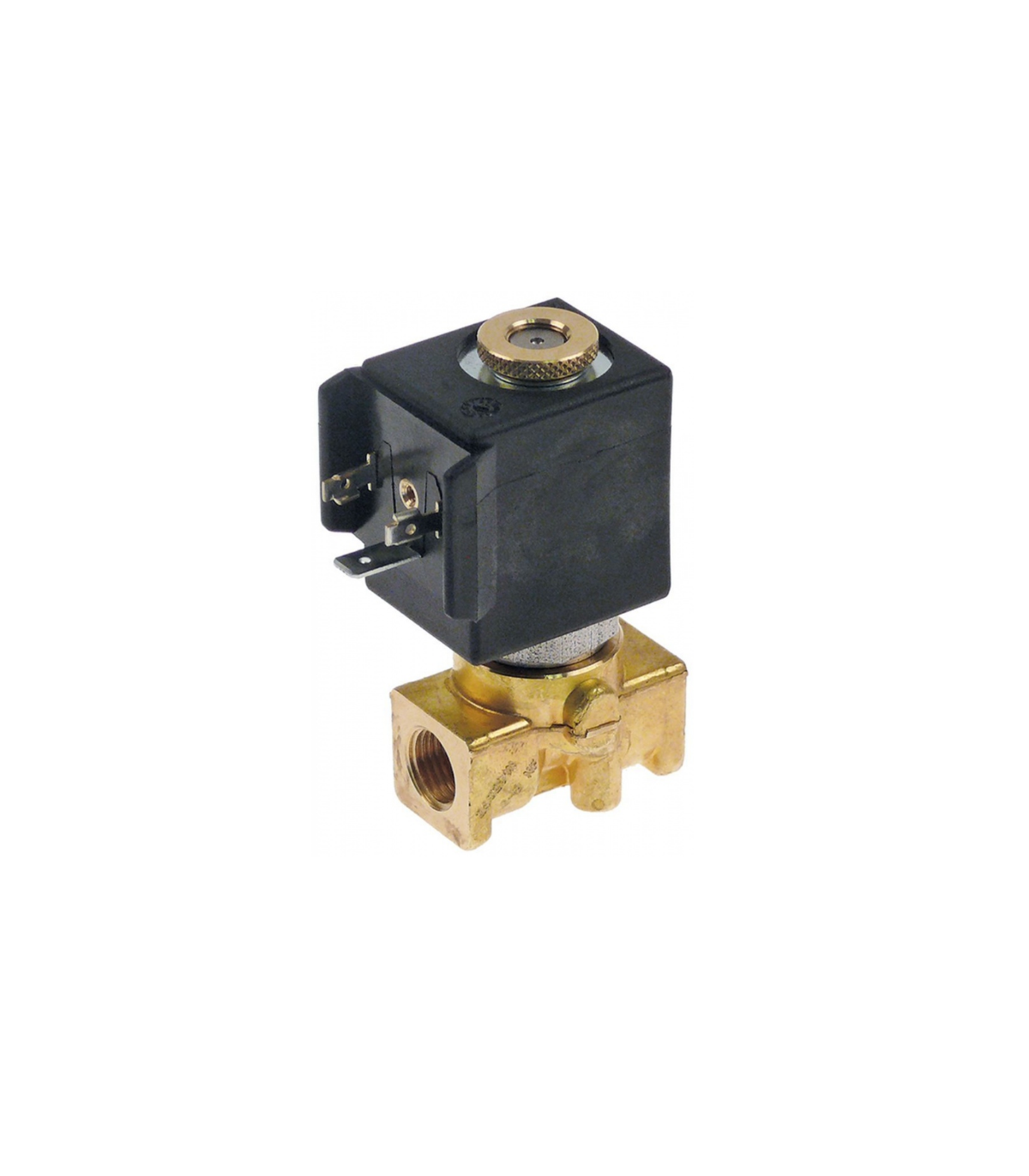

SOLENOID VALVE 2/2 N.CERRADA 1/4" AL02

The AL02 1/4" 2/2 N.cerrada solenoid valve is used to control the flow of compressed air, allowing or blocking its passage through a 1/4" diameter conduit. The valve has two ports (inlet and outlet) and two positions (open and closed). The valve is closed, meaning the airflow is blocked, until it receives an electrical signal to open.

Applications: machinery, industrial automation, robotics, packaging systems.

Technical specifications:

• Direct acting solenoid valve 1/4".
• Differential pressure is not required for its proper functioning.
• Mounting position is irrelevant.
• It is possible to change the coil without removing the valve.
• Various sealing gaskets depending on the fluid used.
• Applications: Compressed air, inert gases, diesel, steam, vacuum and in general all fluids compatible with the available sealing gaskets.
• Maximum permissible viscosity: 5º Engler.
• C3 type mounting coil not included.
