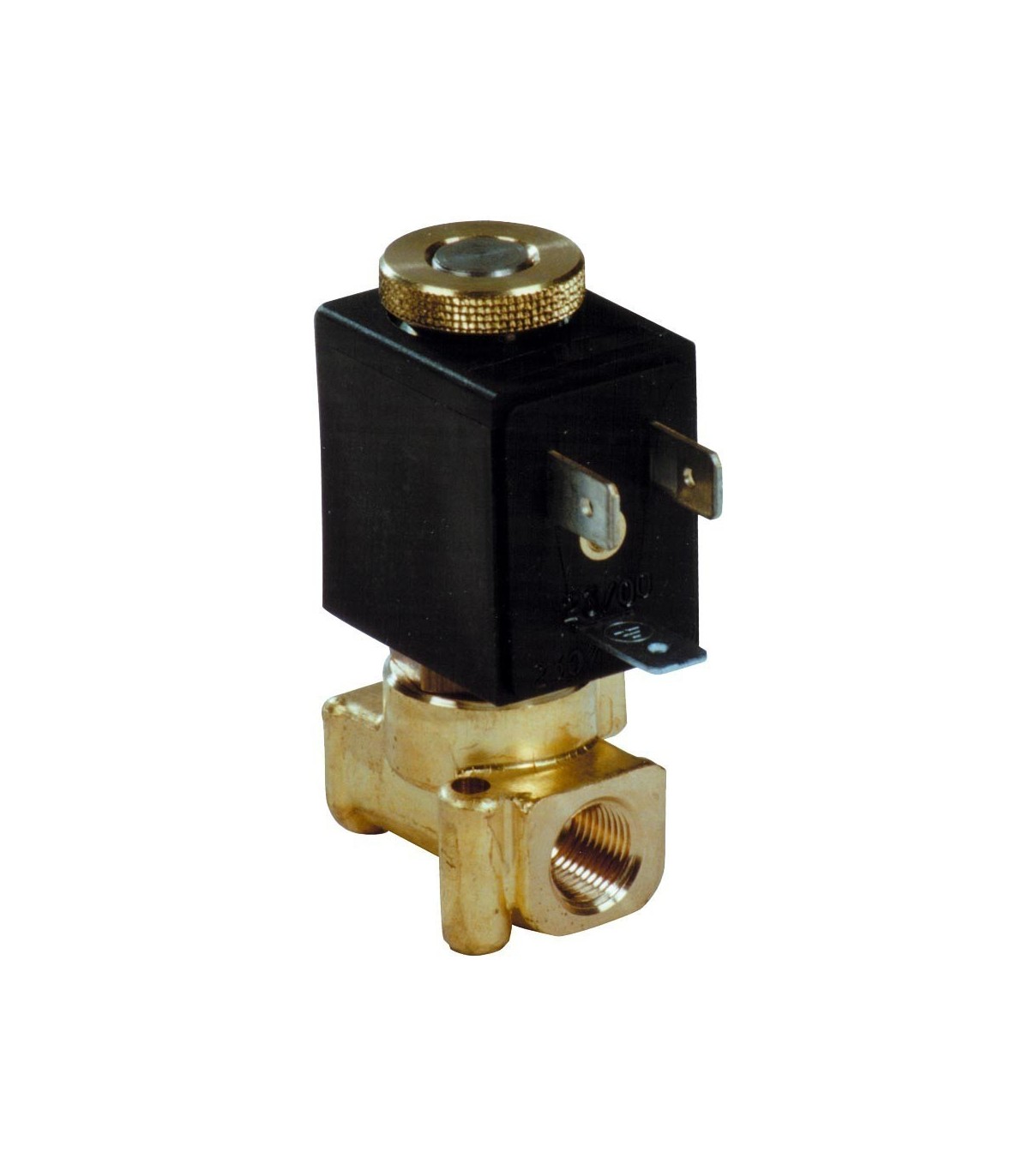

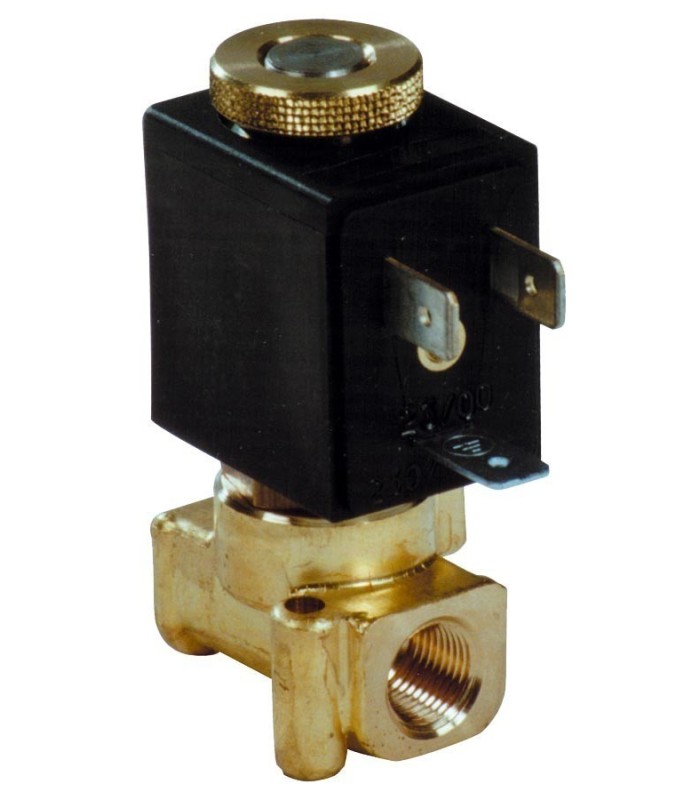

SOLENOID VALVE 2/2 N.CERRADA 1/8" AL01

A 2/2 N.cerrada solenoid valve, 1/8" AL01, is a pneumatic component used in industrial automation systems to control the flow of compressed air. Its function is to open or close a 1/8" air line in response to an electrical signal. The valve has two ports (inlet and outlet) and two positions (open and closed). It is normally closed, meaning the airflow is blocked until it receives an electrical signal to open it.

Applications: robotics, machinery, industrial automation, packaging systems,

Technical specifications:

• Direct acting solenoid valve 1/8".
• Differential pressure is not required for its proper functioning.
• Mounting position is irrelevant.
• It is possible to change the coil without removing the valve.
• Various sealing gaskets depending on the fluid used.
• Applications: Compressed air, inert gases, diesel, steam, vacuum and in general all fluids compatible with the available sealing gaskets.
• Maximum permissible viscosity: 5º Engler.
• Supplied without coil
• C1 type mounting coil
