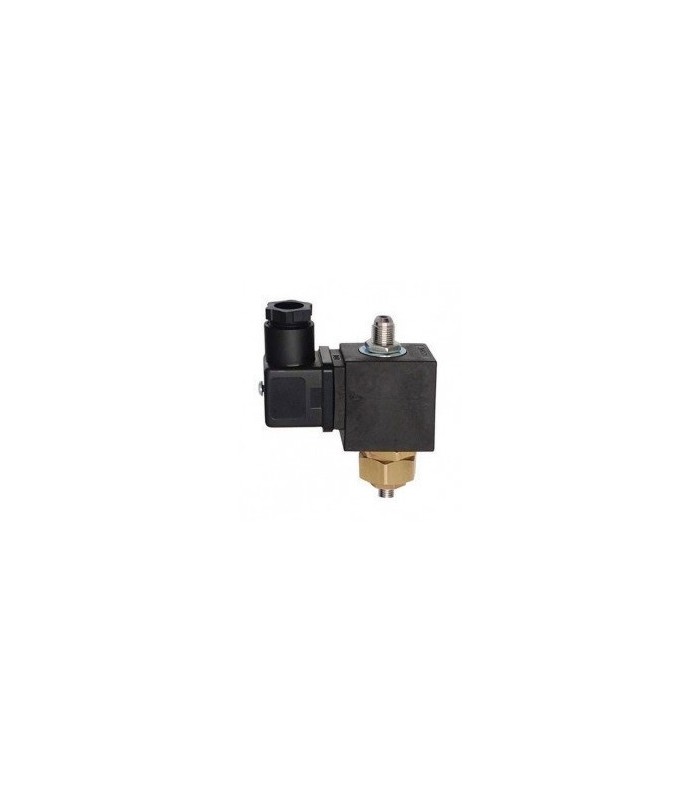

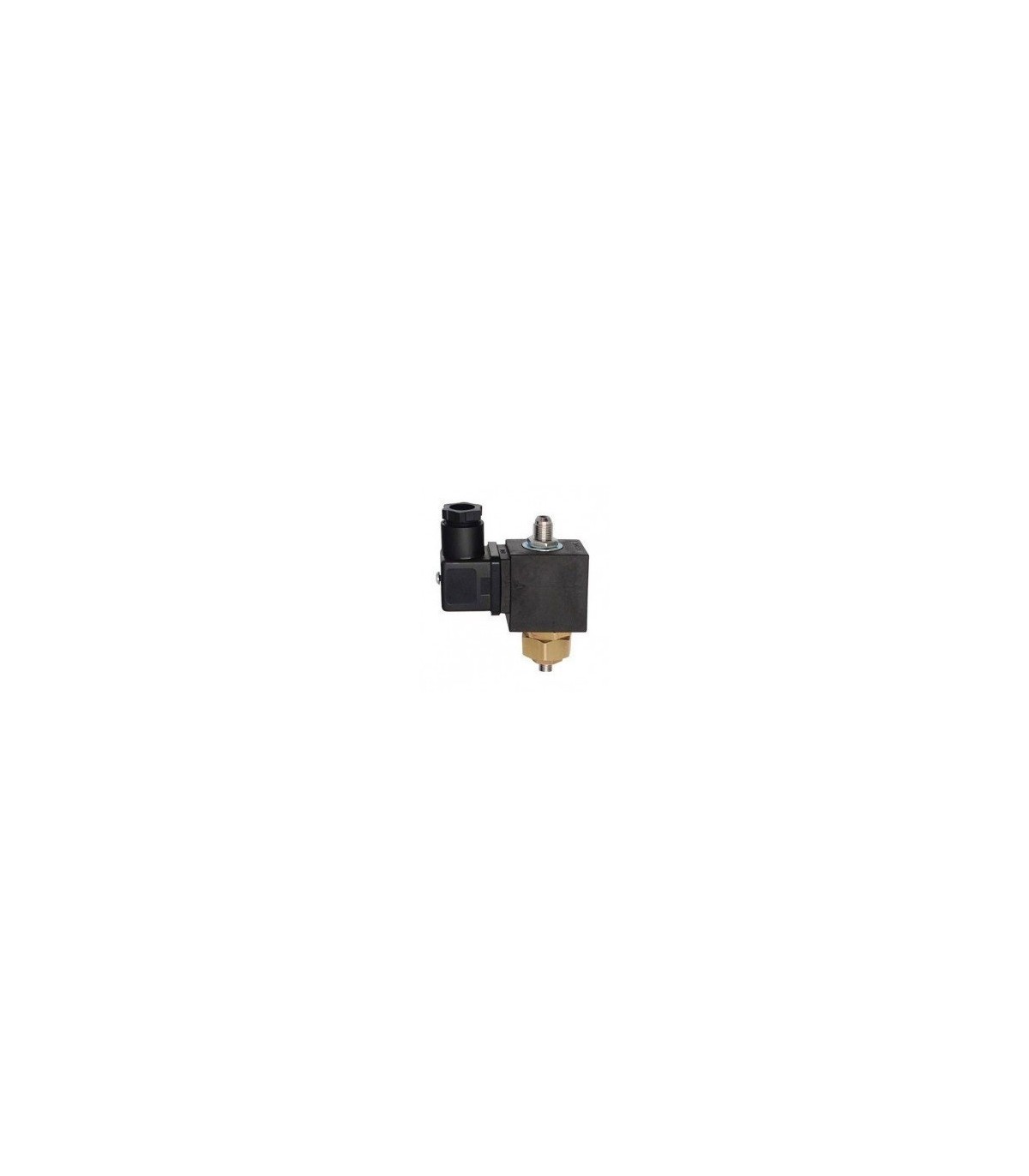

SOLENOID VALVE 2/2 N.ABIERTA OPEN LINEAR FLOW AN11

A 2/2 N.abierta linear-stroke solenoid valve AN11 is a pneumatic component used in industrial automation systems to control the flow of compressed air. The valve has two ports (inlet and outlet) and two positions (open and closed). It is normally open, meaning airflow is permitted until an electrical signal is applied to close it. Linear stroke means that the valve's plunger moves in a straight line to open or close the fluid passage.

Technical specifications:

• Direct acting solenoid valve. 1/8" male thread
• Differential pressure is not required for its proper functioning.
• Vertical mounting position.
• Applicable by design for compressor head discharge.
• Applications: Compressed air, inert gases, diesel, steam, and in general all fluids compatible with the available sealing gaskets.
• Applicable to the compressor head to perform the discharge of the same.
• Maximum permissible viscosity: 5º Engler.

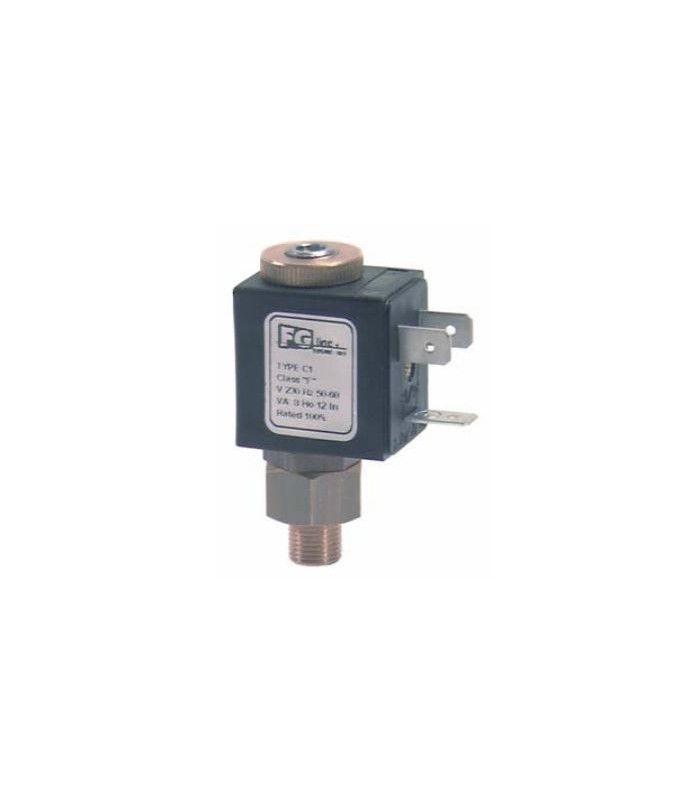

• C1 type mounting coil, supplied separately.
