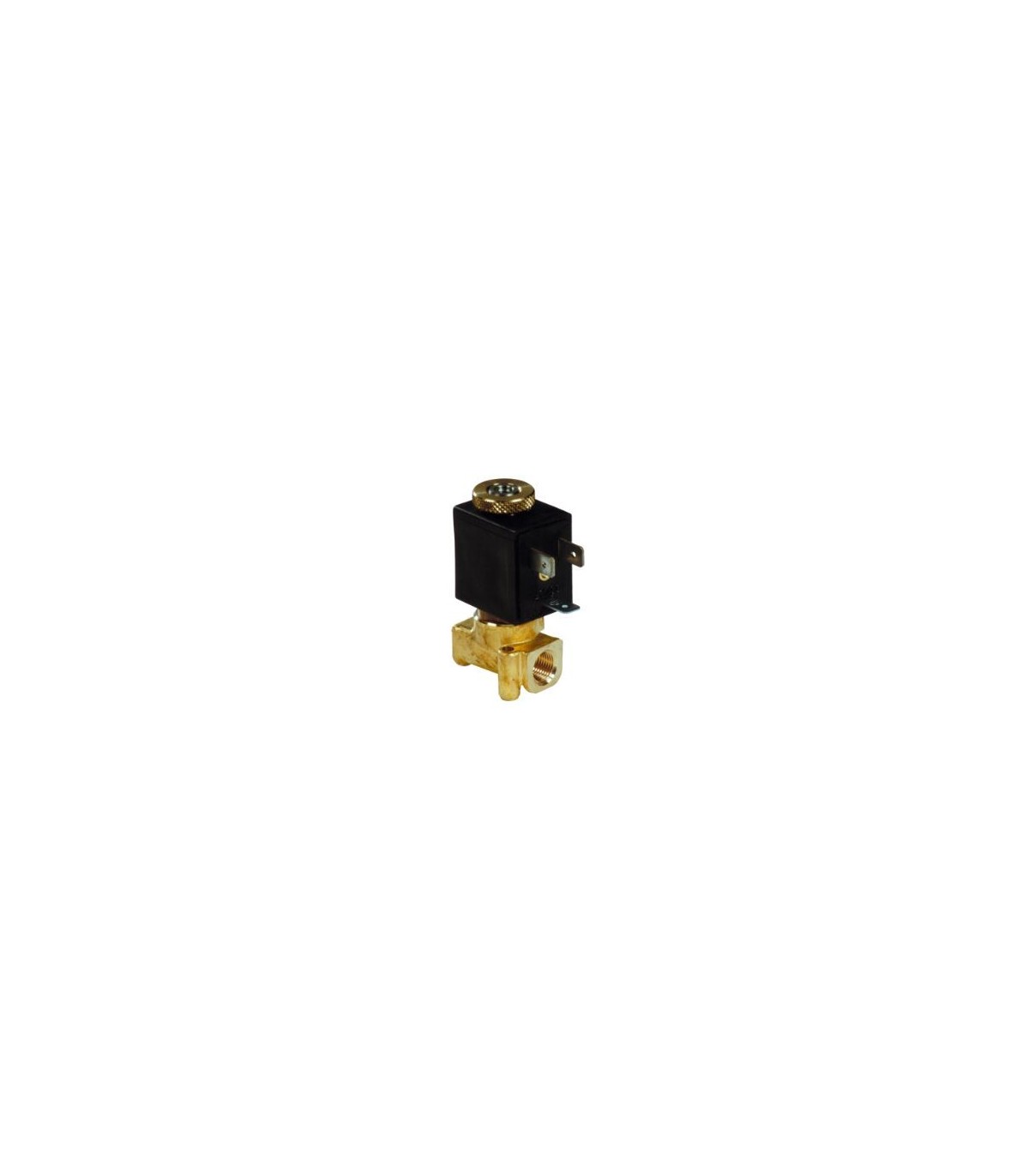

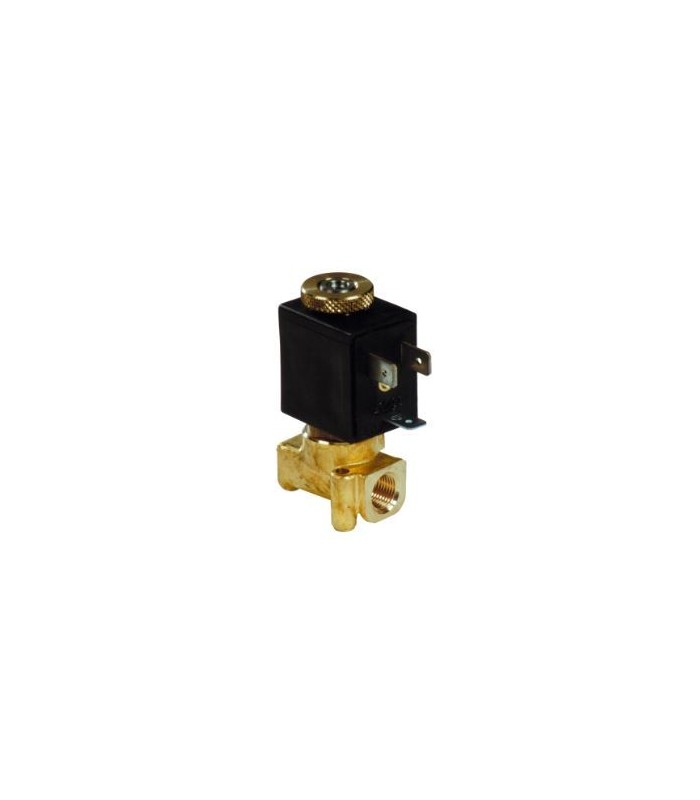

3/2 N.ABIERTA OPEN SOLENOID VALVE 1/8" AC09

The AC09 3/2 N. open solenoid valve (1/8") allows you to control the flow of compressed air by permitting or blocking its passage through three ports, one of which has a 1/8" diameter. The valve has 3 ports and 2 positions. It is normally open, meaning the outlet port is connected to the inlet until an electrical signal is applied to block it.

Applications: Industrial automation, Control systems, Process machinery.

Technical specifications:

• Differential pressure is not required for its proper functioning.
• Mounting position is irrelevant.
• It is possible to change the coil without removing the valve.
• Various sealing gaskets depending on the fluid used.
• Applications: Compressed air, inert gases, diesel, steam, vacuum and in general all fluids compatible with the available sealing gaskets.
• Maximum permissible viscosity: 5º Engler.
• C1 type mounting coil NOT INCLUDED
• Normally open
