CENTRAL FEMALE TUBE PRESS INOX
CENTRAL FEMALE TUBE PRESS INOX
CENTRAL FEMALE TUBE PRESS INOX
CENTRAL FEMALE TUBE PRESS INOX

CENTRAL FEMALE TUBE PRESS INOX

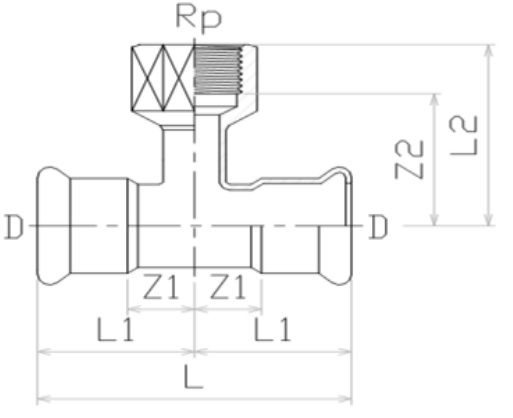

A stainless steel press-fit female center pipe tee is distinguished by its female branch connection, unlike the other two ends, which are press-fit. It allows the connection of three pipe sections, with one section diverted from the main flow.

Applications: plumbing, heating, cooling, compressed air systems, gas, drinking water installations, and fluid treatment in residential, commercial, and industrial sectors.

Technical sheet:

  • INOX-316 fitting for pressing.
  • Available tube diameters 15-18-22-28-35-42-54
  • EPDM gasket available (domestic water, heating, fire protection, compressed air (oil-free)
  • VITON gasket available (oils, hydrocarbons (except diesel), solar installations, compressed air.
  • For DVGW GW 541 UNE-EN-10088 tube
  • Pressure 16 bar at 90ºC
  • Temperature 120ºC
  • Various certifications and approvals, depending on the sector.
€9.83 (tax included)
€8.12 (tax excl.)
Tube diameter - Thread
  • Ø 15-1/2
  • Ø 18-1/2
  • Ø 18-3/4
  • Ø 22-1/2
  • Ø 22-3/4
  • Ø 28-3/4
  • Ø 28-1
  • Ø 35-1
  • Ø 35-1-1/4
Reference:
58170039
Description

female central press stainless steel tube

Product Details
58170039
