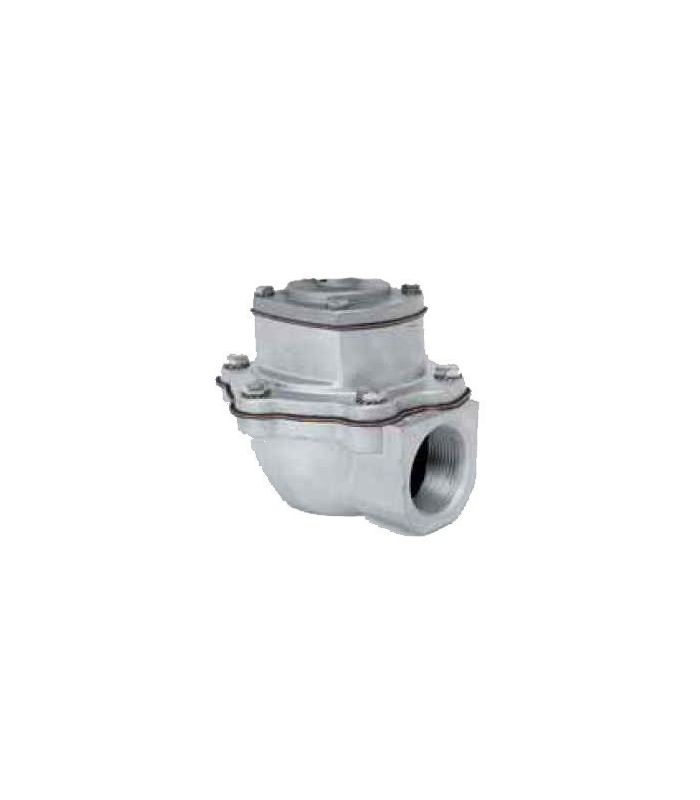

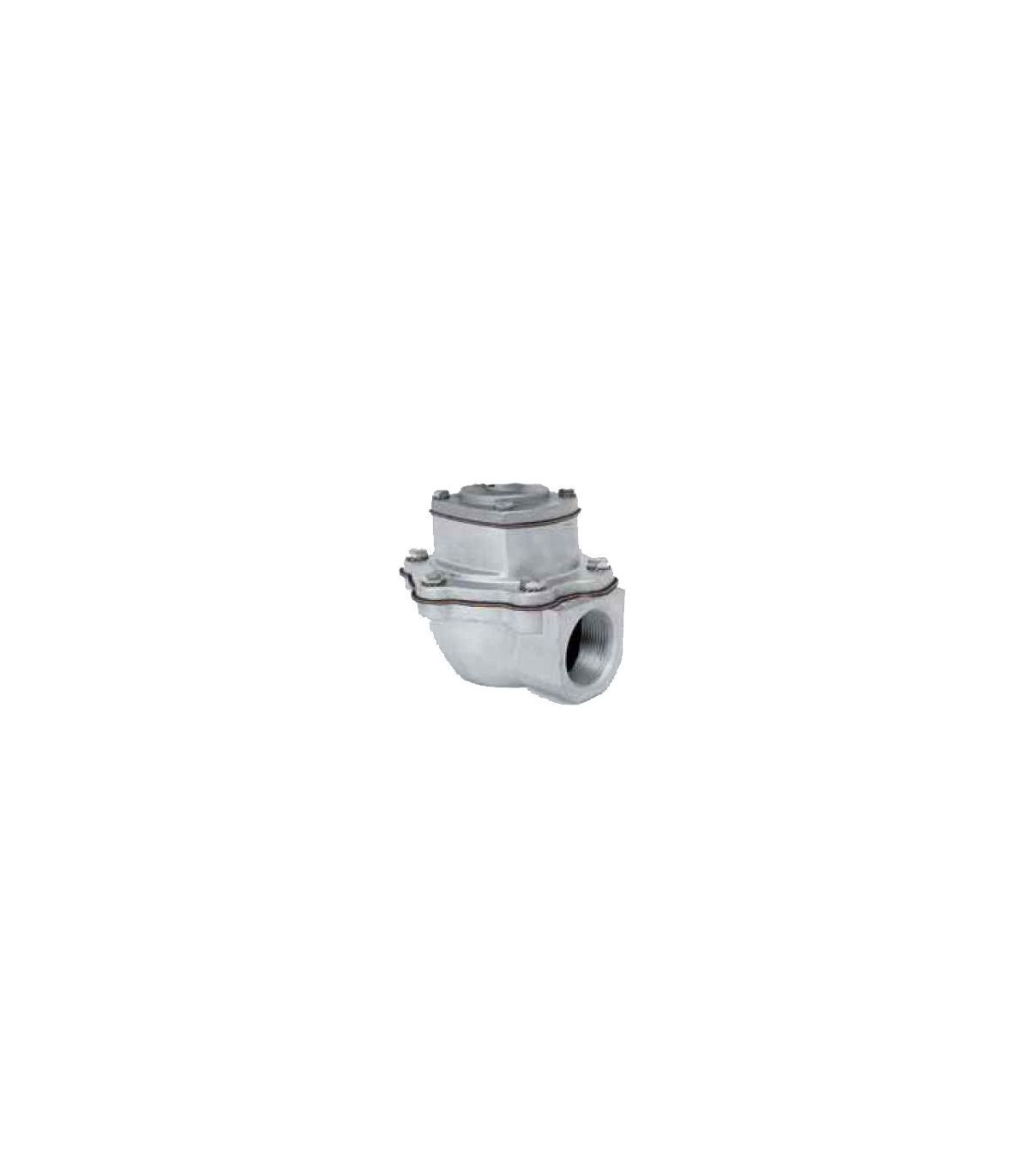

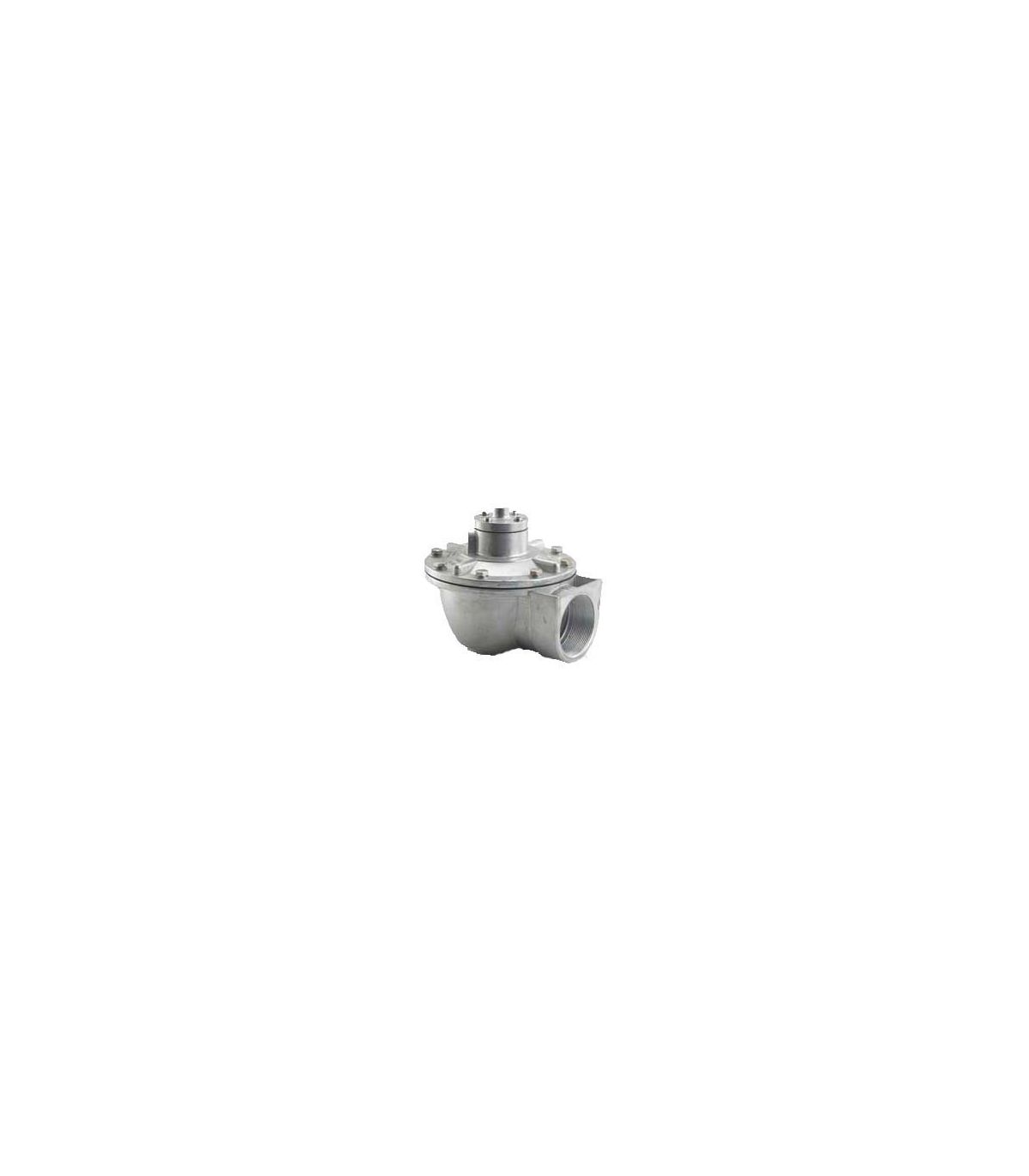

PNEUMATIC FILTER BLOWOUT VALVE

The pneumatic filter blow valve is designed for the automatic cleaning of filters by means of compressed air pulses.

Applications: industrial filtration systems (such as dust collectors or bag filters)

Main features:

Valves designed for bag filter blowing installations.
Speed and high flow rate.
Membrane closure.
Working pressure 0.5 - 8 bar.
Temperature -40 / 80ºC.
Aluminum body.
Possibility of mounting a Viton membrane.
ATEX II 2 GD (zone 1 - 21)
ATEX II 3 GD (zone 2 - 22)

Pneumatic filter blow valve

A pneumatic filter blow solenoid valve is an electrically operated valve that controls the rapid discharge of compressed air into the blow tubes or venturis, generating a high-pressure air pulse that cleans the filter bags, dislodging the dust accumulated on their surface.

Its function is to produce short, intense pulses of air, dislodge particulate matter adhering to the bags, maintain filtration efficiency, and prevent excessive pressure loss.

Applications

Industrial bag filters
Emission control systems
Cement plants, mining plants, steel plants, food processing plants, etc.

Technical specifications of a pneumatic filter blow valve:
