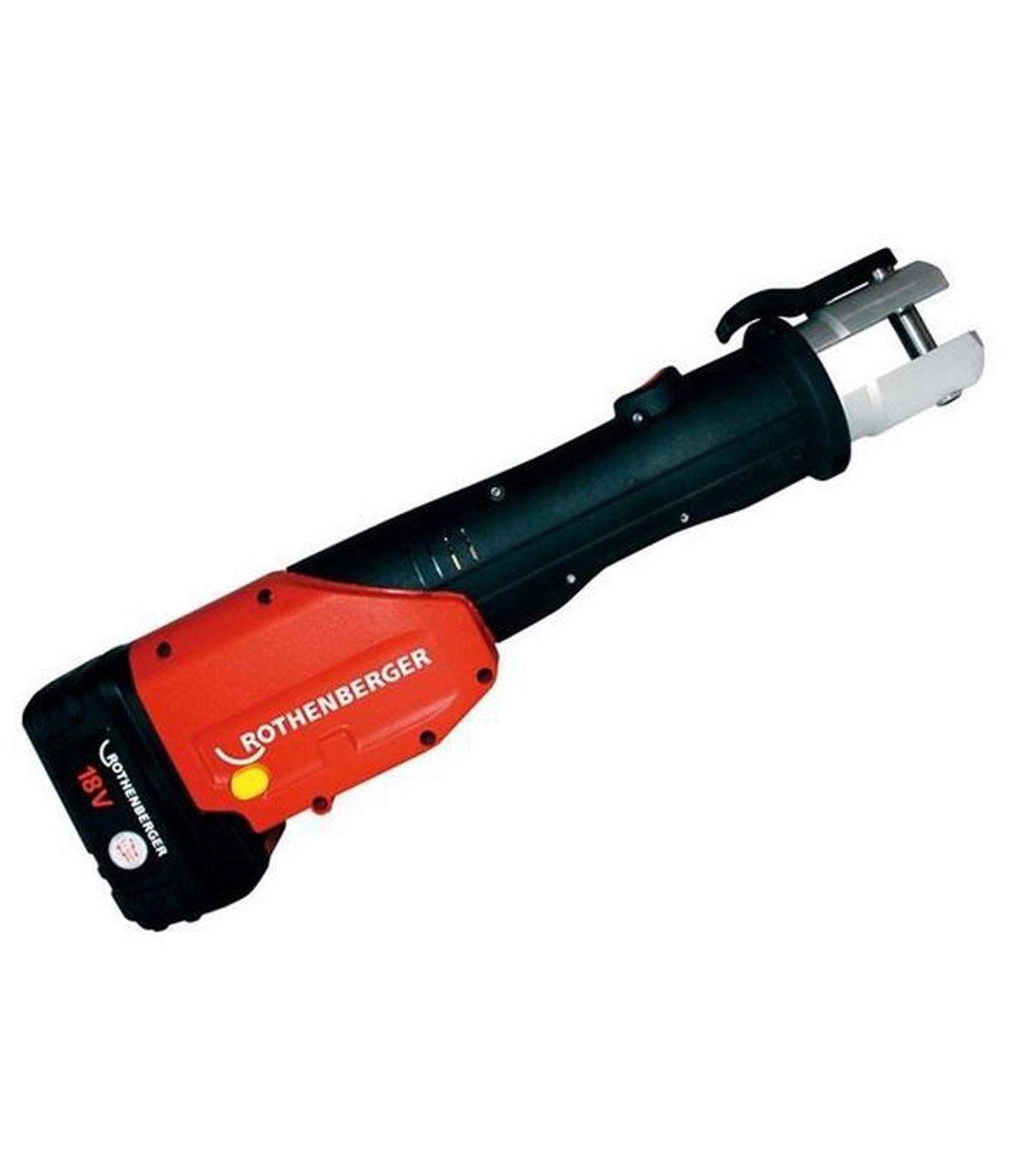

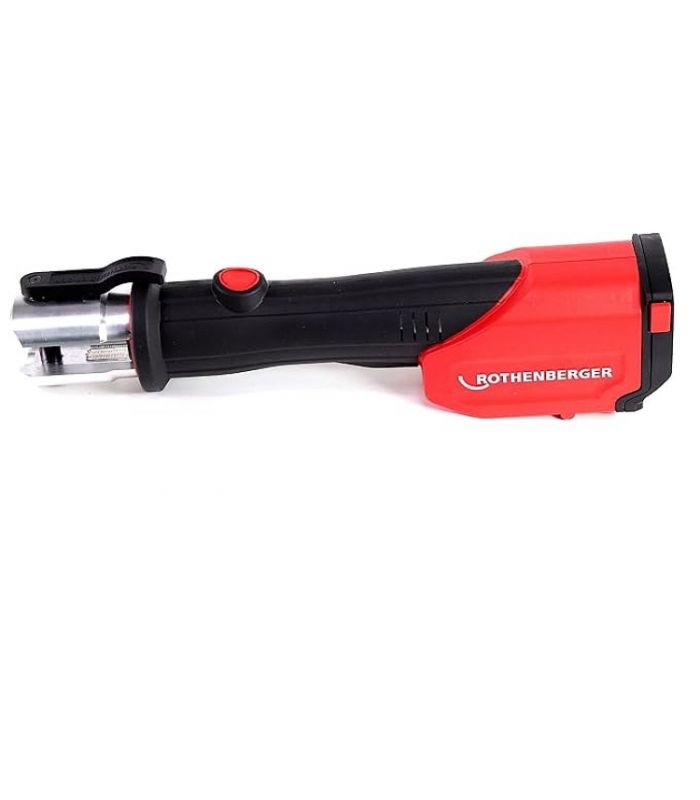

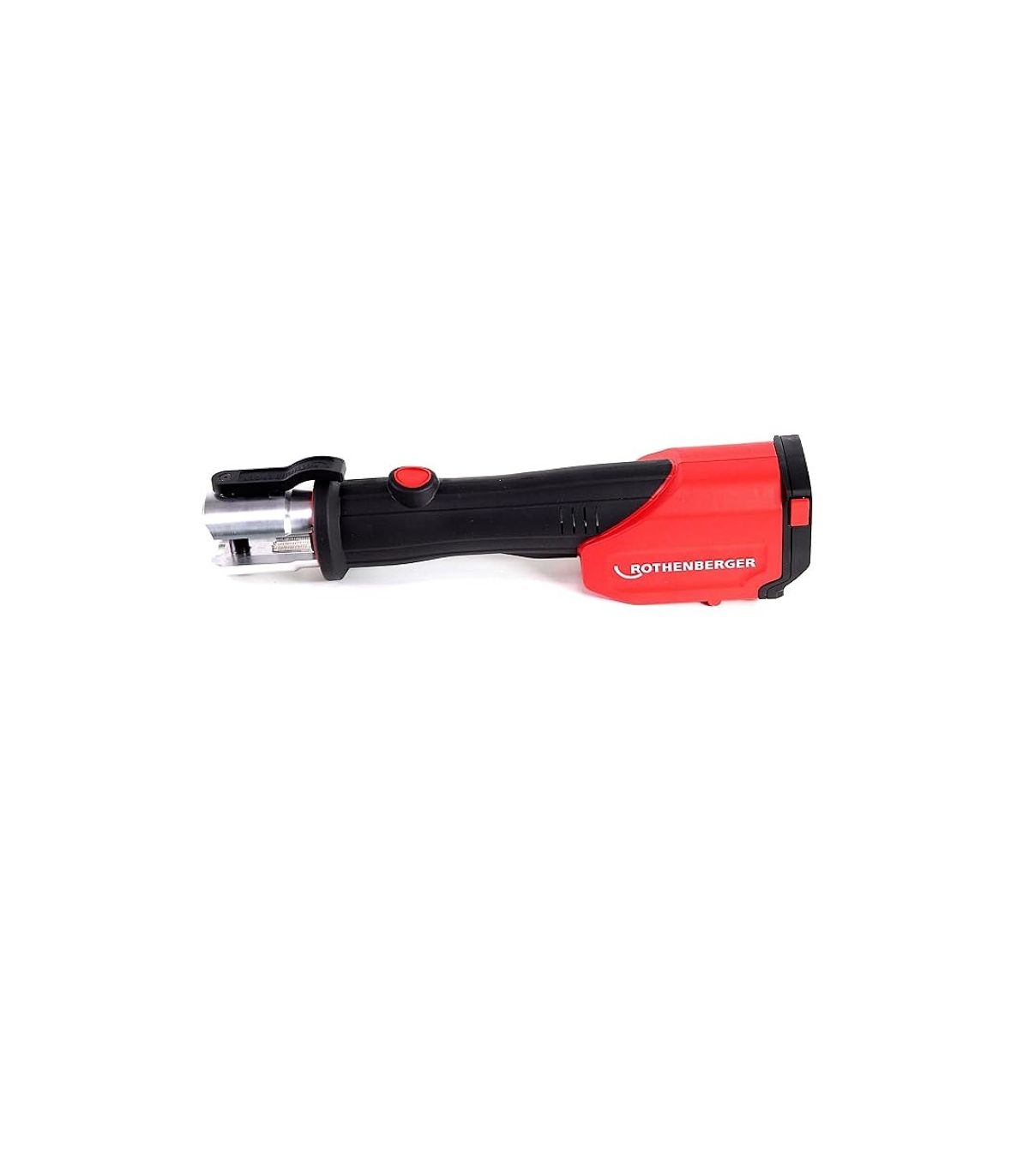

BATTERY-POWERED ELECTRO-HYDRAULIC PRESS

A battery-powered electro-hydraulic press uses a hydraulic system driven by an electric motor powered by a rechargeable battery to make joints, usually radial or axial, in pipes and fittings.

Applications: Plumbing, heating, gas and air conditioning installations, Maintenance and repair work, Installations in hard-to-reach places, Work at height.

Technical sheet:

Dimensions: 445 x 125 x 75 mm
Weight: approx. 3.6 kg (without jaws)
Piston/core force: 32 kN / 40 mm
Nominal size: Ø 12 - 110 mm (depending on the system)
Jaw clamp: 270° rotation
Power supply: Li-ion battery 18 V / 3 Ah
Power adapter 230 V, 50 - 60 Hz,
110V power adapter upon request
Operating temperature: -10° C to +60° C
Pressings: Up to 160 with 28 mm stainless steel
Up to 90 with 54mm stainless steel
SUPPLIED WITHOUT CLAMPS

€2,057.00 (tax included)

€1,700.00 (tax excl.)

Reference:

5825

Description
Comments

Description

battery-powered electro-hydraulic press

CHARACTERISTICS

Reliable and economical
Top-quality service interval of 20,000 pressing cycles. Ensures continuous and economical use.
Wider working temperature range
ROMAX® 3000 performs perfectly even under harsh environmental conditions. Pressing can be performed between -10°C and +60°C.
Wide range
Standard Li-ion technology allows up to 160 pressings (with 28mm stainless steel), and/or 90 pressings (with 54mm stainless steel) with each charge
Practical design
The compact design allows pressing even in tight spaces
CFT® technology guarantees the necessary pressing force. Automatically controlled pressing cycles
The extremely low weight, in addition to a balanced weight distribution, prevents fatigue, even with continuous use.

Product Details

Reference 5825
