ISO 21287 FIXINGS

COMPACT CYLINDER ISO-21287

COMPACT CYLINDER ISO-21287

€34.06 (tax excl.)
€41.21 (tax included)
An ISO-21287 compact cylinder is designed with a high-strength aluminum tube and cylinder heads, ensuring a lightweight yet robust structure. Its main advantage is its compact design , which allows for high thrust and...
FEMALE SWING FIXATION MP2

FEMALE SWING FIXATION MP2

€8.10 (tax excl.)
€9.80 (tax included)
An MP2 female swivel fitting is used in pneumatic systems, primarily to connect the rear end of a pneumatic cylinder to a structure or machine. It allows the cylinder to perform angular or oscillating movements as it...
MALE SWING FIXTURE

MALE SWING FIXTURE

€7.95 (tax excl.)
€9.61 (tax included)
A male clevis fitting is used in pneumatic or hydraulic systems to connect the end of a cylinder (or similar actuator) to a component or structure. The connection point allows for rotary or angular movement of the...
MALE OSCILLATING REAR FIXATION 90

MALE OSCILLATING REAR FIXATION 90

€8.10 (tax excl.)
€9.80 (tax included)
Male swing rear bracket 90 Its function is to connect the cylinder to a structure or support in such a way that it allows angular movement. Applications: Industrial automation, Agricultural machinery, Medical...
SQUAD (UNITARY)

SQUAD (UNITARY)

€4.61 (tax excl.)
€5.57 (tax included)
A bracket is a fixture or support designed to mount a pneumatic cylinder to a surface or other component of an automated system so that the cylinder is perpendicular. Applications: Industrial machinery, Packaging...

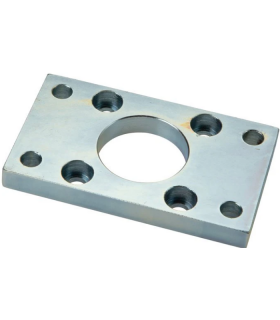

FLAT FLANGE

FLAT FLANGE

€10.25 (tax excl.)
€12.40 (tax included)
A flat flange is a connecting component used in automation systems and industrial machinery, specifically in the attachment of pneumatic and hydraulic cylinders. Applications: Industrial automation, Robotics,...
REAR FIXING SWINGING BALL JOINT ALUMINUM

REAR FIXING SWINGING BALL JOINT ALUMINUM

€43.48 (tax excl.)
€52.61 (tax included)
Rear swing arm aluminium ball joint It is used to connect the end of a pneumatic cylinder to a structure or support, allowing angular movement. It is fixed to the pneumatic cylinder by means of a threaded connection...
90° SWING REAR FIXING BALL JOINT

90° SWING REAR FIXING BALL JOINT

€108.53 (tax excl.)
€131.33 (tax included)
The 90° swivel rear mounting bracket is a mounting accessory designed for the articulated installation of pneumatic cylinders. Its design allows for up to 90° of rotation, offering greater flexibility in applications...
NARROW SWING FIXTURE

NARROW SWING FIXTURE

€16.84 (tax excl.)
€20.37 (tax included)
A narrow swivel fitting is a specialized mounting accessory that allows a pneumatic cylinder to pivotally connect to a structure or machine, but with a more compact design and reduced width. Its function is to allow...
CENTRAL OSCILLATING FIXATION

CENTRAL OSCILLATING FIXATION

€103.47 (tax excl.)
€125.20 (tax included)
Oscillating central fixation The central oscillating fixation is an accessory for pneumatic cylinders that allows the cylinder to be fixed and rotated at a central point. Applications: Industrial automation systems,...
ANCHOR FOR INTERMEDIATE HINGE

ANCHOR FOR INTERMEDIATE HINGE

€69.19 (tax excl.)
€83.72 (tax included)
The intermediate hinge bracket is a mounting accessory designed to secure pneumatic cylinders, allowing controlled oscillating movement during operation. It is installed in the center of the cylinder body and acts as...
MALE THREADED END

MALE THREADED END

€16.67 (tax excl.)
€20.17 (tax included)
The male threaded end serves to transform the rod outlet of ISO-21287 (5003) cylinders into a male thread. Main features: Metric thread ISO-21287 Standard Supplied without nut. Made of zinc-plated steel.
PIN FOR SWING FIXTURES

PIN FOR SWING FIXTURES

€2.06 (tax excl.)
€2.49 (tax included)
Pin for oscillating fixings A pivot pin is a mechanical component designed to act as an axle in joints that allow one part to pivot relative to another. It is essential in applications requiring a movable and...

What are ISO 21287 fixings?

ISO 21287 fixings are accessories designed to install and secure compact pneumatic cylinders in accordance with the ISO 21287 standard, ensuring a stable, aligned and compatible fixing with different industrial configurations.

What is ISO 21287?

The ISO 21287 standard defines the dimensions and characteristics of compact pneumatic cylinders, widely used in industrial automation due to their reduced design and high efficiency.

Fasteners compatible with this standard ensure:

  • Interchangeability between manufacturers
  • Standardized assemblies
  • Easy integration into existing systems

What types of fasteners exist?

Depending on the application, there are different mounting solutions:

  • Front and rear supports. For rigid mounting of the cylinder to structures or machinery.
  • L-shaped brackets and supports. Ideal for angled mounting or confined spaces.
  • Joints and ball joints. They allow for the absorption of misalignments and movements.
  • Mounting brackets. They provide stability in front or rear mountings.

In what applications are they used?

They are used in:

  • Industrial automation
  • Production lines
  • Assembly machinery
  • Handling and packaging equipment

Where can I find ISO 21287 cylinder fixings?

At Disumtec, we offer a wide range of fasteners adapted to different industrial needs. Contact our team for personalized technical advice.

Are they compatible with all cylinders?

They are compatible with cylinders that comply with the ISO 21287 standard, which guarantees a correct adaptation between components from different manufacturers.
