FIG 399 HOSE SPIGOT THREAD STAINLESS STEEL 316
FIG 399 HOSE SPIGOT THREAD STAINLESS STEEL 316
FIG 399 HOSE SPIGOT THREAD STAINLESS STEEL 316
FIG 399 HOSE SPIGOT THREAD STAINLESS STEEL 316

FIG 399 HOSE SPIGOT THREAD STAINLESS STEEL 316

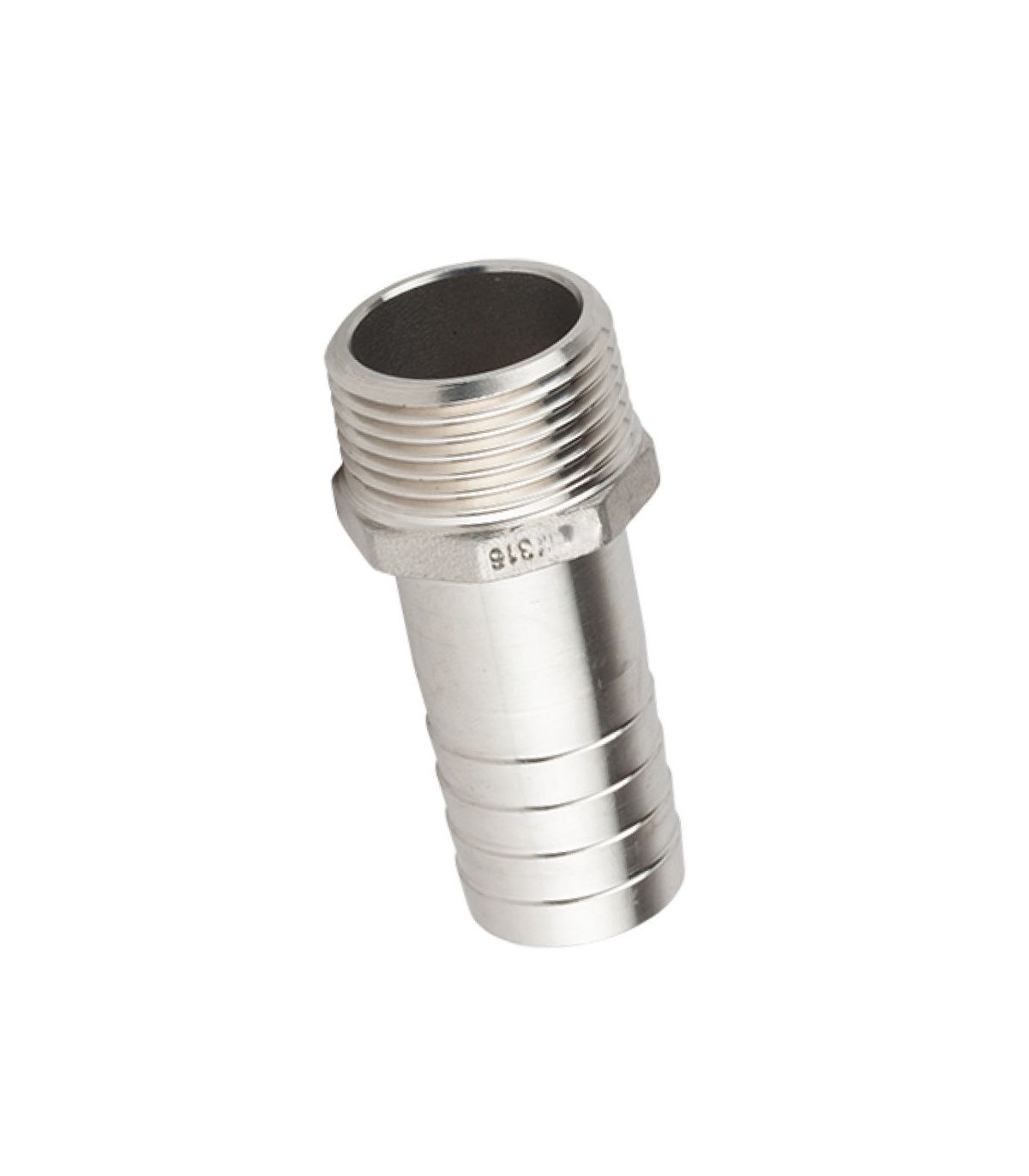

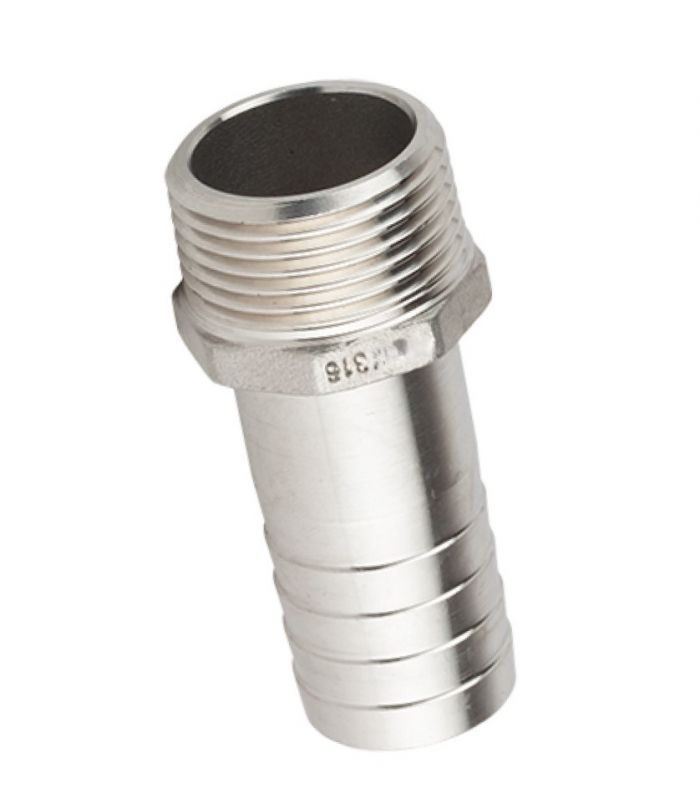

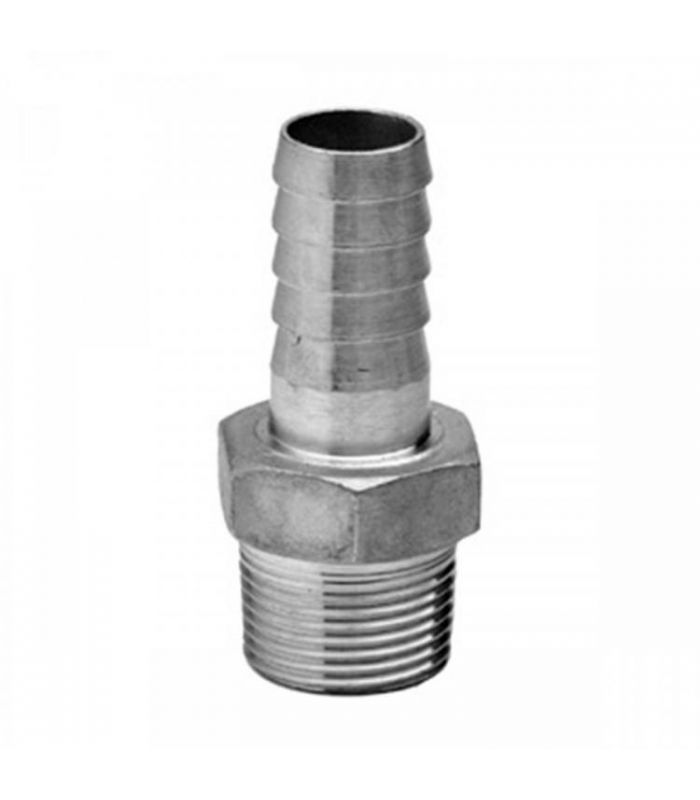

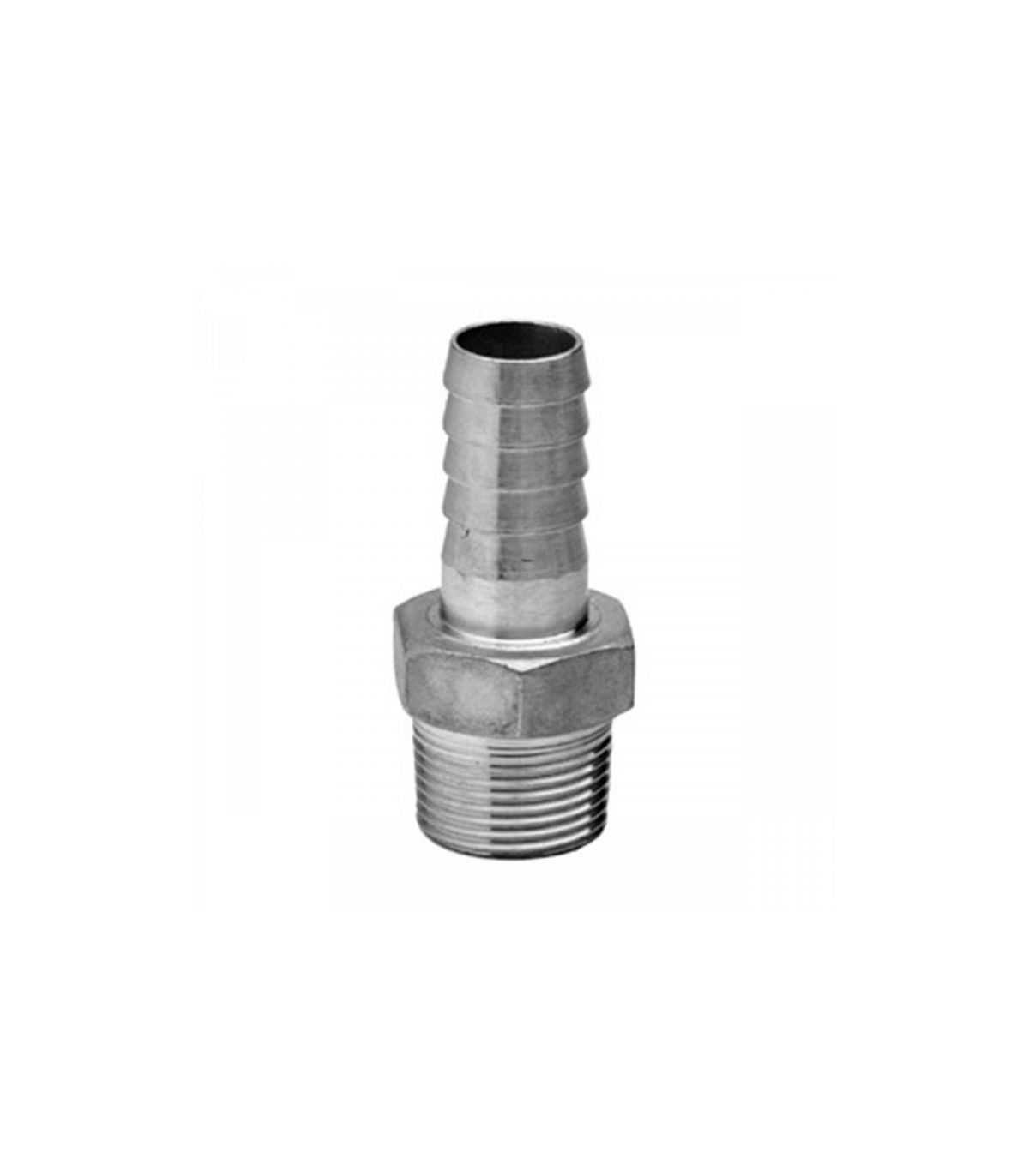

Figure 399, stainless steel 316 threaded hose barb, is a threaded fitting used to connect a flexible hose to a rigid pipe or tube, allowing the flow of liquids or gases. It is a cylindrical piece with a male thread on one end and a barb with a conical tip on the other.

Applications: construction and maintenance, irrigation and sprinkler applications, oil and gas industry, food and pharmaceutical industry, chemical industry.

Technical specifications:

  • Stainless steel accessory r 20 bar
  • A-316 Microfusion Stainless Steel
  • Dimensions according to ISO-4144 standard
  • Manufactured according to UNE EN 10213-4
  • Temperature -20 / 220ºC
€1.59 (tax included)
€1.31 (tax excl.)
Tube diameter - Thread
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 12-3/8
  • Ø 12-1/2
  • Ø 14-1/4
  • Ø 14-3/8
  • Ø 15-1/2
  • Ø 16-1/2
  • Ø 19-1/2
  • Ø 20-3/4
  • Ø 25-3/4
  • Ø 25-1
  • Ø 27-1
  • Ø 30-1
  • Ø 30-1-1/4
  • Ø 40-1-1/2
  • Ø 50-2
  • Ø 60-2
  • Ø 33-1-1/4
Reference:
12190011
Description

Fig 399 hose barb stainless steel 316 thread

Product Details
12190011
