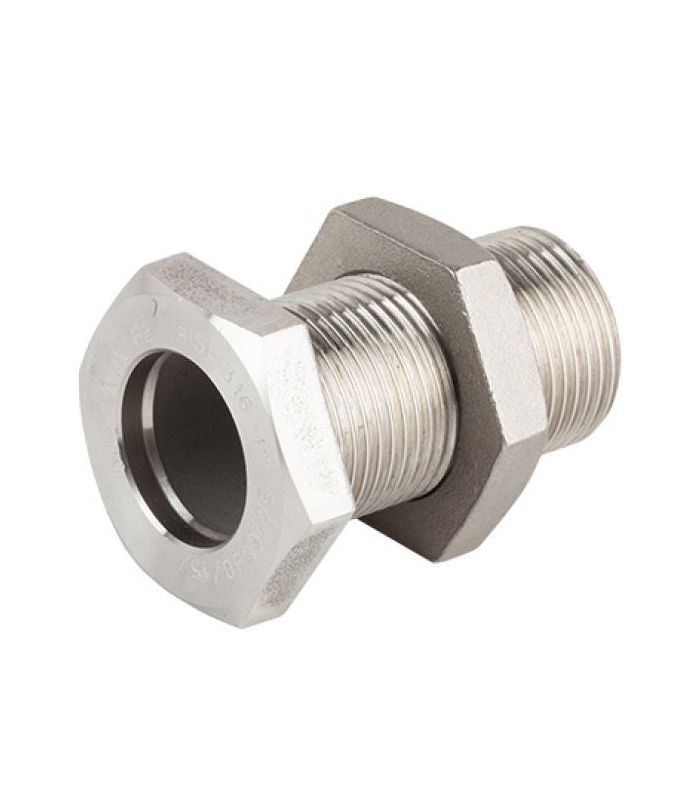

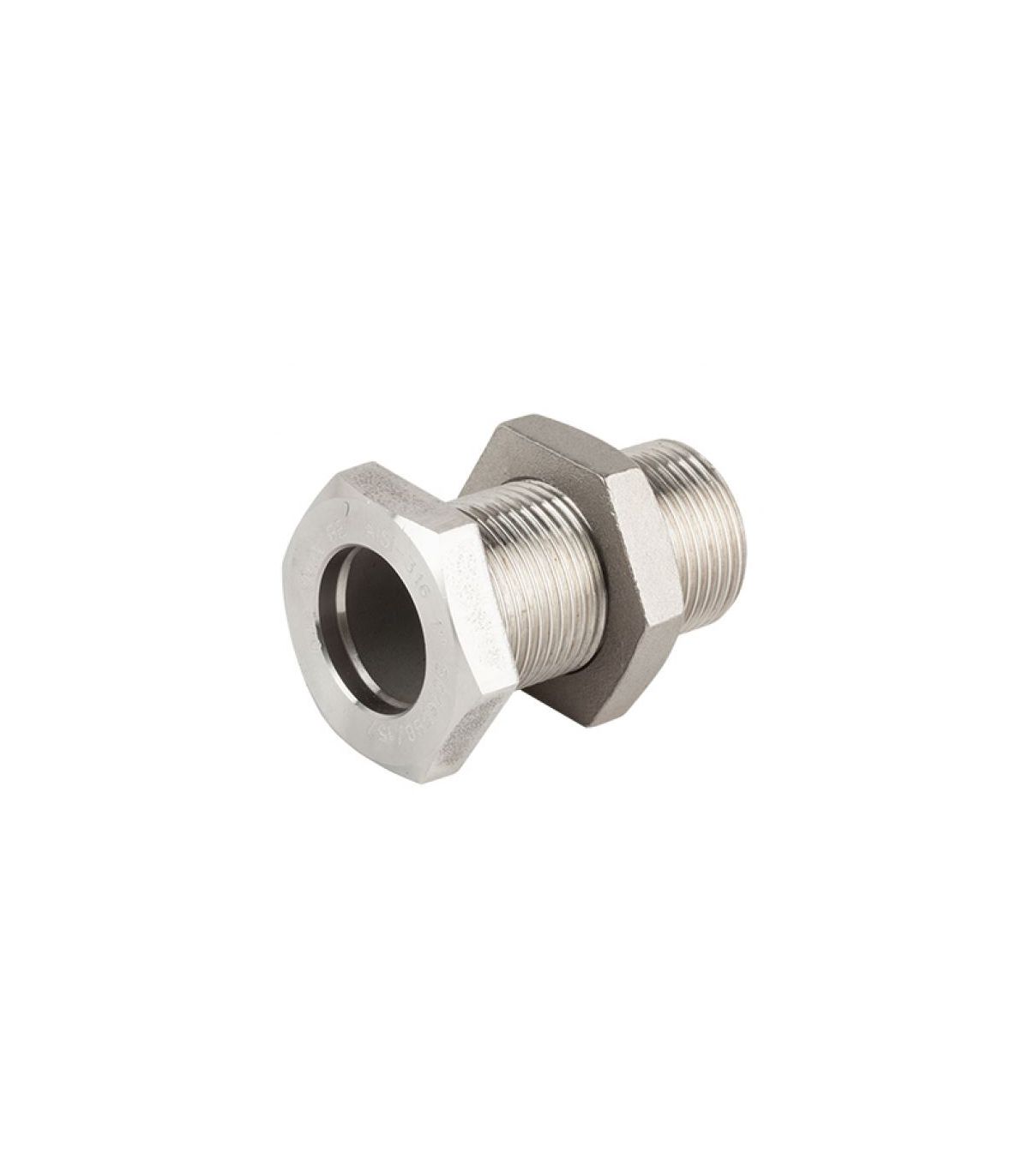

A Fig 285 stainless steel 316 bulkhead fitting is a threaded fitting used to pass through a wall or panel, allowing the passage of a pipe or cable, sealing the opening and providing an aesthetic finish. It is a cylindrical piece with a male thread on one end and a hexagonal nut on the other.
Applications: food industry, pharmaceutical industry, construction, marine applications.
Main features:
Fig 285 stainless steel 316 bulkhead fitting
Technical data sheet for a Fig 285 stainless steel 316 bulkhead fitting:
| Reference | Thread | L (mm) | S (mm) | K (mm) | D (mm) |
| 12120012 | 3/8" | 46 | 27 | 8 | 11.5 |
| 12120016 | 1/2" | 57 | 32 | 10 | 15.5 |
| 12120021 | 3/4" | 57 | 36 | 10 | 20.5 |
| 12120025 | 1" | 69 | 46 | 12 | 27.0 |
| 12120030 | 1-1/4" | 69 | 55 | 12 | 35.0 |
| 12120034 | 1-1/2" | 70 | 60 | 14 | 40.0 |
| 12120037 | 2" | 82 | 75 | 16 | 51.0 |
