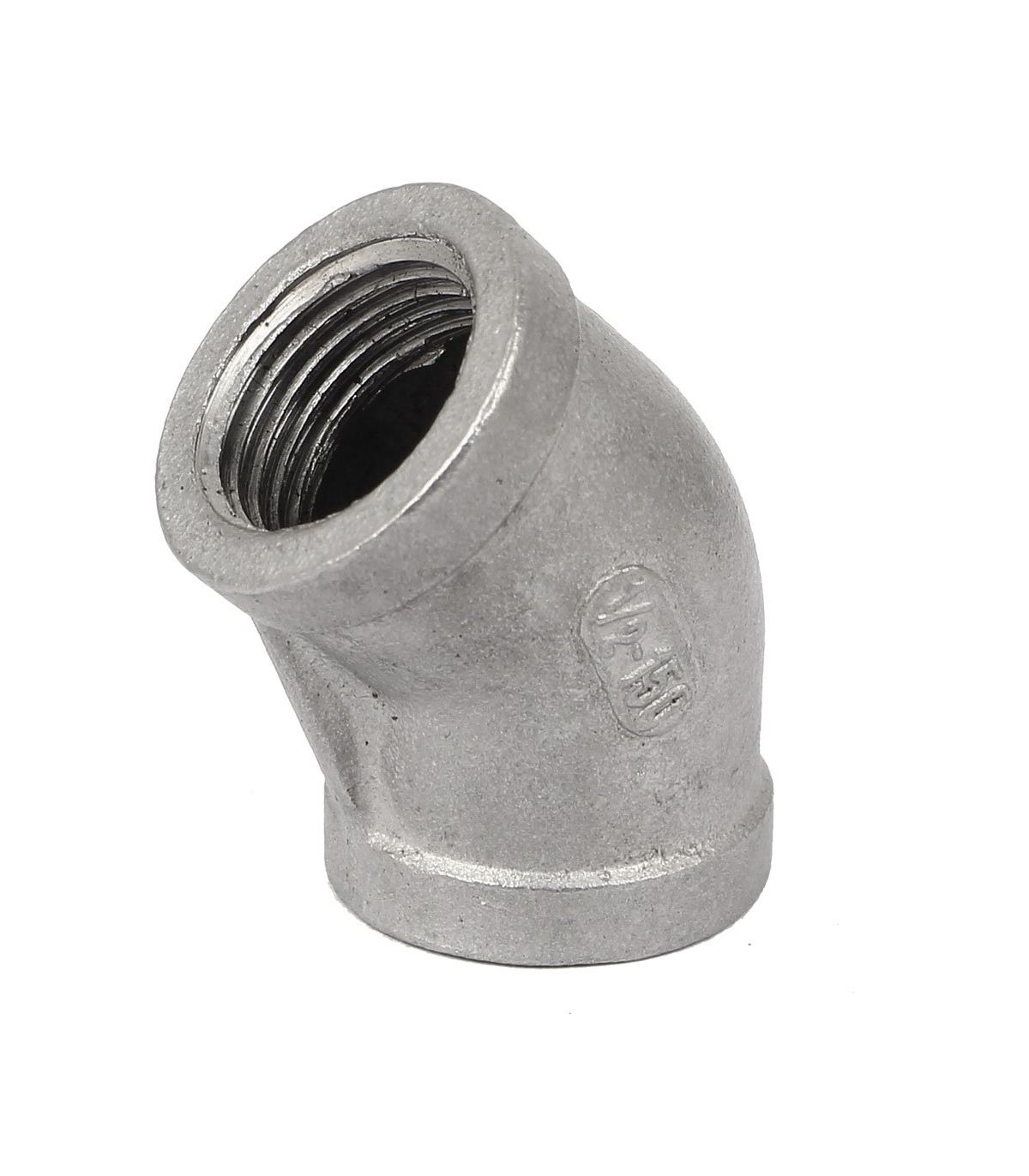

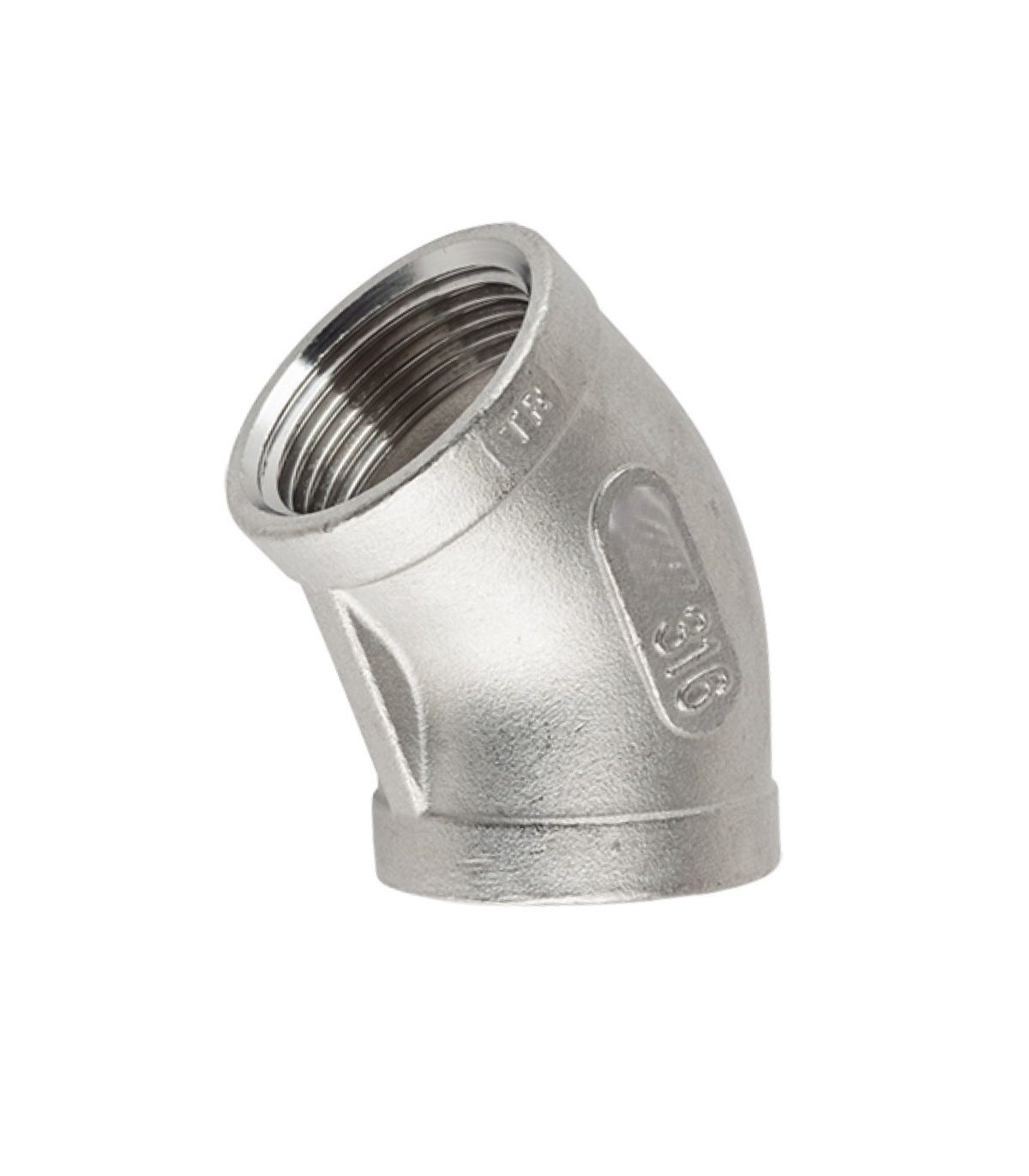

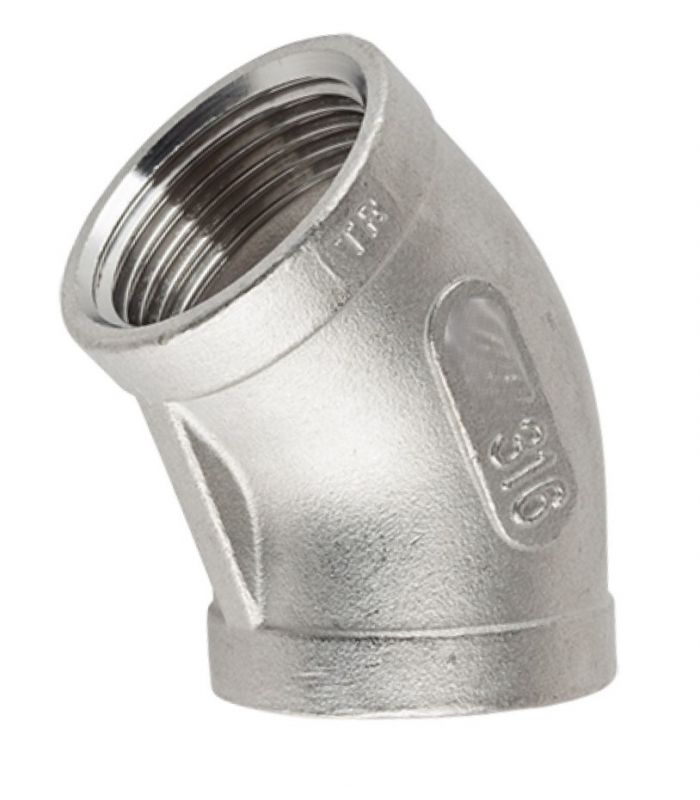

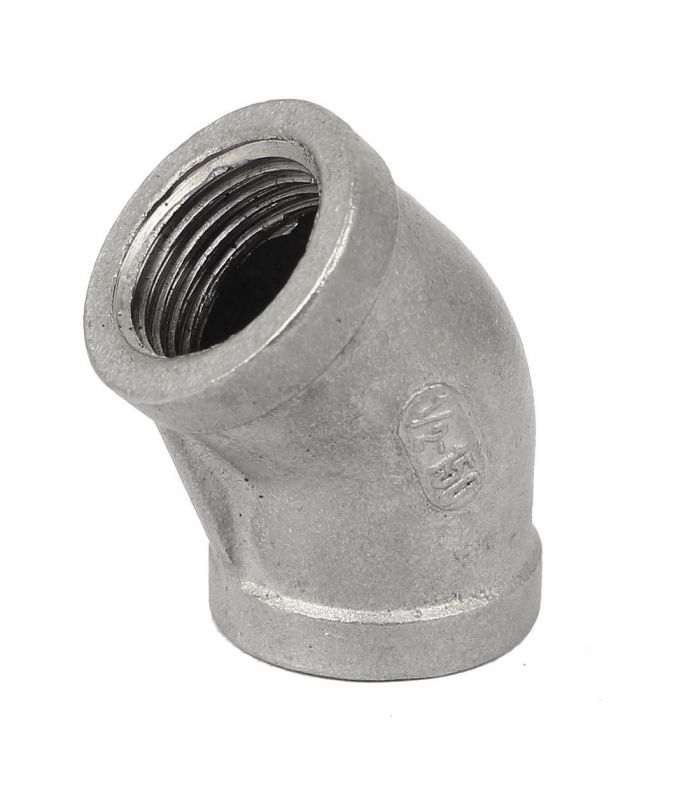

FIG 120 FEMALE ELBOW 45º STAINLESS STEEL 316
FIG 120 FEMALE ELBOW 45º STAINLESS STEEL 316
FIG 120 FEMALE ELBOW 45º STAINLESS STEEL 316
FIG 120 FEMALE ELBOW 45º STAINLESS STEEL 316

FIG 120 FEMALE ELBOW 45º STAINLESS STEEL 316

The Fig 120 female elbow 45º stainless steel 316 is a threaded fitting used to change the direction of flow at a 45º angle in pipes.

Applications: chemical industry, food and pharmaceutical industry, oil and gas industry, water treatment.

Main features:

  • Stainless Steel Threaded Fitting 150 PSI
  • Austenitic Stainless Steel A-316 DIN 1.4408
  • DIN 1.4408 tolerance
  • Manufactured according to UNE EN 10213-4
  • DIN 2999 thread
€2.53 (tax included)
€2.09 (tax excl.)
SELECT THE THREAD
  • 1/8"
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
Reference:
12040004
Description

Fig 120 45º female elbow in 316 stainless steel

Technical data sheet for a Fig 120 45º female elbow in stainless steel 316:

Reference Thread c (mm) d (mm)
12040008 1/4" 17.0 17.5
12040012 3/8" 19.0 22.0
12040016 1/2" 21.0 27.0
12040021 3/4" 25.0 32.0
12040025 1" 29.0 39.5
12040030 1-1/4" 33.0 49.0
12040034 1-1/2" 37.0 55.0
12040037 2" 42.0 67.0

Product Details
12040004
