A Fig 341 3-piece male female tapered stainless steel 316 fitting is a threaded accessory used to join two pipes or tubes of the same diameter quickly and easily, allowing disassembly without welding or cutting.
Applications: food and pharmaceutical industry, chemical industry, oil and gas industry, water treatment.
Main features:

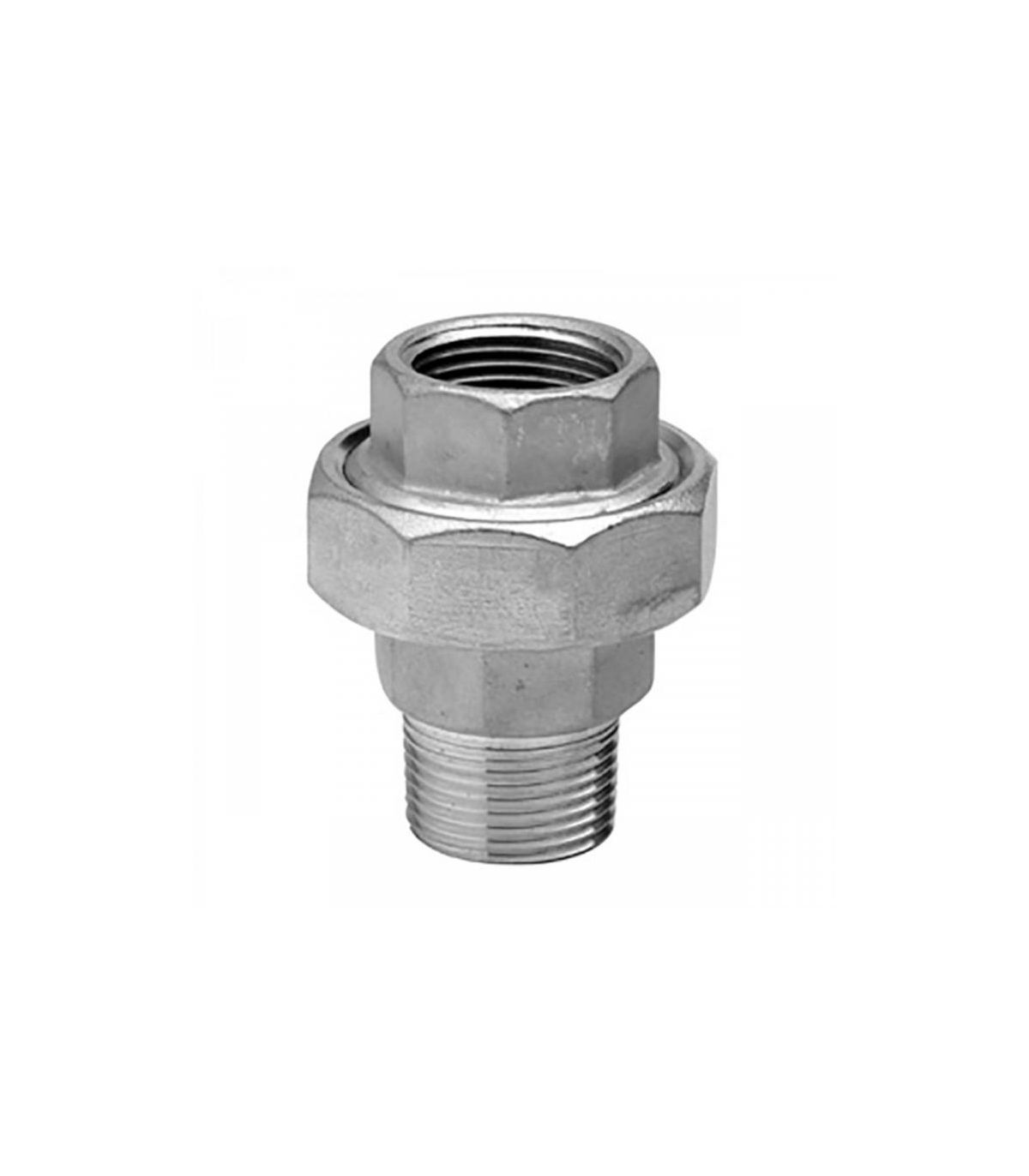

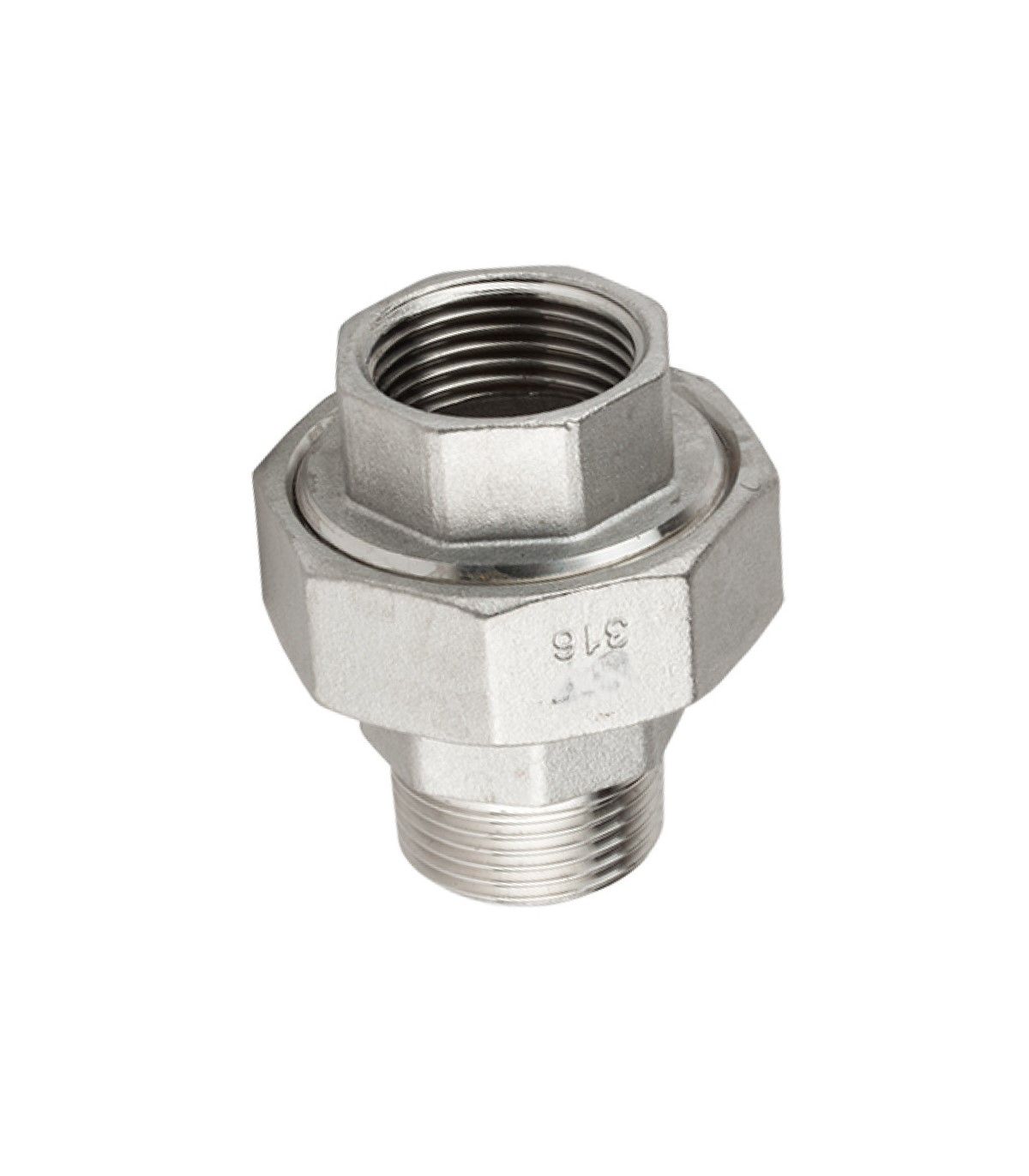

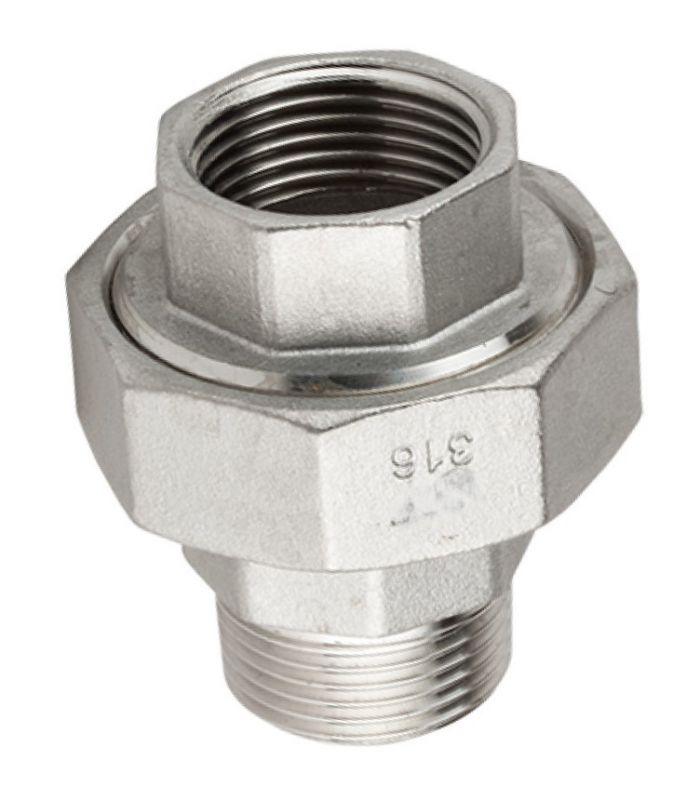

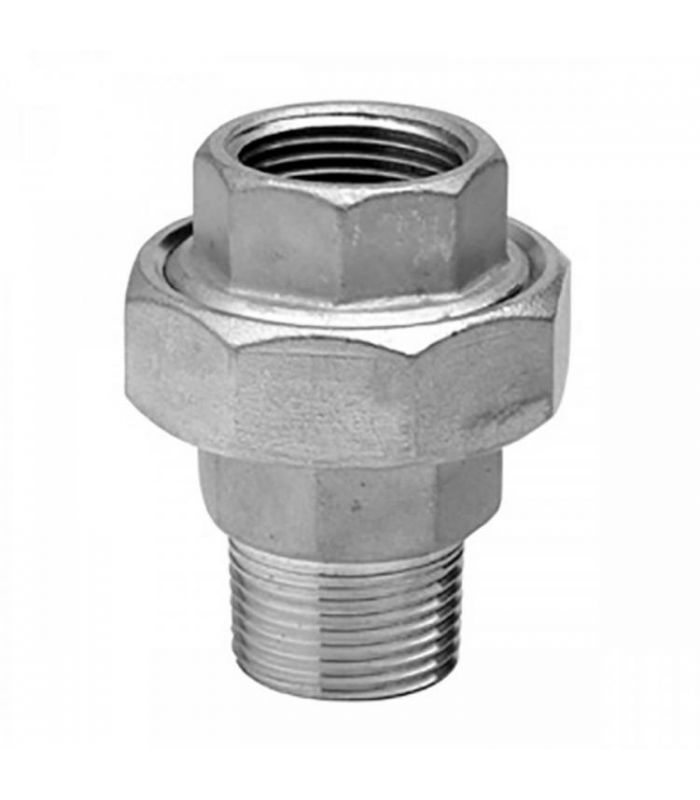

Fig 341 3-piece male-female tapered stainless steel 316 fitting
Technical data sheet for a Fig 341 3-piece male-female conical stainless steel 316 fitting:
| Reference | Thread | S1 (mm) | L3 (mm) | S (mm) |
| 12170008 | 1/4" | 18.0 | 44.0 | 29.0 |
| 12170012 | 3/8" | 22.0 | 47.5 | 34.0 |
| 12170016 | 1/2" | 26.0 | 54.0 | 38.0 |
| 12170021 | 3/4" | 32.0 | 59.0 | 46.0 |
| 12170025 | 1" | 40.0 | 68.0 | 53.0 |
| 12170030 | 1-1/4" | 49.0 | 70.0 | 66.0 |
| 12170034 | 1-1/2" | 56.0 | 78.5 | 72.0 |
| 12170037 | 2" | 68.0 | 90.0 | 88.0 |
| 12170042 | 2-1/2" | 84.0 | 104.0 | 108.0 |
| 12170045 | 3" | 98.0 | 113.0 | 92.0 |
| 12170048 | 4" | 126.0 | 146.0 | 116.0 |
