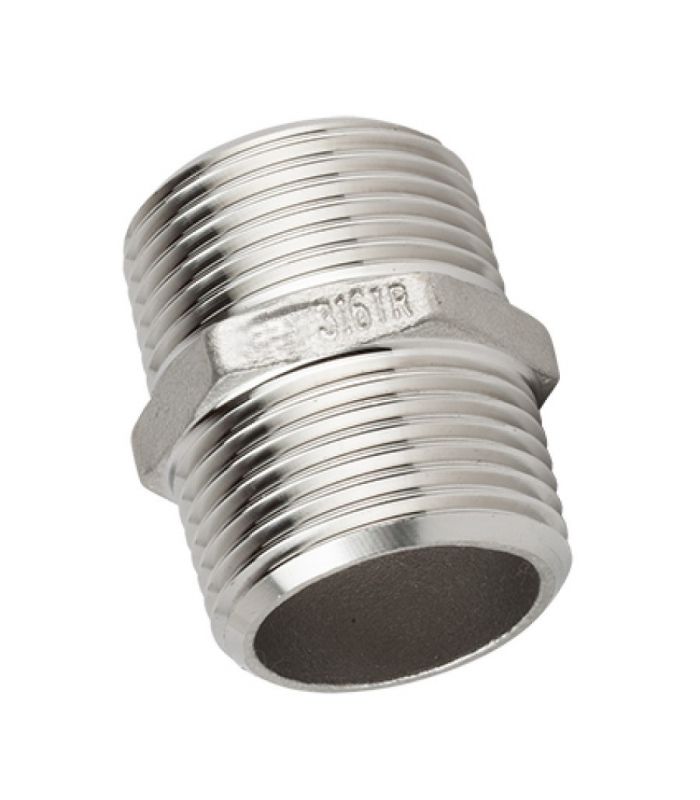

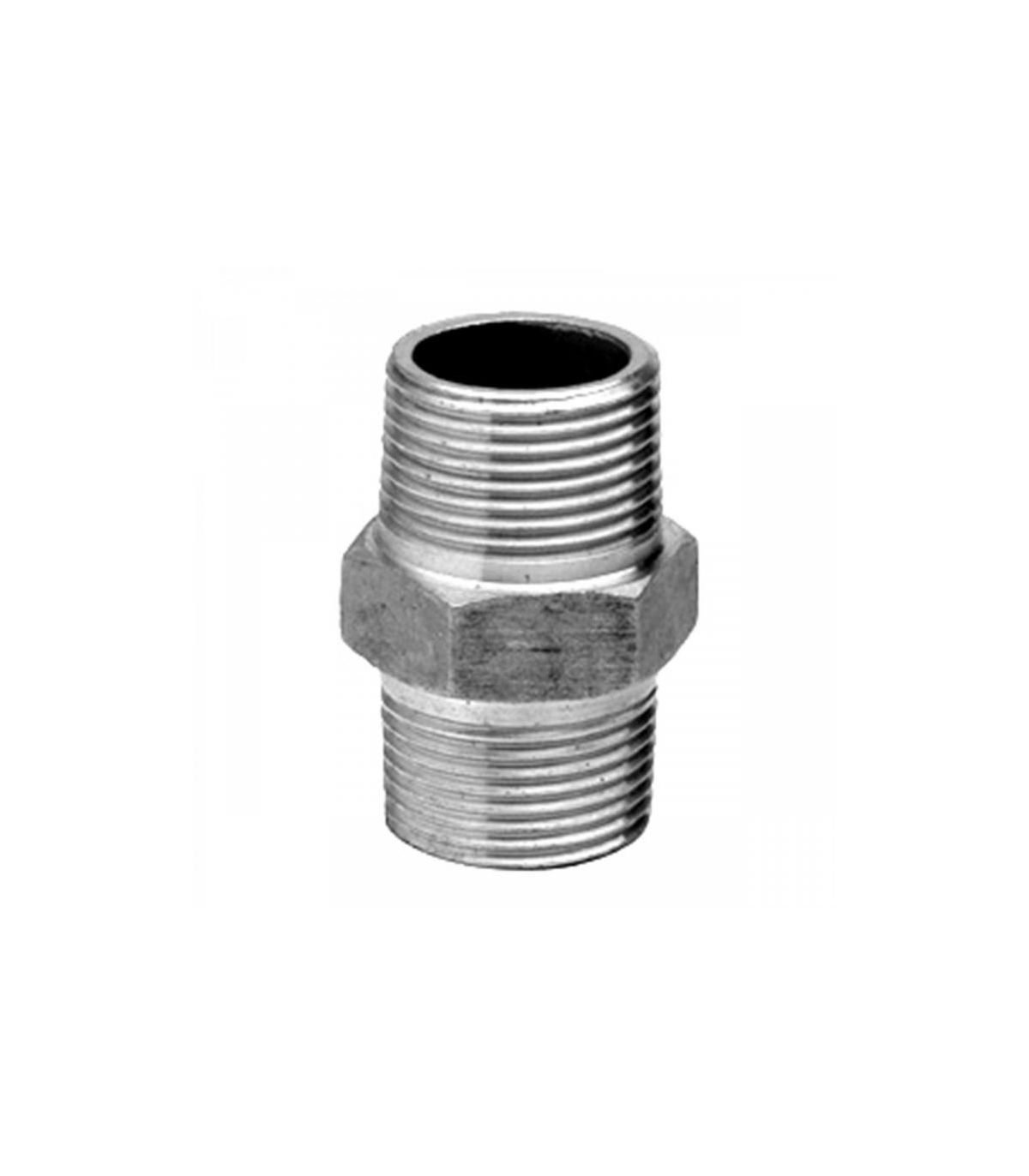

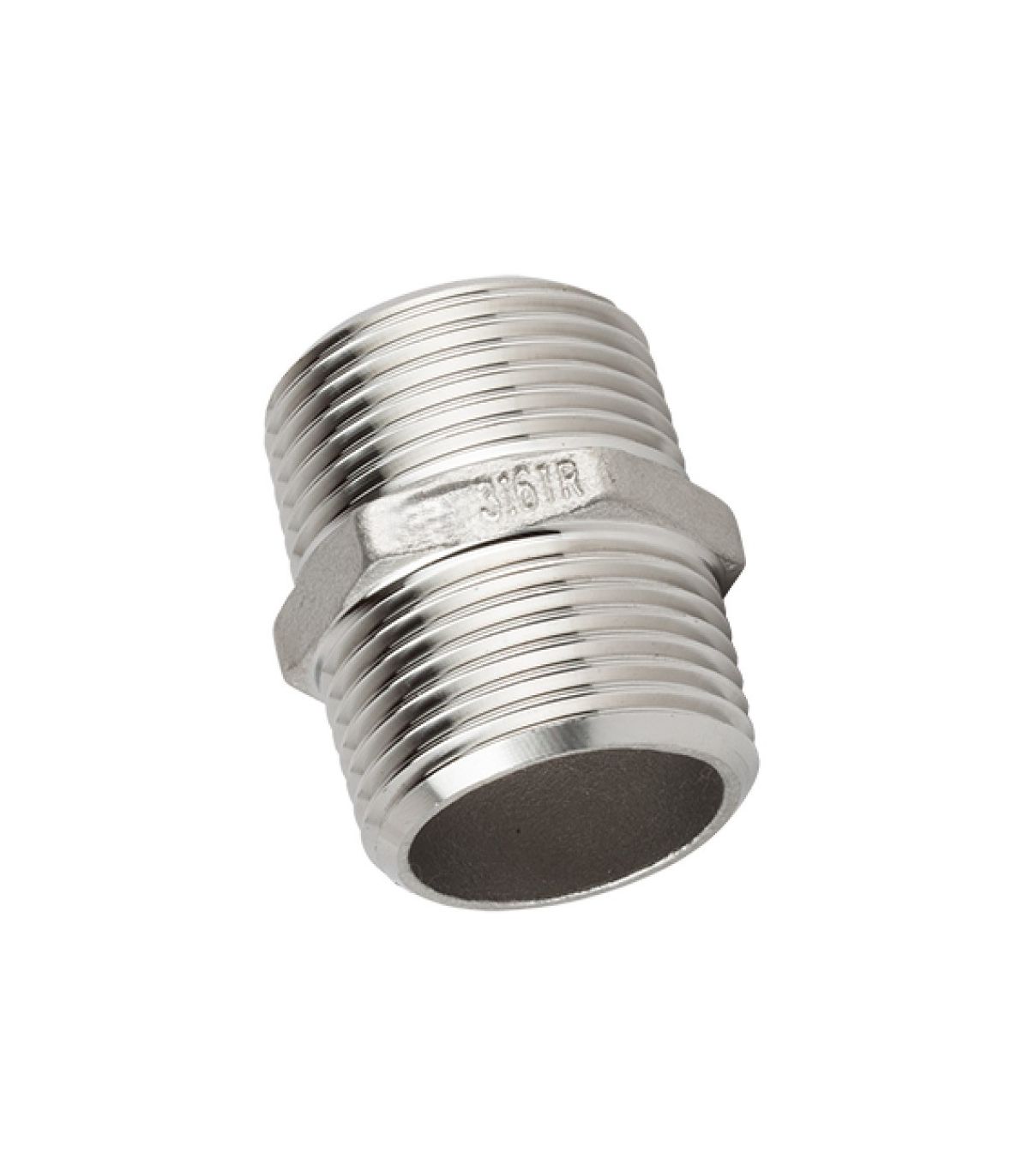

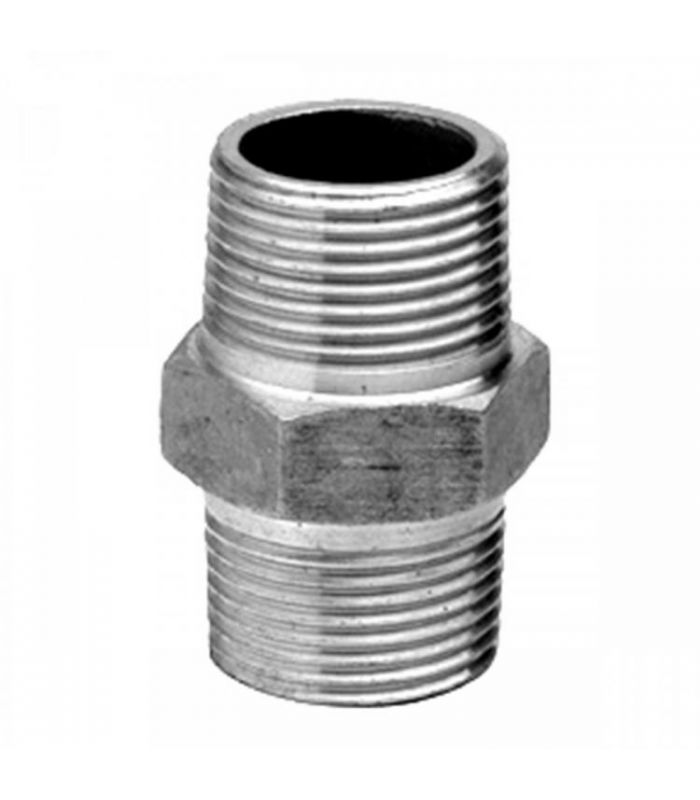

The Fig 280 stainless steel 316 fitting is useful for connecting a pipe or tube to another female threaded component, such as a valve, elbow, or tee.
Applications: food and pharmaceutical industry, chemical industry, oil and gas industry, water treatment.
Main features:
The Fig 280 machon inox 316 is a pipe fitting used for the threaded union of two female components in fluid conveyance installations.
It is a straight male-male fitting, made of AISI 316 stainless steel, which allows connecting two elements with female threads, guaranteeing a strong, watertight and durable joint.
Technical sheet of fig 280 stainless steel 316 male:
| Reference | Thread | A (mm) | C (mm) | D (mm) | L (mm) |
| 12000004 | 1/8" | 5.10 | 12.0 | 13.00 | 30.30 |
| 12000008 | 1/4" | 7.90 | 13.40 | 15.00 | 32.02 |
| 12000012 | 3/8" | 10.70 | 14.80 | 19.00 | 36.70 |
| 12000016 | 1/2" | 14.90 | 16.44 | 22.00 | 41.70 |
| 12000021 | 3/4" | 19.90 | 18.46 | 27.30 | 44.94 |
| 12000025 | 1" | 26.00 | 18.60 | 35.30 | 48.10 |
| 12000030 | 1-1/4" | 34.50 | 20.60 | 44.60 | 53.40 |
| 12000034 | 1-1/2" | 39.90 | 21.50 | 50.60 | 55.50 |
| 12000037 | 2" | 51.00 | 25.60 | 62.50 | 64.20 |
| 12000042 | 2-1/2" | 64.50 | 30.80 | 78.00 | 76.00 |
| 12000045 | 3" | 77.20 | 33.30 | 91.70 | 79.70 |
| 12000048 | 4" | 101.30 | 36.00 | 118.00 | 85.70 |
